Maturity: Good.

• 11 prototypes.
• In use since 2023/11.

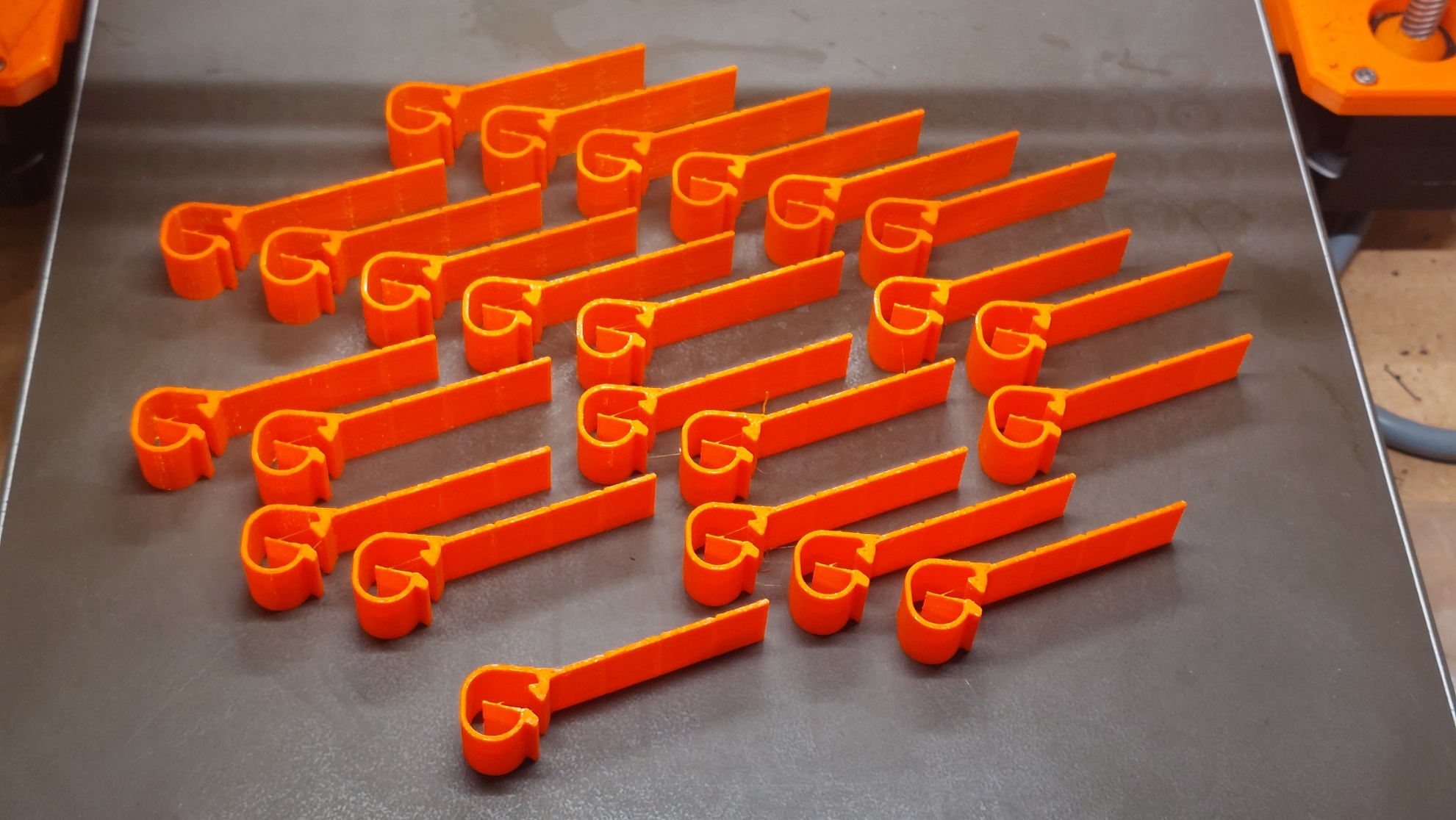

The clip is for any cables between 4.0 and 8.5 mm diameter.

13mm width. Nice for 12mm Dymo  style labels.

The clip is easy to remove to change the cable.

I initially designed it for Ethernet cables but any cables between 4.0 and 8.5mm can fit.

Print recommendation:

• The clip accuracy depends on the nozzle diameter then i think anything superior to 0.4 is not recommended.
• Any layer height is good.
• “Small perimeters” speed is advised to be set at the same speed than “External perimeters” else it will slow down the printing by much. The slicer may consider the narrow flat parts as “Small perimeters”.

Log:

• 2025/02:
  • Larger cable diameter range (4.5-7.0 to 4.0-8.5).
  • Increase height to 13mm. 12.5mm was a little bit narrow for the skewed labels.
• 2024/01:
  • Better clip holding.
• 2023/11:
  • Initial release.
