Descrição

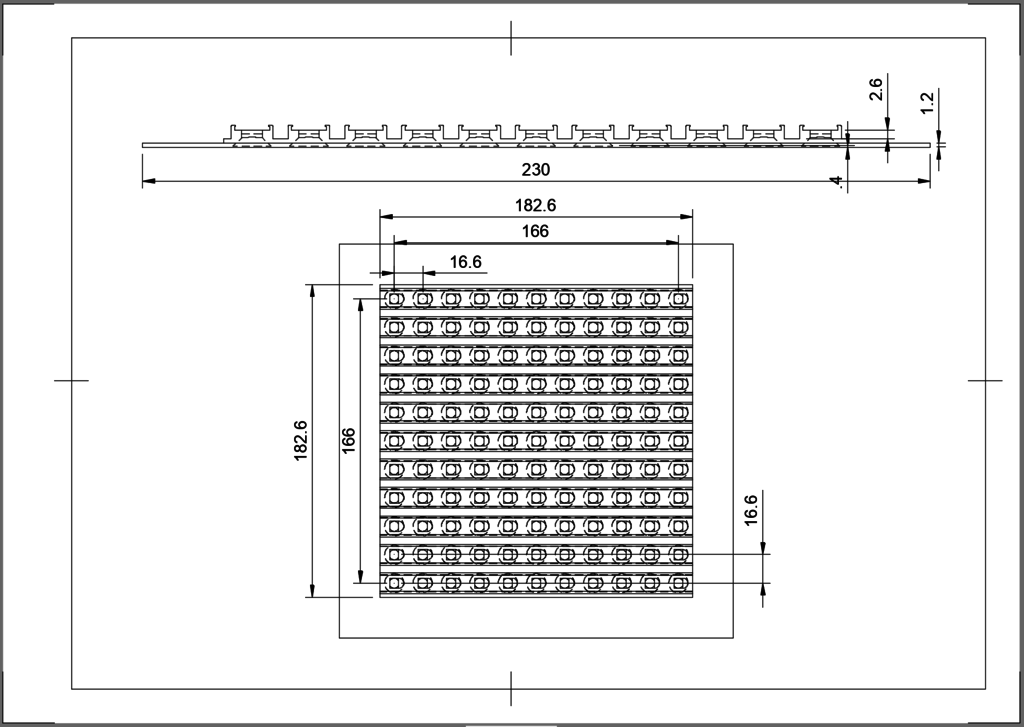

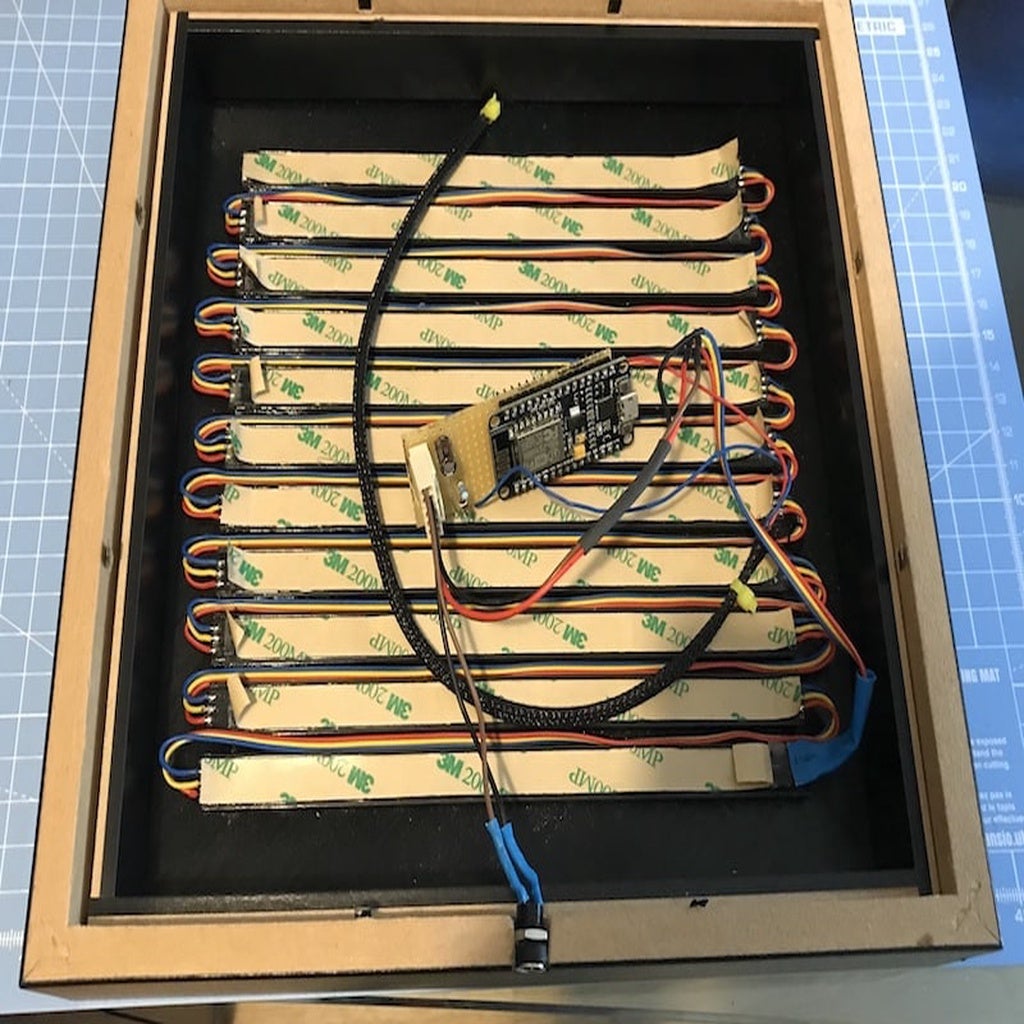

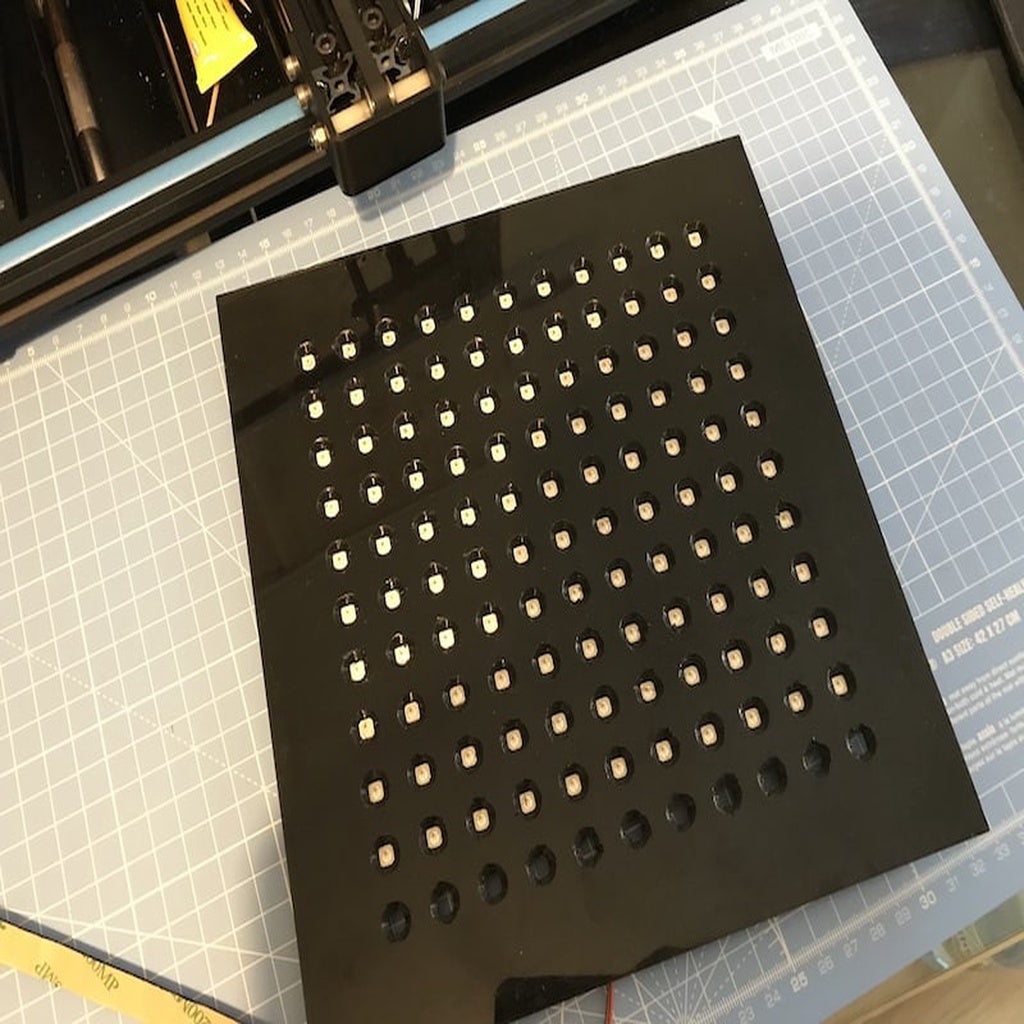

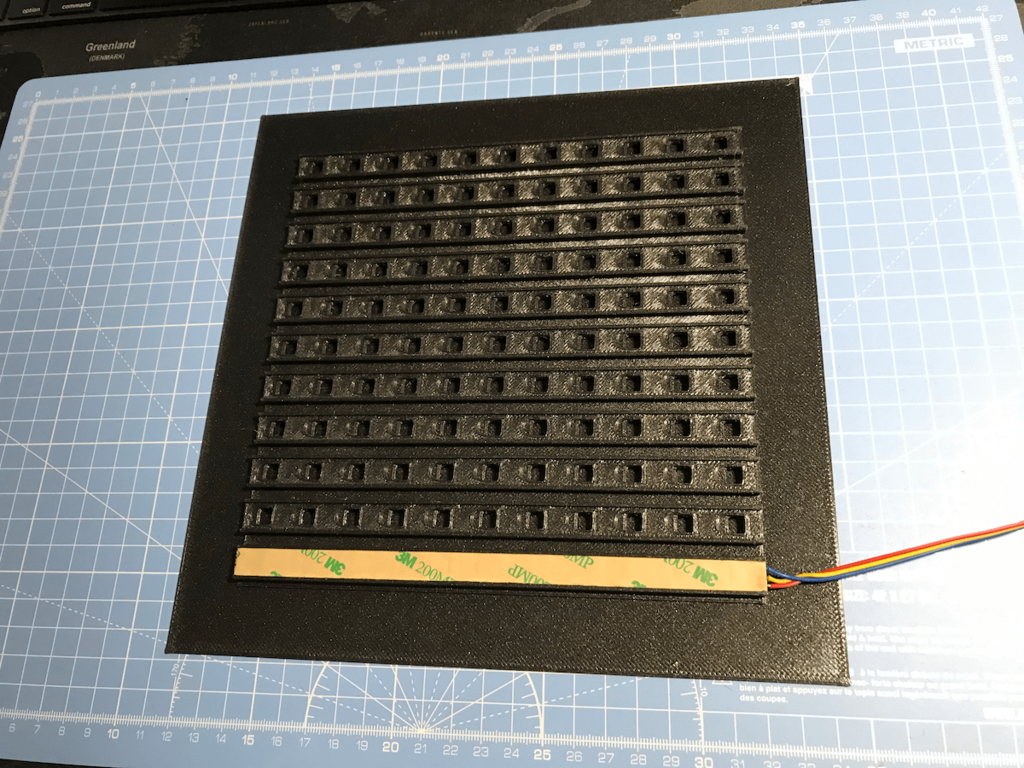

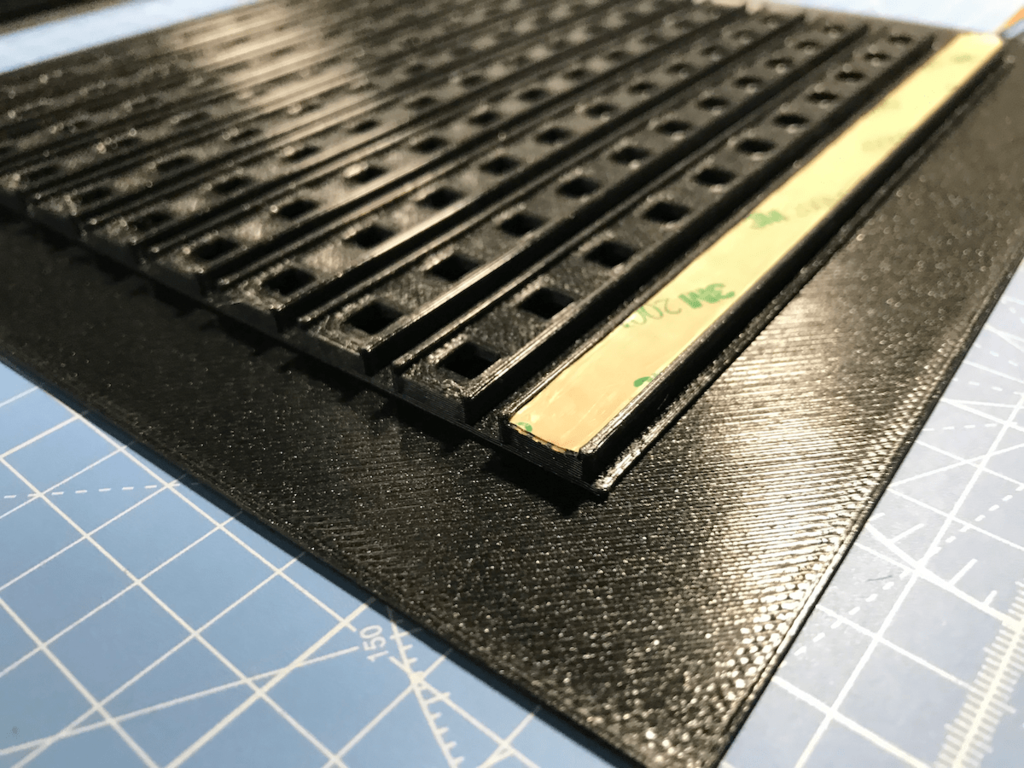

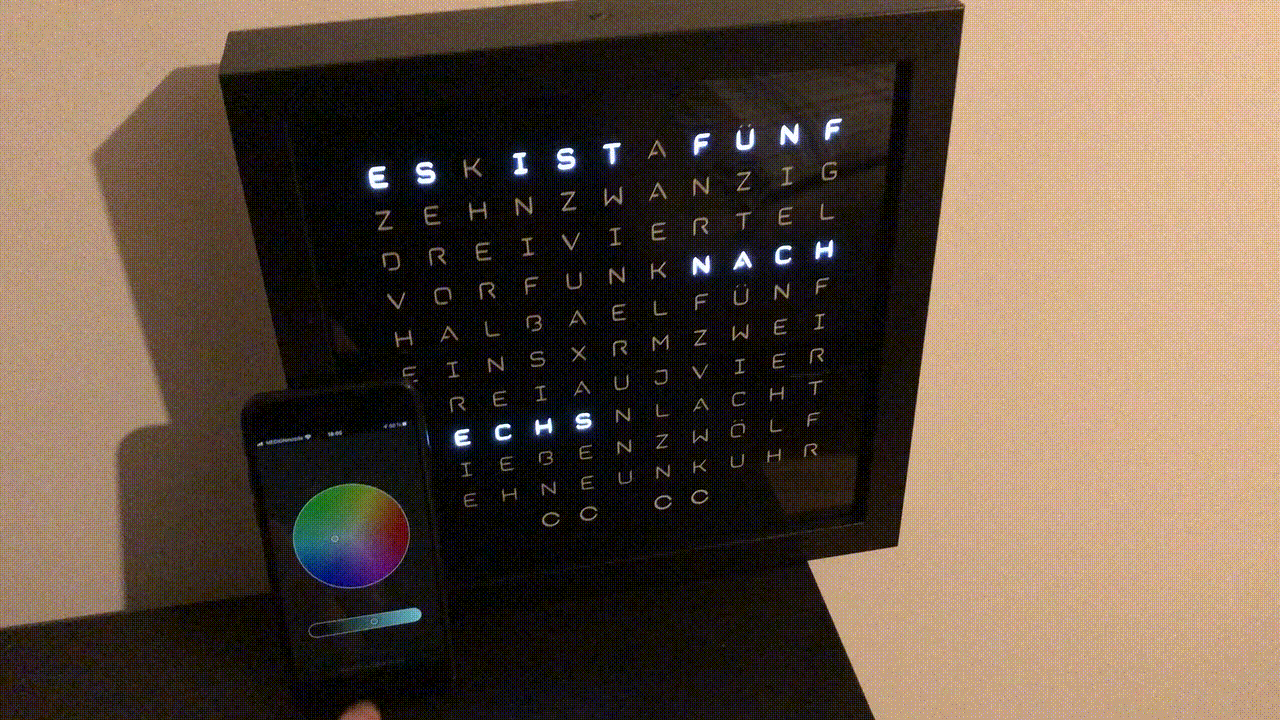

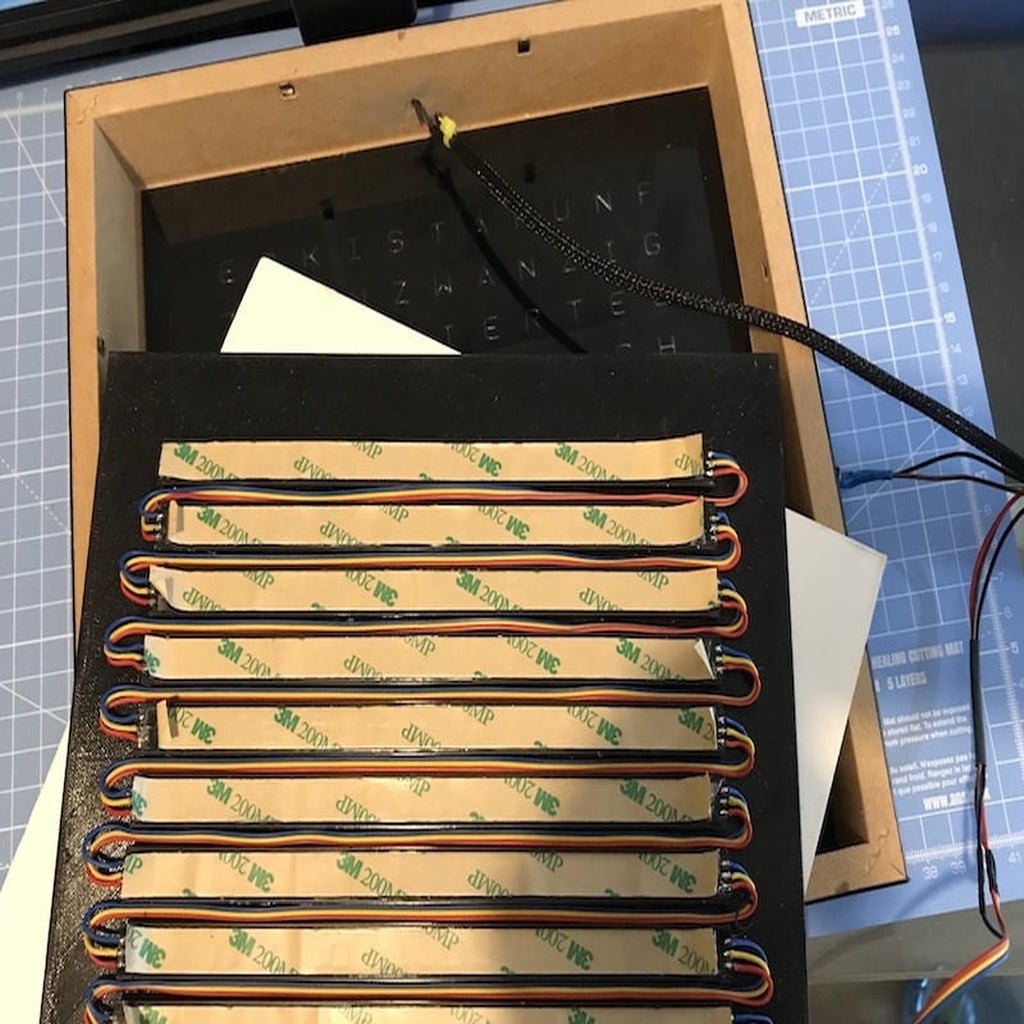

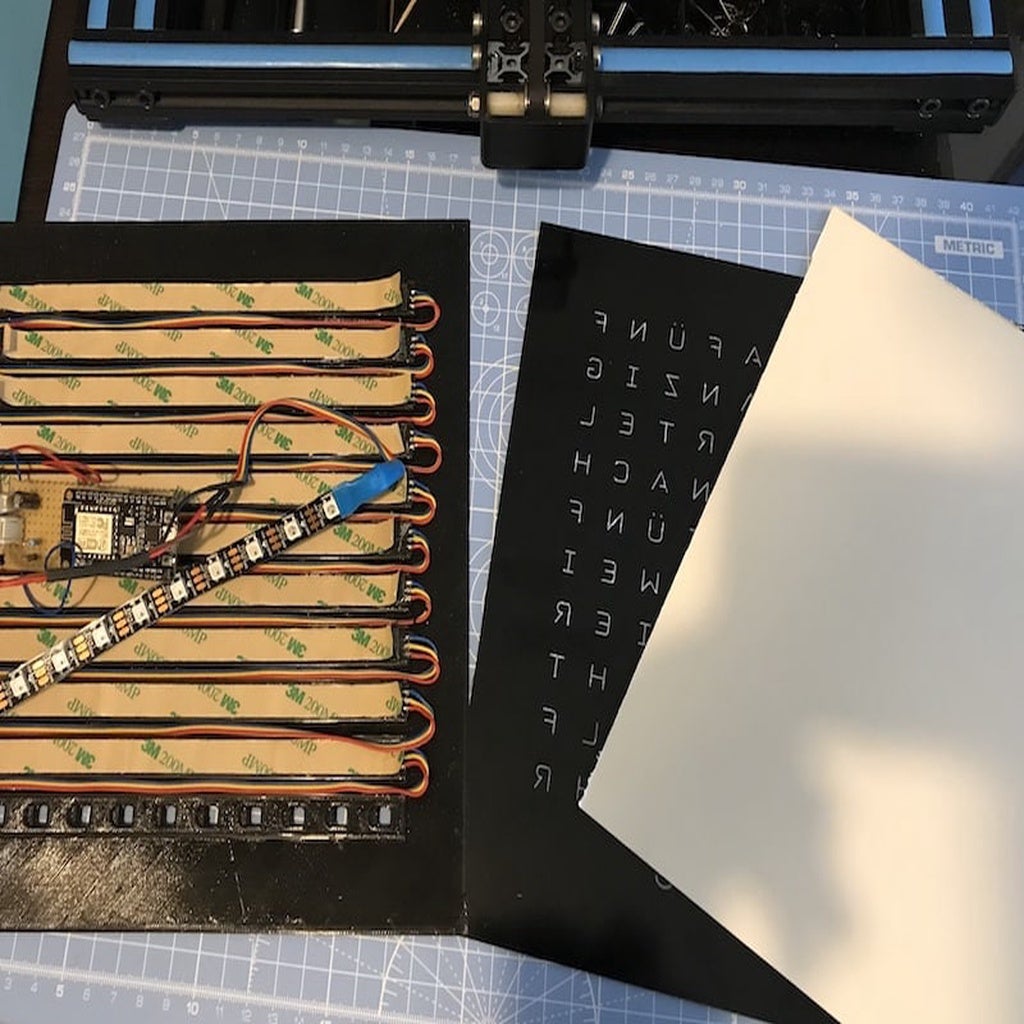

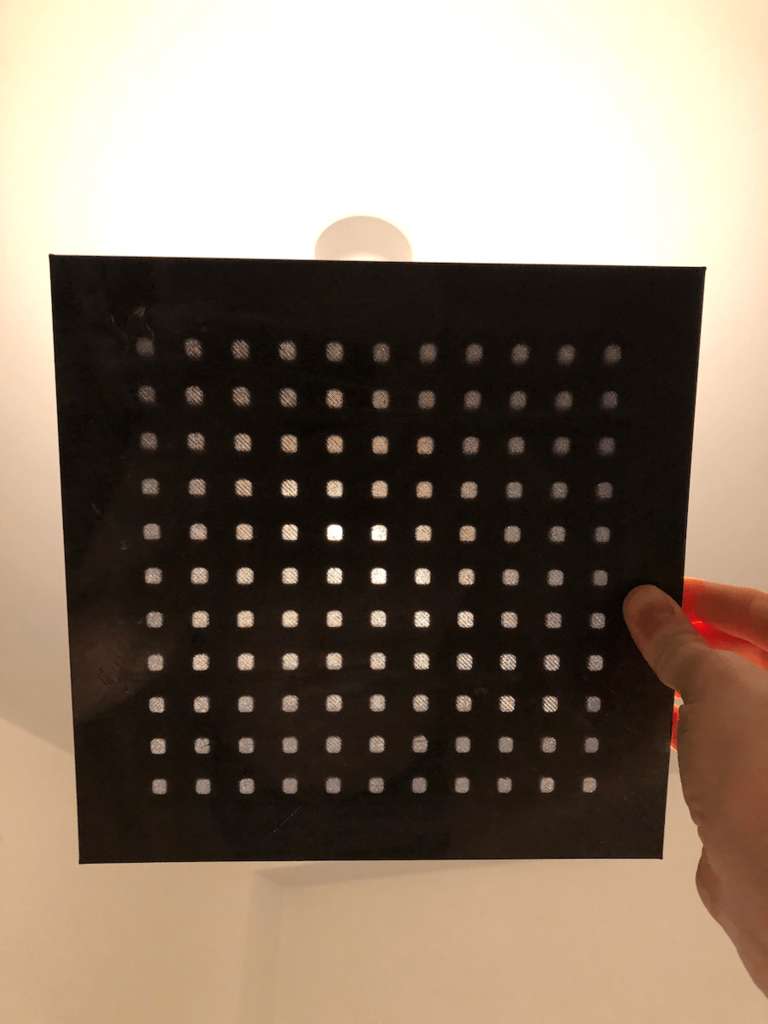

Wordclock Matrix 11x11 Frame for WS2812B LEDs. LEDs can be simply clipped into the frame.
For the Wordclock Frame i use a IKEA Ribba 23x23cm Frame
[https://www.ikea.com/at/de/p/ribba-rahmen-schwarz-40378401/](https://www.ikea.com/at/de/p/ribba-rahmen-schwarz-40378401/)

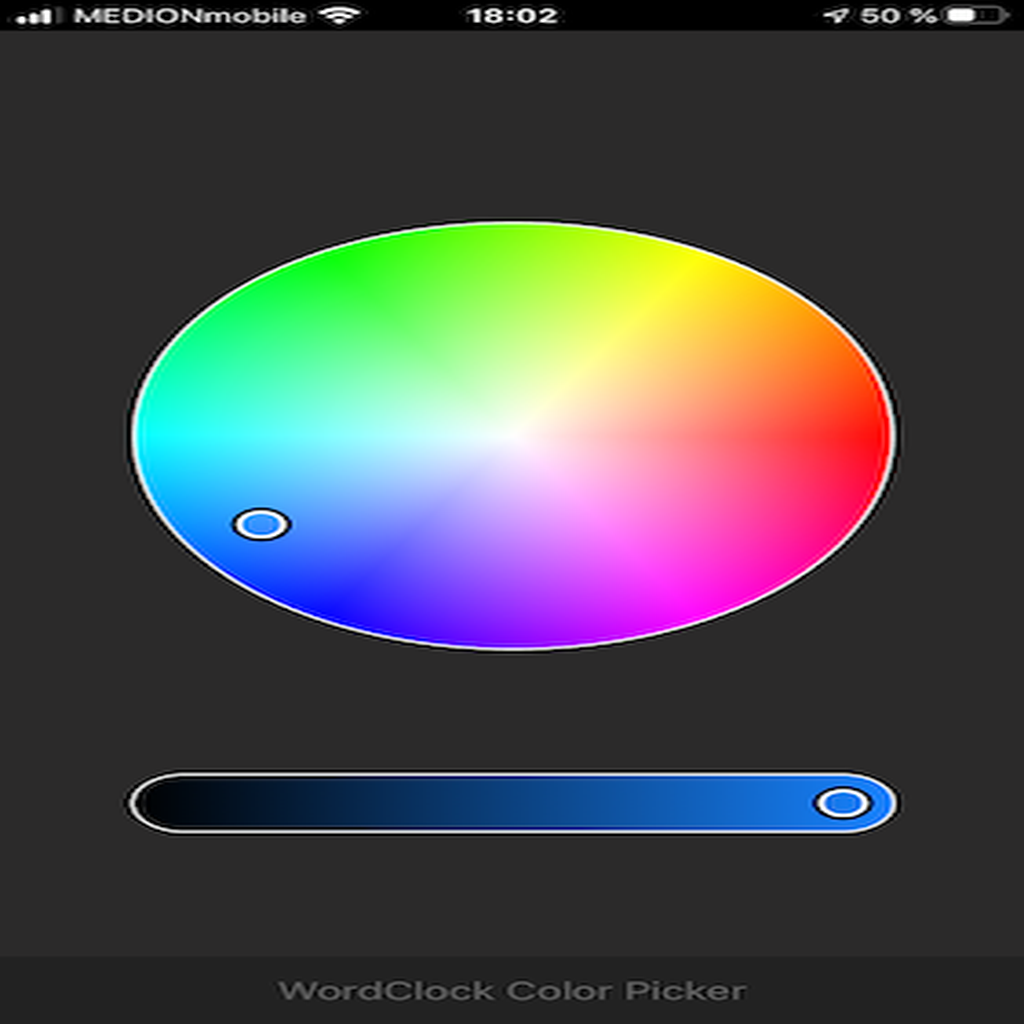

Source Code for this project can be found on my github page
[https://github.com/alexstrassheim/Wordclock-ESP8266-WS2812B](https://github.com/alexstrassheim/Wordclock-ESP8266-WS2812B)
Update

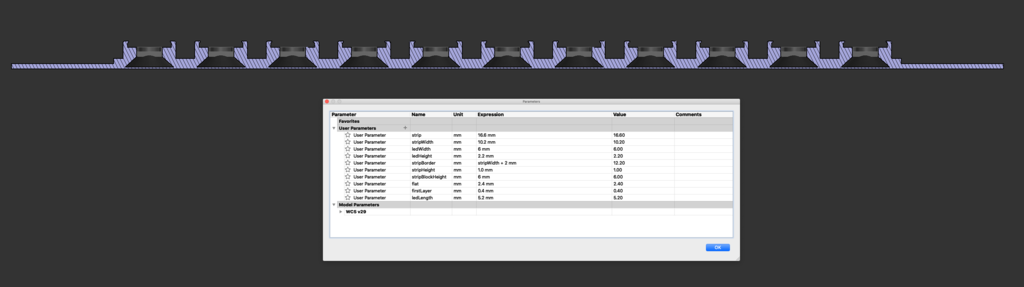

On request, I have also uploaded a version where the first layer is not solid.Furthermore you can find the file for Fusion 360 in the download, so you can design the template according to your wishes.

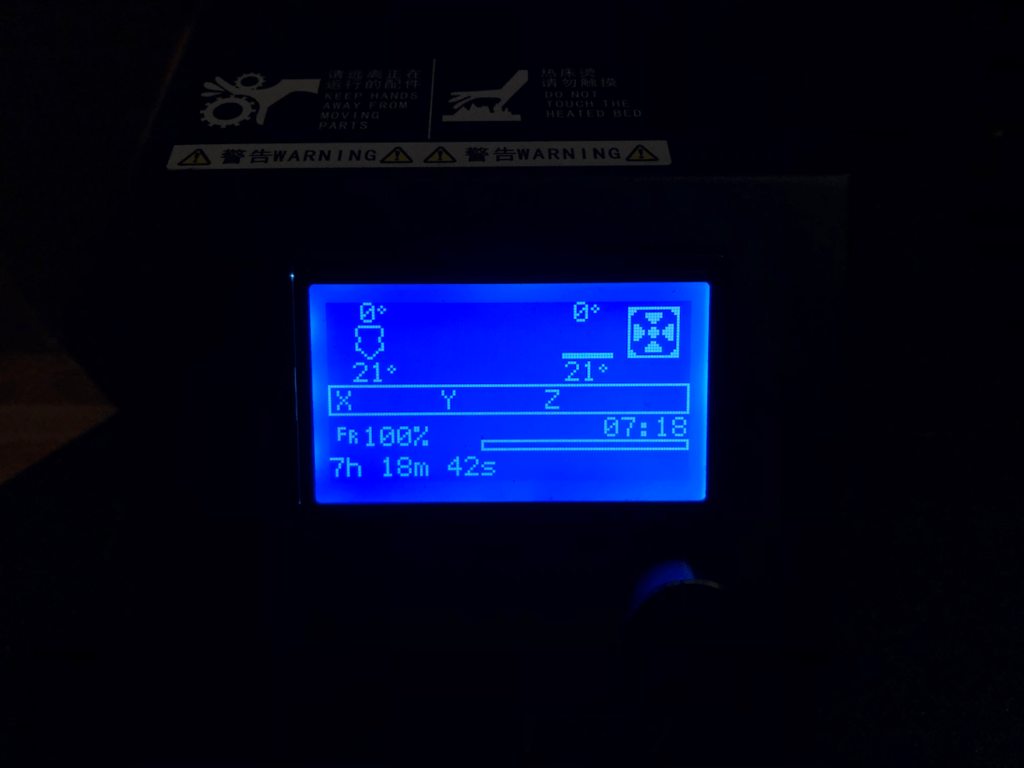

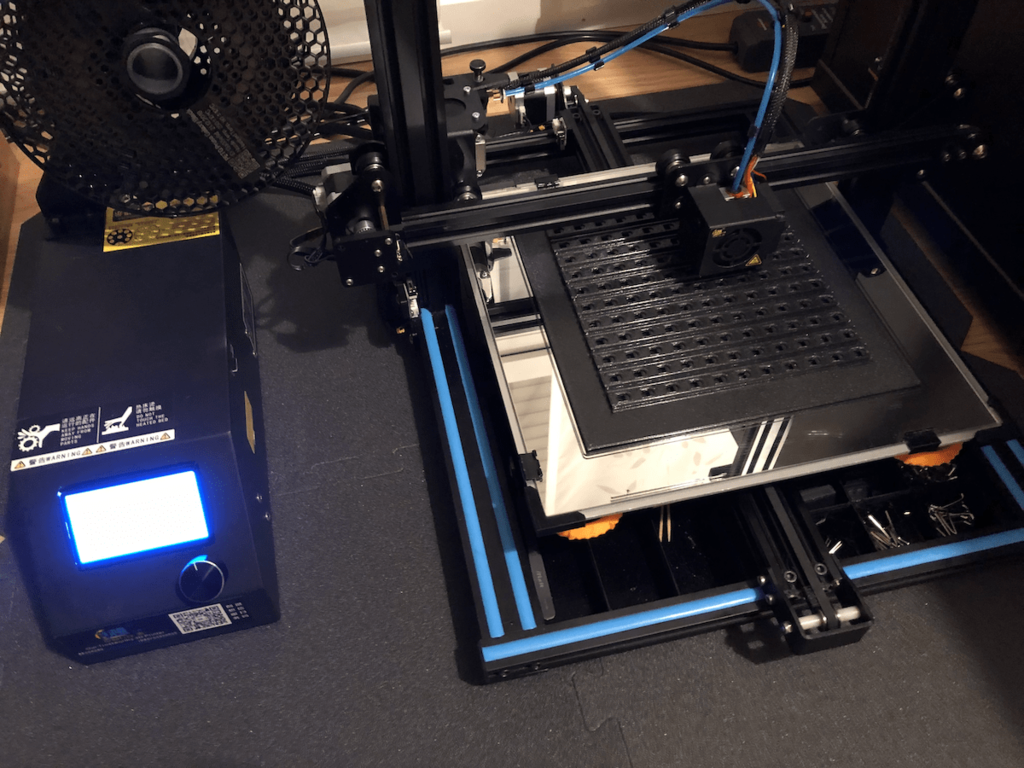

Print Settings
Printer Brand:
Creality
Printer:
CR-10S
No
Supports:
Doesn't Matter
0.3mm
Notes:
If you don't have white paper as diffuser film, you can also print the first layer with 0.2mm. The LEDs would then shine through the print. Otherwise simply cut the LED hole with a scalpel.
Category: Household
