This remix of @AimeBuilder's Universal Peg Board Peg System contains three additional variations of the base peg:

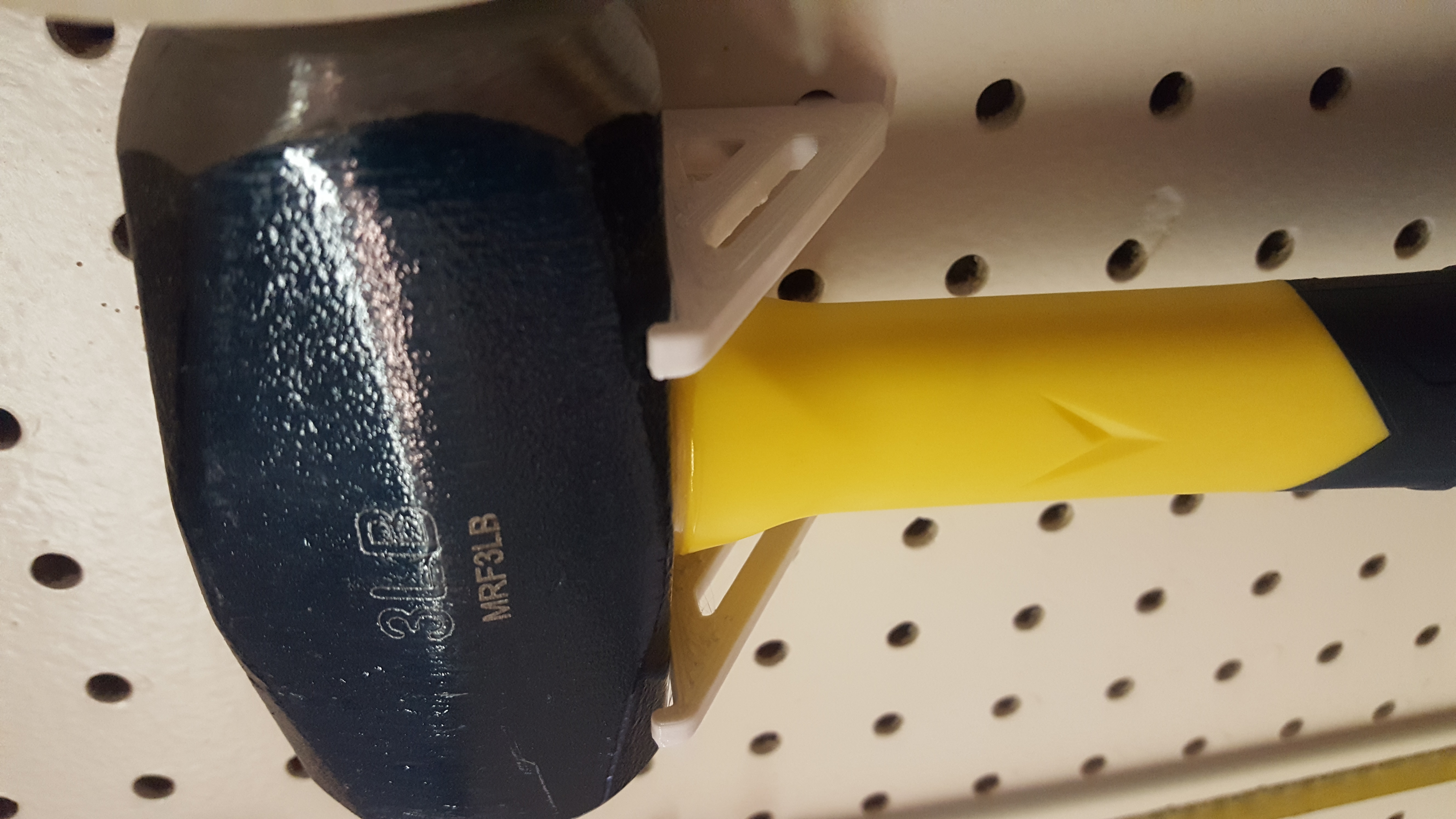

• Support: This is a horizontal bar designed to be used in pairs to support heavy tools like mallets on your peg board. The length is parametrically configurable (see below).

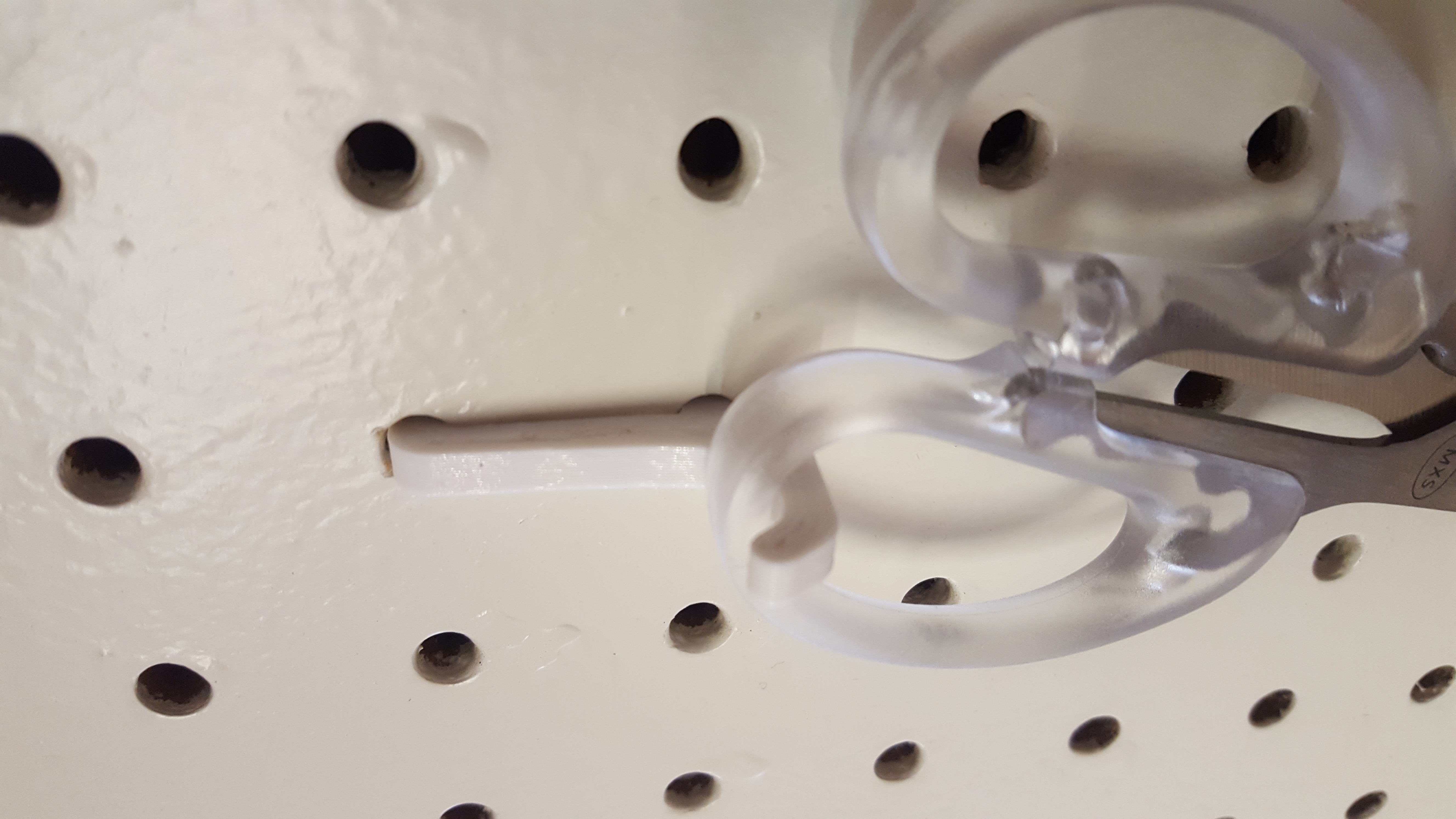

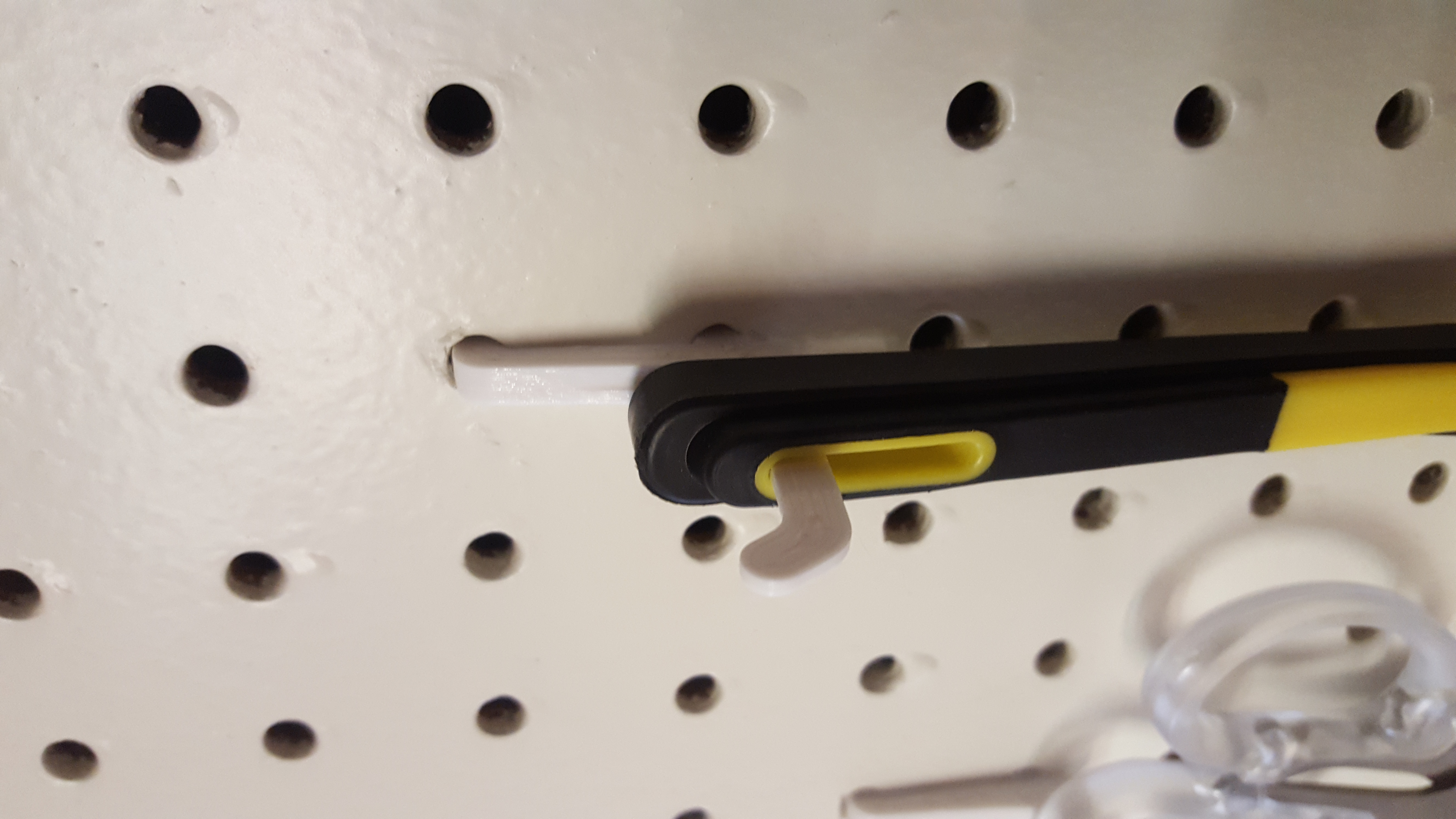

• Hook: Use this to hang anything with a hole in it. All dimensions are parametrically configurable.

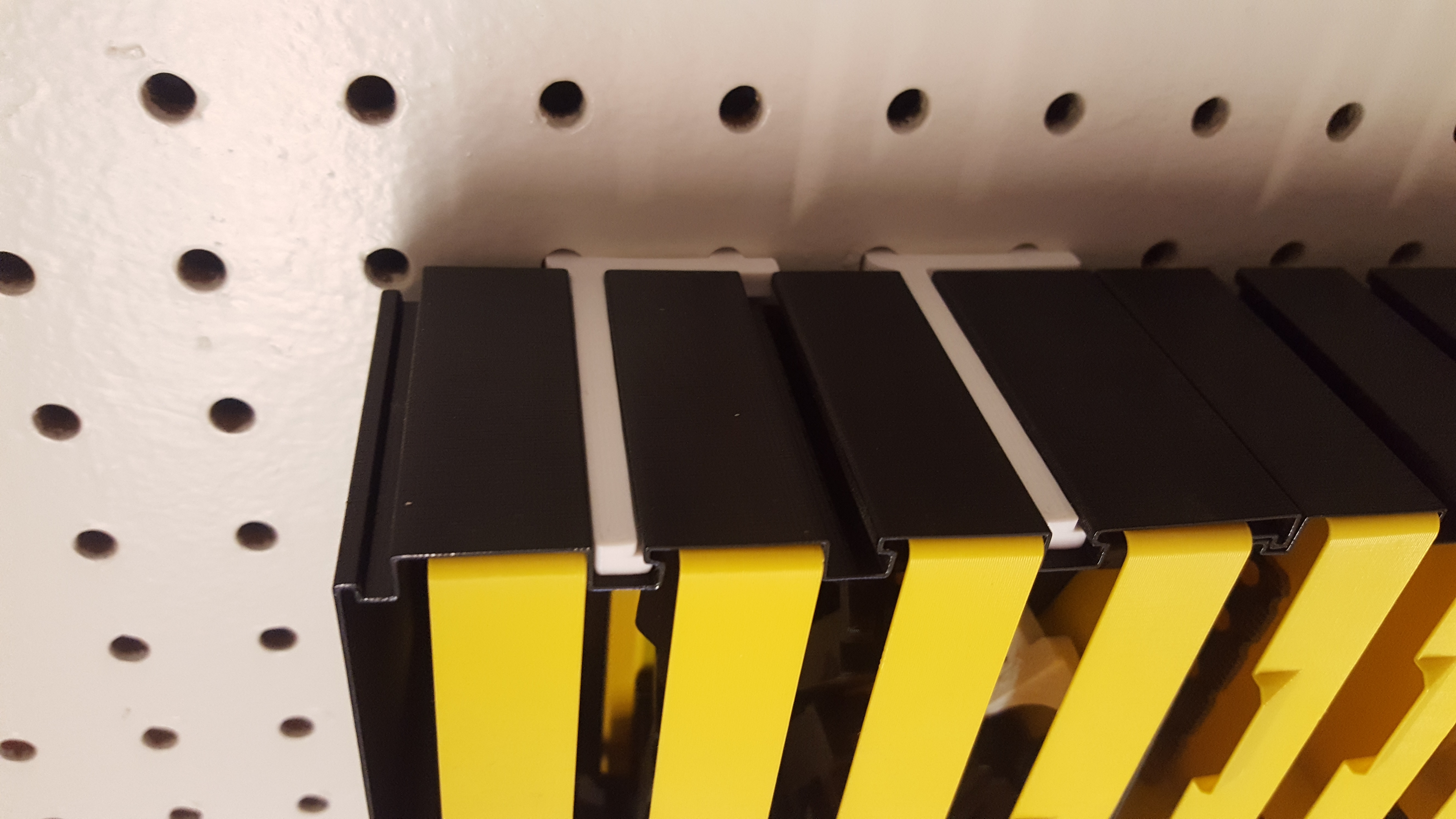

• Drawer Holder: Use to hang the 160mm variation of this Modular Drawer System. Note the U.S. 1 inch peg board spacing only works for the 160mm drawer frame, not the 80mm drawer frame. However, you can still attach the 80mm drawer frames to the hanging 160mm frame as usual. Half the holders need to be printed mirrored (in PrusaSlicer, right click then mirror along Y axis).

Parametric Configuration Instructions

1. Navigate to the OnShape project (no account required).
2. Choose the configuration and change the corresponding parameters as necessary in the top left corner.

3. Right click on the tab name in the lower left corner and click “Export…”

4. Choose STL as the format, adjust other settings as needed, and click “Export”.

5. Your STL file should now be ready to import into your slicer of choice!

Need more configurations?

Leave a comment and let's work together to add more useful configurations to this project! :)
