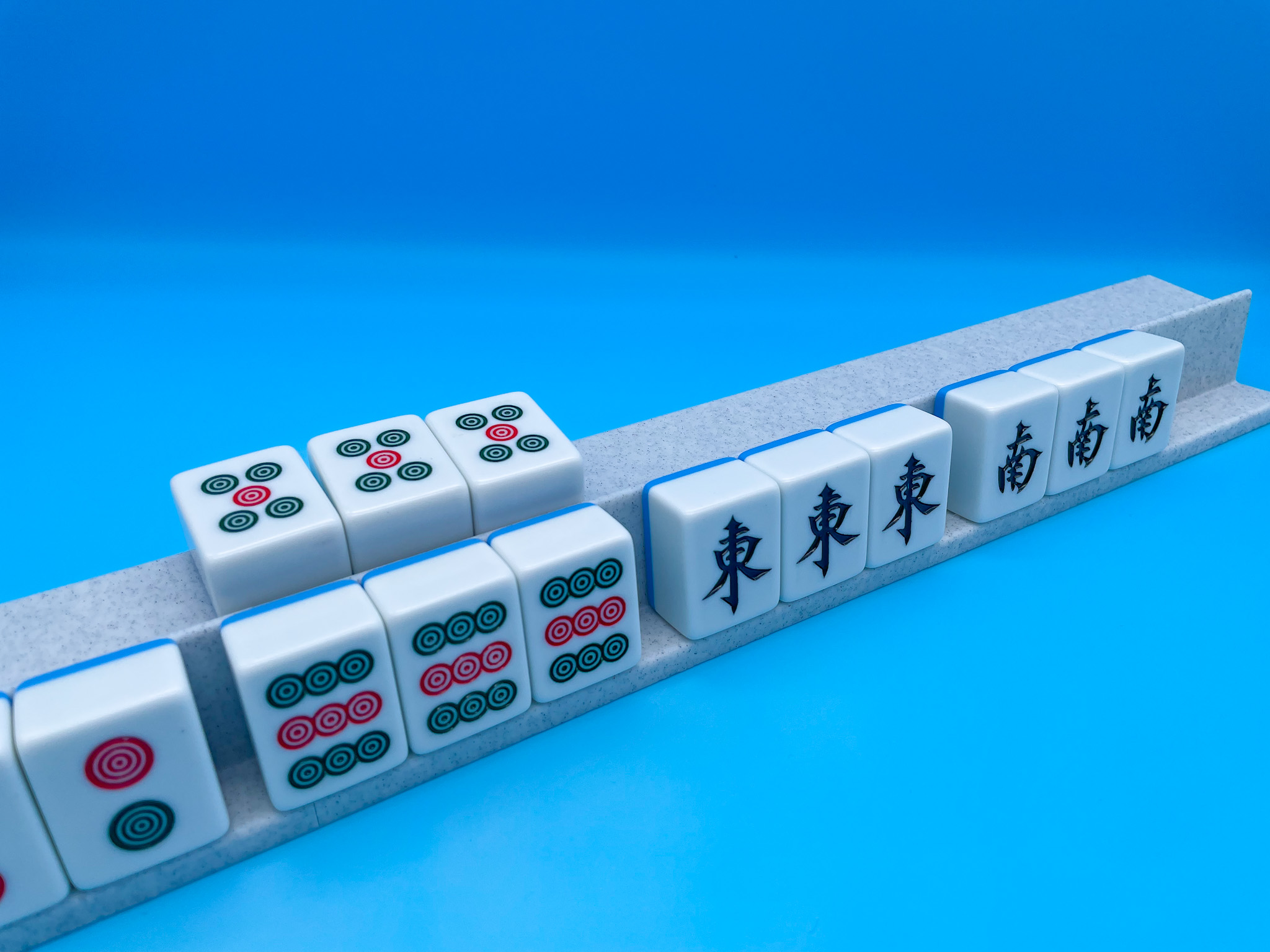

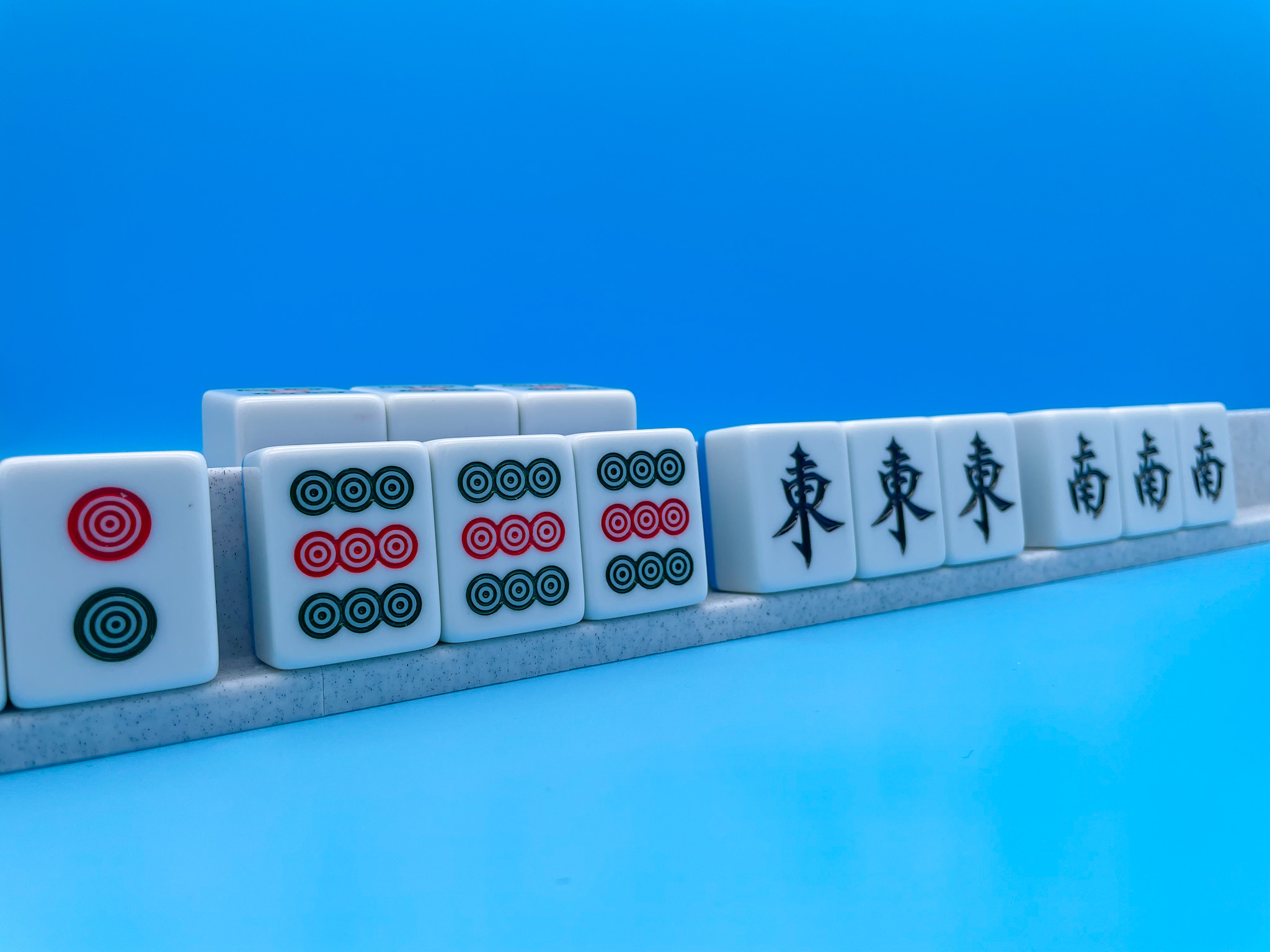

As I recently got into playing Mahjong and did not have tile holders yet for my set I decided to design my own tile holders that fit my needs. It has a width of 510 mm when assembled. The individual pieces have a width of 170mm.

The tile holder is designed for Mahjong Tiles of size:

Height: 36mm, Width: 28 mm, Depth: 21 mm

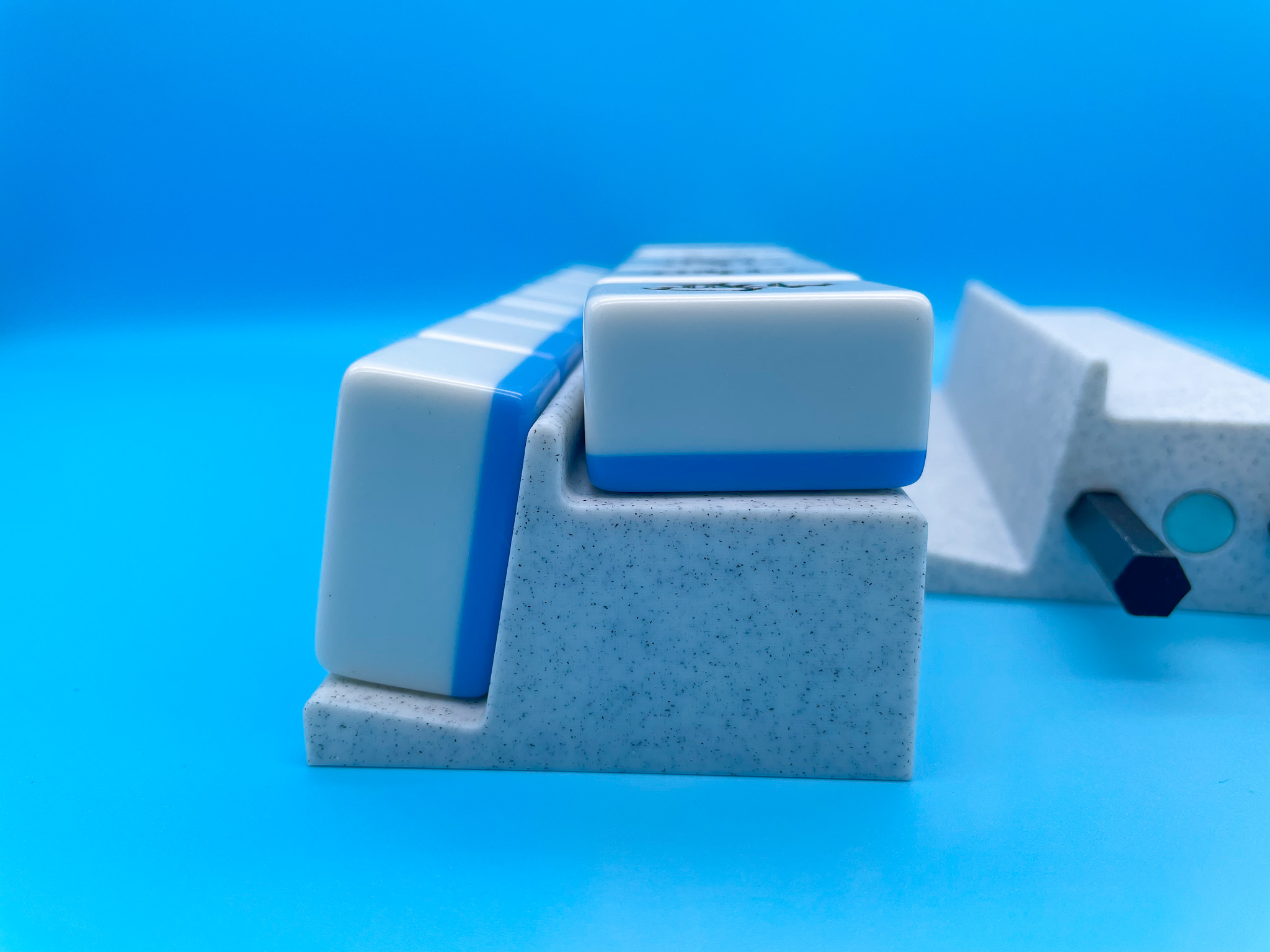

One tile holder consists of three main parts (left, middle and right part), 4 printed bolts and 4 glued magnets to attach the main parts securely.

The magnets could be omitted, but I highly recommend using some to render the tile holder more stable.

The needed magnets have a diameter of 10 mm and a height of 2 mm and have to be glued into the designed pocket between the bolt holes.

Have fun printing!
