Modelo 3D Jack Stand Wall Hook por Thibo-do-it no Printables

Descrição

COURTESY OF REESEALLEN

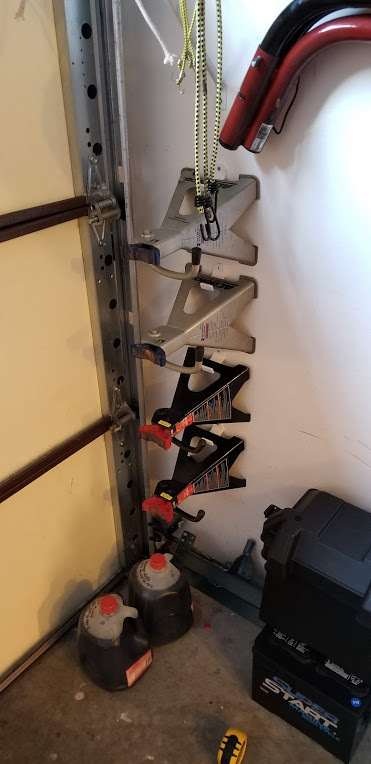

Hang jack stands from the wall and free up shelf/floor space.

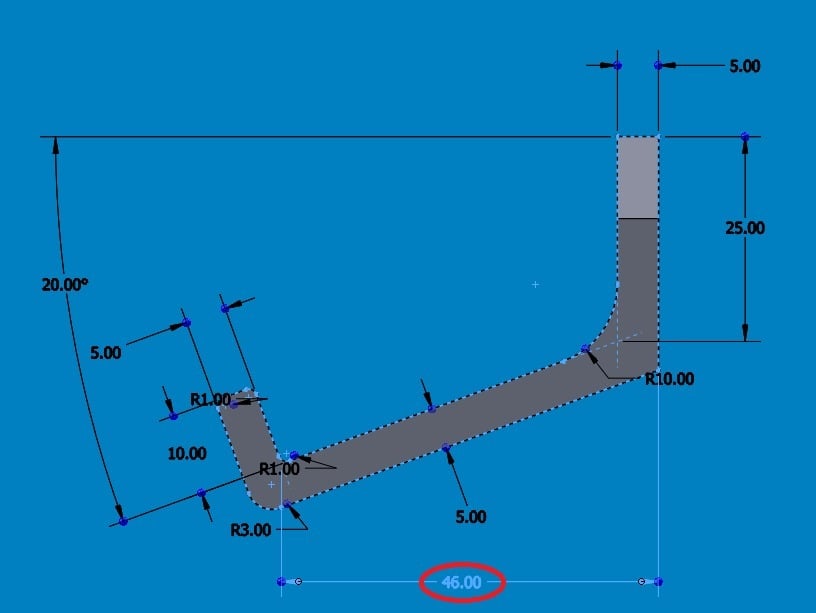

Multiple lengths are available. See the CAD screenshot, circled dimension.

The hole is sized for a #8 standard flat head screw which are widely available in the US. I should note that US flat head screws typically have an 82 degree angle while metric screws typically have a 90 degree angle, so if you use an M4 flat-head screw it will only contact around the very edge of the head. An M4 button-head or socket-head screw with a washer would be a better option if you are outside the US and don't want to modify the model to accept a flat head metric screw. In any case, make sure the screws you buy are long enough to go through the part, the drywall, and at least 3/4" (19 mm) into the stud.



PRINT SETTINGS:

PETG

0.24 mm layer height

4 walls

25% gyroid

no brim unless you have adhesion issues

Printables

Jack Stand Wall Hook

Publicado em 15 de nov de 2023

70
Curtidas
275
Downloads
2
Impressões
Categoria Automotive
Tags
stand mount jack axle
Licença Creative Commons — Attribution — Share Alike
Arquivos (9)
Jack_stand_hook-46.STL 22.3 KB
Jack_stand_hook-44.STL 22.3 KB
Jack_stand_hook-56.STL 22.3 KB
Jack_stand_hook-50.STL 22.3 KB
Jack_stand_hook-48.STL 22.3 KB
Jack_stand_hook-42.STL 22.3 KB
Jack_stand_hook-54.STL 22.3 KB
Jack_stand_hook-40.STL 22.3 KB
Jack_stand_hook-52.STL 22.3 KB
