Modelo 3D Universal Gridfinity Box for 4x5 Grid por Tritschi no Printables

Descrição

Here my box for a gridfinity system 4x5 grid. This fits Prusa MK3/MK4 printers. 200x218mm is max outer boundaries in x and y axis.

The files section is divided into three directories:

  1. Main body box with and without plates.

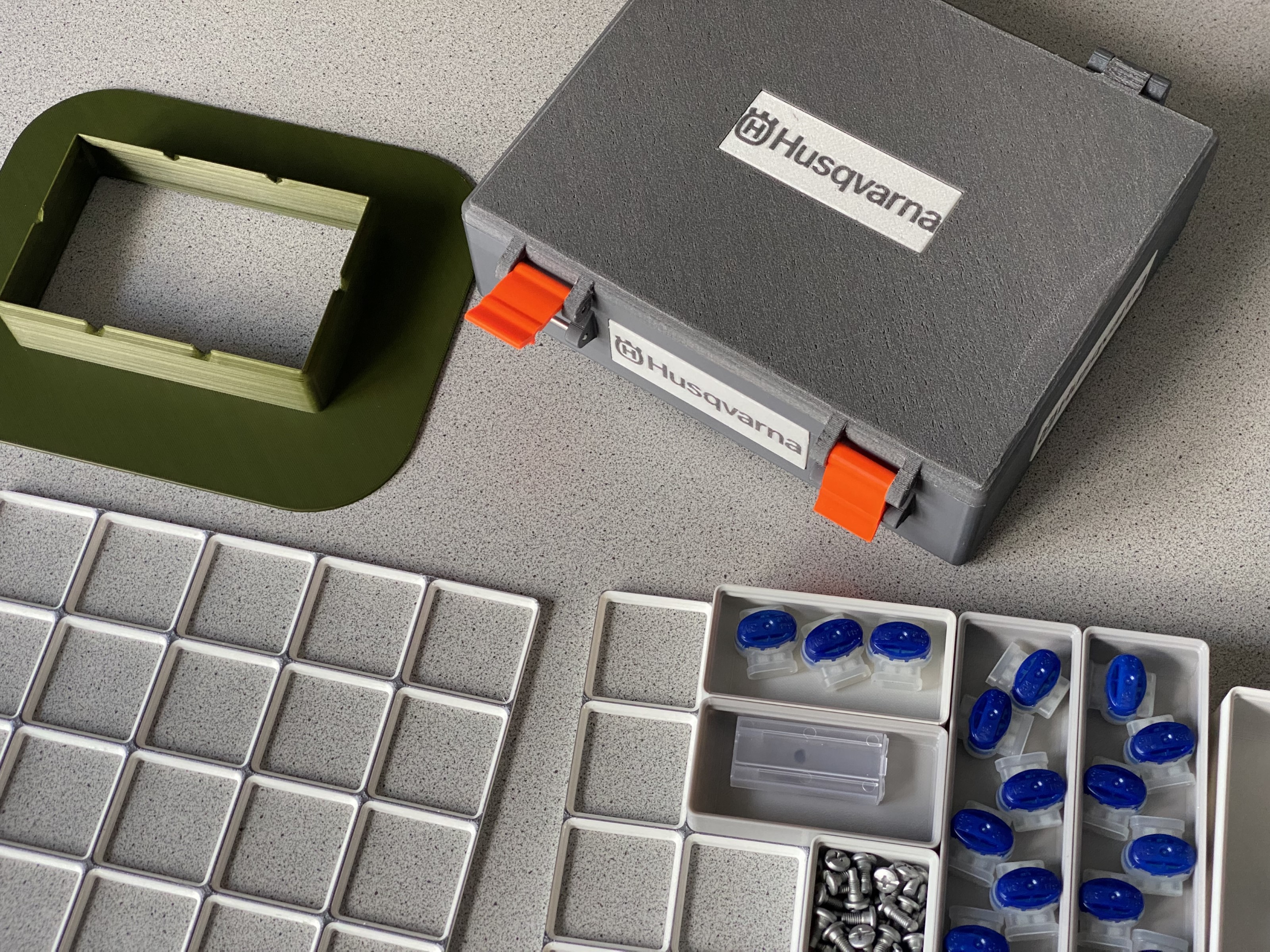

  2. Husqvarna Edition = Husqvarna plates, like shown on the photographs. I also created a wire uproller for having my stuff together in one box. Fits also bottom gridfinity grid.
  3. Bins, a collection.

Printed on my Prusa printers (MK3+MMU2s for plates and lid, MK3 for box and bins. All printed in PLA, latch in PETG for elasticity reasons.

As hinges I used Ø3mm x 30 / 32mm dowel pins. M3x35 also fits. Up to you.

Here my 6x4 version: [https://www.printables.com/de/model/633832-gridfinity-tool-accessory-box-for-cube-ebike-and-o](https://www.printables.com/de/model/633832-gridfinity-tool-accessory-box-for-cube-ebike-and-o)

Explore my other Printables: [https://www.printables.com/de/@Tritschi](https://www.printables.com/de/@Tritschi)

Printables

Universal Gridfinity Box for 4x5 Grid

Tritschi Tritschi (abre em nova aba)

Publicado em 7 de nov de 2023

37
Curtidas
186
Downloads
Categoria Other Ideas
Tags
toolbox automower husqvarna toolboxes gridfinity
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (32)
Box 5x4_Box_WithPlate.stl 257.3 KB
Box 5x4_Lid_WithPlate.stl 144.5 KB
Box 5x4_Box_NoPlate.stl 269.1 KB
Box 5x4_Lid_NoPlate.stl 183.5 KB
Grid_4x5.stl 302.4 KB
Box 5x4_Latch.stl 33.5 KB
Box 5x4_PlainPlate_Top.stl 1.4 KB
Box 5x4_PlainPlate_Sides.stl 684 B
PlateSideTxt(2x).stl 236.7 KB
PlateSide(2x).stl 240.2 KB
PlateTopTxt(1x).stl 237 KB
PlateTop(1x).stl 240.4 KB
BegrenzungskabelWickler.stl 139.5 KB
Bin24.5_3x1.stl 97.6 KB
Bin24.5_4x1.stl 120.3 KB
Bin31.5_1x1.stl 110 KB
Bin24.5_2x2.stl 119.4 KB
Bin31.5_2x1.stl 195 KB
Bin31.5_3x1.stl 62.2 KB
Bin24.5_1x1.stl 52.8 KB
Bin24.5_2x1.stl 75.6 KB
Bin31.5_6x4_eff.stl 522.4 KB
Bin31.5_3x2.stl 466.5 KB
Bin24.5_4x2.stl 626.4 KB
Bin31.5 2x2_(Ch2x2).stl 127.4 KB
Bin31.5_4x1.stl 461.6 KB
Bin31.5_2x2_(Ch3x3).stl 104.3 KB
Bin24.5_4x2_eff.stl 195.7 KB
Bin24.5_6x3.stl 1.4 MB
Bin31.5_4x2.stl 942.5 KB
Bin31.5_6x4.stl 1.8 MB
Bin31.5_5x4.stl 5.3 MB
