Here is my phone camera stand.

The stand is made so it enables rotation in two direction. Only non printable parts are 16mm M3 screw with nut and rubber band.

I used PLA.

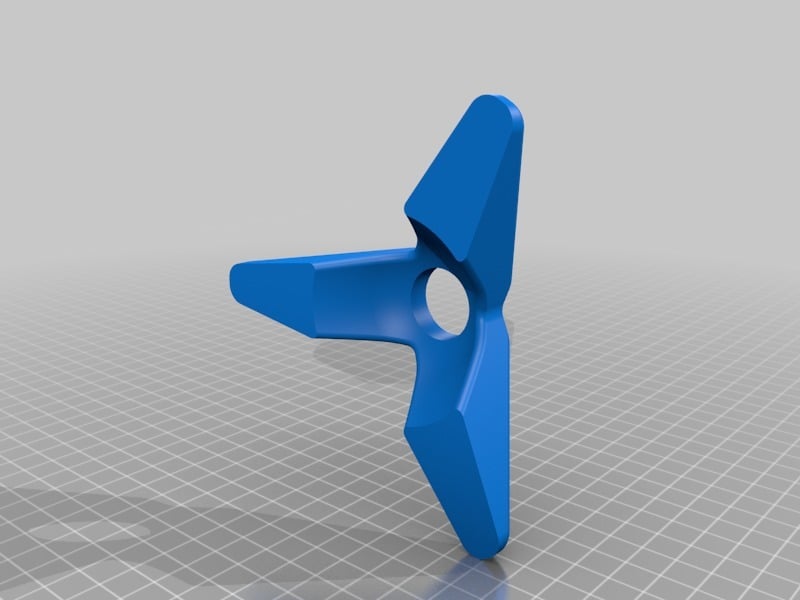

The Part 1 (the base) was printed at 70mm/s 15% infill 0.2 resolution and 3 perimeters (0.4). I used support but i'm sure it can be done with out it as well. It came out very rigid.

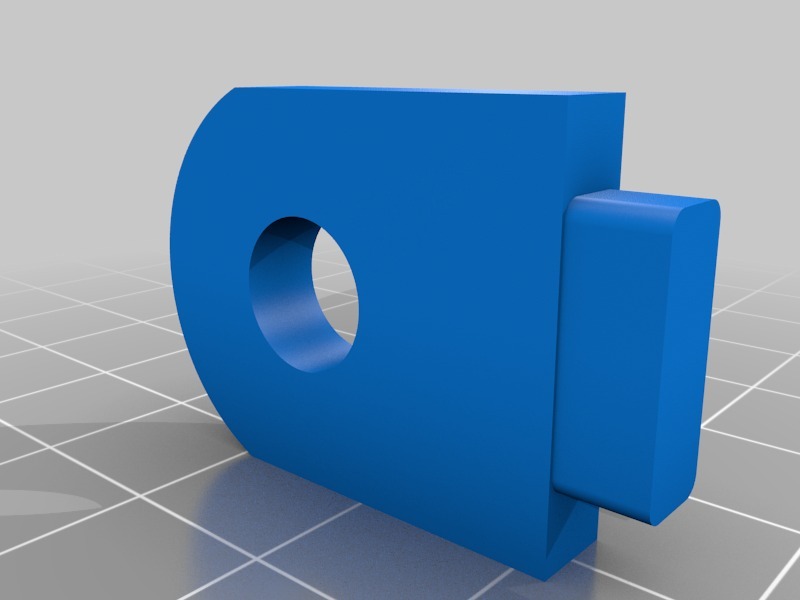

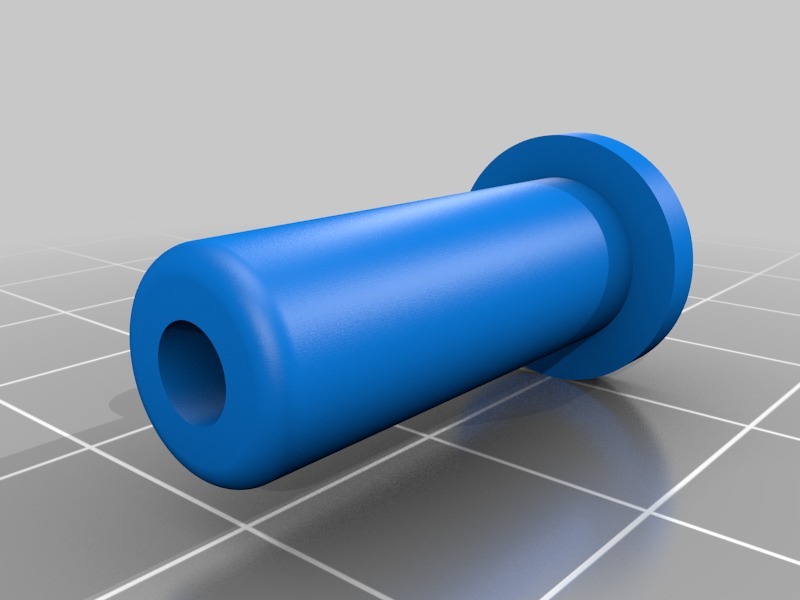

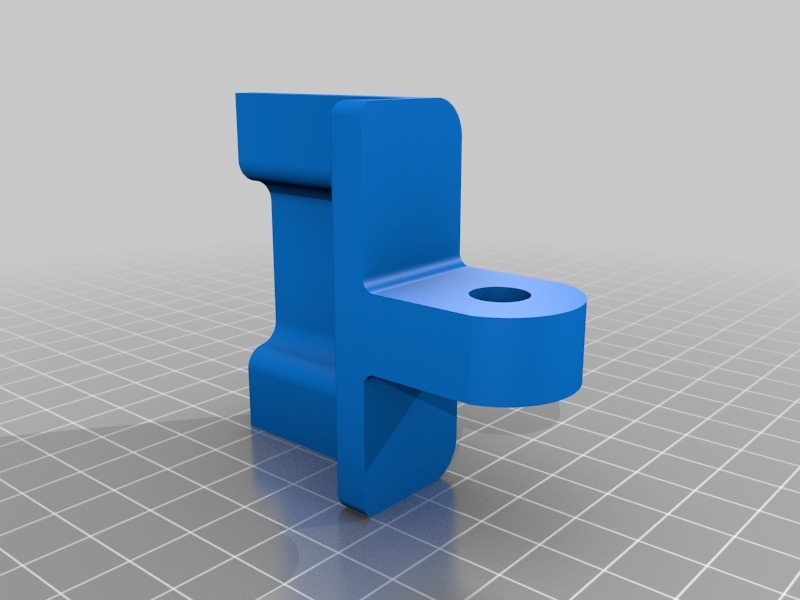

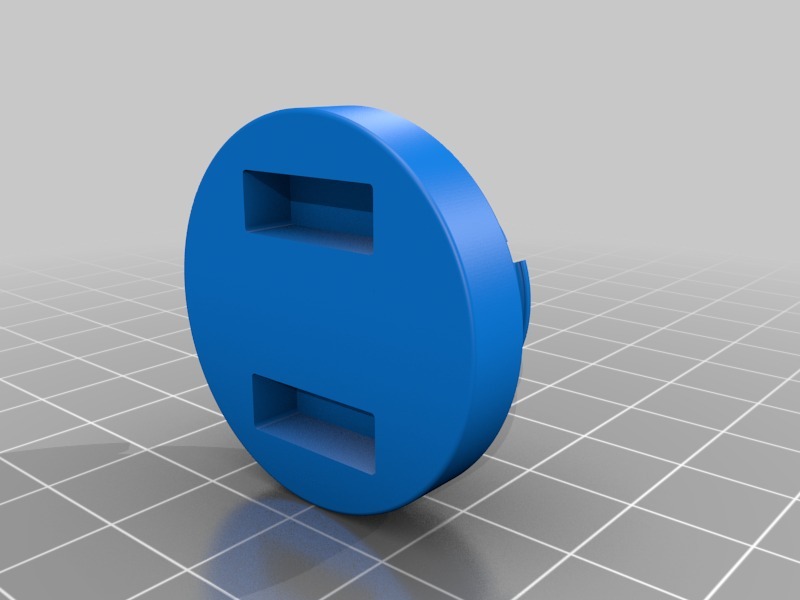

About other parts.

Other parts were printed at 30% infill. Smaller parts were printed at slower speeds to get better results.

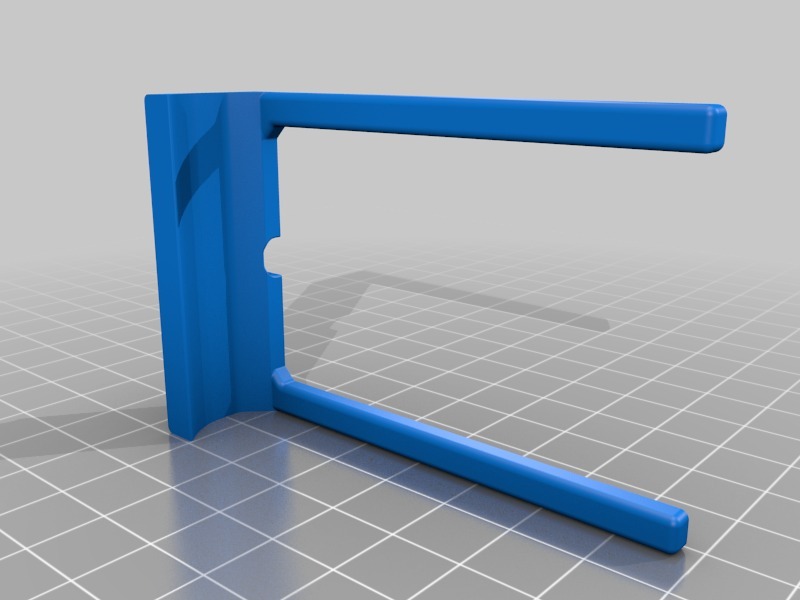

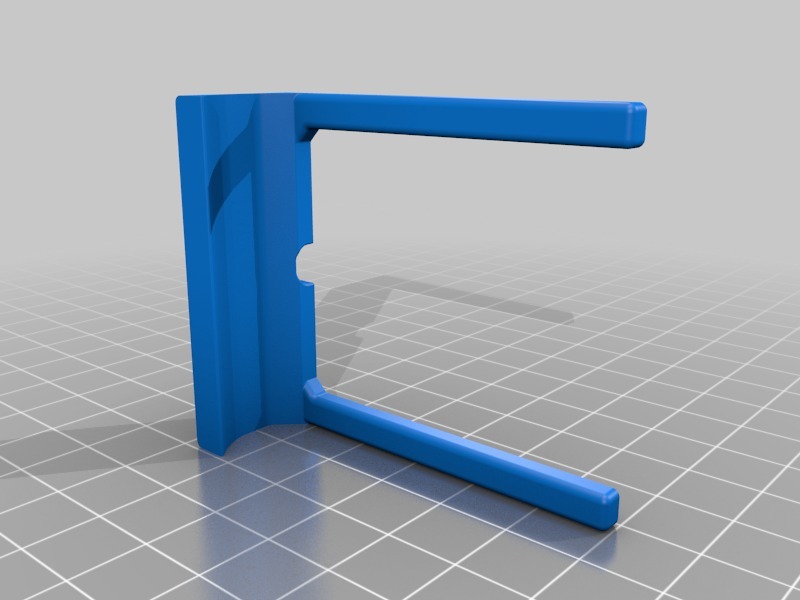

Part 3 has two versions one si for bigger phones one is for smaller. For most newer phones print the bigger version.

You need part 4 two times.

I included .ipt fills (inventor files) if somebody wants to fiddle with it.

The

Print Settings

Printer Brand:

RepRap

Printer:

Rafts:

No

Supports:

Resolution:

0.2

Infill:

Notes:

Support probably not needed but it can result in better print when printing part 1 (base)

How I Designed This

Category: Gadgets
