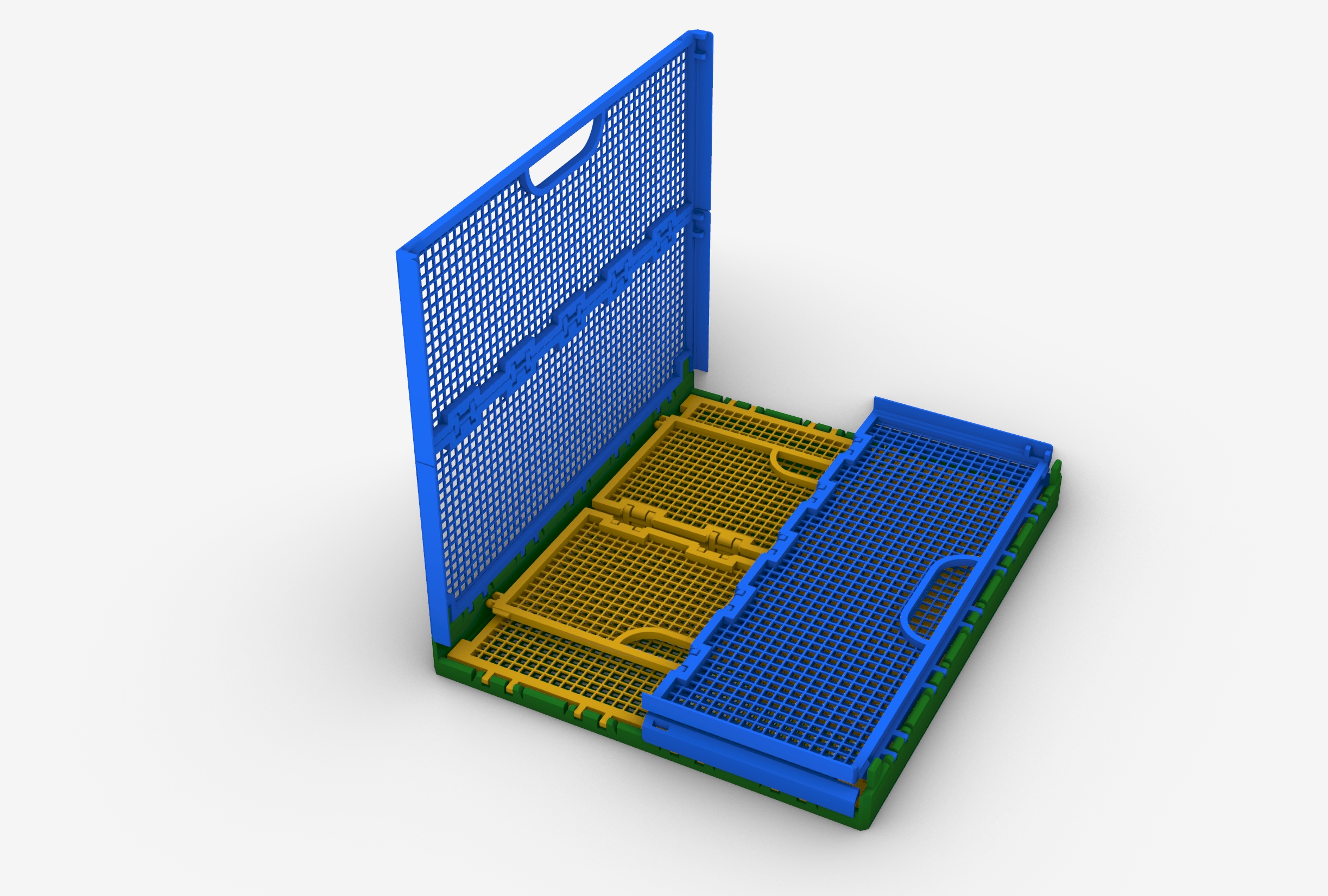

Modelo 3D Double-foldable and stackable crate (XXL) por baph no Printables

Descrição

New: Adapter for stacking Crates (S) 150x100x55 mm or Double crates (S) 150x100x105 mm twice on the Palette (XXL) 242x202 mm or direct on the Crates (XXL) 240x200 mm with her top cover to be more rigid.

New: Palette for stacking with fun in remix section.

---------------------------------------------------

Extra large crate printable on prusa MK3 or above.

6 sizes, upgraded v4 Customizable

  • 240 x 200 x 200 mm Upgraded V4
  • 240 x 200 x 110 mm Upgraded V4
  • 240 x 200 x 70 mm Upgraded V4
  • 240 x 200 x 50 mm Upgraded V4
  • 240 x 99 x 60 mm Upgraded V4
  • 119 x 200 x 60 mm Created V4
  • New tool to unlock safely
  • Upgrade V2b saving 30-40% time to print
  • Upgrade V3 is obsolete
  • Upgrade V4 Customizable mesh save time and material, the mesh is around 10 mm square with 8% infill, when you use the crate with big objects. Choose your own infill strategy, in standard i have choosing 16% infill in the 3mf files.

HOW TO CUSTOM:

  • Select the custom object in list…





  • …and change parameters with yours.





A little warning when you put the clips for the size 240x200x200, the flat sides of the clips should be pointing inwards otherwise the crate won't fold correctly.

In the make section, you can see my other double-foldable design V1b contained in the half side of this crate. Funny, so pretty.

Coming soon:

  • all sizes will be upgraded in the V4 version. (done)
  • i want to create a new size 200x119x60mm. (done)
Printables

Double-foldable and stackable crate (XXL)

baph baph (abre em nova aba)

Publicado em 7 de dez de 2023

88
Curtidas
407
Downloads
13
Impressões
Categoria Organizers
Tags
box crate stackable big foldable
Licença Creative Commons — Attribution — Noncommercial
Arquivos (27)
v1 clips x20+tool.3mf 146.7 KB
v4 top 240x200 (16).3mf 21.3 KB
v4 240x200 bottom double (16).3mf 1.8 MB
v4 240x200 long A+B (16).3mf 1.8 MB
v4 200x200 short A+B (16).3mf 1.5 MB
v4 bottom simple 240x200 (16).3mf 443 KB
v4 short 200x110 (16).3mf 606 KB
v4 long 240x110 (16).3mf 696.5 KB
v4 top 240x200 (16).3mf 21.3 KB
v4 top 240x200 (16).3mf 21.3 KB
v4 bottom simple 240x200 (16).3mf 443 KB
v4 short 200x70 (16).3mf 616.7 KB
v4 long 240x70 (16).3mf 703.1 KB
v4 top 240x200 (16).3mf 21.3 KB
v4 bottom simple 240x200 (16).3mf 443 KB
v4 short+long 240x200x50 (16).3mf 1.3 MB
v4 top 240x99 (16).3mf 36.3 KB
v4 bottom 240x99 (16).3mf 1.4 MB
v4 short+long 240x99x60 (16).3mf 1.1 MB
spacer stack 240x99.3mf 42.8 KB
v4 119x200 top (16).3mf 36.8 KB
v4 119x200x60 long+short (16).3mf 1001.2 KB
v4 119x200 bottom (16).3mf 1.2 MB
v4 119x200 spacer.3mf 38.4 KB
v2b tool left.3mf 30.2 KB
v2b tool right.3mf 30.3 KB
v2b tool left+right.3mf 35 KB
