Modelo 3D Hinge Mount and Dual function door stops por NC10 no Printables

Descrição

Provided here are 5 versions of hinge mounted door stops

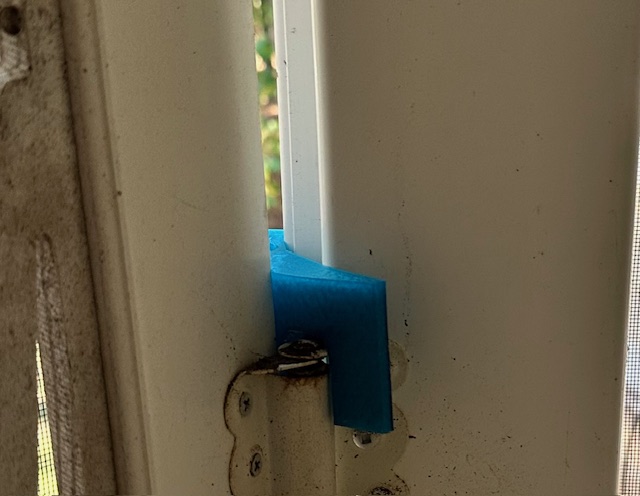

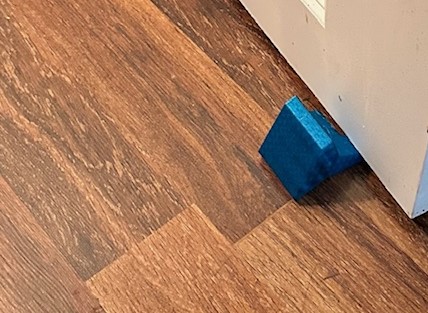

  • a large version to be printed from TPU, that can be used in two ways, wedged under the bottom of a door or hung over a door hinge to keep it from closing
  • Smaller hinge mount only door stops designed to be printed from TPU or a hard filament like ASA or PETG, for light weight interior doors.
  • Larger hinge mounted door stops, one designed for TPU, the other for a harder filament.

I printed and tested these from Sainsmart 95 TPU,  Overture PETG, and ASA.      The TPU versions are the toughest and should last a very long time.  If you decide to use a hard filament, I like ASA for thsi application, but PETG can work if you optimize settings for strength.     If you print PETG versions of the hinge mount only models,  I strongly recommend at least 5 walls and 25% infill.    I first printed PETG versions using standard quality settings with 2 walls and 15% infill.    Those PETG versions broke when I put pressure on them to see if they would hold up to someone closing a door.

  The smaller hinge mount only versions should work on the less expensive interior doors in homes.    If you want somethng that would work with a heavier door, or a door with spring loaded hinges (ie a porch door) I recommend the dual function door stop, or one of the large stops.

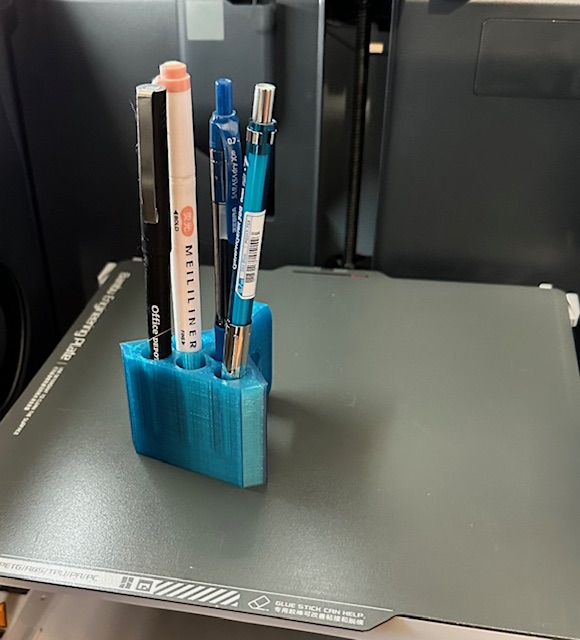

Though no one has asked for (or ever will) this feature,  these door stops can be used as mini- desk organizers when not being used as door stops.   Have fun!

Printables

Hinge Mount and Dual function door stops

Publicado em 28 de out de 2023

22
Curtidas
191
Downloads
1
Impressões
Categoria Other House Equipment
Tags
doorstop
Licença Creative Commons — Attribution — Noncommercial
Arquivos (5)
Hinge Stop small TPU.stl 161.4 KB
Dual function door and hinge stop TPU.stl 53 KB
Hinge stop small petg.stl 124.5 KB
large hinge only TPU stop.stl 131.5 KB
Large Hinge stop PETG or ASA.stl 135.8 KB
