Descrição

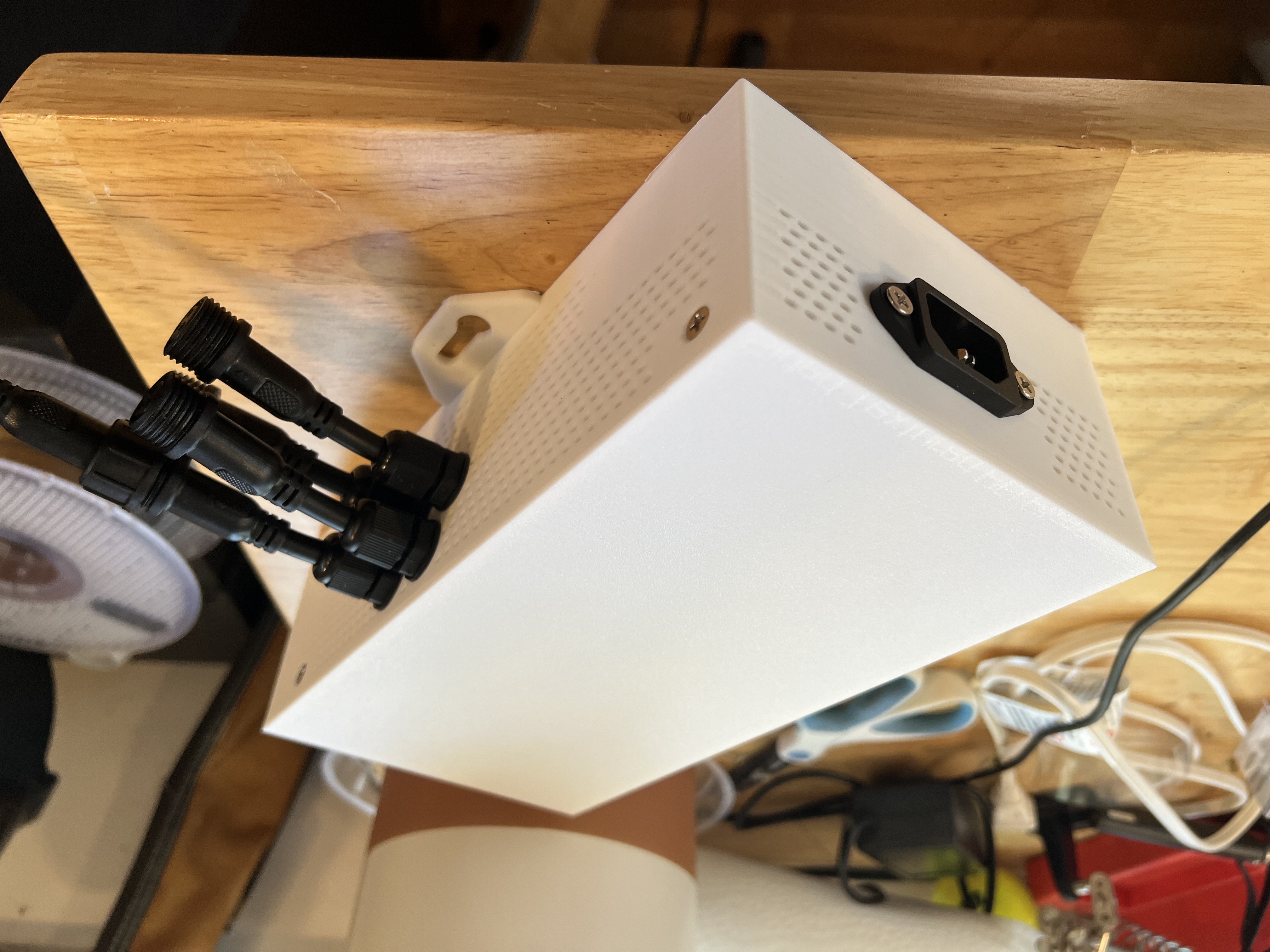

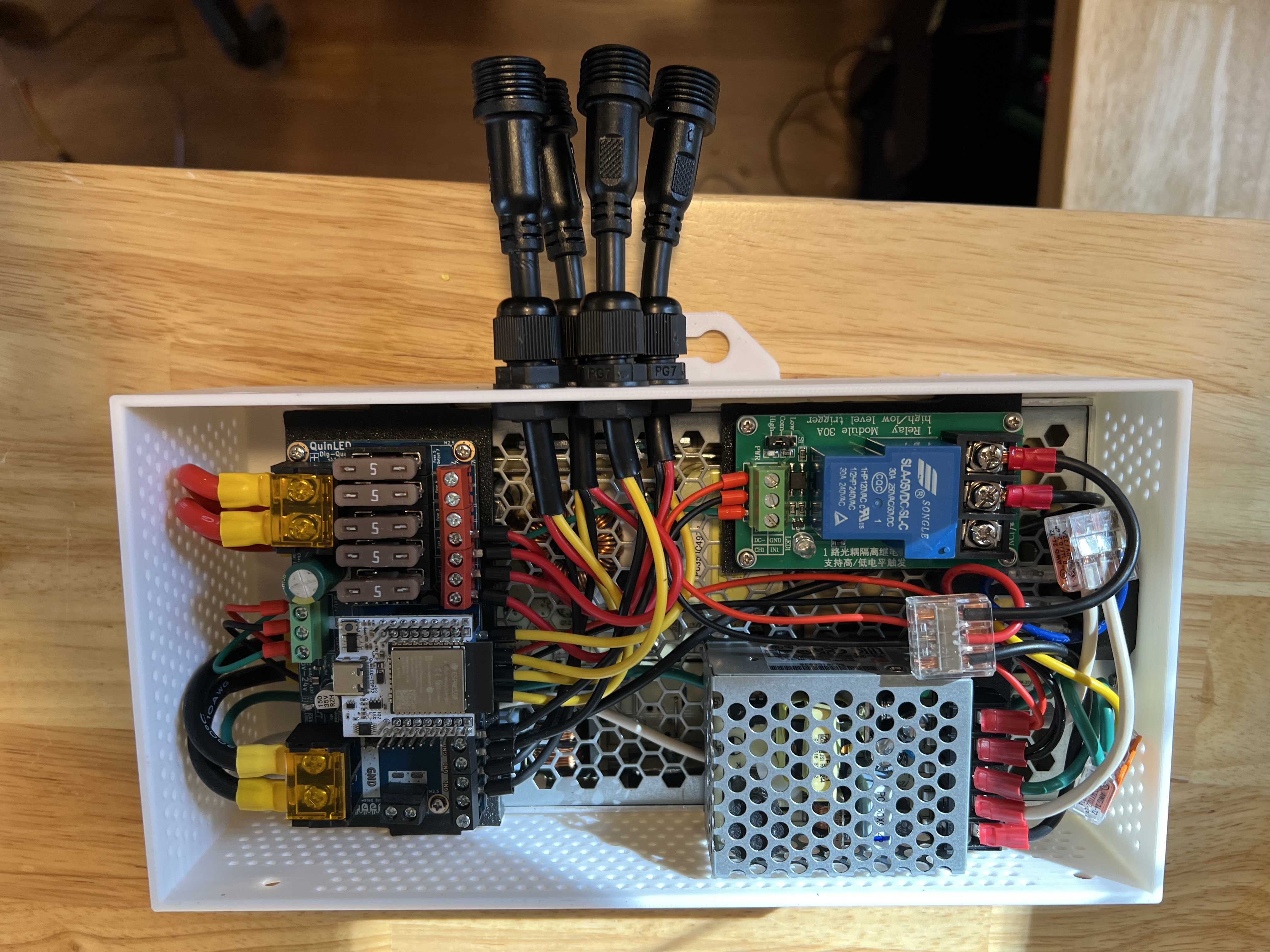

All-in-one box for QuinLED Dig Quad lighting projects. Designed to fit:
Meanwell LRS-200-12 (many Meanwell PSUs have the same footprint)
Meanwell RS-15-5
QuinLED Dig Quad
Noyito 30A 1 channel relay
PG7 cable glands for x-connect LED wiring
Flange mount C14 power inlet
Brackets for the DigQuad/Relay have holes to thread in M2.5 standoffs, heatset could also work. Countersunk 12V/5V PSU mounting holes are M4.
24
Curtidas
100
Downloads
1
Impressões
Categoria
Electronics
Tags
led
lighting
ledstrip
powersupply
powersupplymount
Licença
Creative Commons — Attribution
Arquivos (4)
QuinLED Control Box - Relay and 5V PSU Bracket.3mf
203.4 KB
QuinLED Control Box - Lid.3mf
55 KB
QuinLED Control Box - Dig Quad Bracket.3mf
117.2 KB
QuinLED Control Box.3mf
9.9 MB
