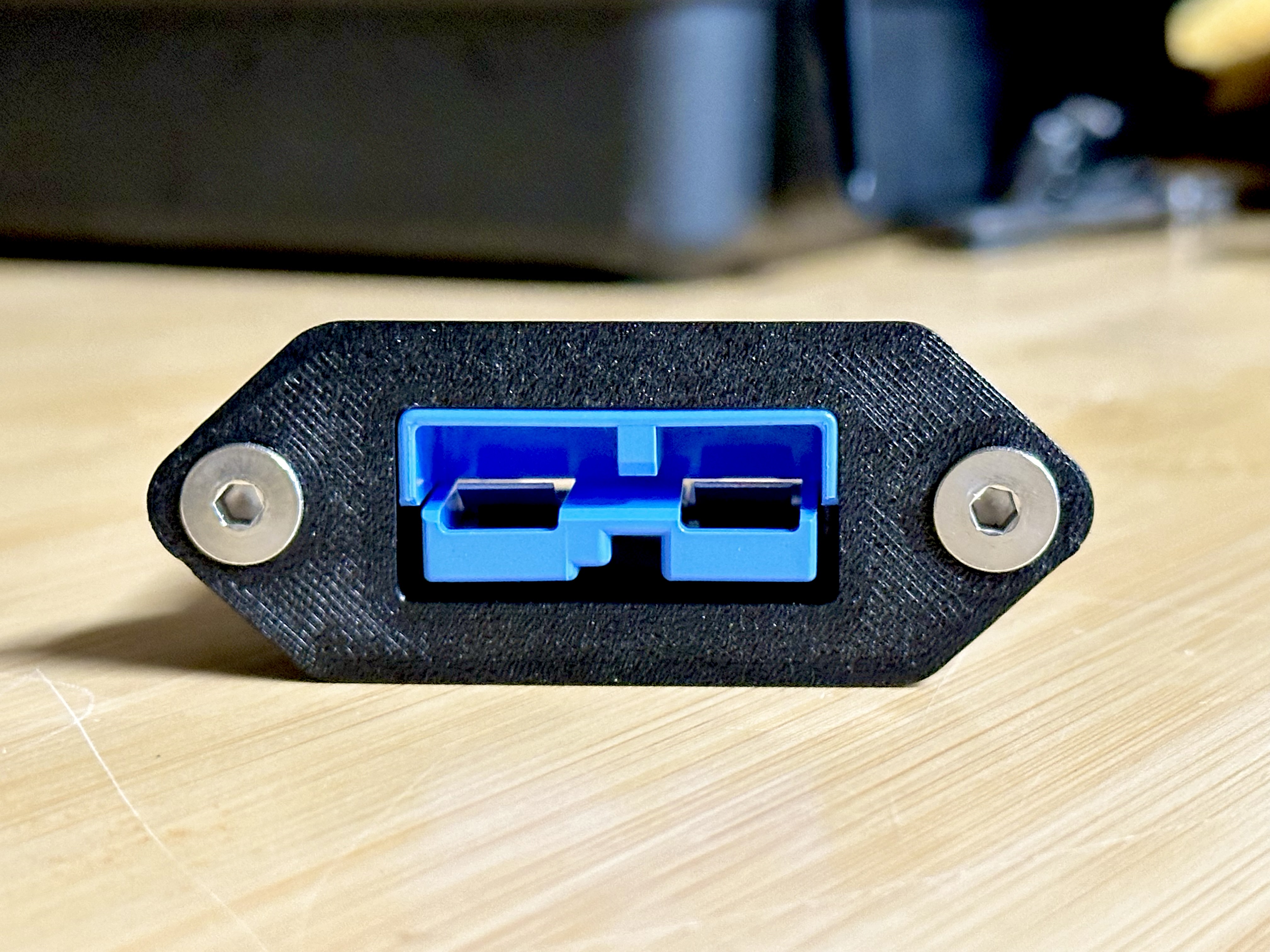

This panel mount is minimal and strong, with accurate dimensions taken from genuine Anderson SB50 connectors, so this is verified to fit.

Some other models online do not account for the ribs on the side of the connector, so the connector flexes the mount body when inserted.

Printing Notes

Printed with 4 perimeters @ .20 layer height and 15% infill, this model takes about 18g of filament to print, so it's a perfect model to use up the last few grams of a filament roll.

When oriented with the face of the mount towards the build plate, this model does not require supports, however I like printing them with organic supports since it makes the mounting holes a little nicer, and doesn't add much time or material to the print.

Hardware

This mount is designed to accept M5 flat head (read: countersunk) hardware

Fitment Notes

This model was created with somewhat tight tolerances, and non-genuine connectors may be on the tight or loose side, as far as fitment is concerned. If this is the case, drop me a message and I can create a variant of the model with slightly modified dimensions.
