Transform your old workshop floor stand light into a smart, app-controlled light using the Xiaomi Smart Plug 2. This project provides a 3D-printable casing that houses the electronics, seamlessly integrating the light with the Mi Home app.

Introduction:

Do you have an old workshop floor stand light that you wish had smart features? Look no further! This project allows you to retrofit your existing light with Xiaomi Smart Plug 2 components, giving you the ability to control your light via the Mi Home app.

Features:

• Turn on/off and schedule your floor stand light from your phone
• Monitor power usage
• Group with other Mi Home devices for smart home automation

What You'll Need:

• Xiaomi Smart Plug 2
• 3D Printer
• Basic electronics tools (soldering iron, wire strippers, etc.)

Steps:

1. Tear Down: Open up the Xiaomi Smart Plug 2 and carefully remove the necessary electronics.
2. Design: Download the 3D-printable casing STL files.
3. 3D Print: Print the casing using your 3D printer.

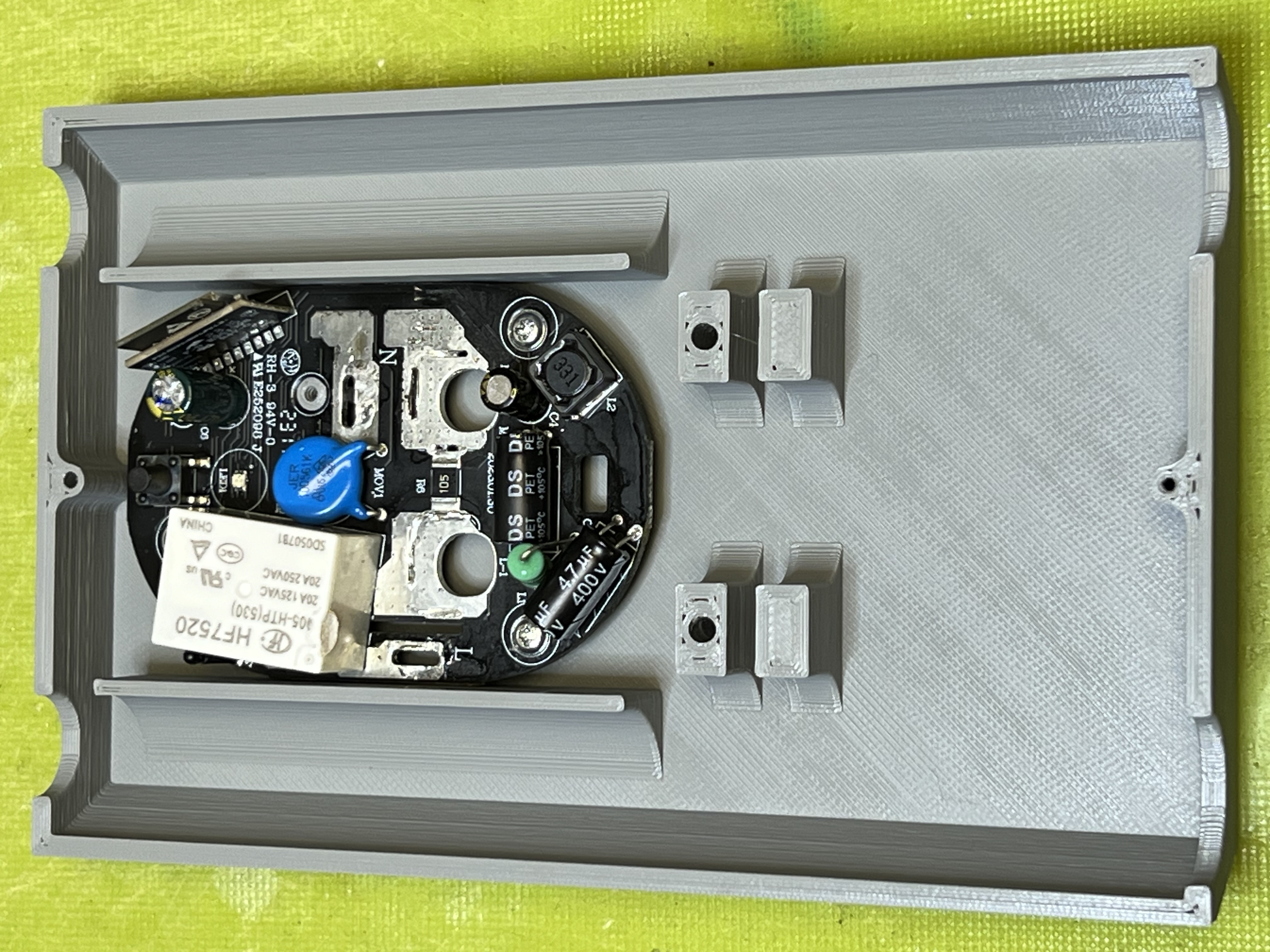

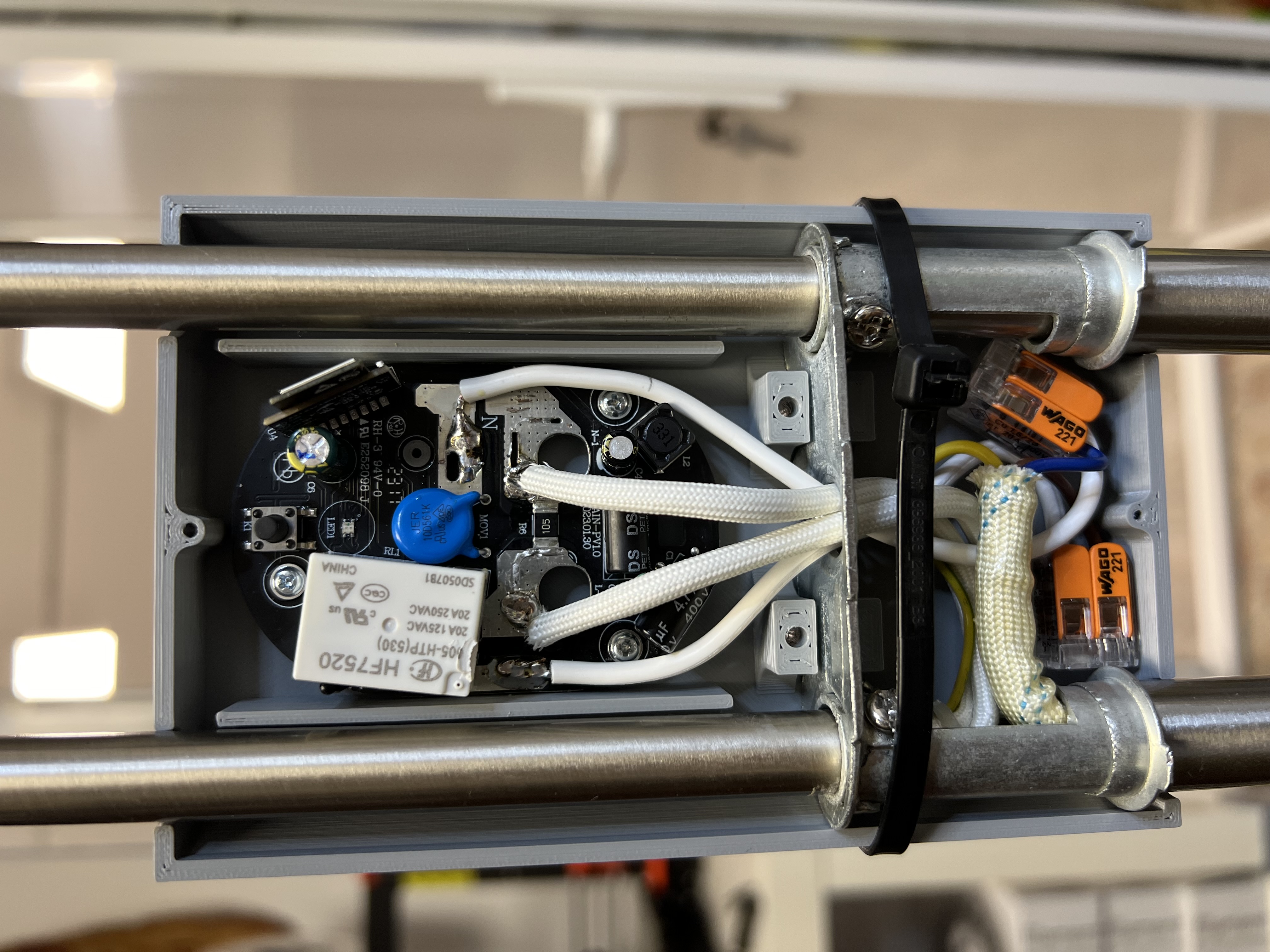

4. Assembly: Place the Xiaomi Smart Plug 2 components into the new casing. For signal LED reuse original plastic part from plug, just cut it to measure. Screws: M3 x 20mm 2 pcs and M2 x 20mm 2 pcs. PCB is screwed using screws from original plug case.

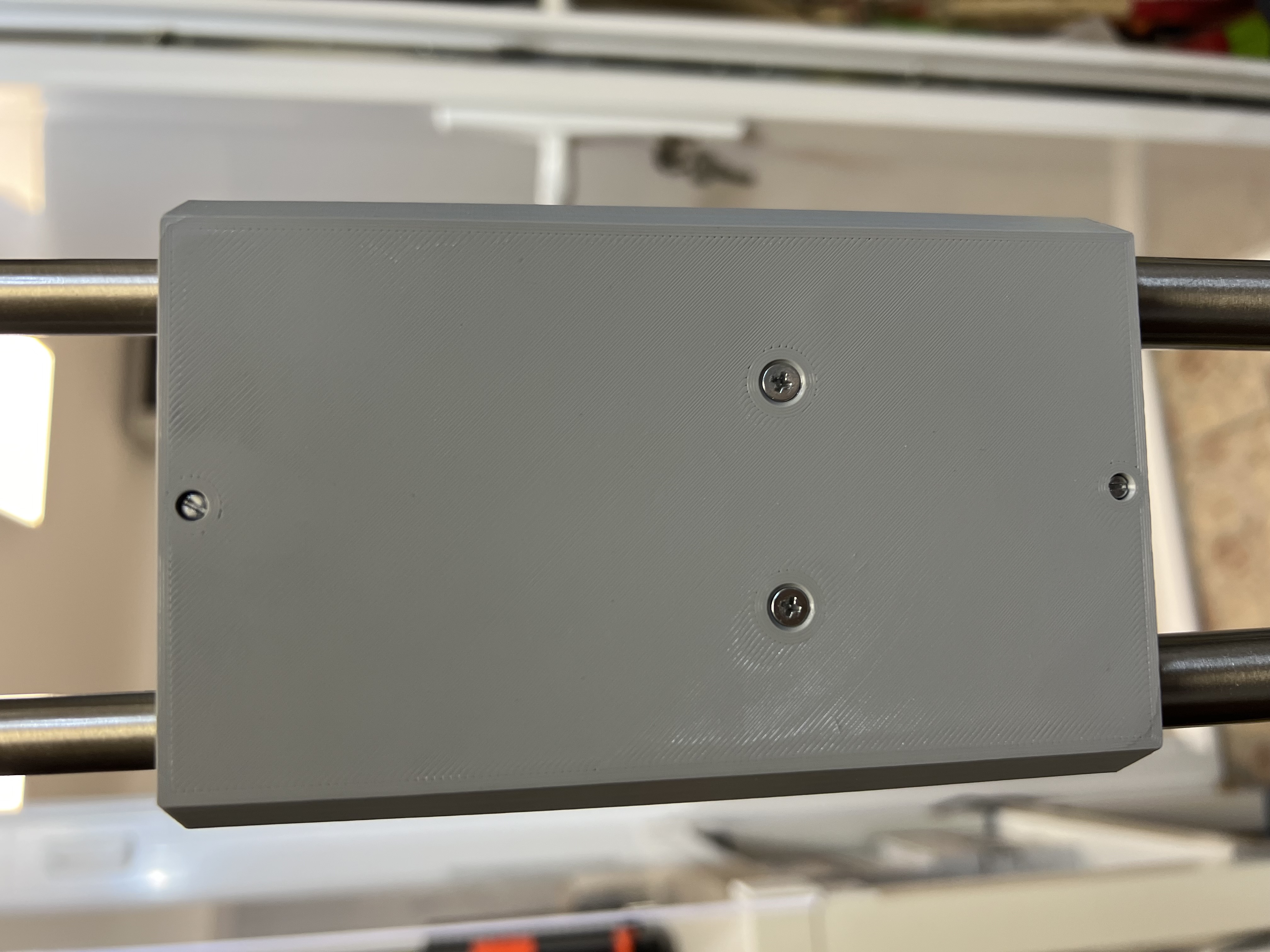

5. Installation: Attach the newly cased electronics to your old floor stand light.
6. Setup: Configure the device using the Mi Home app to integrate it into your smart home system.

Safety Precautions:

Please exercise caution while handling electrical components. Always unplug any devices before working on them.
