My attic storage is quite shallow and has a slanted roof so my skis cannot fit horizontally or vertically... My solution, a roof mount and this wall mount.

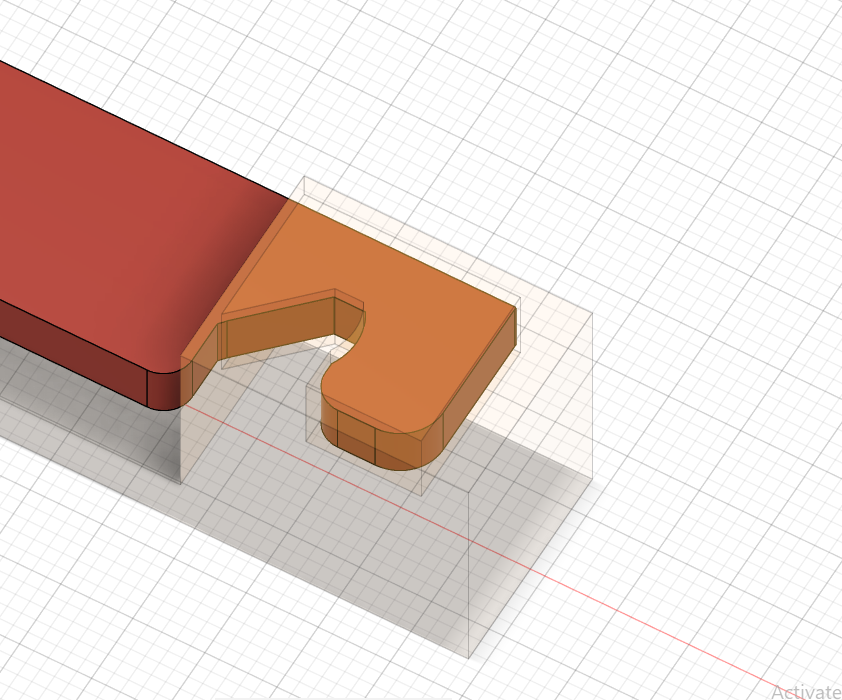

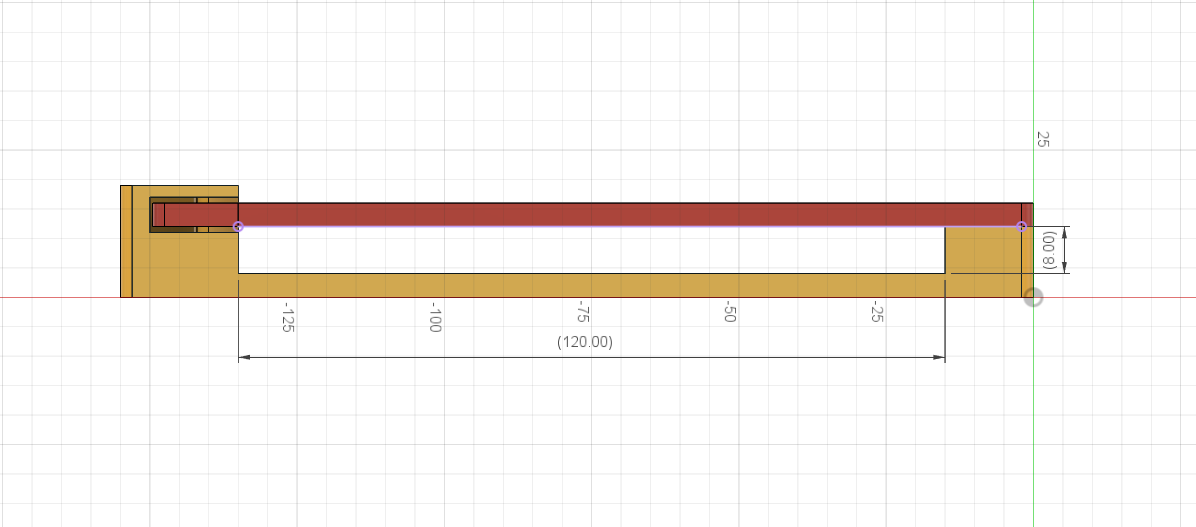

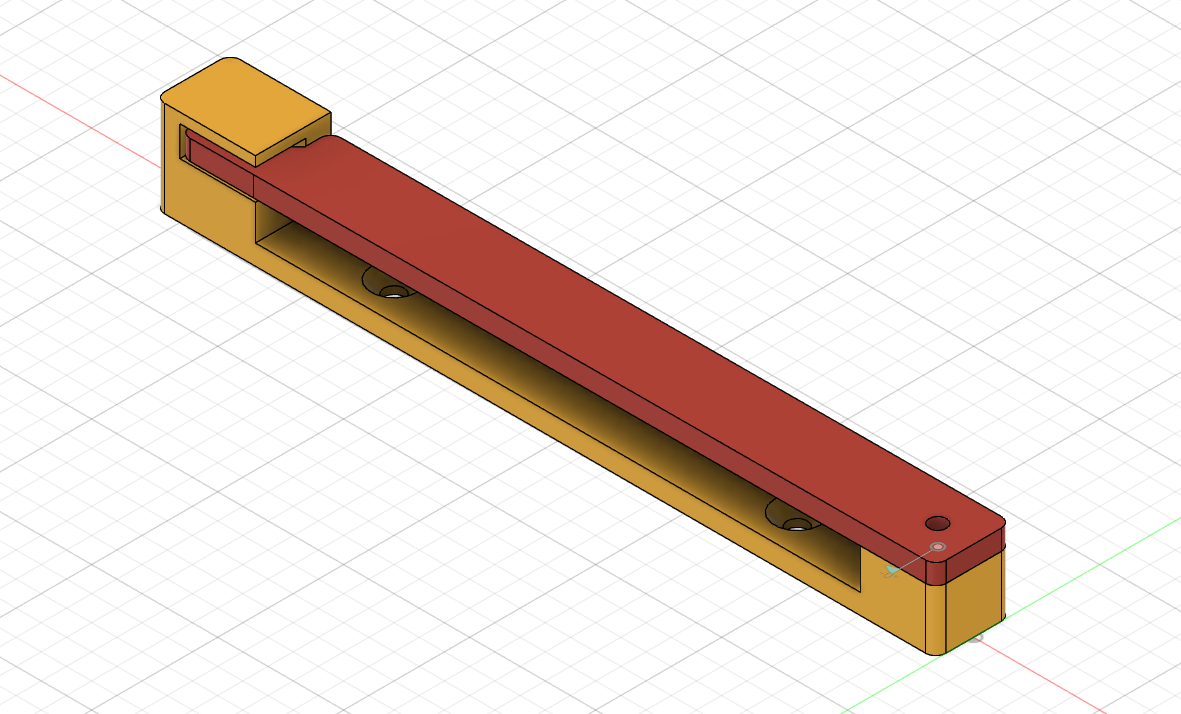

A simple wall mount with a rotating gate that snaps shut. The mount itself is angled 3° to better follow the curvature of the skis, therefore there is a front and back. Designed for an M3x15 bolt and M3 nut. Used random Ikea wood screws to attach it to the wall.

Here is a video showcasing how it works.

Feel free to modify the provided “.step” files to your liking!

My print settings:

• Material: PLA
• Layer height: 0,4 mm (0,6 mm nozzle)
• Fill density: 10%
• Fill pattern: gyriod
• Supports: organic
