Descrição

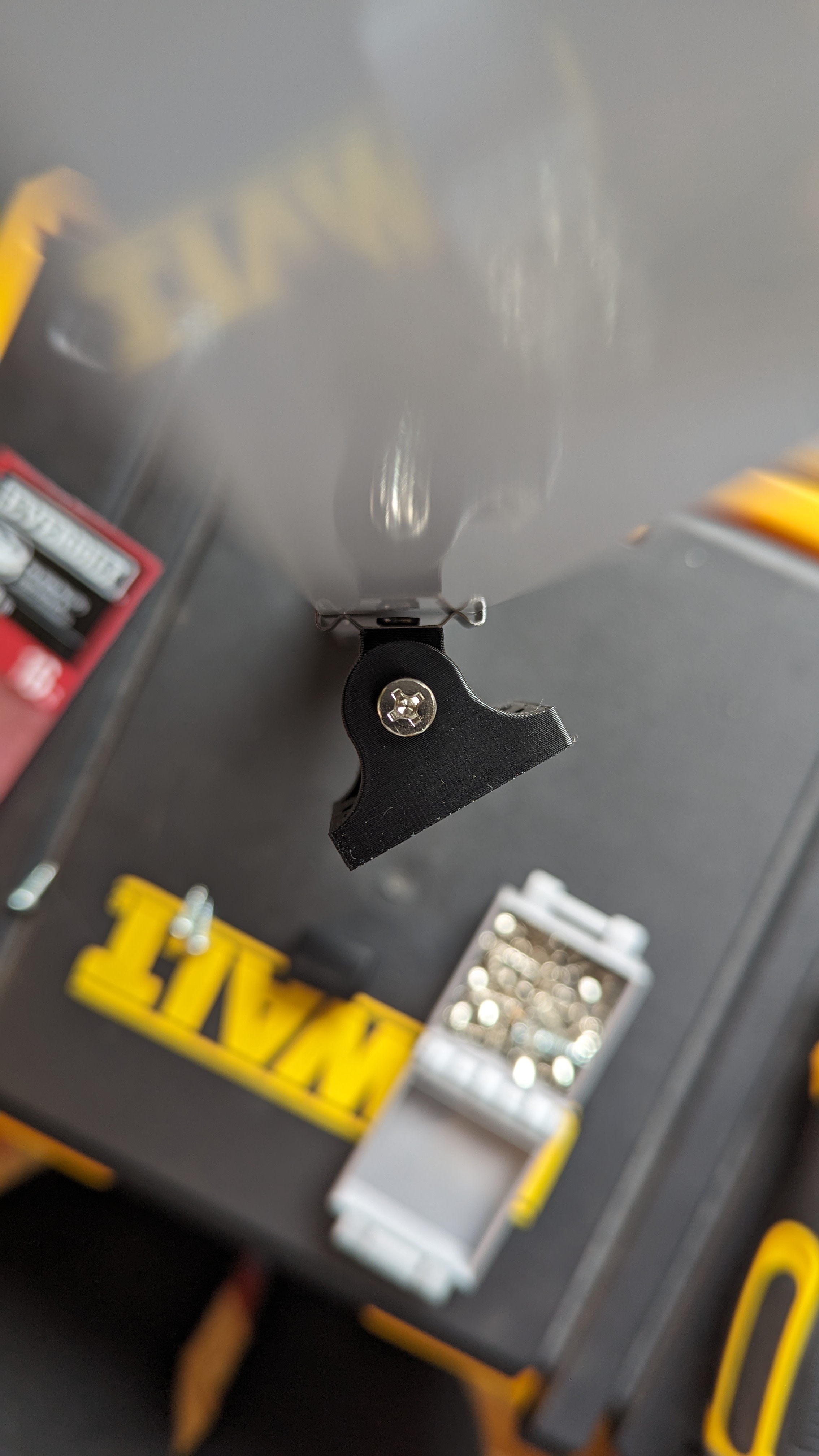

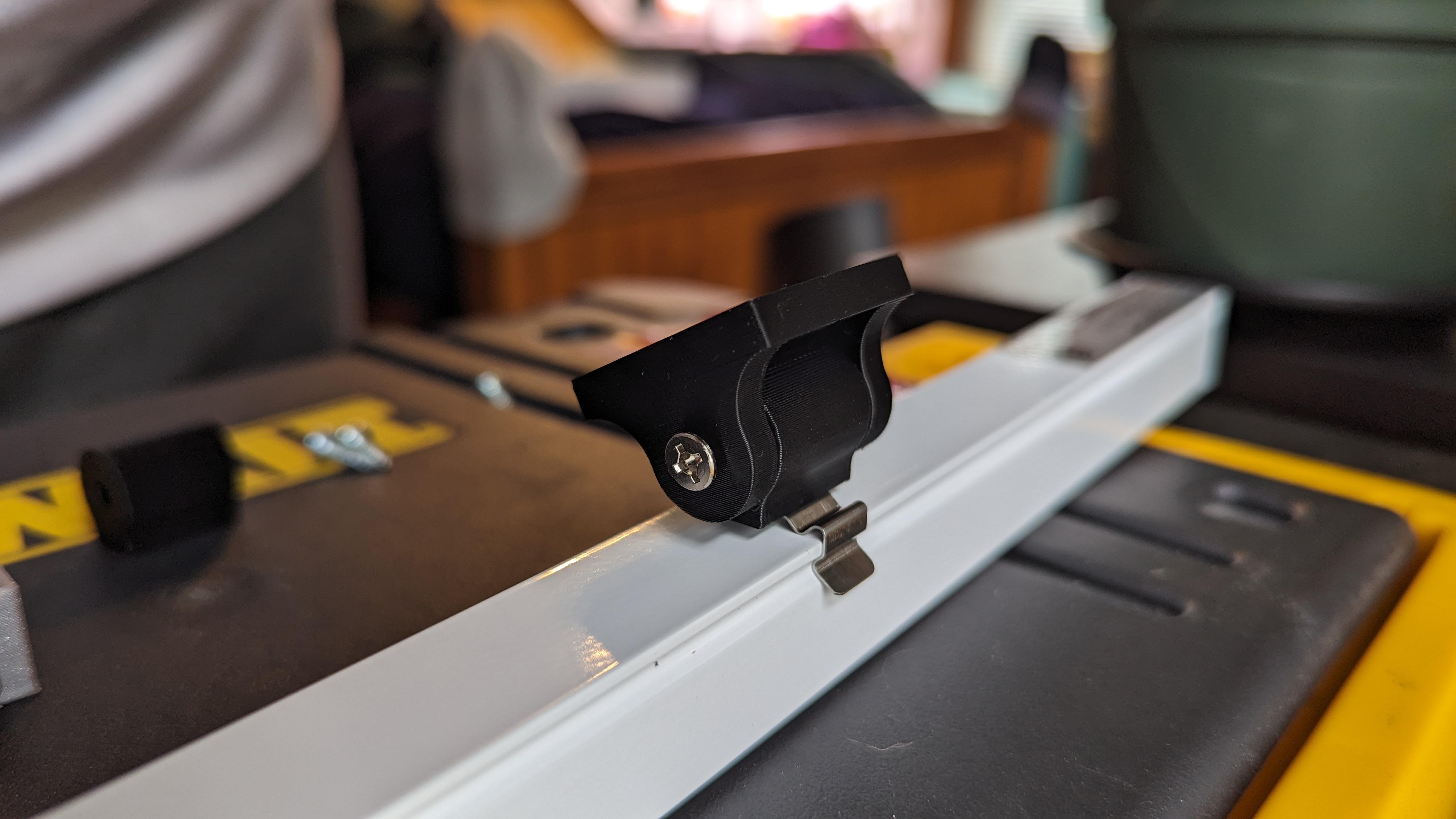

I designed this hinge because I wanted to mount something at an adjustable angle, but didn't want that angle to change once a force was applied. It works by inserting a screw through the hinge with a nut on the other side, then setting the desired angle and tightening. See below for more details.
Happy Printing!
- Ty10y
Print Settings
| Layer Height | 0.2mm or less |
| Perimeters | Any |
| Infill | Any |
| Supports | Not needed |
| Raft/Brim | Recommended for the cylinder in the center |
| Skirt | Not needed |
| Notes | Model prints best in the orientation provided |
Dimensions
Revision History
Oct. 14th 2023
- Published original model
58
Curtidas
641
Downloads
1
Impressões
Categoria
Mechanical Parts
Tags
hinge
adjustable
screw
locking
Licença
Creative Commons — Attribution — Share Alike
Arquivos (3)
Locking Hinge v8.f3d
557.3 KB
Without Hole.stl
212.3 KB
With Hole.stl
221.7 KB
