Modelo 3D 6 Cell Module Tray (Seed/Plug Tray) por Alex Ward no Printables

Descrição

UPDATE: There is now a V2 of these cell trays with an improved design please check out [https://www.prusaprinters.org/prints/71854-seedmodulecell-tray-mk2-seedplug-tray](https://www.prusaprinters.org/prints/71854-seedmodulecell-tray-mk2-seedplug-tray)

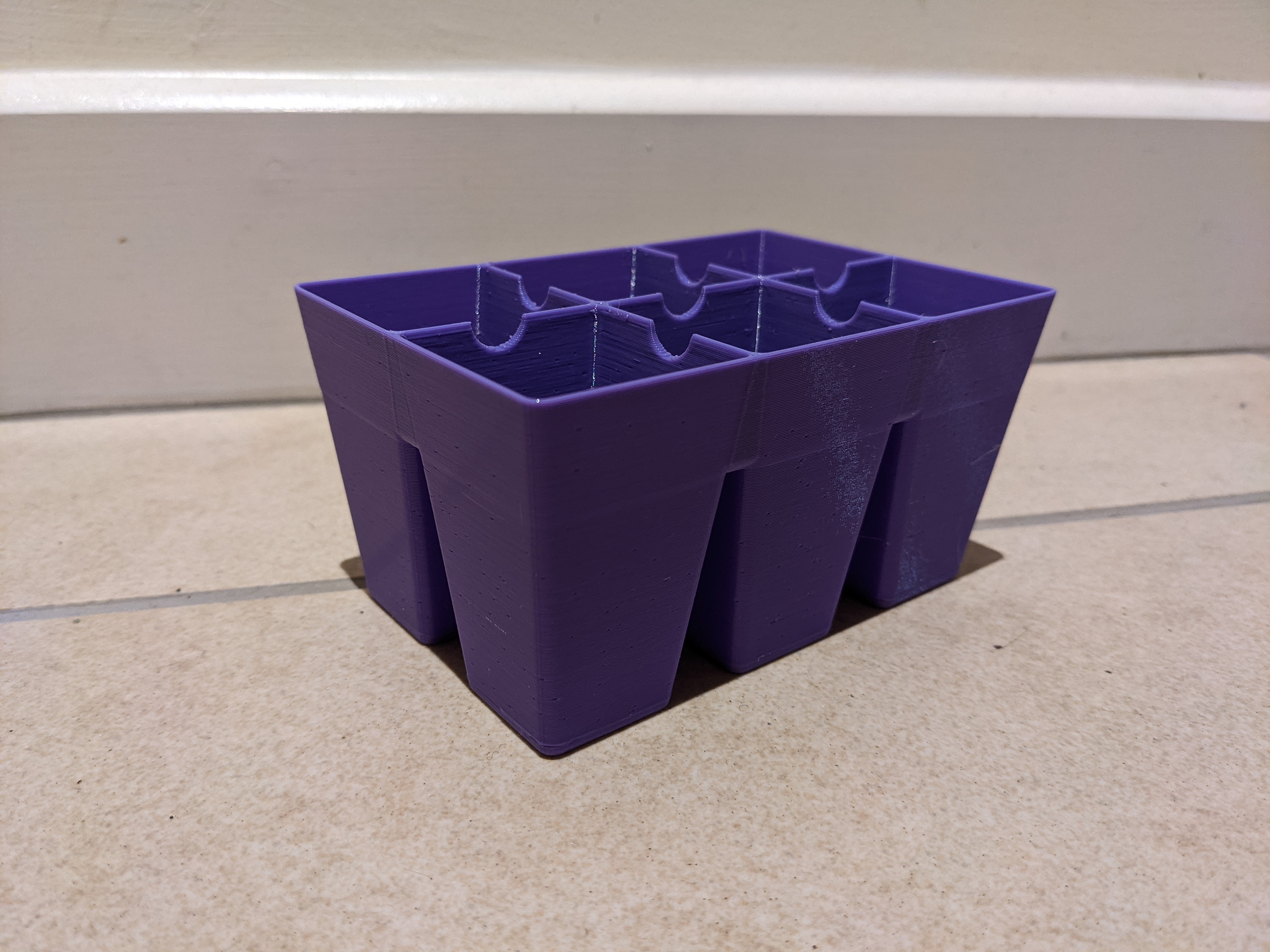

This 6 cell module tray for starting your seeds, designed to be strong and sturdy so that i can be reused many times, with a large hole in the base to aid drainage and the easy removal of plug (plant) once the plant is ready for transplant. They also nestle together nicely for storage when not in use.

Cell size (Approximate): is 40X40X61mm

Overall tray size(Approximate): 124X83X63mm

For those in the states they are sizes so you should be able to fit 12 into a standard 1020 Flat.

Edit 27/3/21: I have now upload a second version with air pruning slots, Use the same print settings as the standard version but consider using a hight modify to increase the amount of infill on the lower section with air pruning slots.

Edit 30/3/21: added another version of the 6 cell tray, this version is square with bigger cells.

Cell size (Approximate): is 60X40X61mm

Overall tray size(Approximate): 124X123X63mm

Print Settings:

Layer Hight - 0.3

Perimeters - 1

Infill - 5-10% should be plenty

Support- None

Sugested Material- PETG, ASA

Printables

6 Cell Module Tray (Seed/Plug Tray)

Publicado em 22 de dez de 2022

121
Curtidas
954
Downloads
9
Impressões
Categoria Outdoor & Garden
Tags
planter seed tray gardening seedling gardenhose indoorgardening indoorgarden seeds seedstarter outdoorgardening growyourown homegrown plugtray seedtray celltray
Licença Creative Commons — Attribution
Arquivos (3)
6 Cell Seed Tray.stl 8 MB
6 Cell Seed Tray Air Pruning Version.stl 12.7 MB
6 cell seed wide.stl 9.1 MB
