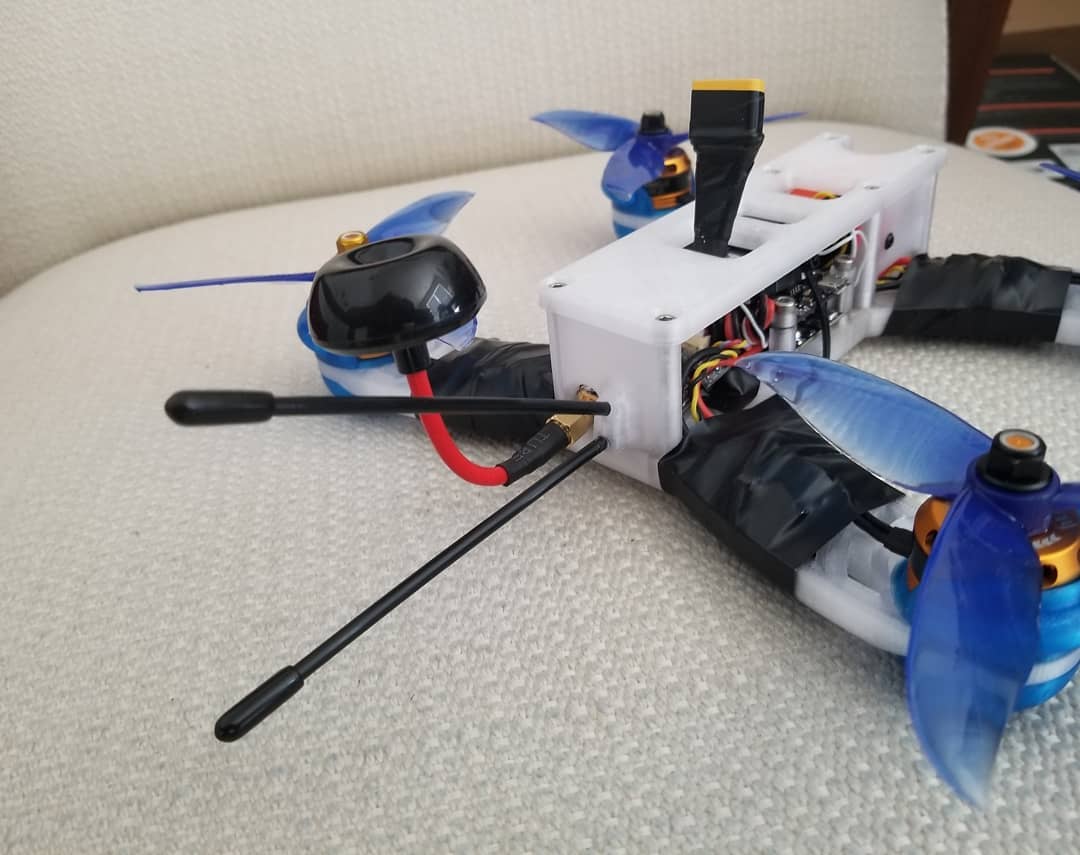

Modelo 3D 5 inch Quadcopter por Vince_Prints no Printables

Descrição

As the name suggests, this is a 3D printed quadcopter. I am assuming you have some experience of building a RC machines if you are attempting to print this, so this will not be an inclusive tutorial.

Printer Parts You Need:
Antenna Mount x1
Camera_Left x1
Camera_Right x1
GoPro_Mount (if needed)
Landing_Pad x4
Lid x1
Moto_Guard_FrontR x1
Moto_Guard_FrontL x1
Moto_Guard_BackR x1
Moto_Guard_BackL x1
Quad_Body x1
Spacer_Long (as needed for stack)
Spacer_Small (as needed for stack)

Additional Parts:
FPV Camera x1
Flight Controller (FC) x1
Video Transmitter (VTX) x1
VTX Antenna
Receiver x1
4 in 1 ESC x1
Brushless Motors x4
Propeller x4
M3 screw (buy a variety kit!)
M3 threaded brass inserts x10 (Use a soldering iron to press the threads into the larger holes of the body)

Print instructions

Everything should print easily!

Printables

5 inch Quadcopter

Publicado em 8 de out de 2019

20
Curtidas
160
Downloads
Categoria RC & Robotics
Tags
rc quadcopter drone diy electronics robotics fpv 5 fly inch systems
Licença Creative Commons — Attribution — Share Alike
Arquivos (13)
lid.stl 606.2 KB
camera_right.stl 521.3 KB
landing_pad.stl 785.5 KB
moto_guard_backr.stl 1.4 MB
camera_left.stl 413.7 KB
moto_guard_backl.stl 1.4 MB
spacer_small.stl 92.7 KB
antenna_mount.stl 1.5 MB
gopro_-mount.stl 442.5 KB
spacer_long.stl 123.6 KB
moto_guard_frontr.stl 1.4 MB
quad_body.stl 2.5 MB
moto_guard_frontl.stl 1.4 MB
