Modelo 3D Double Hung Window Tilt Latch por TheGreatCO no Printables

Descrição

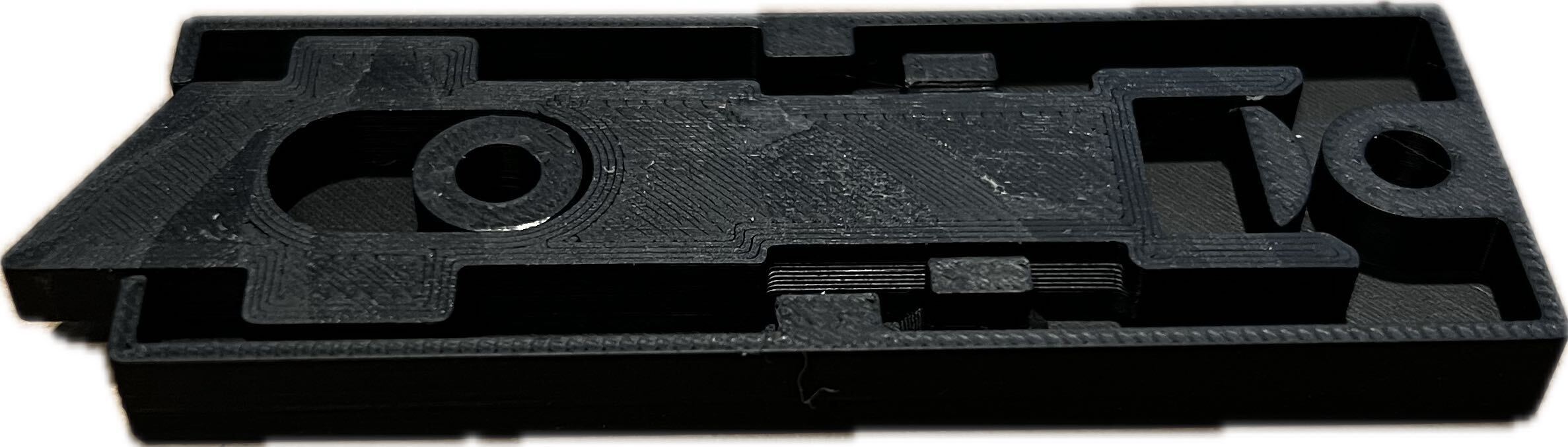

This is the latch for double hung windows that keeps the lower window from folding inwards. I'm not sure of the Window manufacturer, but they were in my apartment and I broke a few of them installing air conditioners. I took one that wasn't broken and measured it to create this. You need to print both the body and the latch as I can't guarantee either of these parts will fit the corresponding OEM part. You will also need the OEM spring from the broken parts.



Assembly can be a bit tough, I suggest warming the main part, specifically the two prongs that hold the slide in place, otherwise they might break. I lost the original part files, so I can't modify the prongs to make assembly easier and I no longer have access to the windows to re-create the original design.

Printables

Double Hung Window Tilt Latch

Publicado em 6 de out de 2023

6
Curtidas
38
Downloads
Categoria Other House Equipment
Tags
window latch windowlatch latches
Licença Creative Commons — Attribution — Share Alike
Arquivos (2)
Window Tilt Latch Slide.stl 612.2 KB
Window Tilt Latch Body.stl 756.3 KB
