Modelo 3D ice watch replacement strap por Shmuel Moses no Printables

Descrição

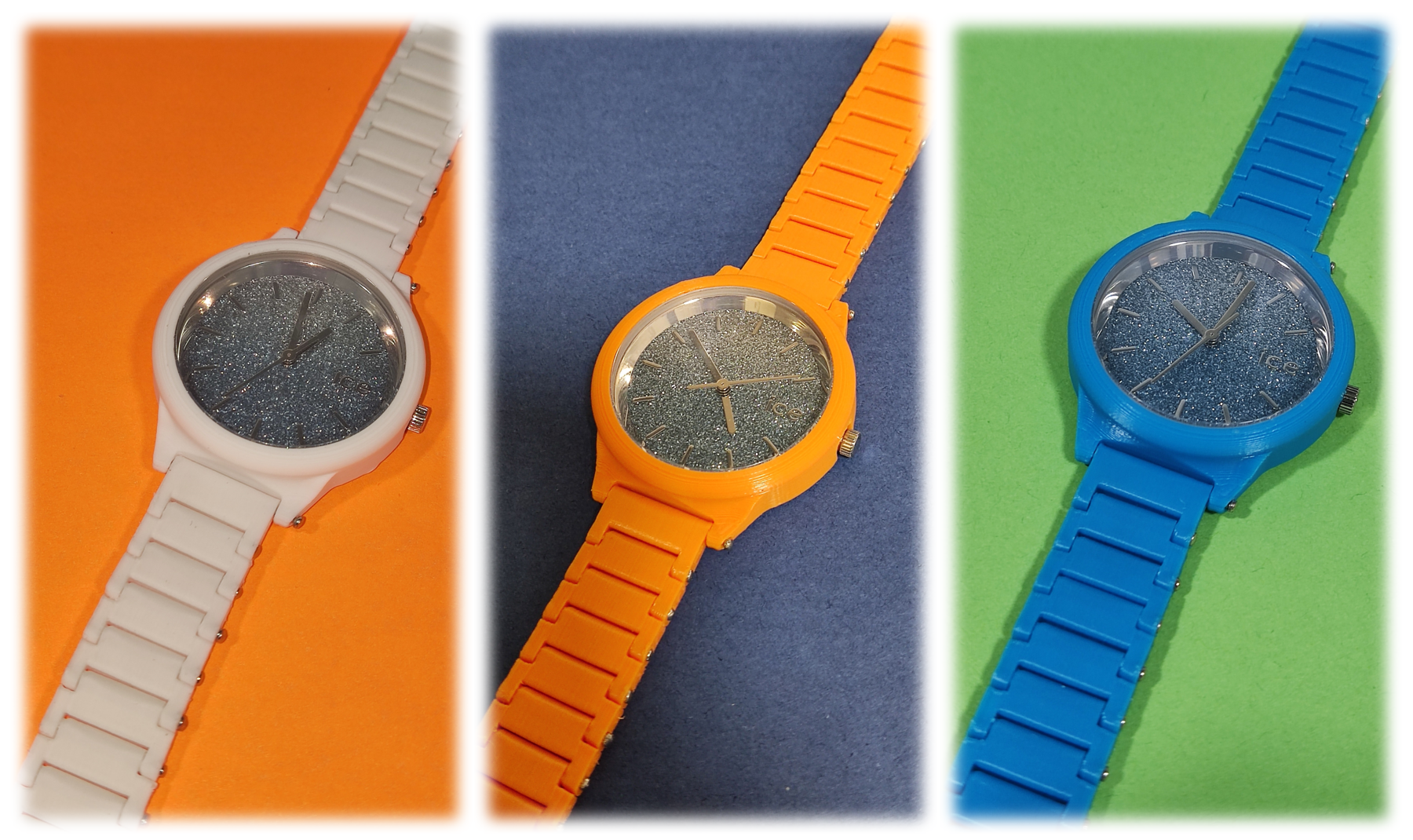

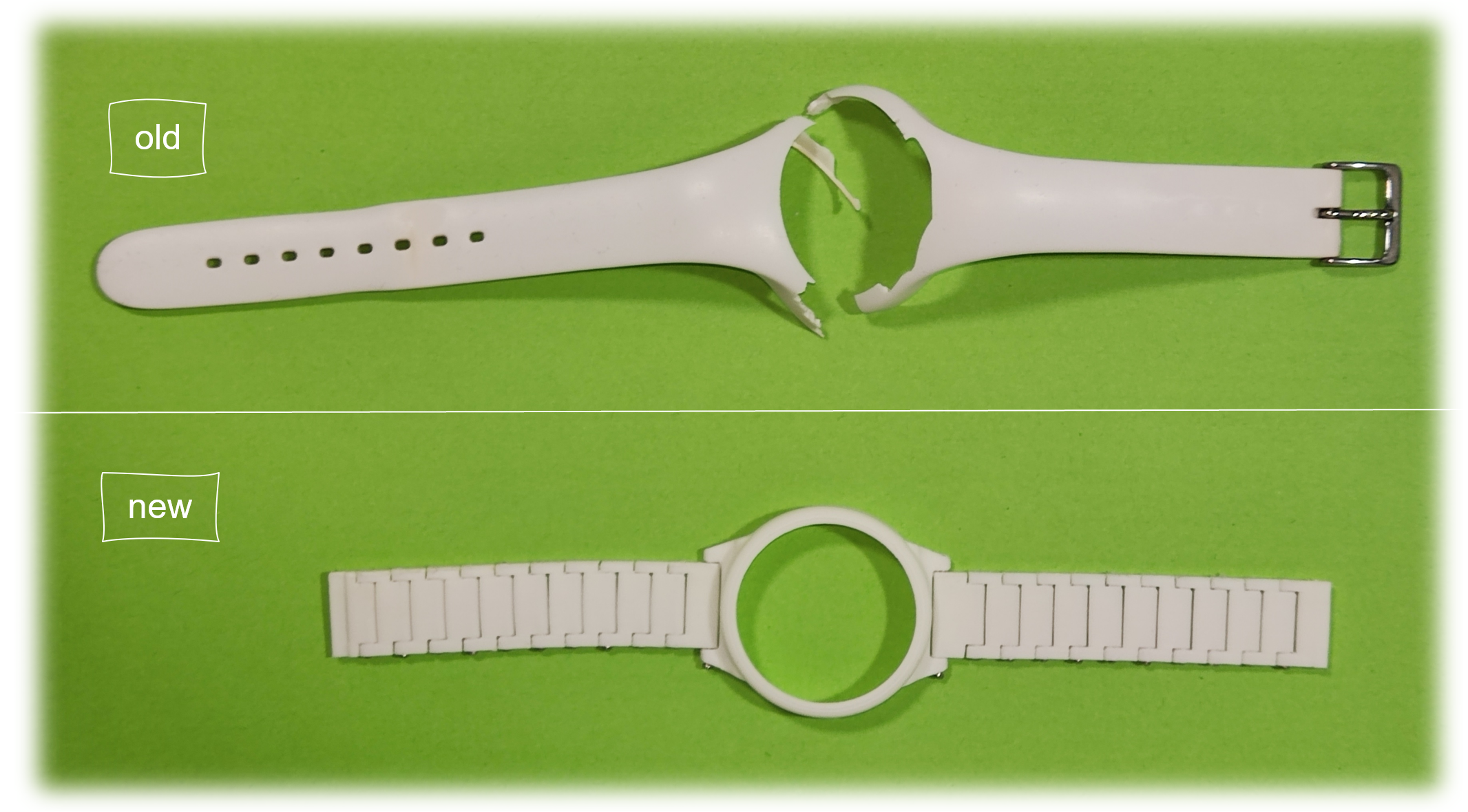

My sister's watch strap broke, and the replacement strap I ordered online took a long time to arrive. So, I decided to design one myself, and the result was not only beautiful but also modular.



Materials you will need:
  •   ice watch model 013425
  • ~ 10g of filament - for printing the case and links
  • ~ 20 office pins - for the hinges between the links



Print guide:

      print settings:

  • Layer height: 0.15mm
  • Nozzle diameter: 0.4mm or less
  • Supports are required
  • Avoid an elephant's foot
  • print in the orientation as shown in the picture below
  • Print two links to verify if your print settings create functional parts
  1. Print one case
  2. Print about 20 links - adjust the number depending on the circumference of your hand
  3. Print the end links (end_a, end_b)
  4. Print the clasp (clasp_f, clasp_m)





Assembly guide:

  • Cut the office pins to 14mm length
  • Insert the pins between every two links and between the end links to the case
  • Insert the watch body into the case



Pros:

  • cheaper
  • customizable
  • no need to wait for a delivery company

Cons:

  • not as comfortable as the original rubber strap



Remix:

By scaling the links in the slicer, you can create a strap that will fit any watch. Additionally, I've included an .f3d file so you can make any modifications you want.



Printables

ice watch replacement strap

Publicado em 4 de out de 2023

3
Curtidas
32
Downloads
Categoria Other Fashion Accessories
Tags
replacementparts watchstrap icewatch
Licença Creative Commons — Attribution
Arquivos (7)
link.stl 534.2 KB
case.stl 548.1 KB
clasp_m.stl 263.2 KB
clasp_f.stl 447.4 KB
end_a.stl 485.5 KB
end_b.stl 622.6 KB
ice_watch_final.f3d 10.9 MB
