Modelo 3D Slideable Headset Holder por CrazyTim no Printables

Descrição

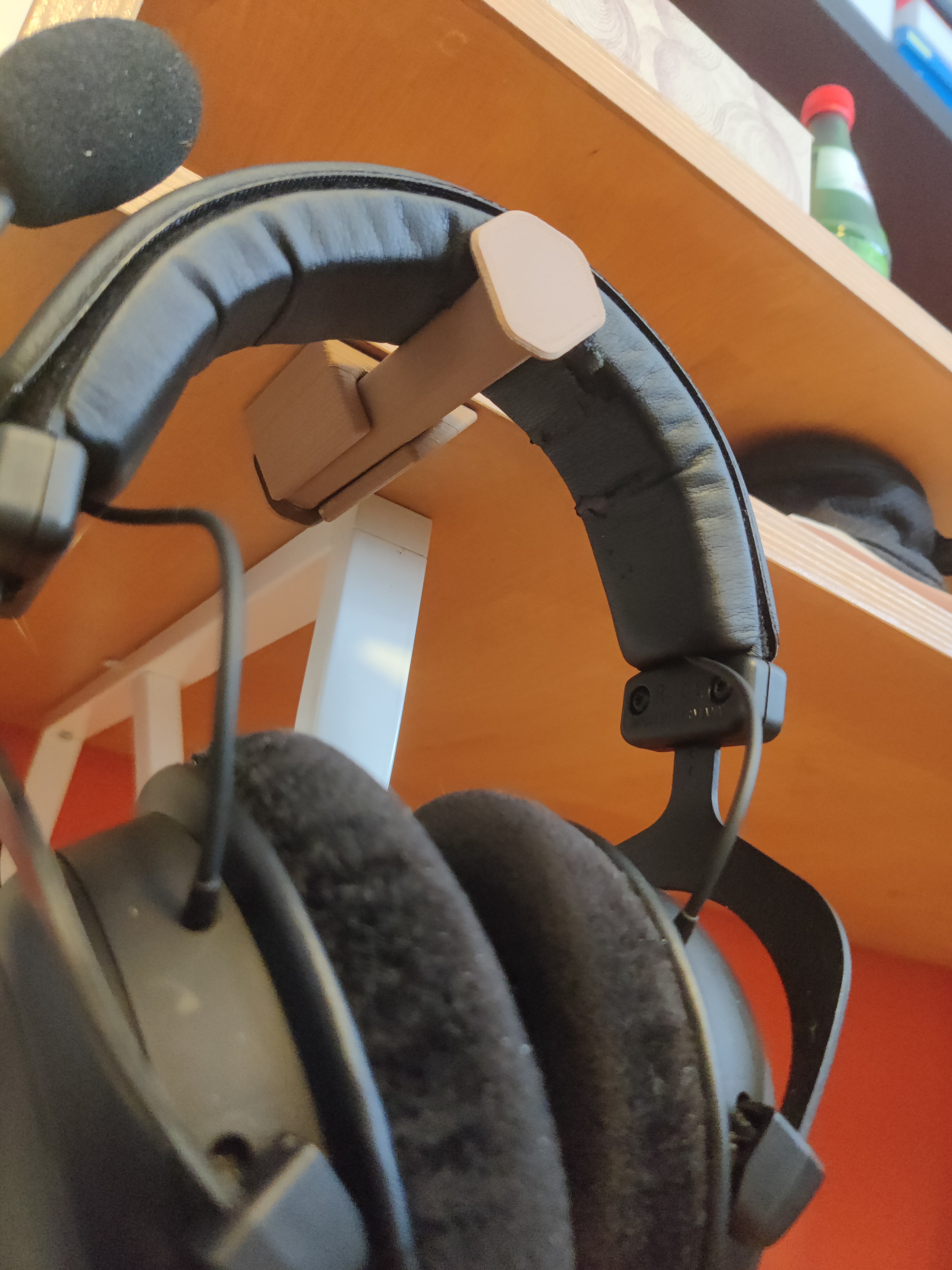

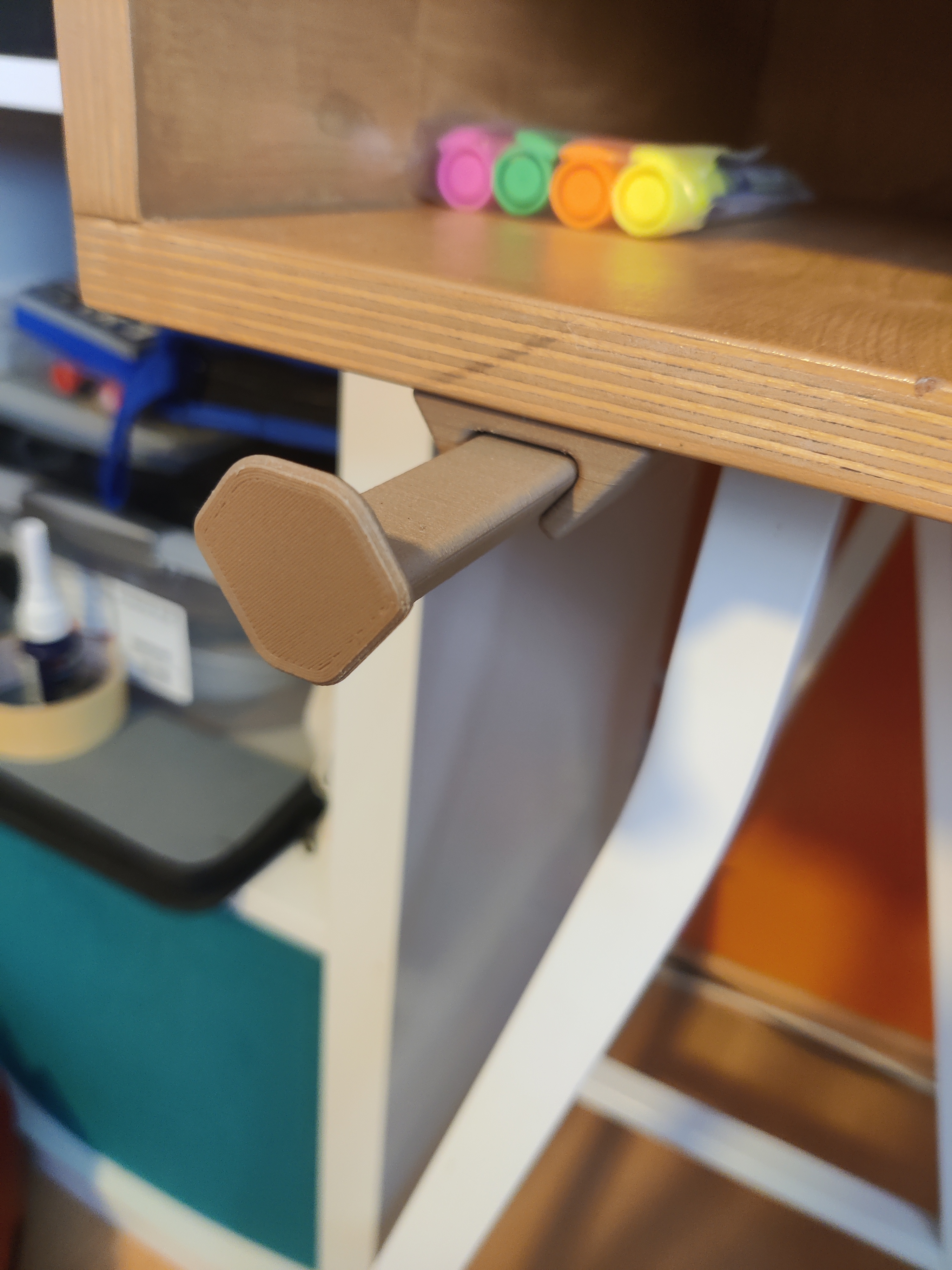

I designed this headset holder because I don't have space on my desk for my headset. That's why I came up with the idea of designing a holder that can be screwed to the table top. To avoid injuring yourself or gain space, you can simply pull it out or push it in.


In addition to the 3 parts (which do not require support) to print out, you also need 2 small countersunk screws. Depending on the thickness of the table top, they shouldn't be too long.

Assembly steps:

  • Print all 3 Parts
  • Screw Part_3 on your desktop
  • Slide Part_1 in Part_3
  • Glue Part_2 and Part_1 together

I'm not convinced about attaching it with adhesive strips, so I can't say anything about the strength.



Update to New Version (V2):

I changed the tolerance between the sliding parts, so it won't wobble anymore.

The tolerance between Part_1 and Part_3 on each side is now 0.2 mm (before 0.5 mm)

If you already use V1, you can reuse Part_3 because it hasn't changed. Only Part_1 is new.

(21.10.2023)

Printables

Slideable Headset Holder

Publicado em 21 de out de 2023

1,405
Curtidas
3,018
Downloads
44
Impressões
Categoria Office
Tags
desk gaming mount headset slide deskorganizer nosupport headsetholder deskorganization
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (8)
Part_1.stl 156.9 KB
Part_2.stl 22.5 KB
Part_3.stl 263.9 KB
Complete V1.stl 443.2 KB
Part_1.stl 161.2 KB
Part_2.stl 22.9 KB
Part_3.stl 264.1 KB
Complete V2.stl 448.1 KB
