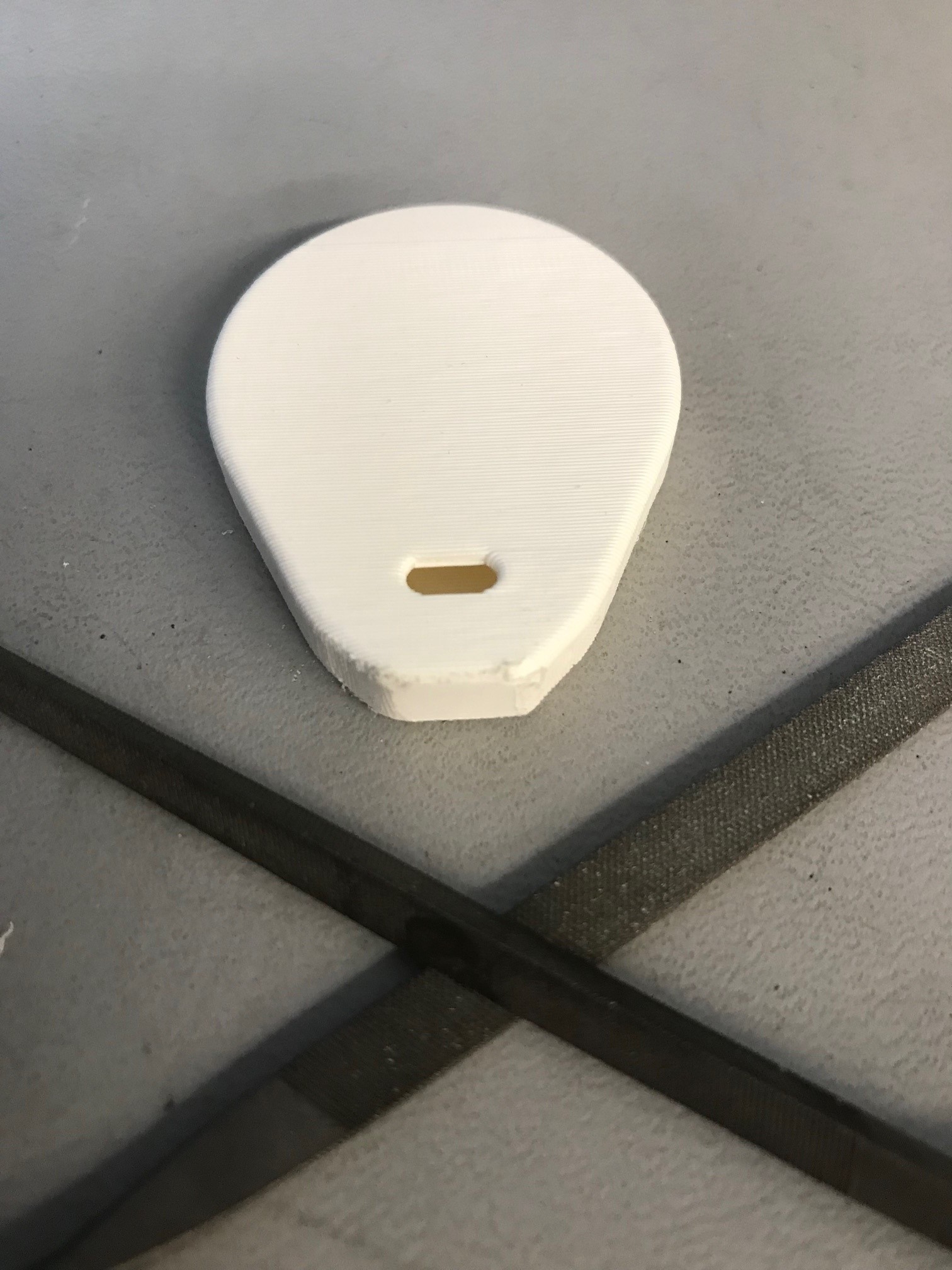

An RFID chip repair case is a practical accessory designed to address common issues with RFID chips.

When a new RFID chip is inexpensive but new one may encounter registration problems, this case offers an alternative.

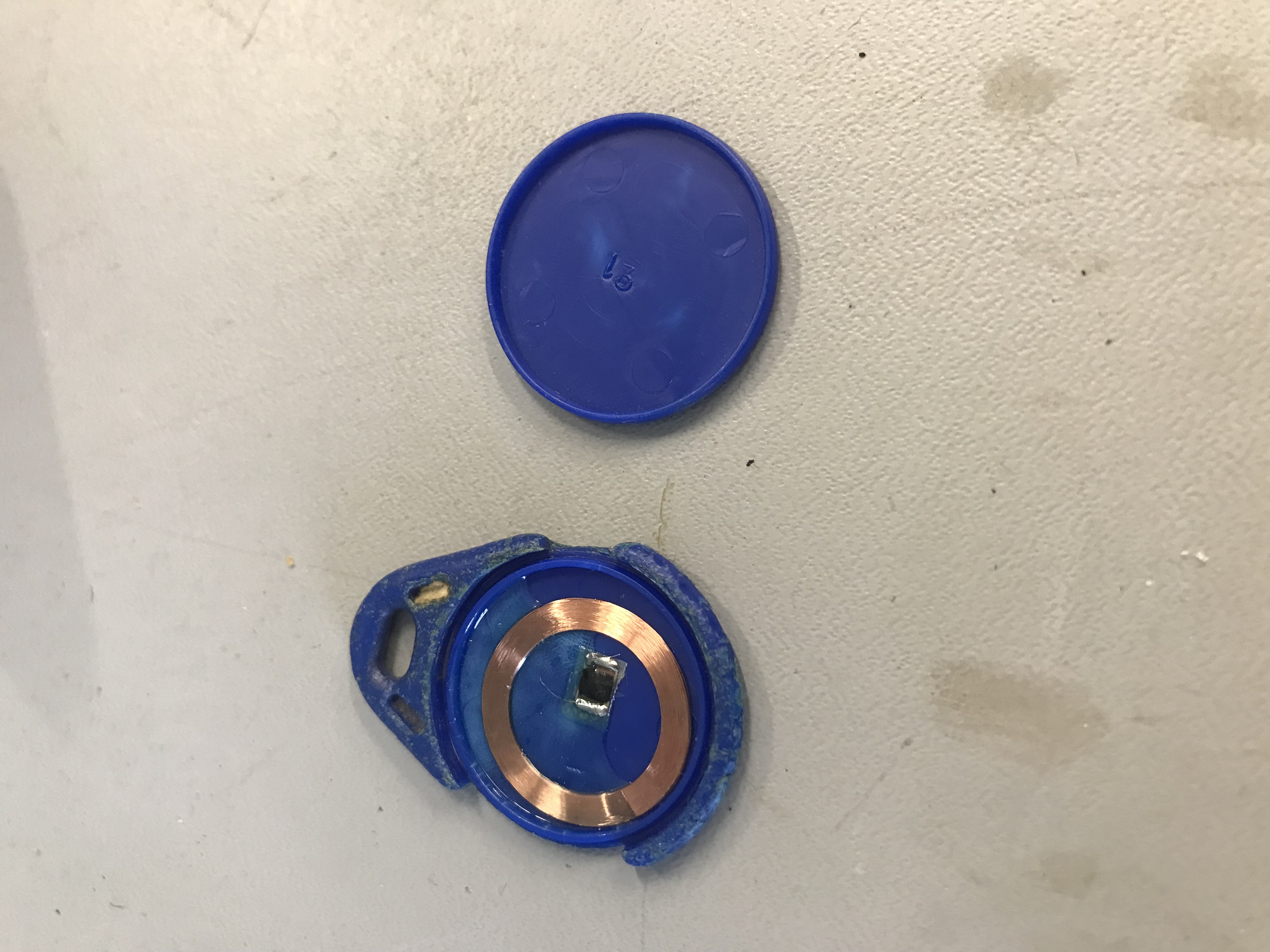

 If the side cover of your RFID chip falls off, you can use this repair case.
Simply place the cover back onto the chip and insert it into the protective cover. It stays in place without the need for adhesive.
The case securely holds the chip when attached to a keyring.

You can use this case not only for repairing chips but also for protecting new, undamaged chips from potential harm.

For chip diameter 32mm and thickness 4mm.

two extra stripes insert for RFID chip with broken eye part and for round chip

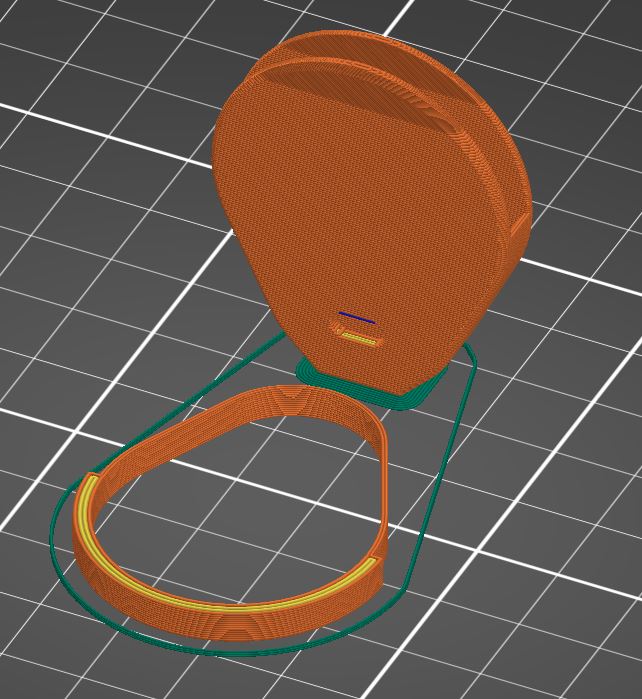

The case can accommodate different chip thicknesses (not limited to 4mm). If your chip has a different thickness, you can adjust the case without complex CAD modeling—just modify the model in one axis using a scale function in SLICER tool.

Tip for adjustment for chip with different thickness.

Example for chip 4,5mm with thickness.

use local coordinate and one axis only to scale case model in corect object  by 114 % , scale stripe model in  by 112%
