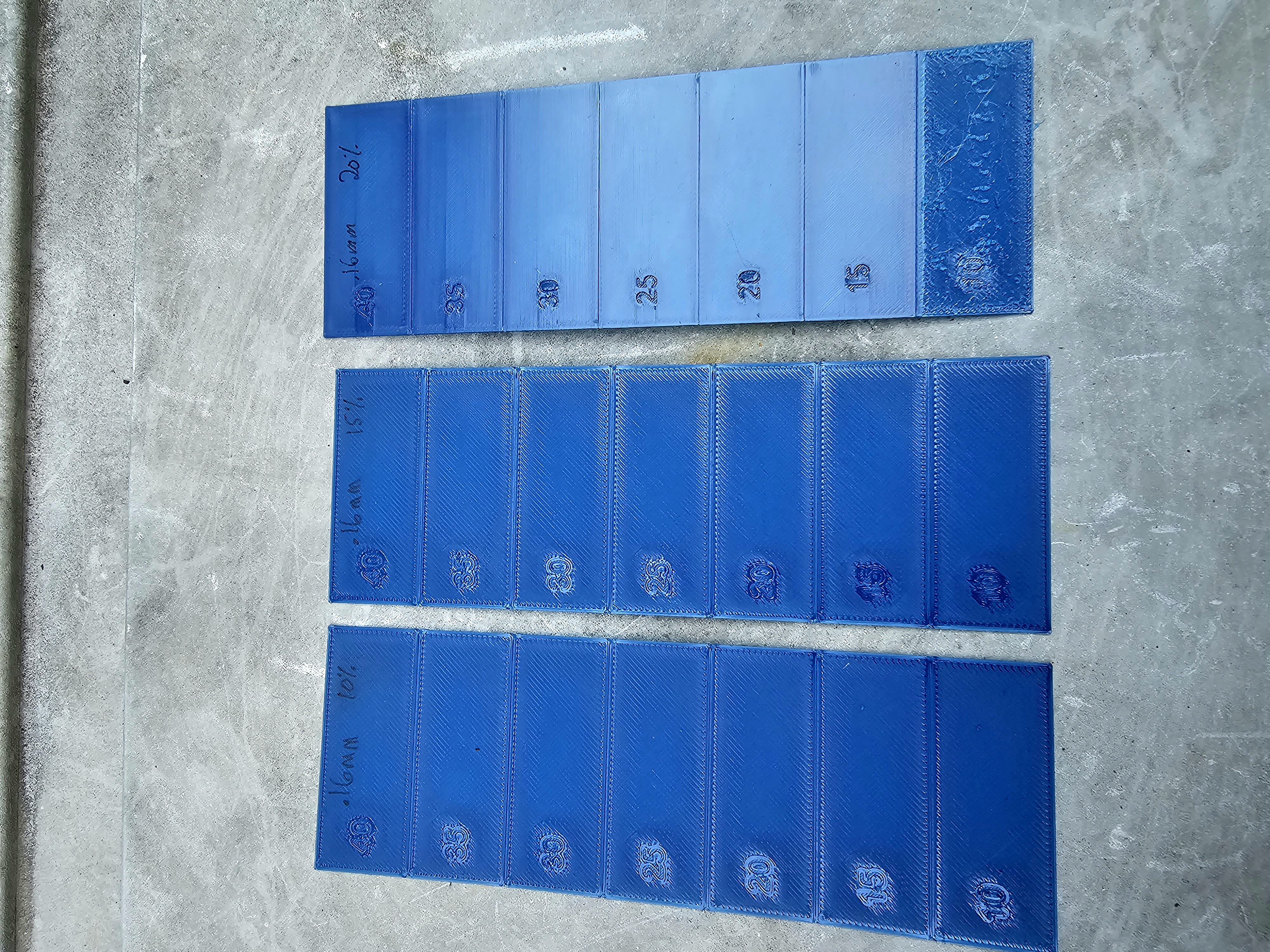

These models are designed to test ironing flow and speed. They are optimized for 0.2mm and 0.16 layer heights. Models test the flow rates of 10%, 15% or 20% through the speeds of 10-40mm/s.

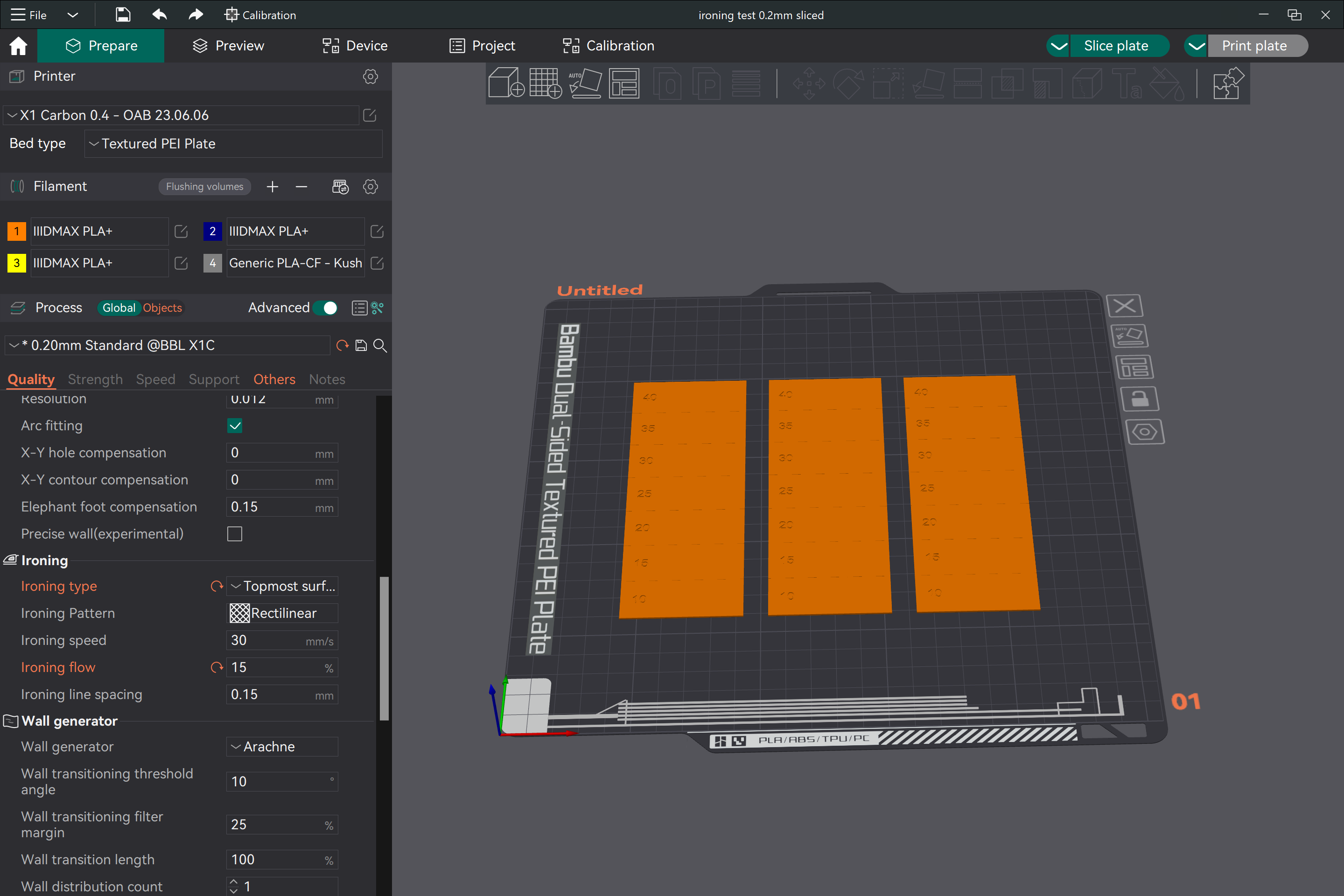

The sliced files are for a Bambu X1C. Just load them into orca and select your filament.

For other printers the flow rates and speeds will need to be set manually in your slicer.

You can test all three flow rates at once, or individually to save time. The tiles in each model are individual and can be deleted. Darker filaments are better for identifying imperfections.
