Modelo 3D Wingspan Insert including EE&OE por swissbear no Printables

Descrição

This insert for Wingspan fits the base game, the European Expansion and the Oceania Expansion in the base box.

Its a tight fit, but offers still quick setup and a well organized table.

The Box closes completely if the backs of the rulebooks are not on top of each other

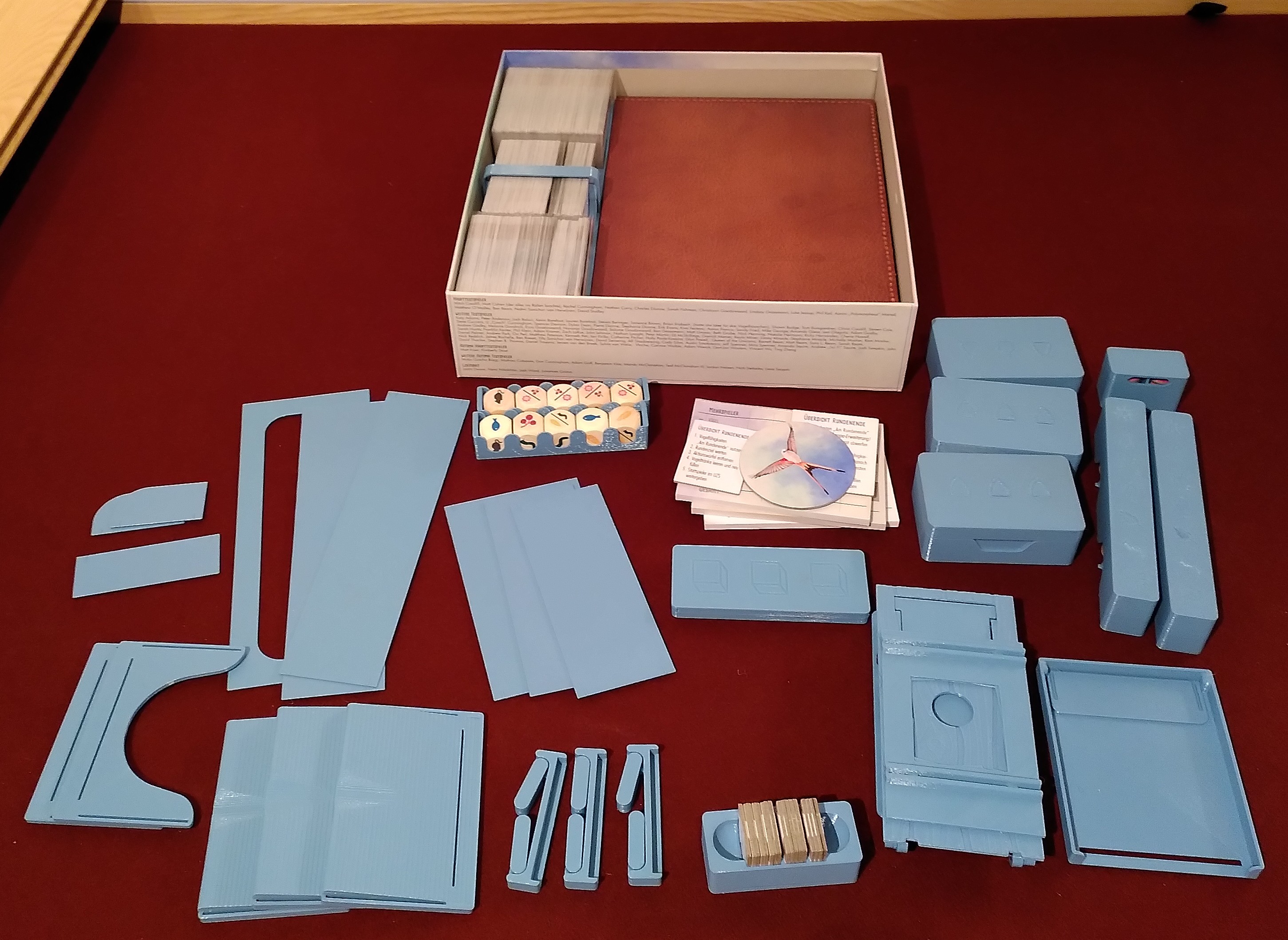

It contains:

  • 3 Boxes for Eggs
  • 2 special trays for all the food tokens (and a small spare box to fill the space and store the few remaining tokens
  • A special 3 part bird tray for having the cards upright for better reading across the table

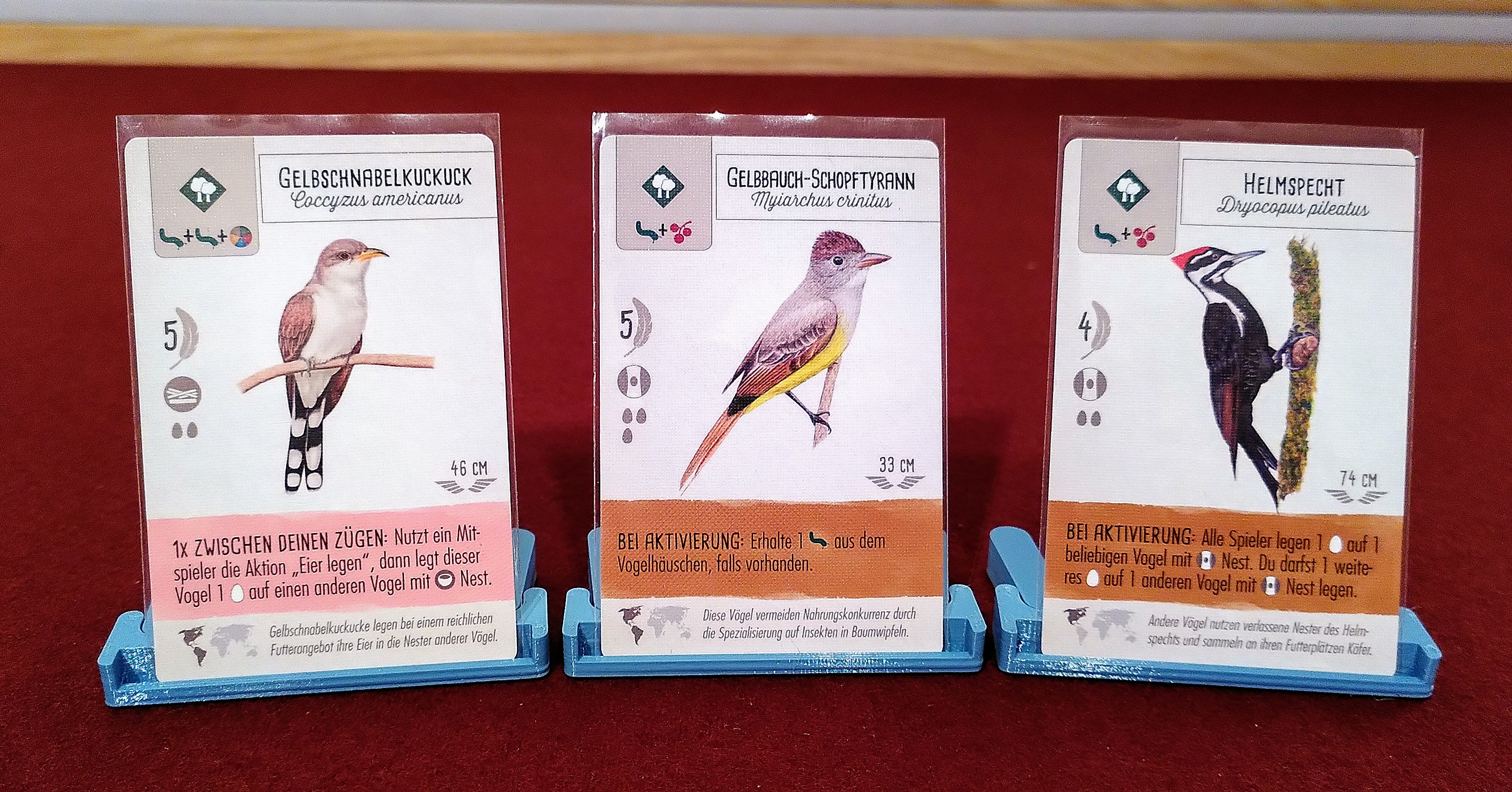

  • Card holders for draw, bonus and discard pile (we all know how well sleved cards stack)

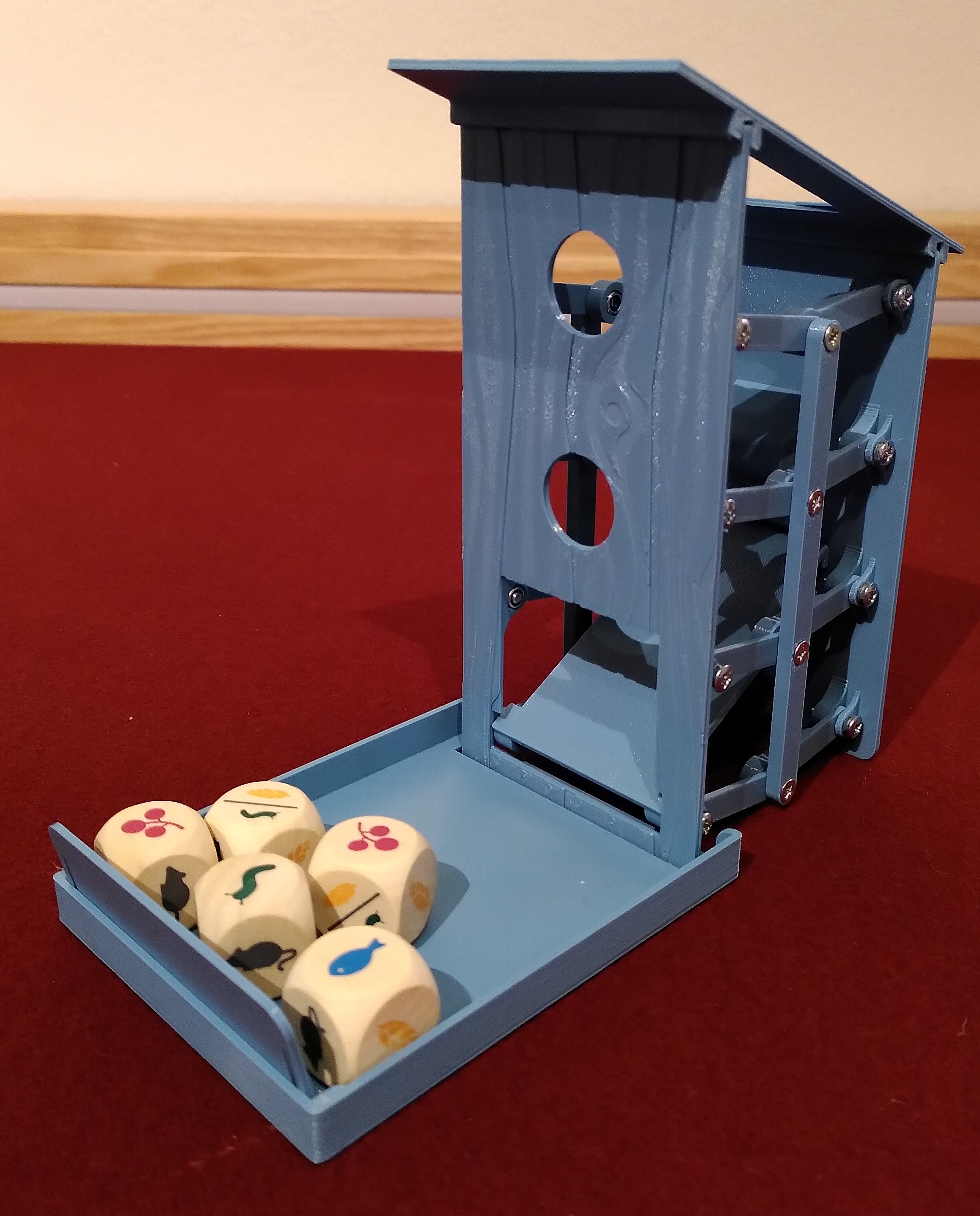

  • A foldable dice tower with ornaments on front and roof
  • A large tray with handle for all the cards
  • A small tray for dice and round end goals

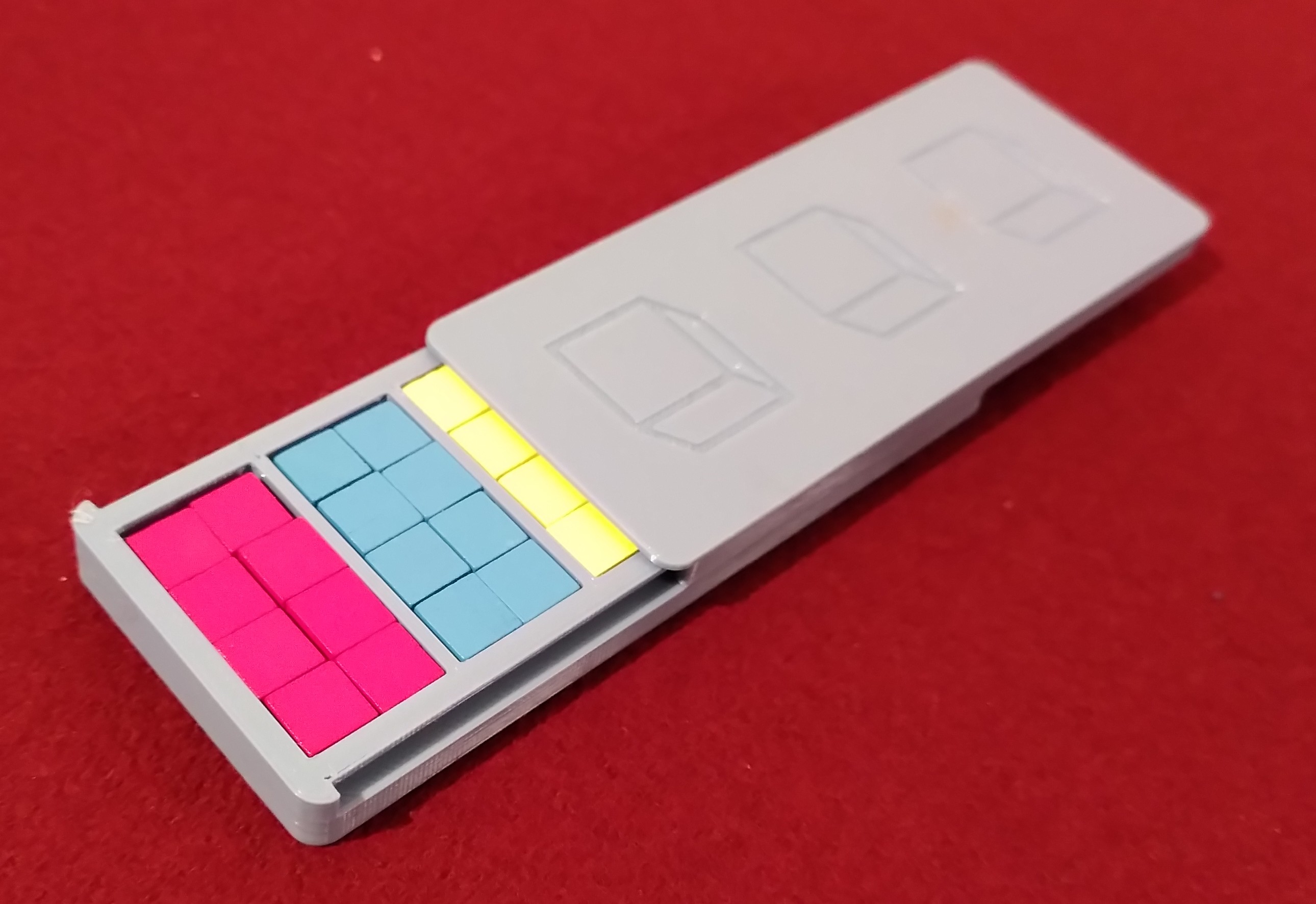

  • a slide box for all the player tokens



Assembly

For the foldable dice tower you will need:

  • 24 M3 Nyloc nuts
  • 14 M3x10 Panhead
  • 2 M3x16 Panhead
  • 8 M3x10 Countersunk
  • Superglue

The card tray is too large to be printed in one go, it can be superglued or welded (with soldering iron). The handle can be slid in if there are no cards in the middle part

The front and the roof of the dice tower are glued to its counterpart

  • The thin connector goes to the front wall
  • the nyloc connector goes to the back wall
  • connect the ramp with the longer M3 panheads
  • You built a prusa, you know how to handle press fit nuts
  • the screws above the ramp should not be screwed in all the way so the ramp can fully lift
  • Its possible to throw in a die so its not hitting the sides, but then it bounces off the ramp and gets still randomized

The Card holders are pressfitted, so you will need a little bit of force to put em together.

The Prusament Chalky Blue fits quite nice the colour scheme of Wingspan

Printables

Wingspan Insert including EE&OE

Publicado em 26 de fev de 2021

137
Curtidas
526
Downloads
7
Impressões
Categoria Board Games
Tags
organizer dicetower tray boardgame insert boardgameinsert boardgameorganizer boardgameaccessory wingspan boardgameinlay stonemaier stonemaiergames
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (13)
Card Holder Walls Long B and Bonus.3mf 40 KB
Card Tray.3mf 60.6 KB
Egg Boxes.3mf 57.8 KB
Dicetower Small Parts.3mf 104.6 KB
Card Holder Walls Long A.3mf 27 KB
Player Tokens and Dice.3mf 171.9 KB
Dicetower Roof Ornament 0.1mm.3mf 40.8 KB
Card Holder Tops.3mf 46.8 KB
Card Holder Bottoms.3mf 39.3 KB
Food Tokens.3mf 182.1 KB
Bird Feeder Tower Tray Goals.3mf 165.2 KB
Dicetower Walls.3mf 180.2 KB
Card Holder Walls Medium.3mf 25.7 KB
