Modelo 3D E3D Revo Gridfinity Box por Akio no Printables

Descrição

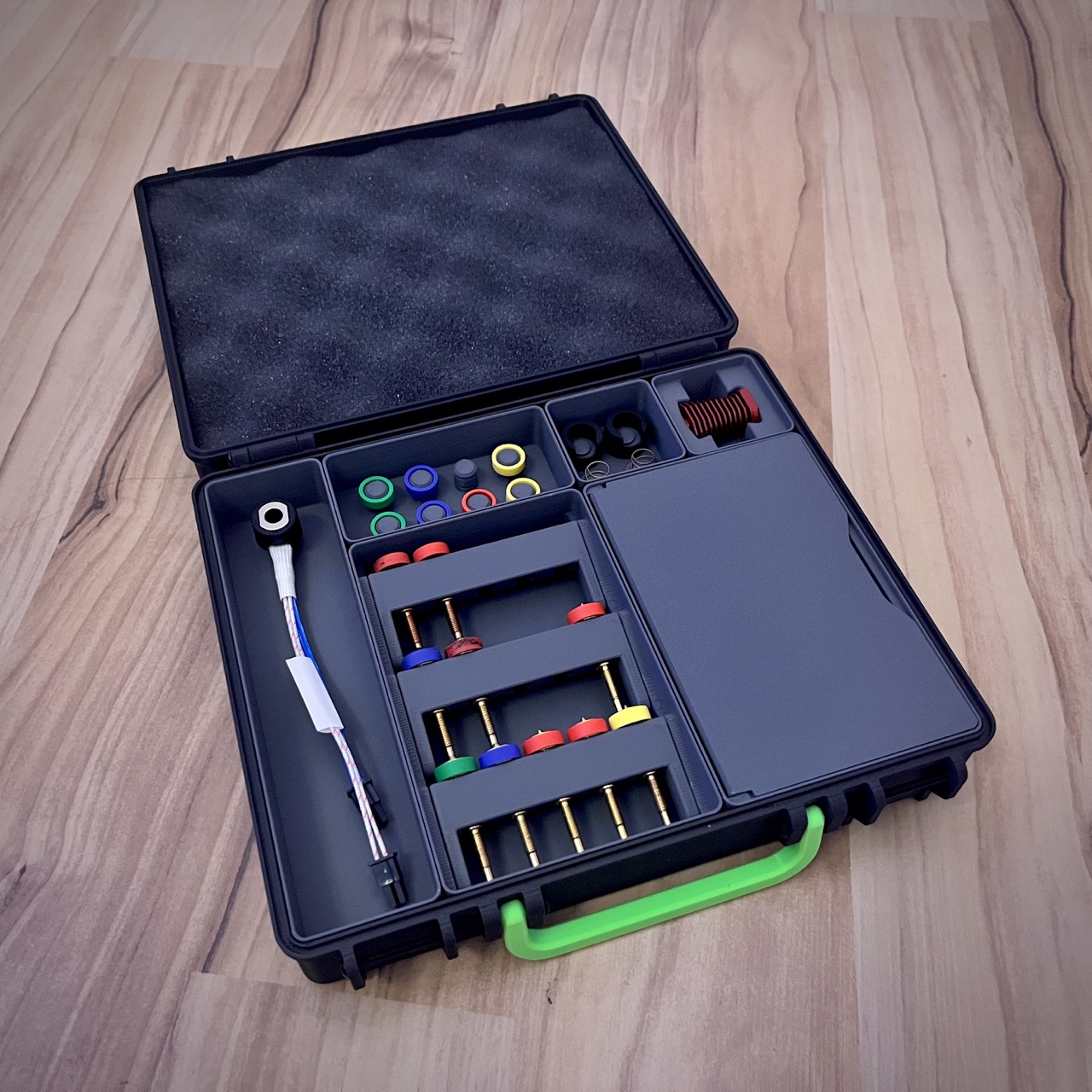

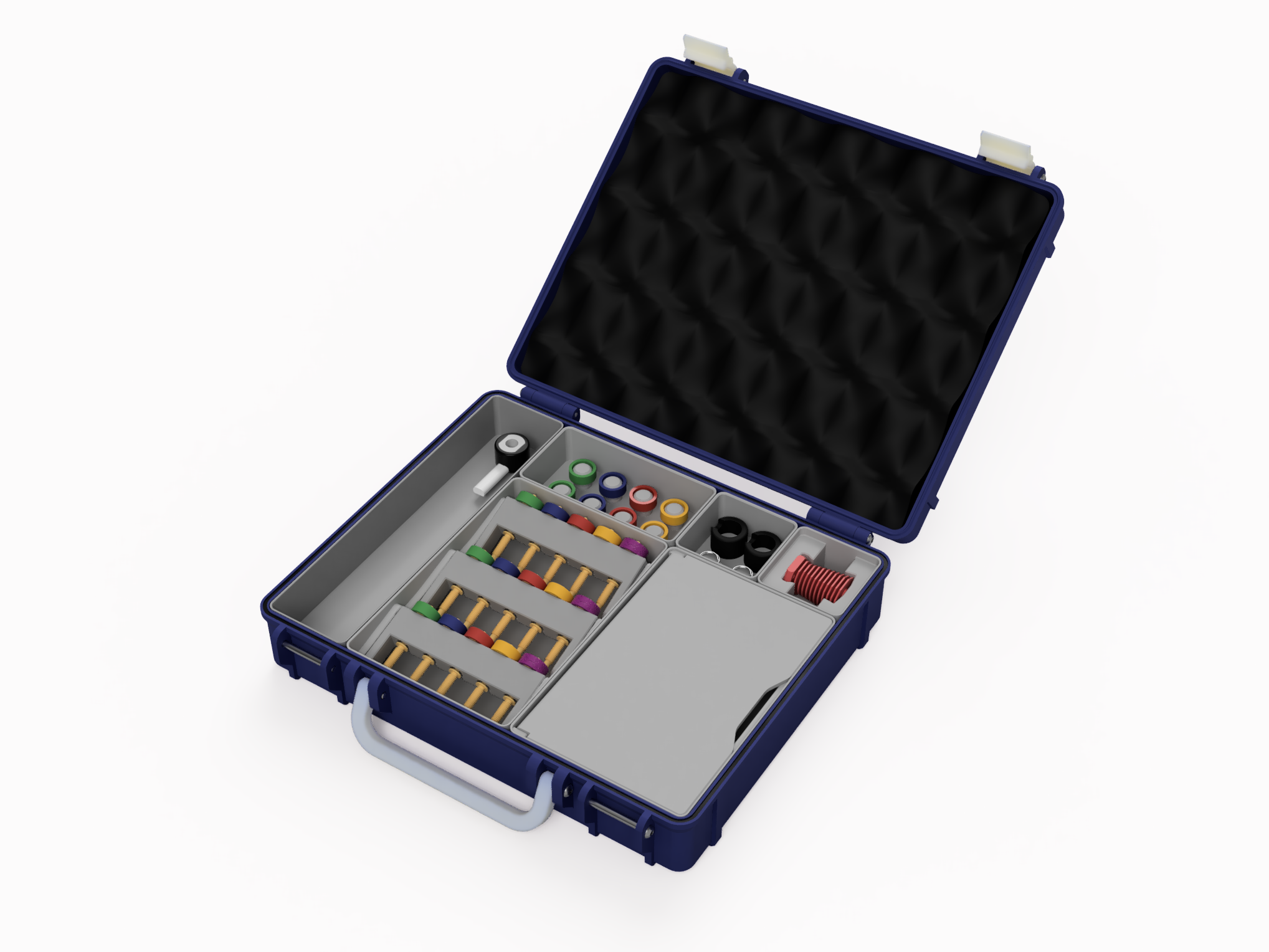

This is a remix of the “Rugged Box (Parametric)” by Whity with the inner parts of the “Gridfinity Storage Box” by Pred, that comes with a variety of Gridfinity bins to hold the E3D Revo parts.

When I saw the “Prusa (Tools) Rugged Boxes (Parametric)” model by 3DesignsCH, I knew I wanted to have such a box for my E3D Revo spare parts. I first thougth of using the “Gridfinity Storage Box” by Pred, which is totally awesome, but I wanted to have something less chunky. So I combined the “Rugged Box” and the “Gridfinity Storage Box” into this box.

Box

You need to print

1x bottom
1x lid
1x handle
2x latch
1x seal (optional - print seal out of TPU)

You have two bottom versions to choose from:

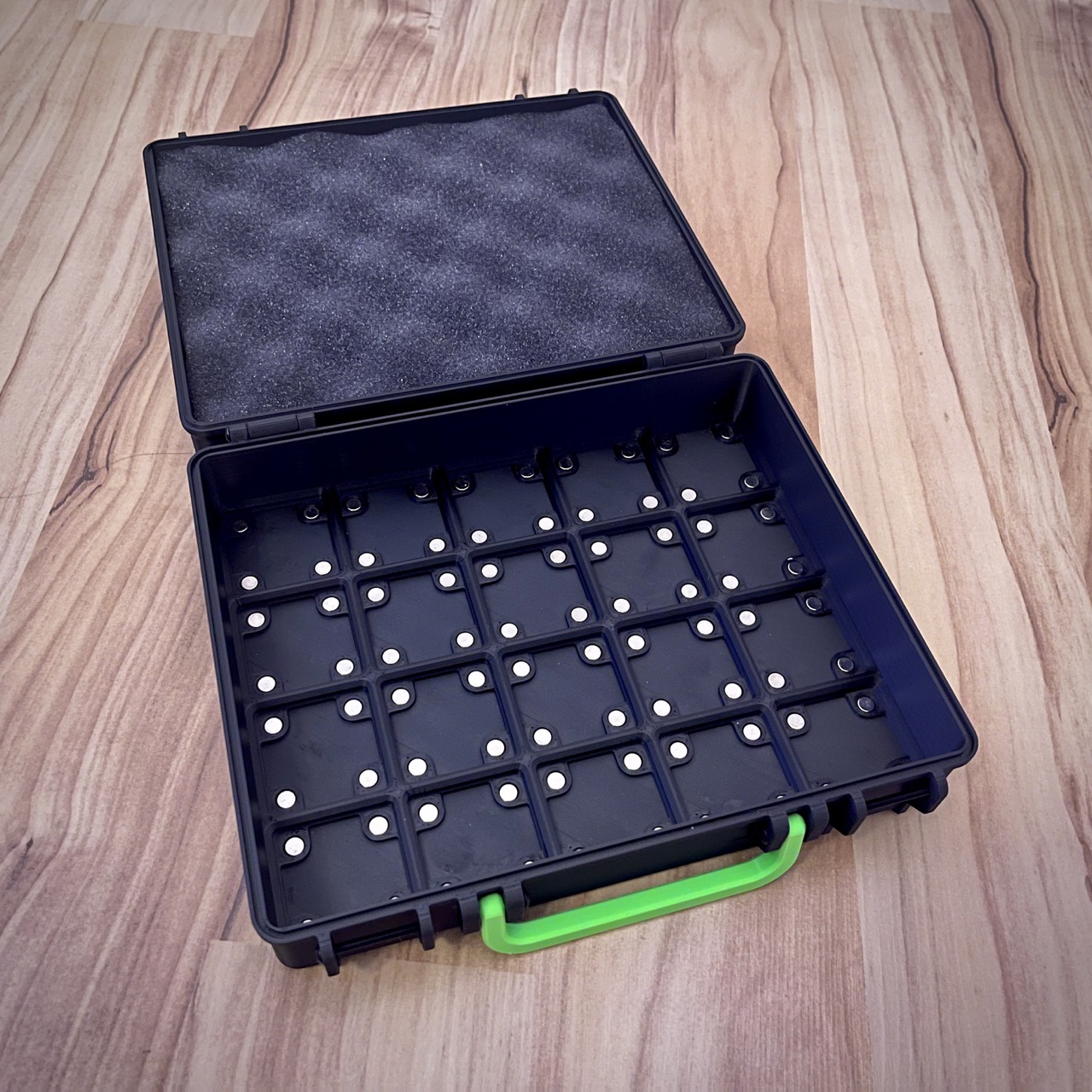

One with round magnet holes for 6x3mm magnets that you need to glue in
One with hex shape magnet holes for 6x3mm magnets that you press in

You have two lids to choose from:

One black lid

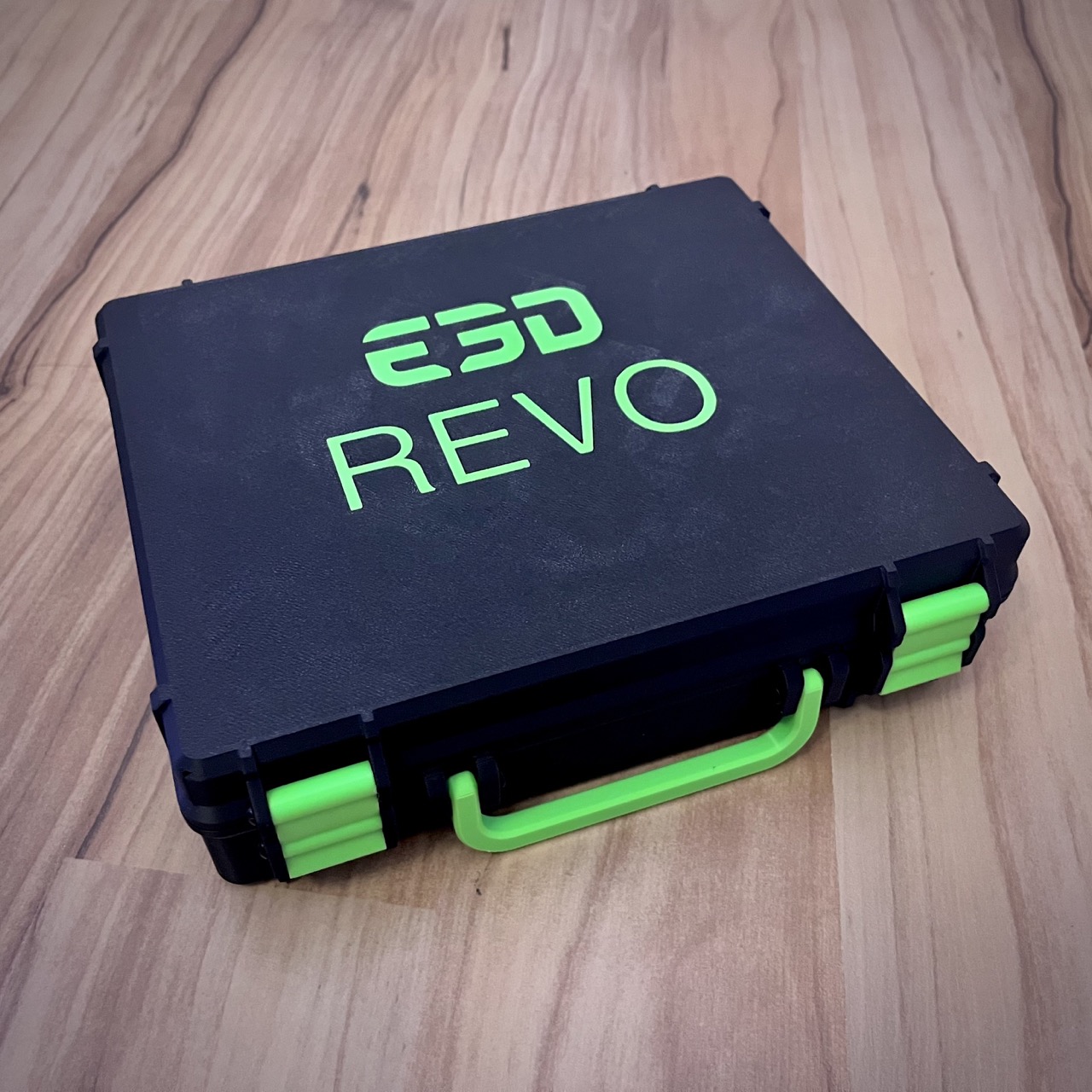

One lid with “E3D Revo” logo

The lid with the logo is best printed with a printer with MMU/AMS.

Assembly

For assembly you need

6x M3x30mm screws for the hinges and latches
2x M3x18mm screws for the handle
2cm thick foam for the inside of the lid (optional)

Print settings

The box is printed best with the following settings:

3 Perimeters/Walls
5 Bottom/Top layers
20% infill
0.2mm layer height
Arachne for wall generation

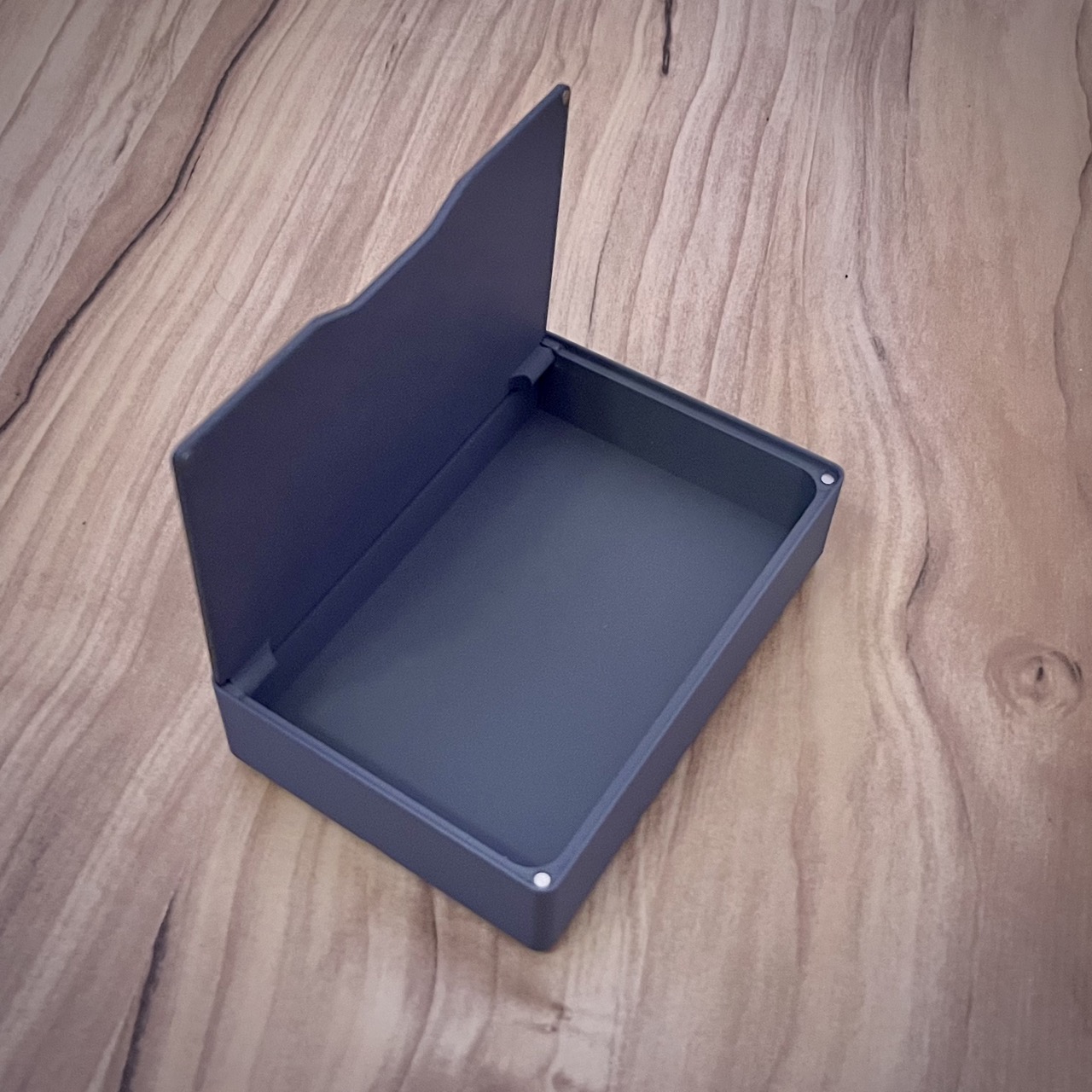

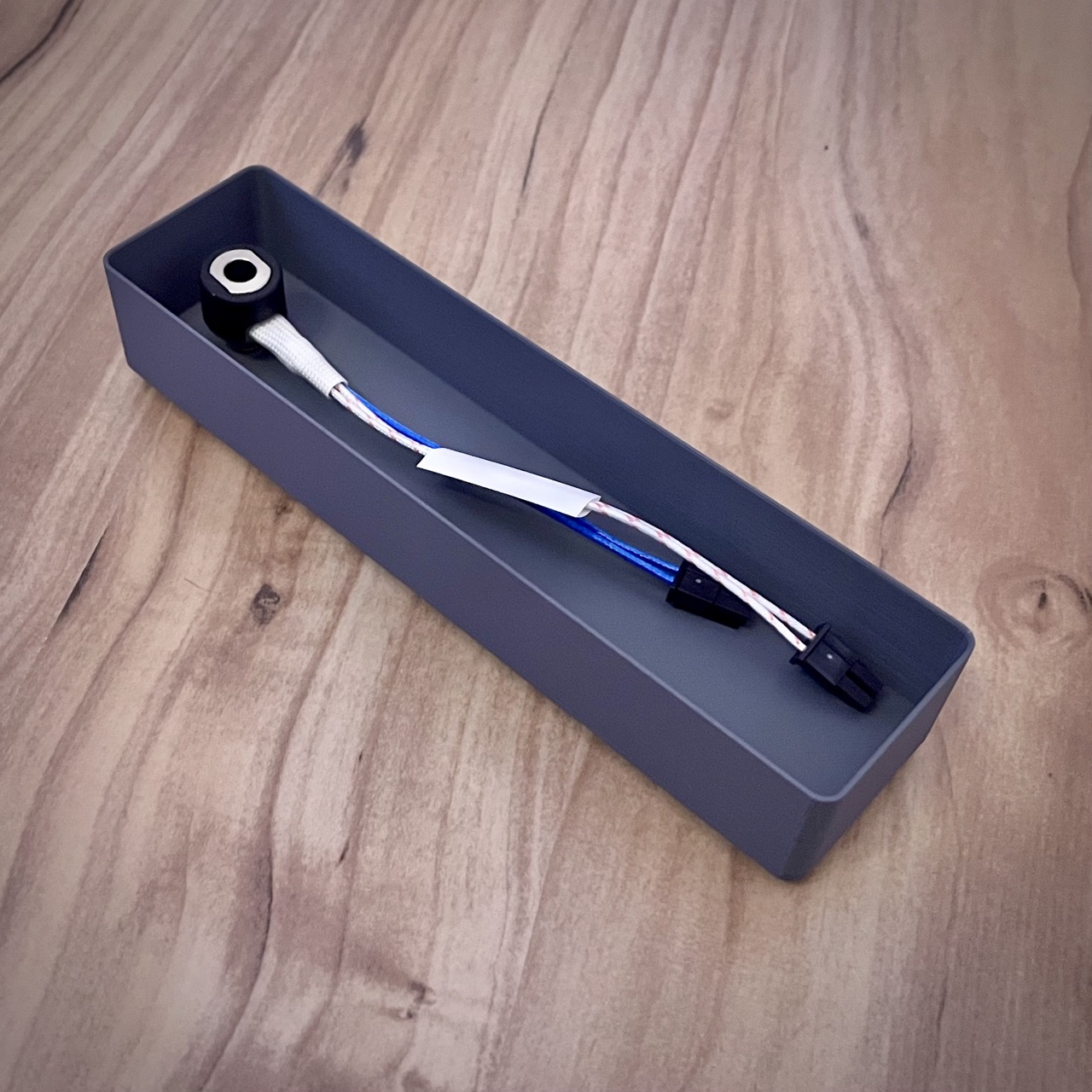

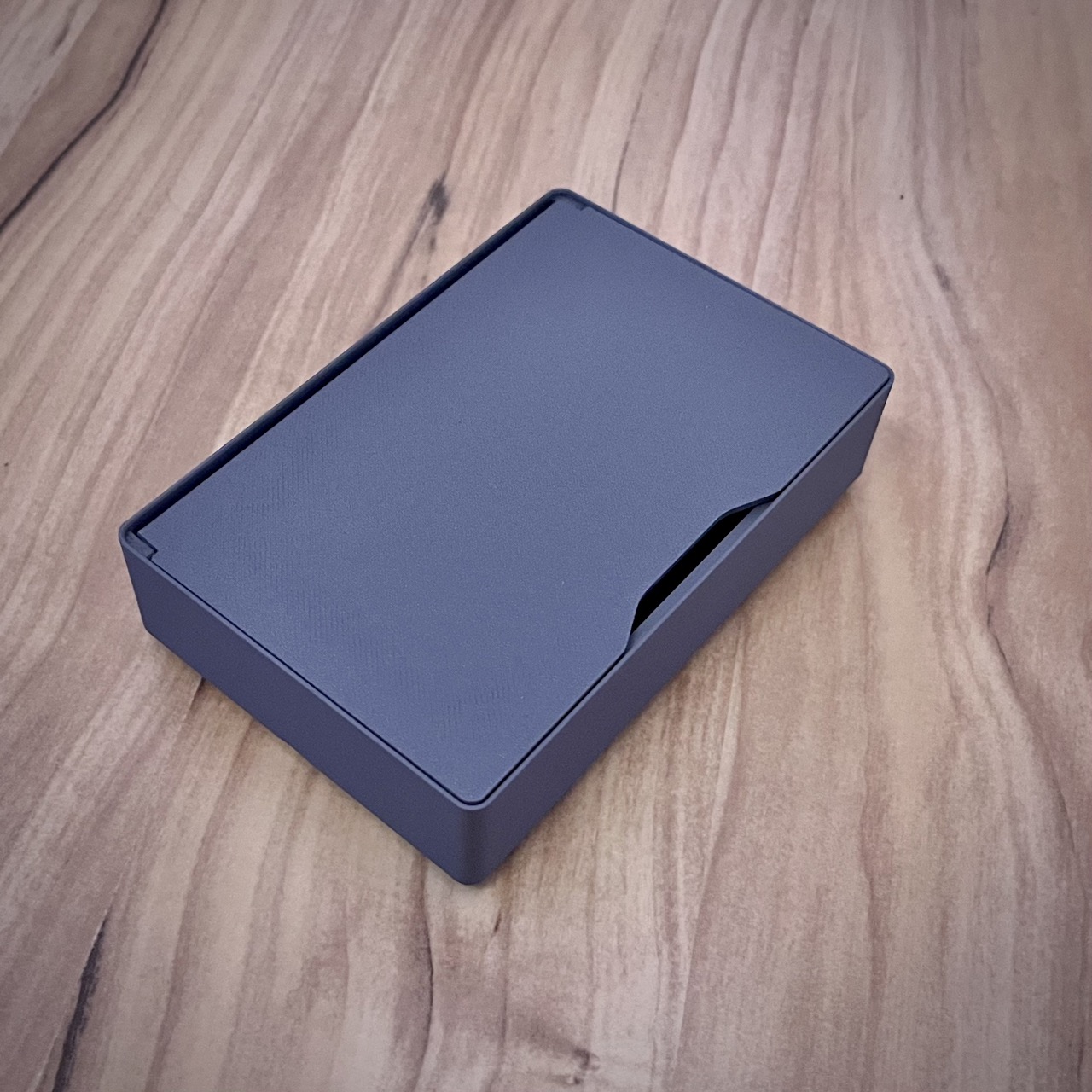

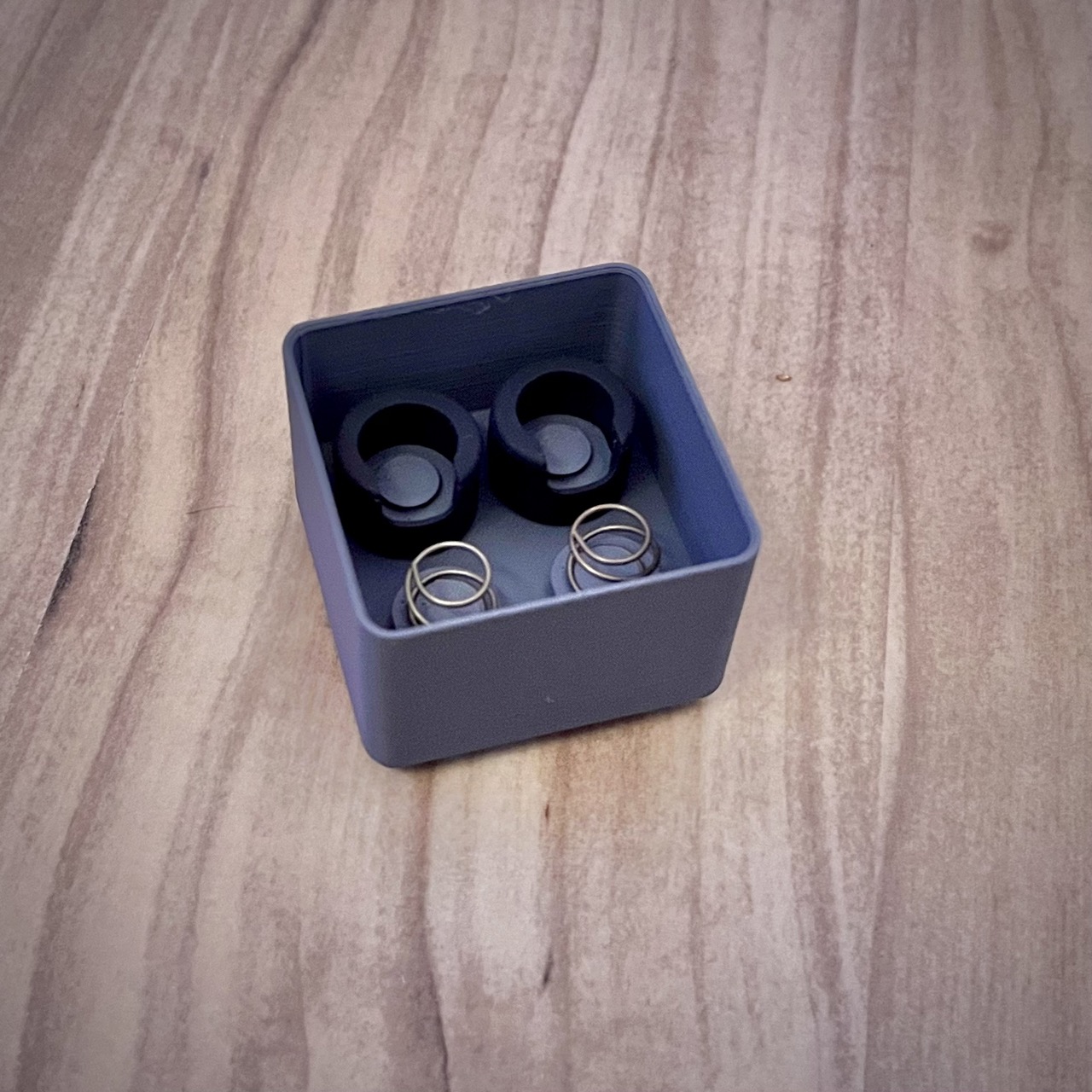

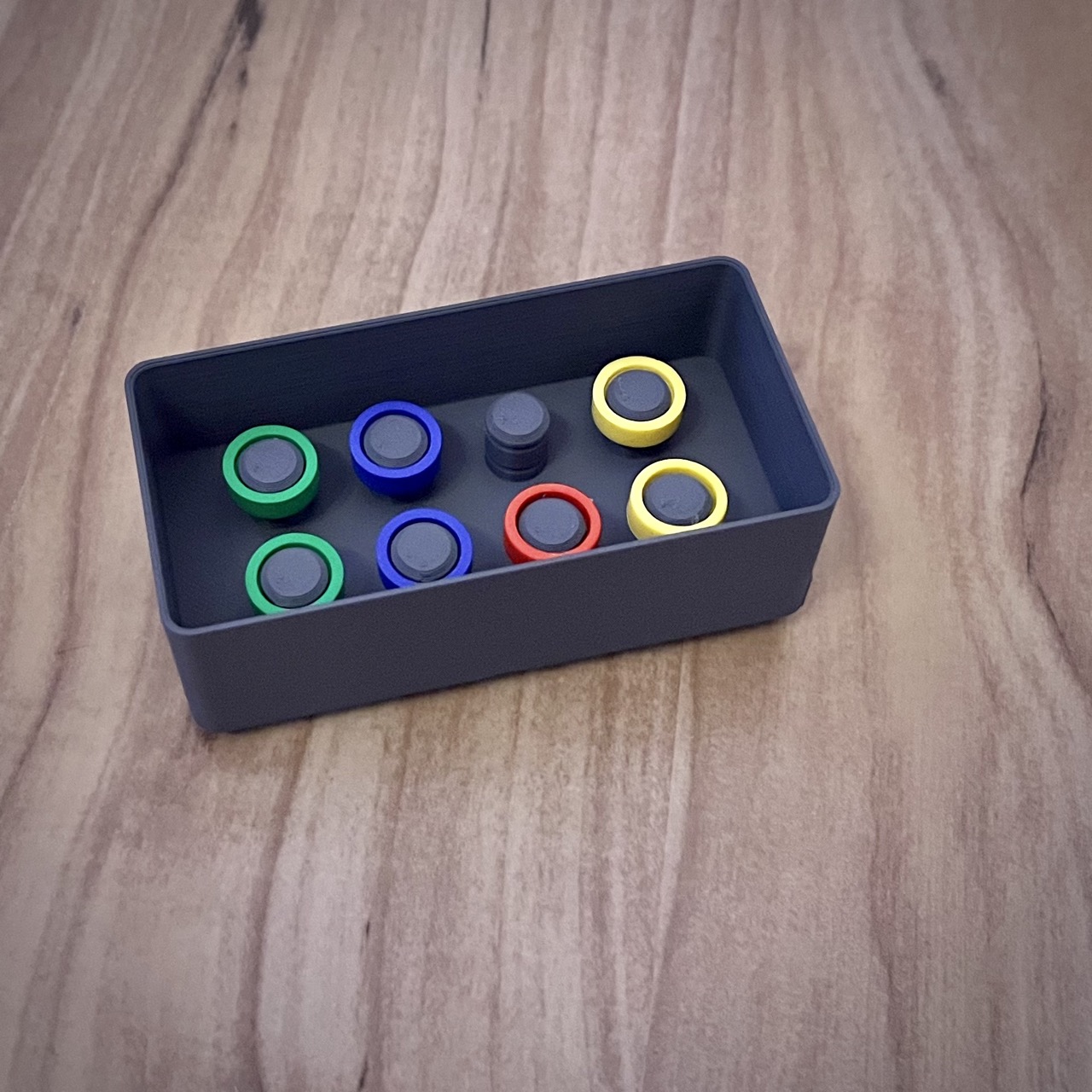

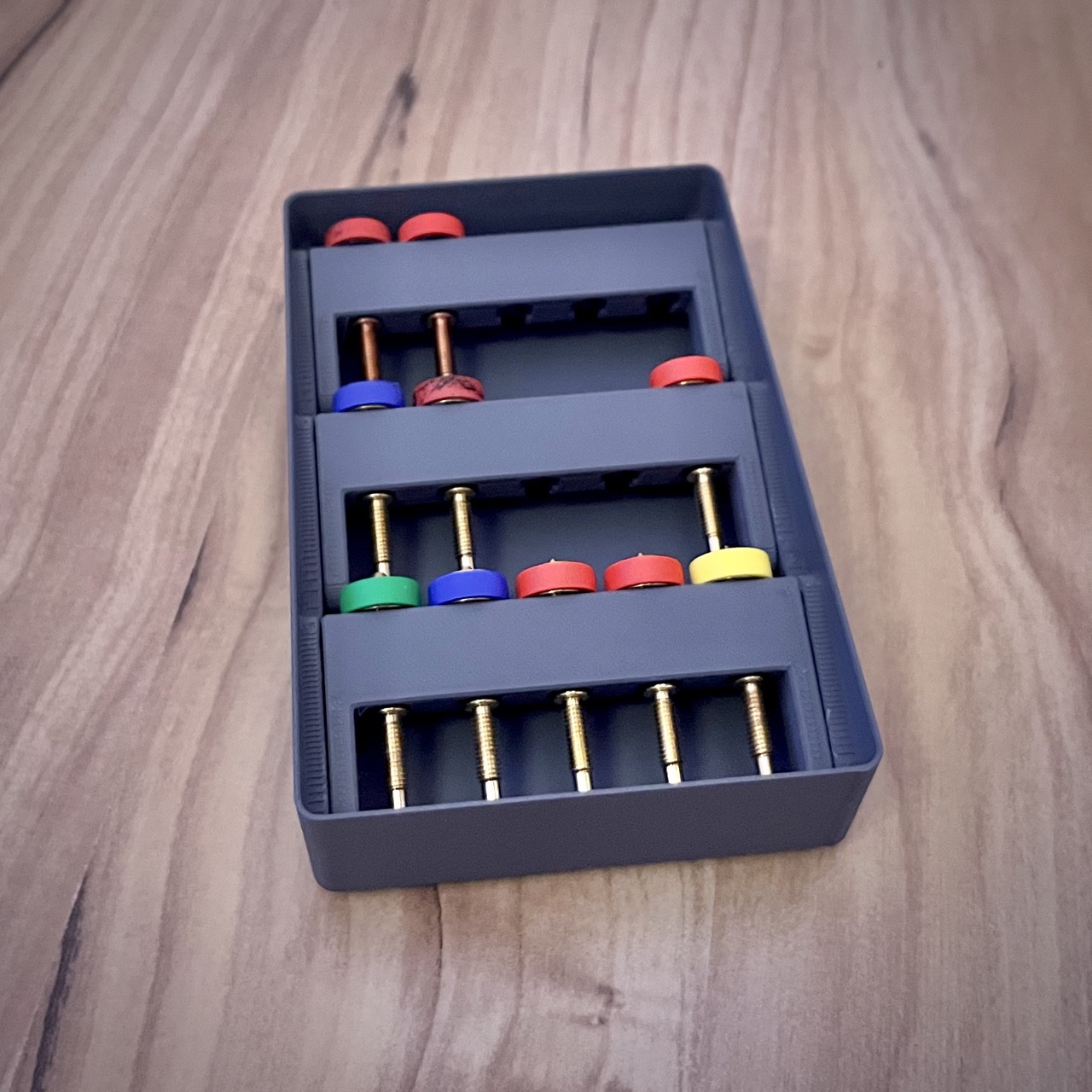

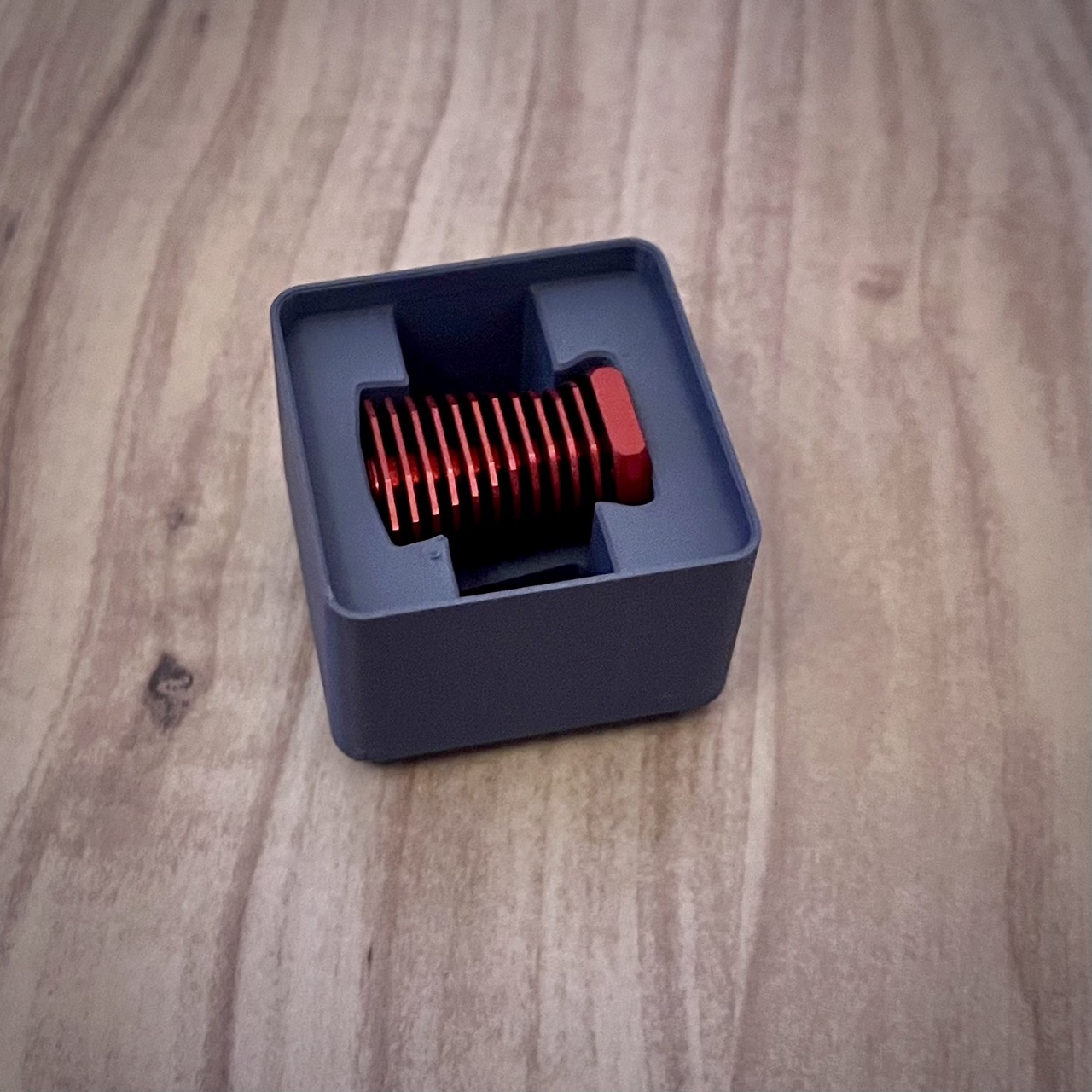

Gridfinity Bins

The gridfinity bins allow to have the inner parts of the box modular. You can reoder them, leave some spaces empty and adapt them to your needs. The design is partially remixed from the E3D Revo Nozzle Organizer by Fabian.
