Modelo 3D Stackable Designer Tray Set por Æon no Printables

Descrição

Please take time to set up optimal slicing settings in order to get a fast and beautiful print!

Or better yet, feel free to use my .3mf PrusaSlicer preset for your printer.

--------------------------------

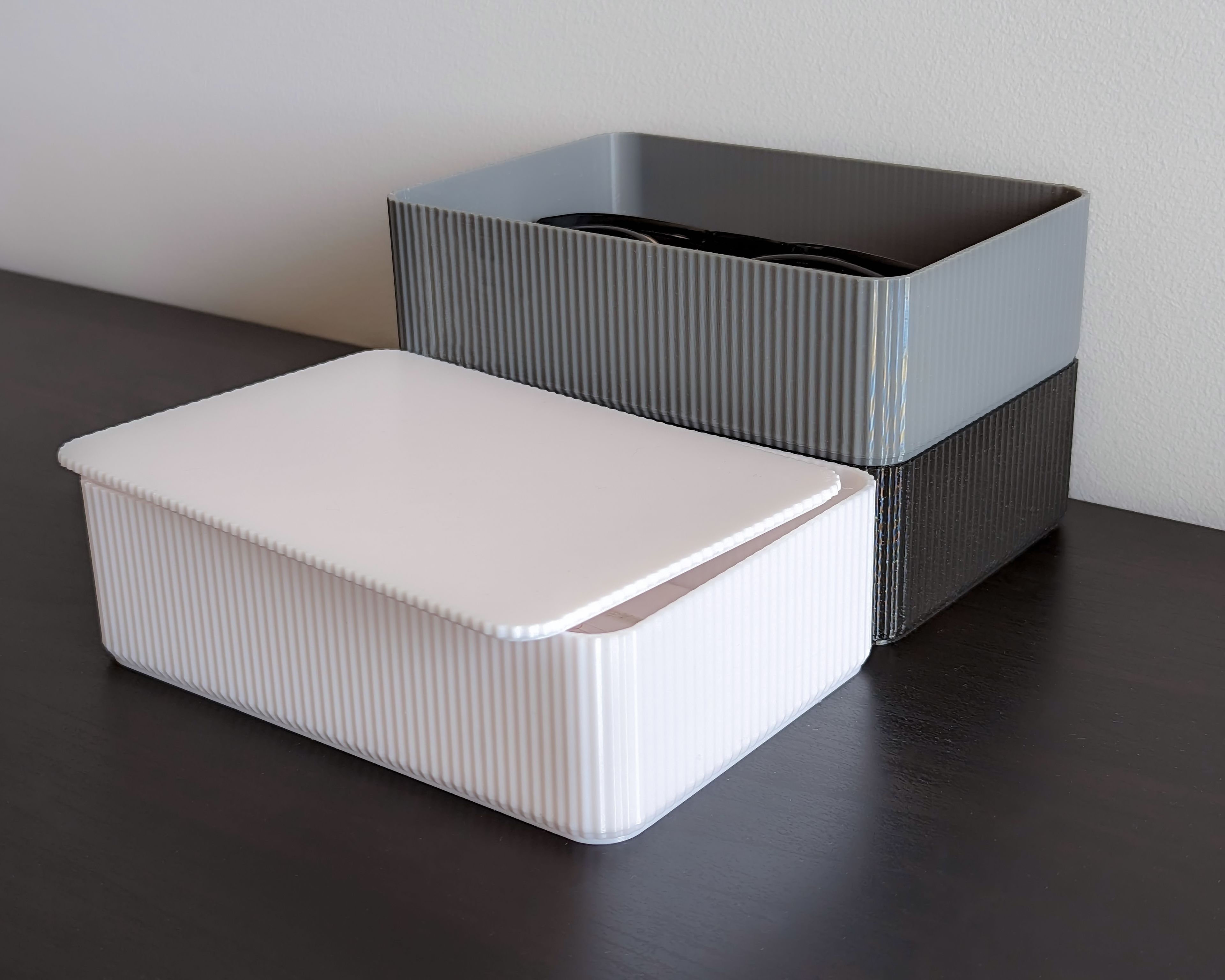

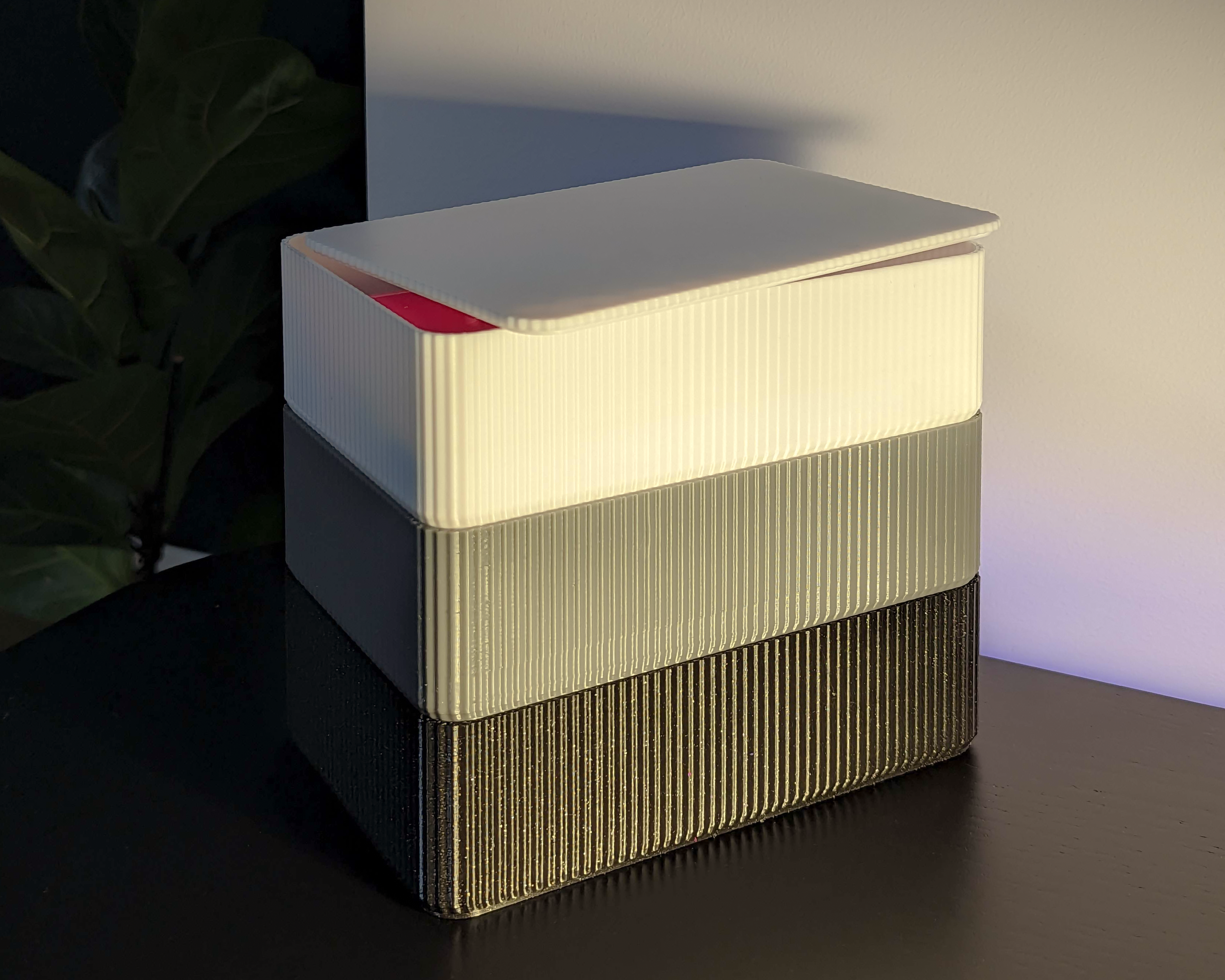

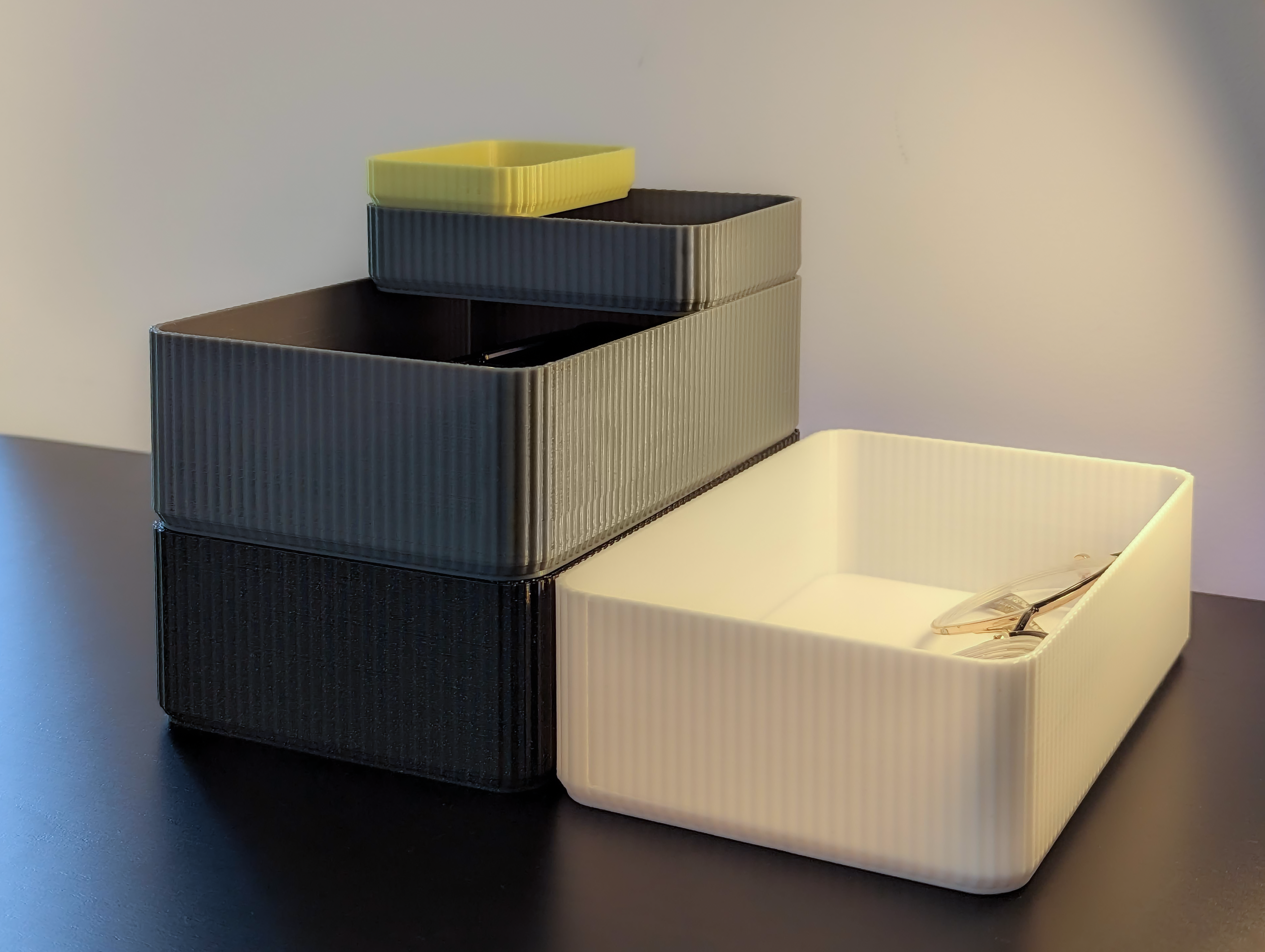

Stackable, modular containers that look and function great. Come with an optional lid to hide your contents.

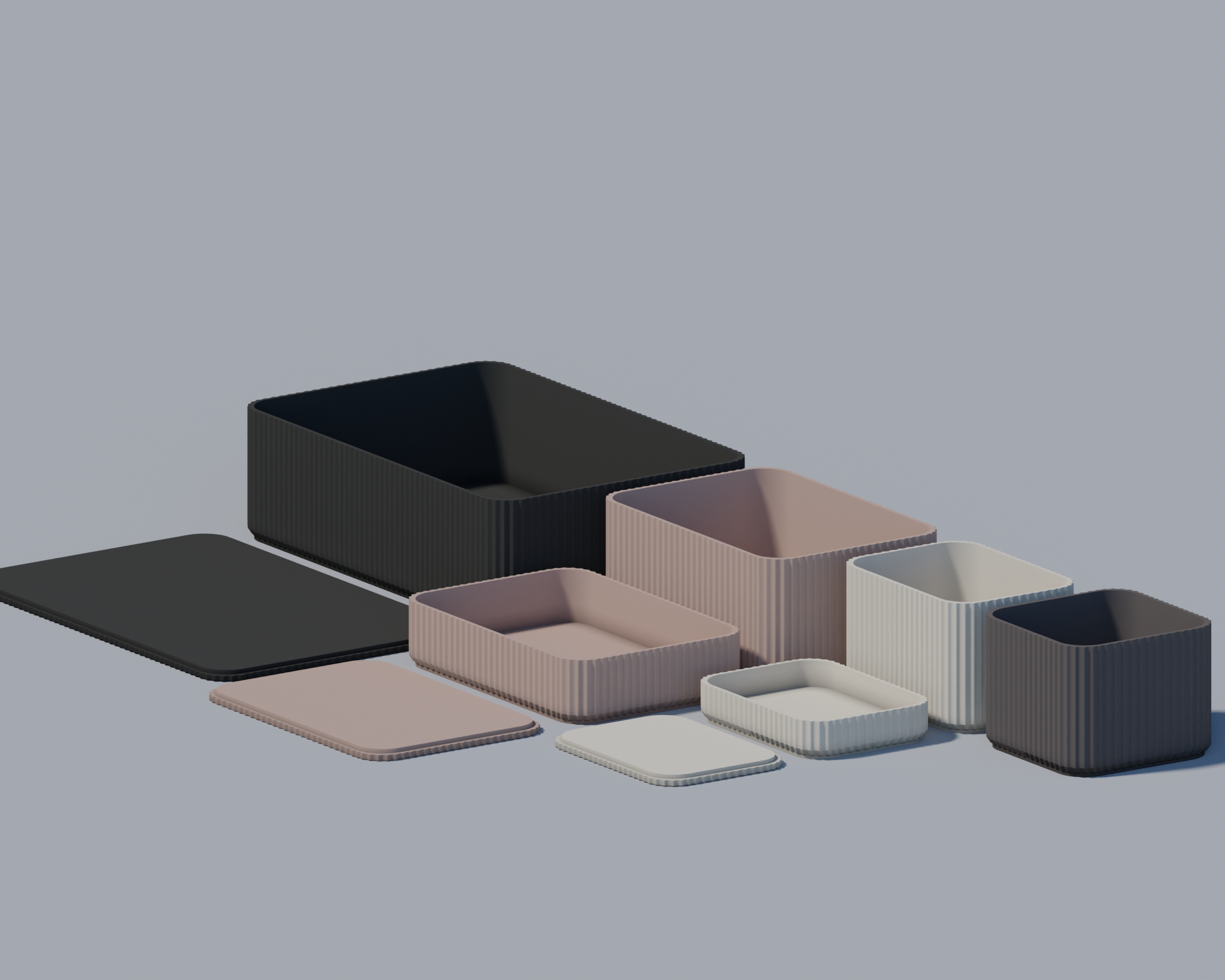

Sizes (LxWxH):

  • Full size: 155x104x45 mm
  • Half size: 72x104x45 mm (with an option for 22.5 mm height)
  • Quarter size: 72x52x45 mm (with an option for 13,7 mm height)
  • Square: 60x60x45 mm


Recommended settings:

  • Layer height: 0.20-0.40 mm
  • Nozzle size: 0.4-0.6 mm
  • Avoid crossing perimeters: ON
  • Infill: 15% Grid Pattern for the bottom plate
               0% For the vertical walls
  • Parameters: 1 if nozzle size is 0.6 mm
                          1 or 2 if nozzle size is 0.4 mm

I recommend not infilling little gaps between walls unless it's the last few top layers. The gap fill and retractions will not only take a very long time, but also potentially degrade the print quality.

In case you have a Prusa MINI+, you can just use my generated gcode for a 0.6 mm nozzle.

Printables

Stackable Designer Tray Set

Publicado em 8 de set de 2023

78
Curtidas
317
Downloads
2
Impressões
Categoria Home Decor
Tags
box organizer office container designer stackable storage tray organization vertical stripe organisation stripes stylish style rectangle stacked ribbed rectangular
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (12)
0Stackable_Tray_Quarter.stl 706.5 KB
0Stackable_Tray_Quarter_Lid.stl 478.4 KB
0Stackable_Tray_Half_Lid.stl 657.4 KB
0Stackable_Tray_Square.stl 500.9 KB
0Stackable_Tray_Half_Short.stl 990.5 KB
0Stackable_Tray_Quarter_Short.stl 706.5 KB
0Stackable_Tray_Full.stl 2 MB
Stackable Trays 0.6mm.3mf 1.6 MB
0Stackable_Tray_Full_Lid.stl 978.1 KB
0Stackable_Tray_Half.stl 990.5 KB
Stackable Trays 0.4mm.3mf 1.6 MB
Stackable Tray Full Set.stl 7.9 MB
