Modelo 3D IKEA Lack Table Angled Leg Reinforcement por Potato Factory no Printables

Descrição

Simply put, I've been using the non-mmu lack enclosure. I found the structure lacking especially in rigidity. Ironically the bottom table was fine, it was the top one that wobbled around. There also didn't seem to be a lot of angle brackets that I liked or that looked decent.

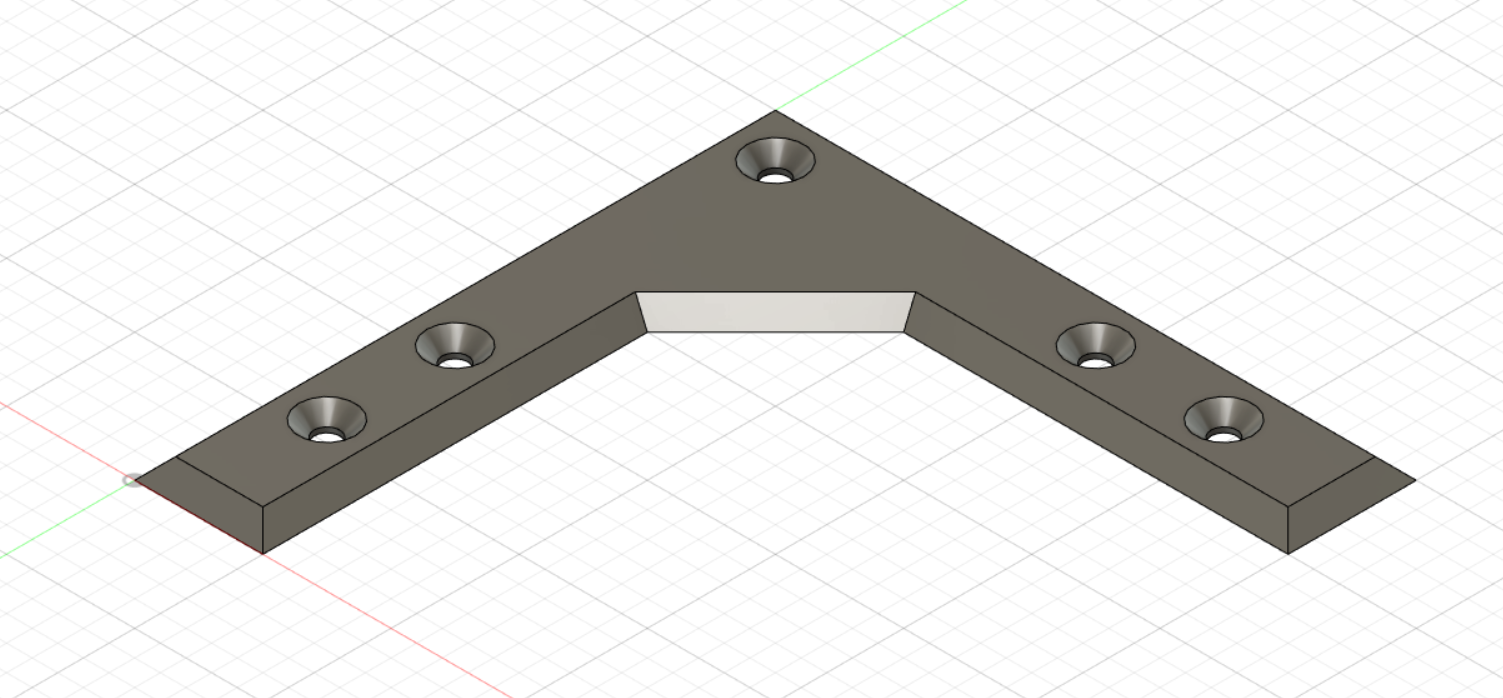

These brackets attach on the exterior of the table, as to avoid conflicting with the brackets on the inside (aka I couldn't be bothered to model this bracket around the existing parts). But there's a fillet to them so at least they're somewhat stylish.

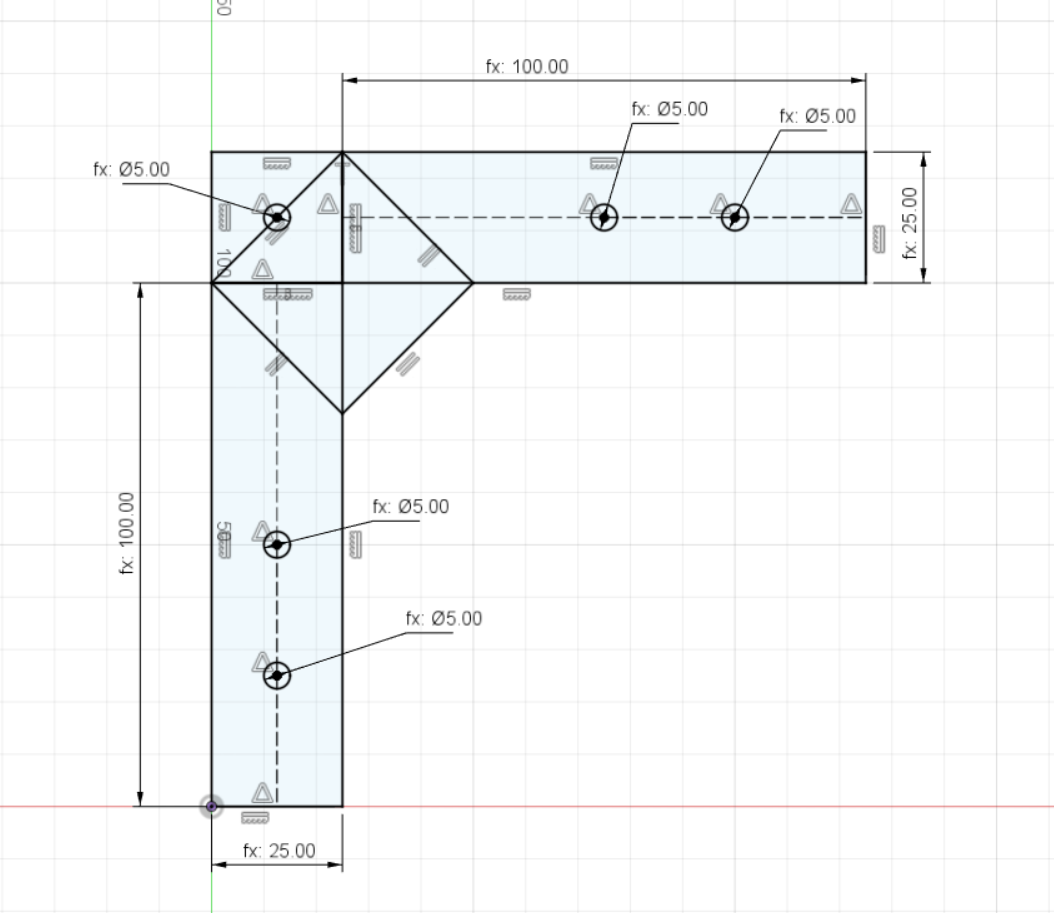

I used #10x¾in wood screws to affix it to the table. I'd recommend going no longer than ¾ inch (19mm) for the screw length. Hole size in the bracket is 5mm, but it can be adjusted. Holes are countersunk to try and create a flush finish once the screws are installed.



The rigidity of the upper table is much better and I no longer have to worry about knocking a filament roll off.



You'll need four of these. You can print this in basically whatever rigid material you want. Mine are in PETG, but PLA or ABS could work just as well. I'd recommend 3 walls and about 5-10% infill to minimize waste plastic. Expect each one to take a little over an hour to print.

Printables

IKEA Lack Table Angled Leg Reinforcement

Publicado em 20 de fev de 2021

170
Curtidas
664
Downloads
11
Impressões
Categoria Accessories
Licença Creative Commons — Attribution
Arquivos (3)
Corner Angle Bracket v4.stl 66.7 KB
Corner Angle Bracket v4.step 25.8 KB
Corner Angle Bracket v4.f3d 67.9 KB
