Modelo 3D Parametric Multispace Slide Top Box por Nikdfish no Printables

Descrição

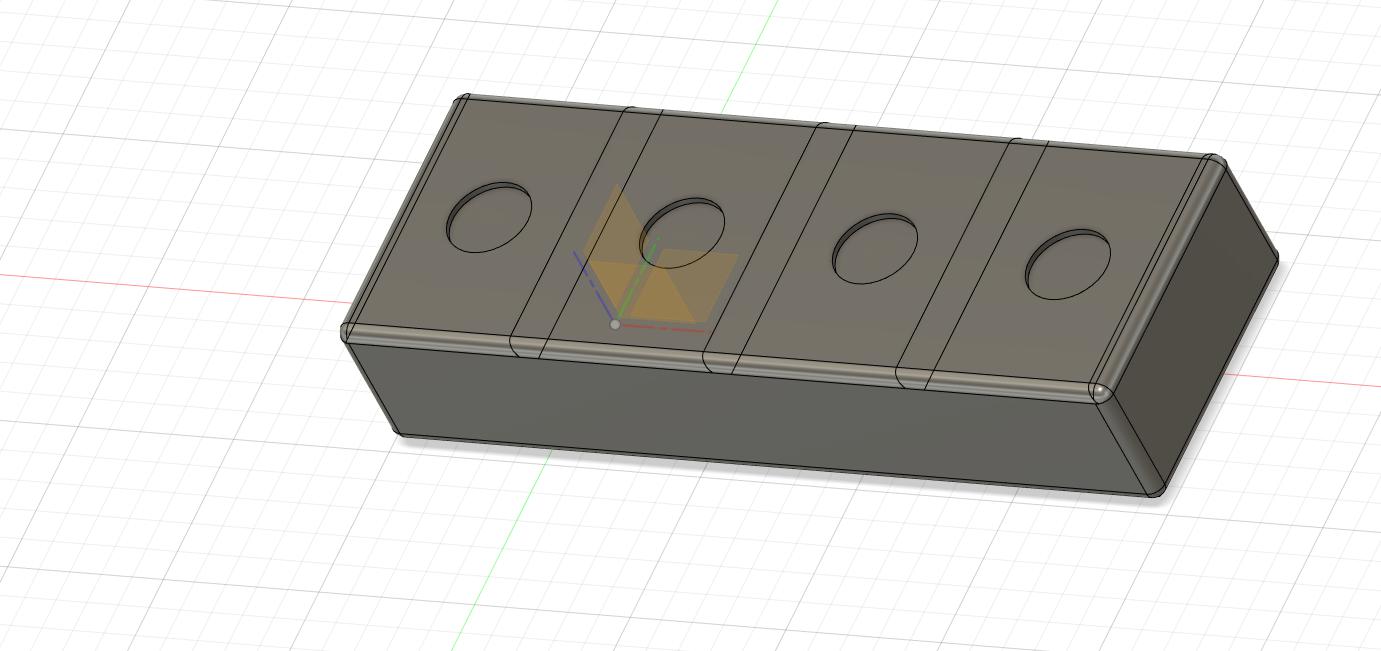

The STL files are example output from parametric Fusion 360 source to define a slide top box consisting of multple, user defined, spaces, each with it's own slide top lid.

The example files are for a box with 4 spaces, each 25mm wide, 40mm long and 20mm high. Floor, side walls and lids are 2mm thick.  End walls and seperators are 3mm thick.   All these values can be customized by modifying the model's user parameters.

The interior edges of the container spaces are radiused for more easy retrieval of small items.

Fusion 360 model source is provided, as are STEP & STL files for the example.  A local copy of Fusion 360 would be needed to create customized versions of the model.

09/06/2023 - replaced F360 source after correcting sketch4 with v2

Printables

Parametric Multispace Slide Top Box

Publicado em 6 de set de 2023

9
Curtidas
56
Downloads
Categoria Organizers
Tags
fusion360 source slidetopbox slidebox
Licença Creative Commons — Attribution — Noncommercial
Arquivos (4)
multispace slidetop parametric-v2.step 177.9 KB
multispace slidetop.f3d 204.5 KB
Boxbody.stl 422.2 KB
BoxLid.stl 49.3 KB
