Check out the Premium version of this model at 1:24 scale with the following features
Full Front Loader Functions: Engage in realistic loading and lifting operations.
Auto-Locking Joints: Ensure secure and reliable operation of the front loader.
Operational Doors: Explore detailed cabin access with opening and closing doors.
Engine Model Included: Enjoy intricate engine details for an authentic touch.
Press-Fit Joints and Self-Locking Pins: Simplify assembly while ensuring durability.
There are three ways to print this.
As single piece:- Please download STL file but there wont be any movements.
Multiple Pieces :- Download 3mf file with Full_dismantled.3mf.BEST QUALITY OUTPUT. Please use the 3mf file for assembly also. CHECK EASE OF PRINTING TITLE BELOW
Combined:- You may use any 3D viewer software like 3D builder in windows to merge components according to your printer and filaments. The sky is the limit for this. You may find a sample file ending with combined.3mf.
EASE OF PRINTING
This model contains parts of 4 colours - GREY, YELLOW, BLACK & RED. I have seperated these into different plates according to colour and in the optimum print position. Please download the folder “Print Plates According to Colour” to make use of them. These plates can be opened in any slicer and printed according to your print profiles.

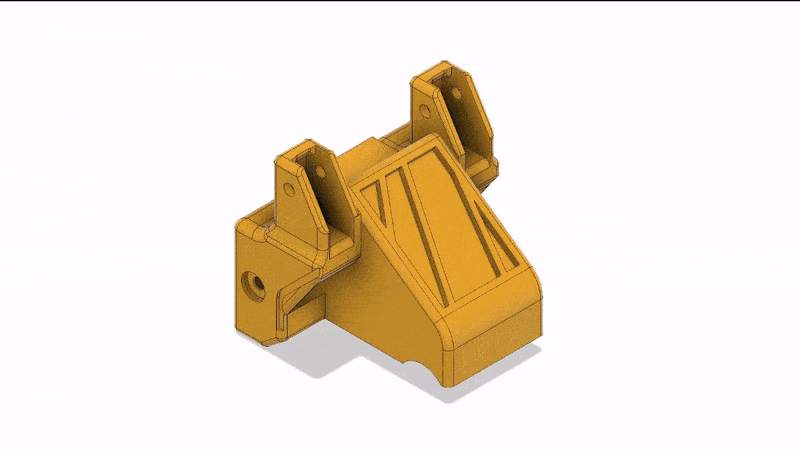

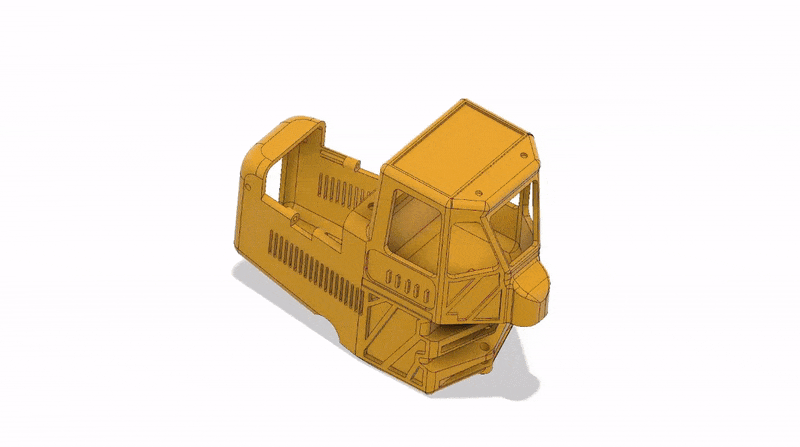

ASSEMBLY OF MAIN BODY
ASSEMBLY OF FRONT LOADER
MATING OF MAIN BODY AND FRONT LOADER

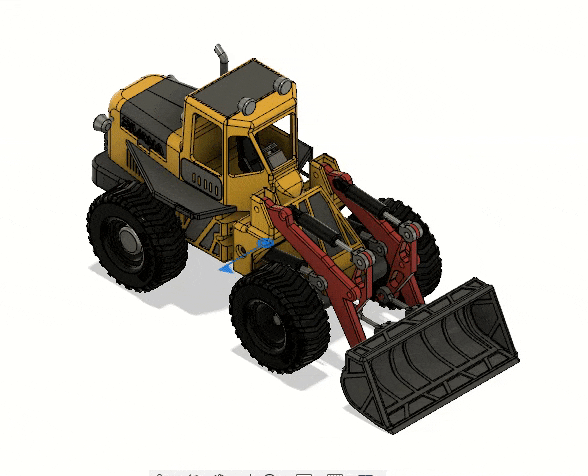

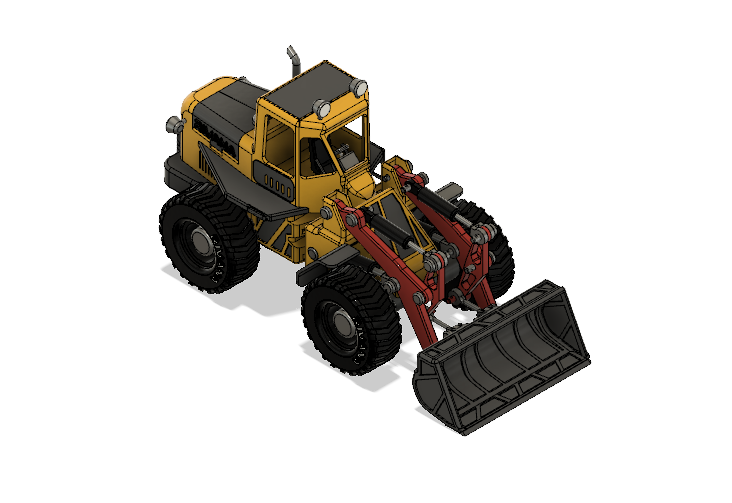

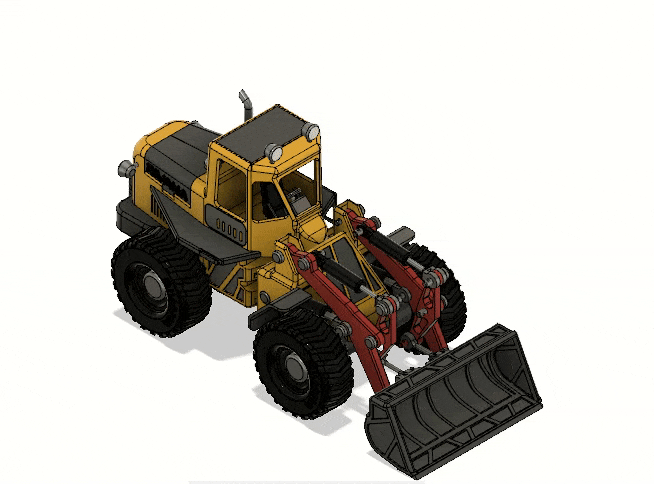

Movements Included
Front Section Rotation
All Wheel Rotation
Front Loader Full Movement
Engine Bay Doors
The main body is made hollow to ensure filament savings.
The screws are need to fix the front and back axles which are also marked.
The front loader assembly is made up of pins of same size but there could be tolerances issues when you print. So I insist that you first test print a pin and try the fit and accordingly scale down or up the pin.
Supports should be provided as required.
Appreciate the makes uploads. Open for suggestions.
This model has been refined with the inputs and support of Benoît Lussier
