Modelo 3D Voron v0.2 Mini Camera Mount por dont-knock-it no Printables

Descrição

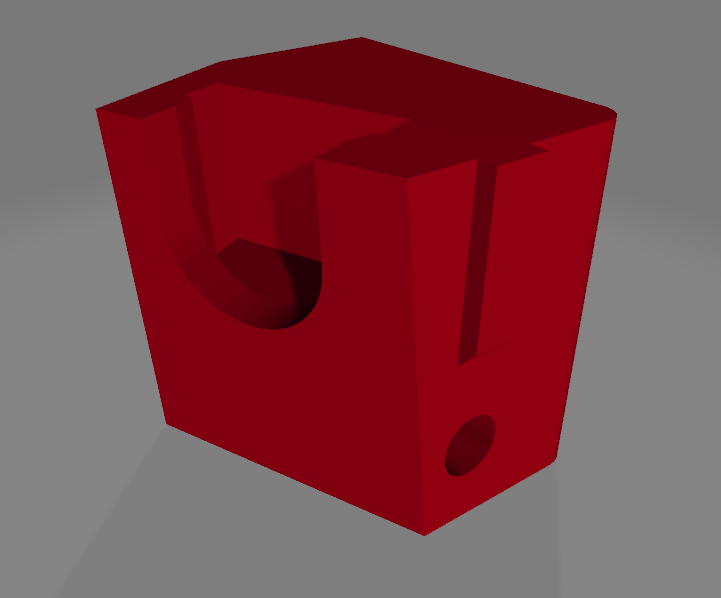

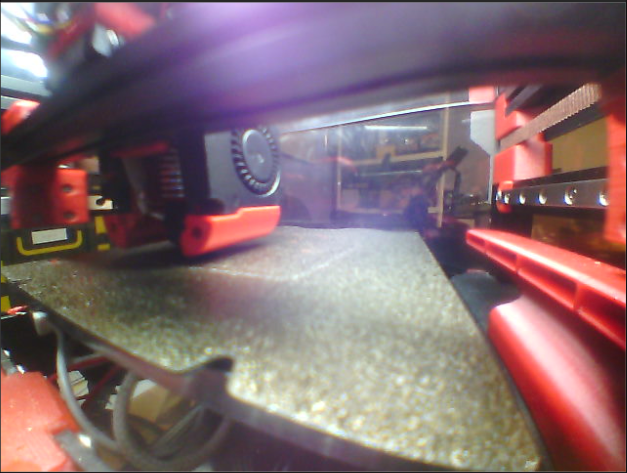

This mount was created for a ribbon cable connected OV5640 USB Camera.  I used the 120 degree lens in my build.

Only requires an M3 nut and bolt to attach, prints quickly and easily.  I may add a mount for the circuit board as well, but haven't finished it yet.

The ribbon cable simply slips behind the extrusion to the back of the printer, and is plugged into my raspberry pi.

I recommend printing with Voron standard parameters, 4 walls, 40% infill is adequate, no supports are needed.

Note for Dragon Burner Users.

Depending on where you mount the camera, it's possible for the M3x6 screws on the lower brace to hit the camera lens because it protrudes just enough to interfere.  I believe Button Heads or Flat Heads could work, but do not have confirmation.  If you print this with a Dragon Burner and can confirm if this is an issue, please post a comment and make for others.

Printables

Voron v0.2 Mini Camera Mount

Publicado em 24 de mar de 2024

24
Curtidas
78
Downloads
1
Impressões
Categoria Voron Parts & Upgrades
Tags
camera voron voron01 voron02 voron02r1
Licença Creative Commons — Attribution — Share Alike
Arquivos (1)
1515_Left_Side_mini_Camera_Mnt.stl 36.1 KB
