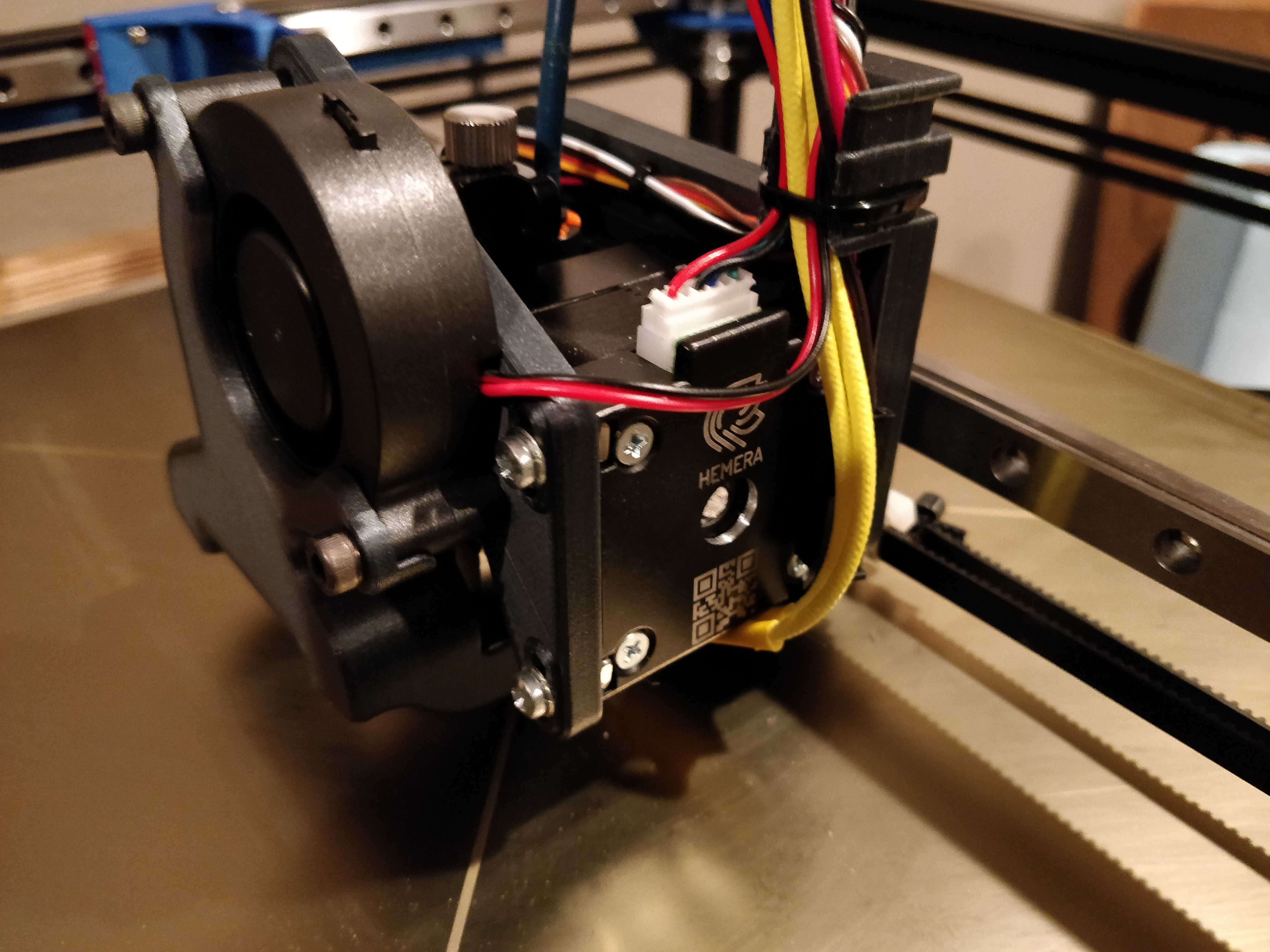

A Mount, a BLTouch mount, and some wire organization for the GridBot v2.

The screws going into the GridBot are M3x12. There are 4 of these.

The screws going into the Hemera are M3x10, with an M3 washer and the square nut. 3x. Make sure you put the washers in, and make sure you put the one screw in before screwing it into the gridbot.

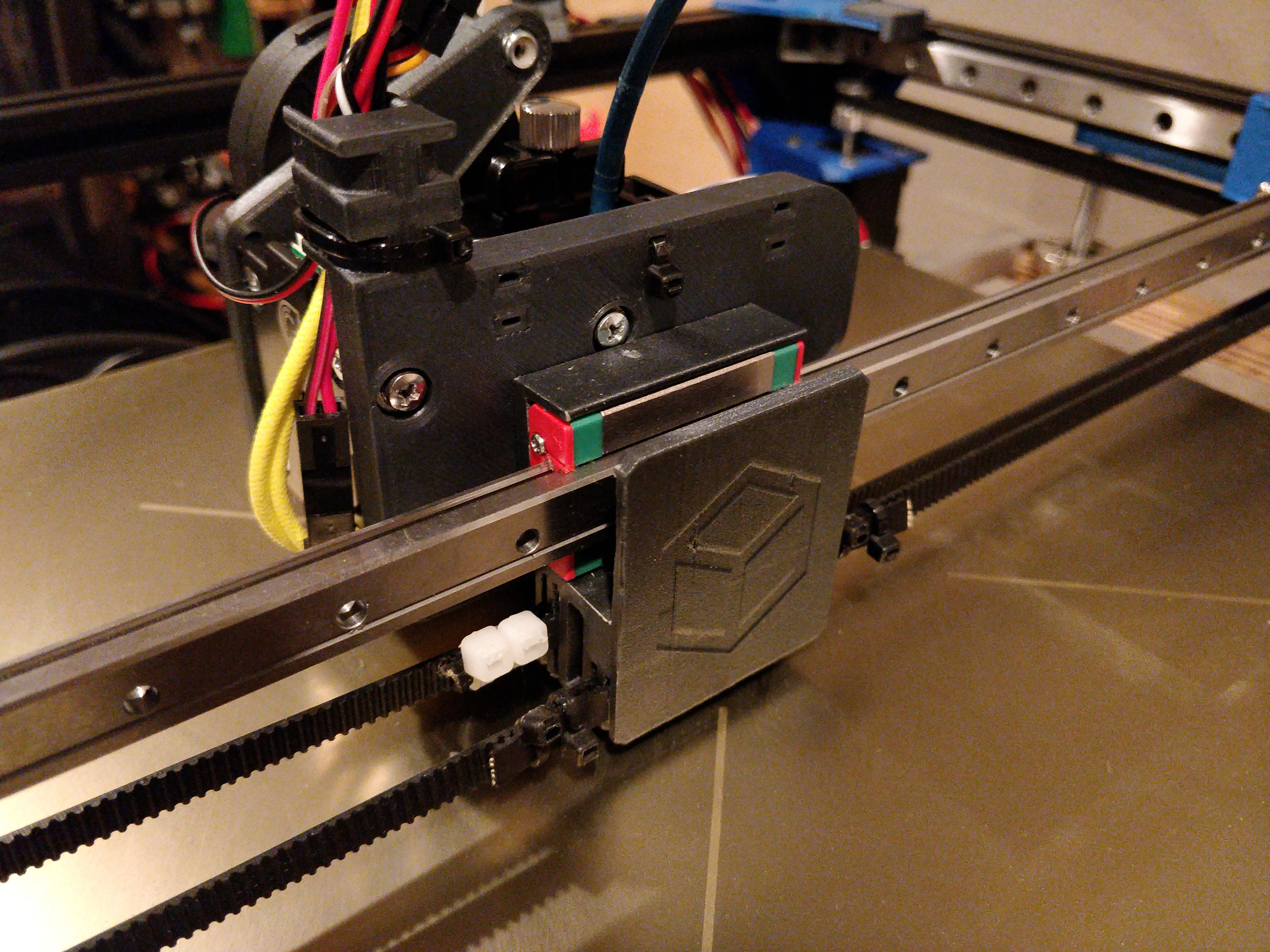

The mount is very rigid, and the wire management works pretty well. I am pretty pleased with this extruder and if it works as well as my other Hemera, it will be a worthy upgrade.

This v4 is the 4th version and the BL touch ended up a little low. I will probably add more washers or a spacer under the BLTouch to make it reach down a little further. The current offset is X32.5 Y-2.5 Z0.50. I don't think I've ever used a positive Z offset before.

Print instructions

Print it with lots of perimeters and lots of infill. You don't want it flexing. I did 60%, 3 side perimeters, and 6 top/bottom.
