Descrição

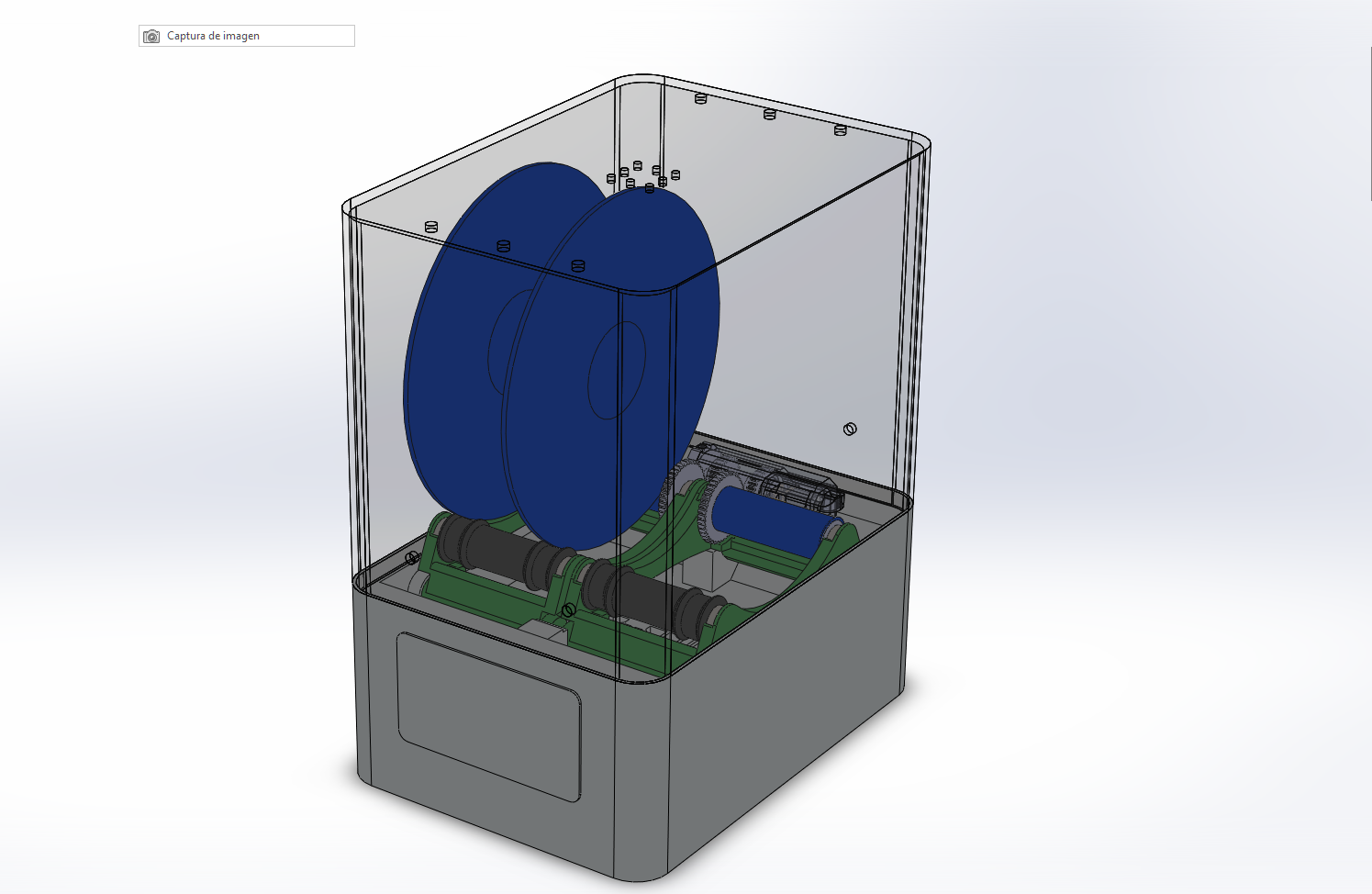

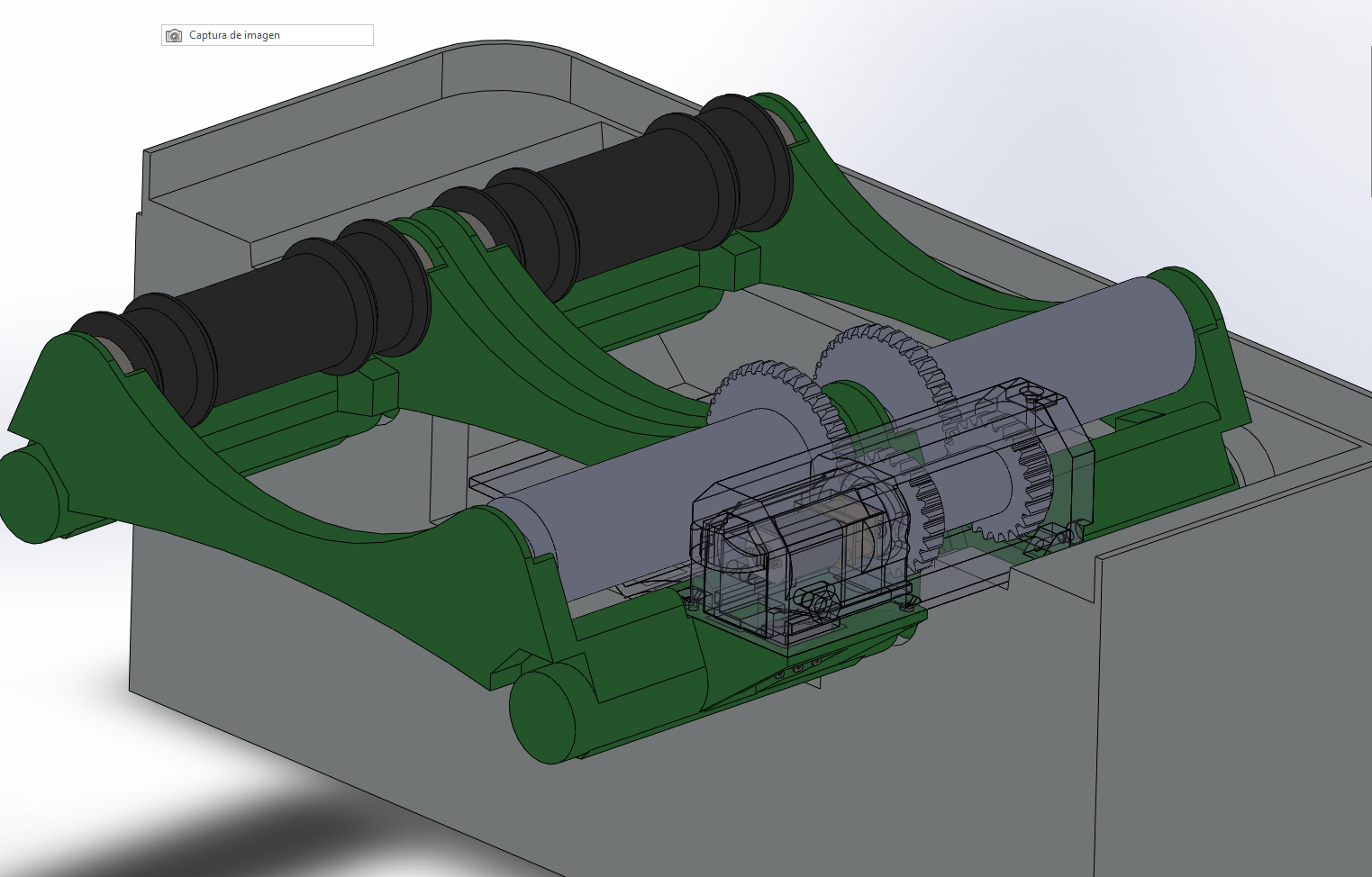

I have redraw everything again for the "fixdry" version and adapted to the material that I have
solidworks files available
extra :

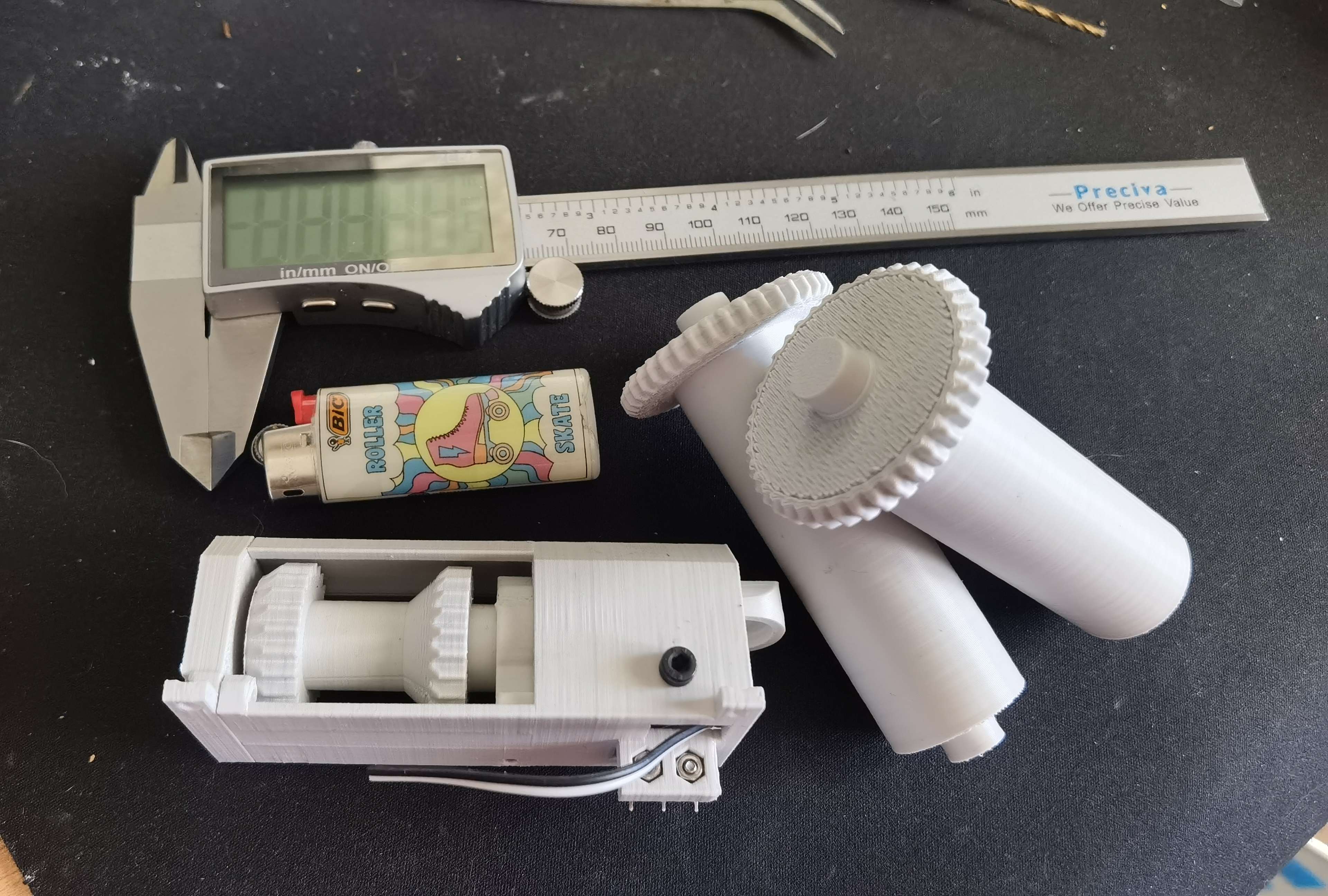

"gear40t tpu" is printed with tpu filament in mode spiral vase , outer wall 0.8mm , botton shell layer 0
material list:
- ball bearing 17*6*6mm
- conical screw x6 2*8mm
- screw motor x2 M1.6*4mm
- screw gear 18T M3*3mm (not head) and nut
- screw M3*30mm and nut
- electric motor 6v 50RPM
- Micro switch
- drill bits 1.6/2/3mm
desiccant:
- conical screw x2 2*16mm and x2 “arrandela secante 2mm”
24
Curtidas
87
Downloads
Categoria
Accessories
Licença
Creative Commons — Public Domain
Arquivos (30)
desiccant^fixdry cover.stl
99.5 KB
base^drive cover.STEP
121.9 KB
support driver.3mf
259.7 KB
desiccant^fixdry cover.STEP
759.3 KB
support driver l.STEP
305.5 KB
support driver l.stl
444.7 KB
base^drive 1.3mf
888.6 KB
arrandela secante 2mm.STEP
20.2 KB
base^drive 1.stl
315.9 KB
gear40t tpu.3mf
34.7 KB
support driver r.STEP
272.2 KB
fixdry roller.STEP
82.8 KB
arrandela secante 2mm.stl
82.9 KB
gear 18t.STEP
1.2 MB
gear40t tpu.stl
89.7 KB
desiccant^fixdry.3mf
140.5 KB
Motor_mount.STEP
251.8 KB
gear40t tpu.STEP
15.2 KB
fixdry roller.stl
1.2 MB
fixdry roller.3mf
579.9 KB
gear 18t.stl
2.4 MB
desiccant^fixdry.stl
422.7 KB
gear40t.STEP
864.4 KB
gear40t.stl
1.2 MB
base^drive 1.STEP
293 KB
support driver r.stl
420.5 KB
base^drive cover.stl
455.3 KB
desiccant^fixdry.STEP
3.7 MB
Motor_mount.stl
297.8 KB
fixdry.STEP
9.9 MB
