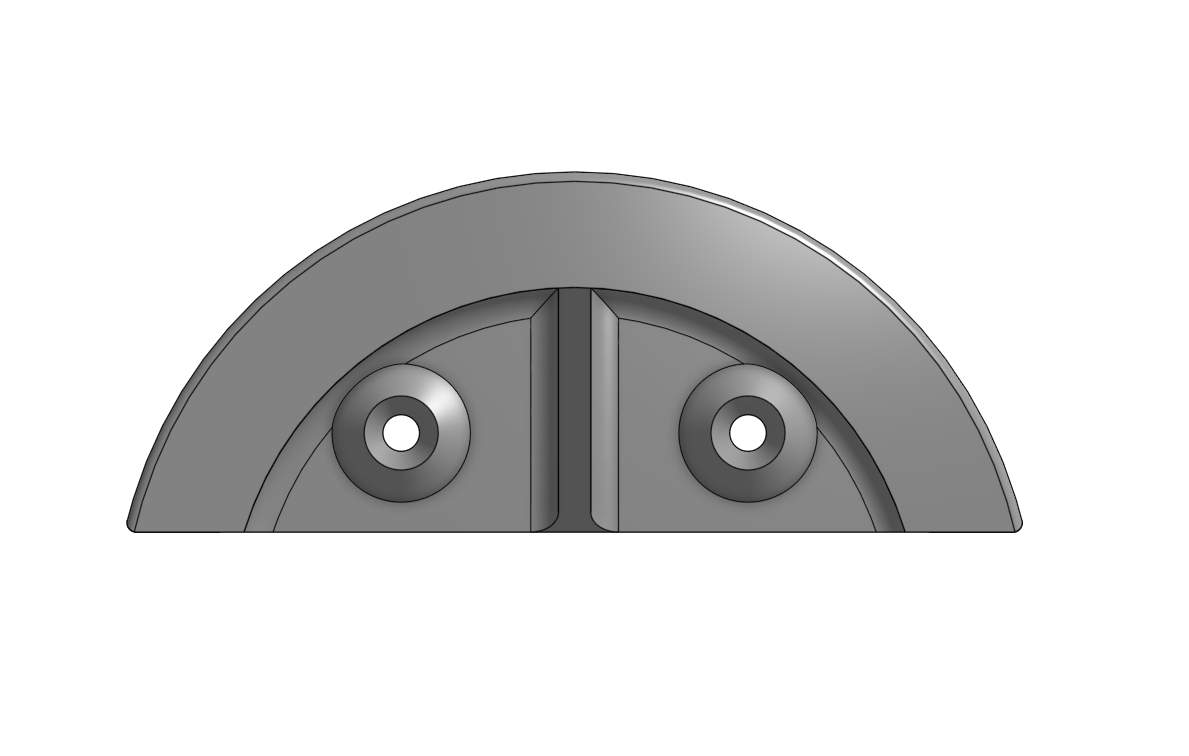

We needed a robust cable holder for our power cables. So we designed this rack to satisfy that need. This cable holder can hold several large power or video cables securely. I have not fail tested this but it should be able to handle 4 or 5 large cables without getting close to failure. If you have more cables, you may want to print several and “nest” them one on top of the other, spacing them about 10" or 250mm apart or so depending on your space requirements.

You may also be interested in our other cable management models Medium Test Lead Holder and Test Lead Holder

Features

• Large area for multiple cables
• Quick print with minimum supports
• reenforced chamferd screw holes
• Gentle curve will nor damage cable
• Can have multiple rack stacked in same space
• Storage heigh ½ cable length

Printing

Upright

Filament - PLA, PETG

Infill - 20% - 25%

Layer Height - .25mm

Supports - Organic under the arched portion next to the center support is recommended

Parimeters - 2-3

Additional Parts - None

Bed Adhesion - You may want some glue stick to ensure good bed adhesion.

Rafts - None needed

Scaling - These can be scaled up to fit your needs, but keep in mind the screw holes will also change scale too.

Filament Change - None

Post Printing Notes:  None

Happy Printing!
