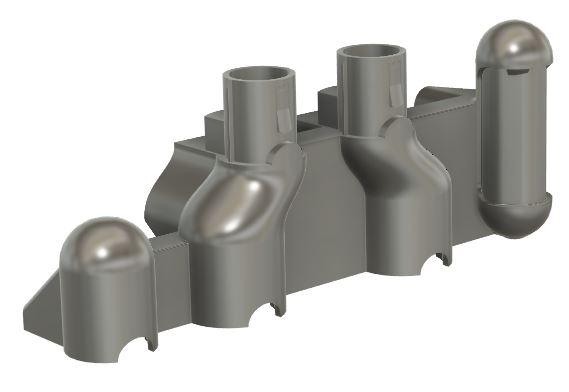

This adapter is designed to hold all the accessories that came with the Dyson V11 vacuum in a small space envelope. A smaller version is also available.

Accessories do not obstruct each other and can be accessed freely and easily.

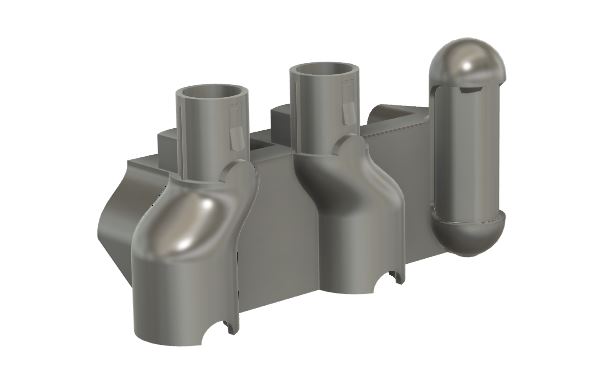

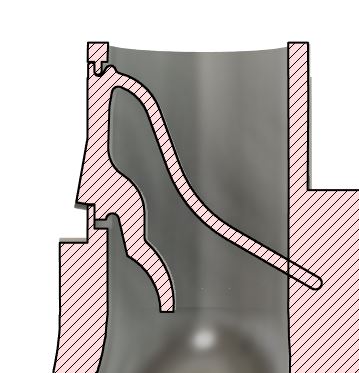

Features a snap in place design, with release buttons concealed in the cavities of the two center tubes. The transparent Clip Accessory Holder that comes with the Dyson vacuum can be clipped onto the shape on the right, giving a home to all the parts that came with the vaccum. I also made a smaller version if you only have two of the small attachments.

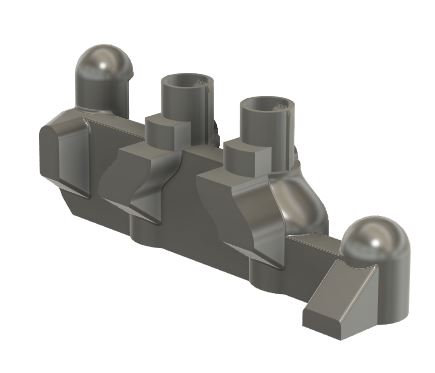

Each Accessory slot is supported against the wall for a sturdy design.

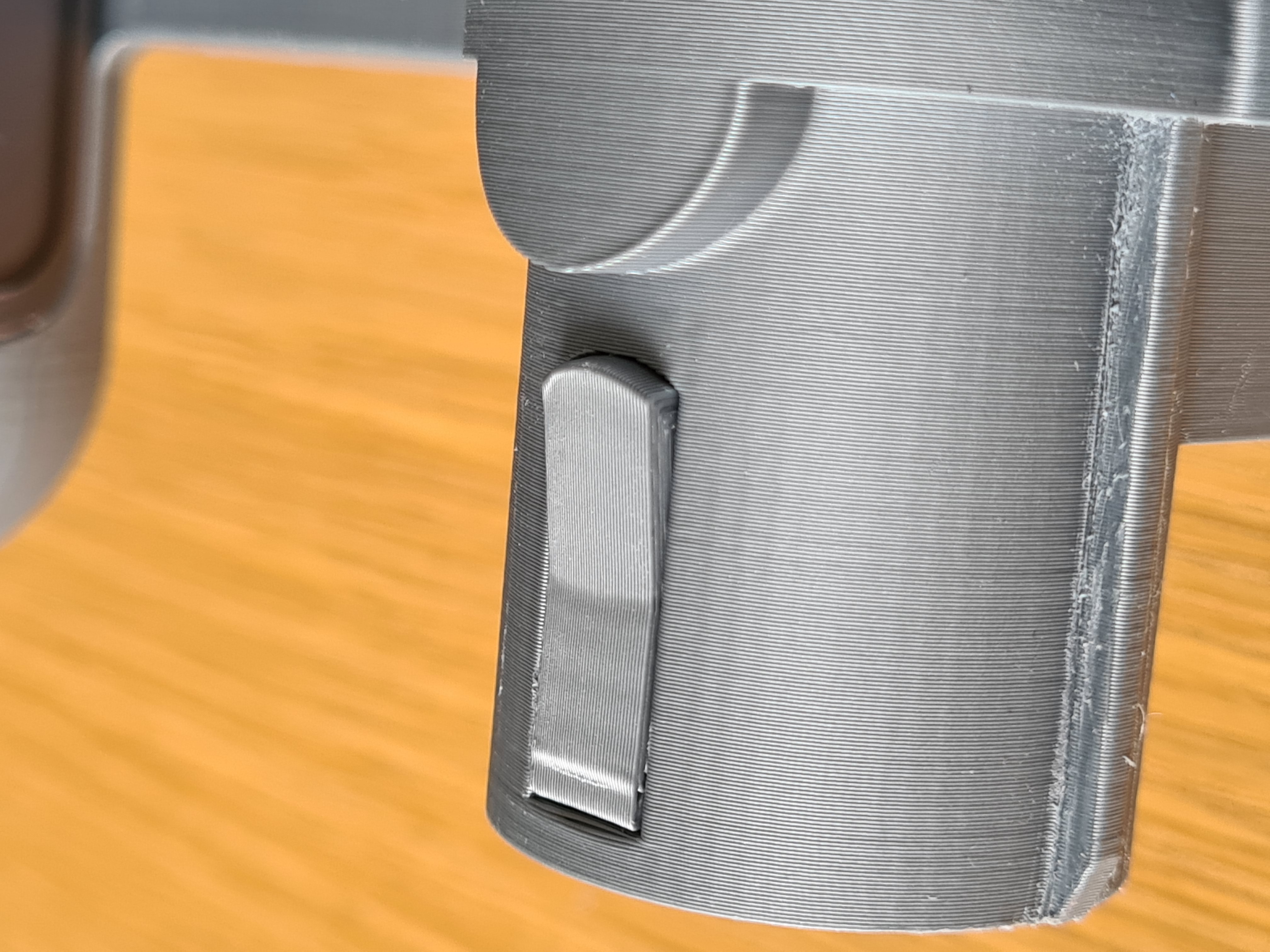

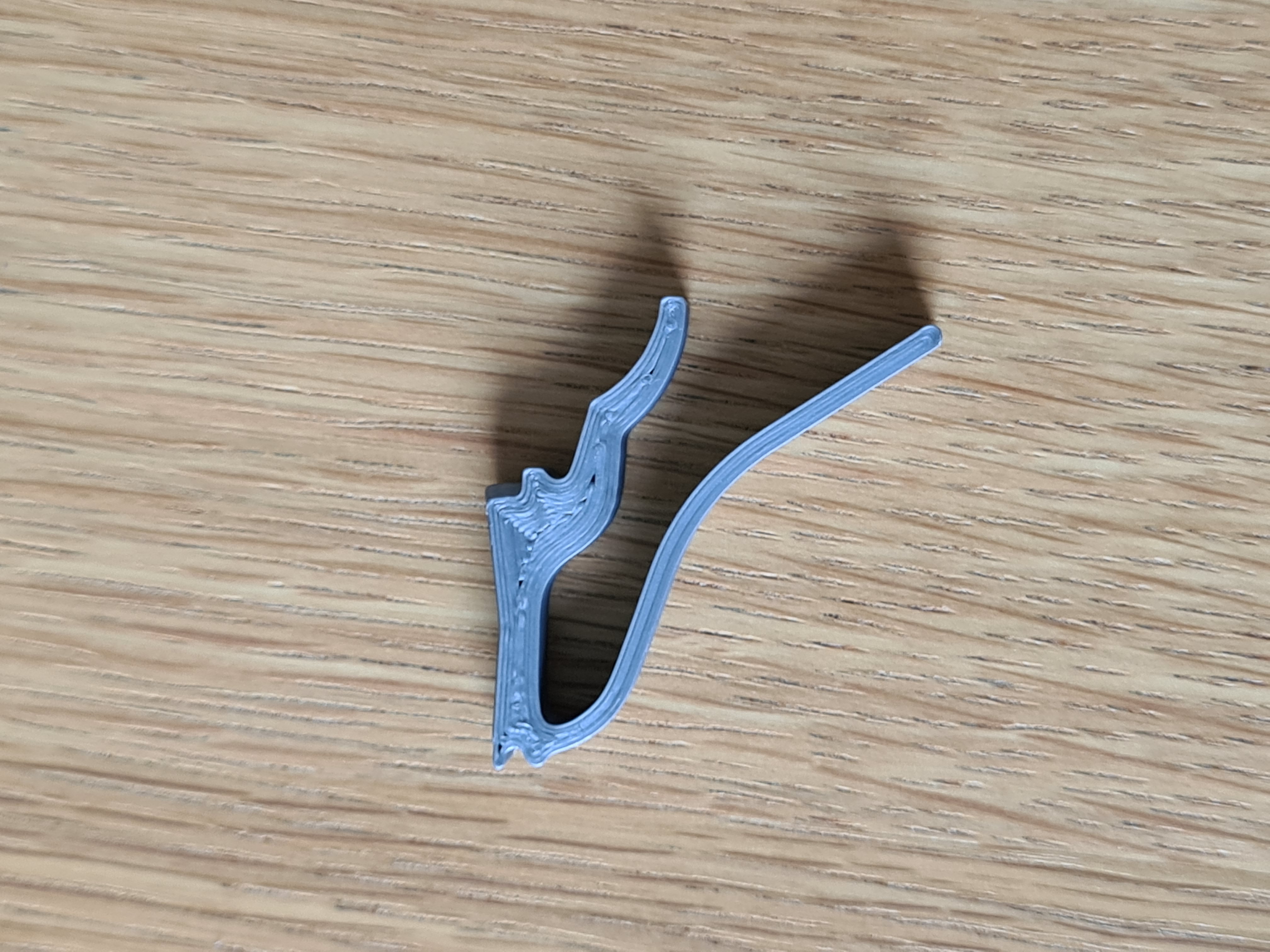

The holder can be printed in a single piece on a 256mmx256mm print bed and has two easy-to-fit spring clips for the locking mechanism. It can be printed without supports if your printer can handle overhangs 30 degrees from horizontal.

The holder in the images is printed using 3DQF's Midnight Silver PLA.

I printed this using 2 wall layers and 15% infil which seems plenty strong.
