I really liked araymbox's PS4 Wall Mount and I wanted one for my Switch Pro Controller. I found naten11's Switch Modular Wall Mount which is really good, except I wanted it to match the PS4 controller clip I already had.

So I mooshed the two designs together. The modeling work is all my own, but it's the direct descendant of the two links above.

Enjoy!

Print instructions

Category: Video Games Summary

I really liked araymbox's PS4 Wall Mount and I wanted one for my Switch Pro Controller. I found naten11's Switch Modular Wall Mount which is really good, except I wanted it to match the PS4 controller clip I already had.

So I mooshed the two designs together. The modeling work is all my own, but it's the direct descendant of the two links above.

Enjoy!

Print Settings

Printer Brand:

Prusa

Printer:

No

Supports:

.2

Infill:

Notes:

I recommend printing laying down on the edge, like a cookie cutter. That way you get perimeters in the direction of the curve of the clip, which should be the strongest. No worries about supports either.

araymbox's PS4 mount included screw holes, but I omitted them to make printing a little easier. I use 3M Command adhesive strips to mount the clip.

How I Designed This

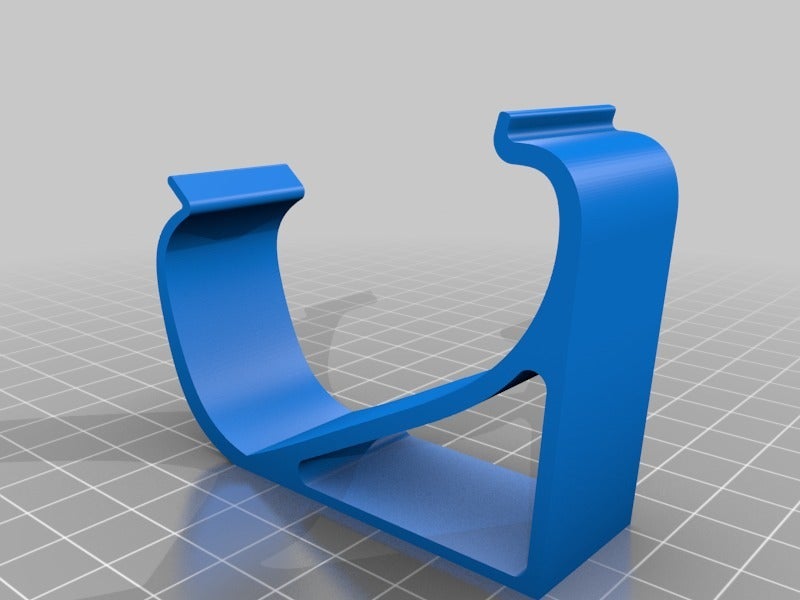

I took the picture of naten11's Nintendo Pro Controller cross section, and scaled that to my own measurements of the Pro Controller in Fusion 360. I traced the perimeter, added the tabs and the support on the back, and fired off the print.
