A Simple Pulley for Everyone, Easy to Print

Hey,
I have hook-equipped double pulleys for you. They are designed to carry, for example, a bucket or other things.

Two versions of this pulley are available:

The normal version is for rope with a diameter of up to 12 mm
It's a little bigger and should hold more.

The smaller version is designed for ropes up to 8 mm diameter. It is for smaller loads.

Of course, if someone needs a bigger one, they can enlarge it in the slicer.

Printing:

• 0,30mm (I think it's enough for these purposes)
• best material bube PETG, but you can also use ABS or PLA (PLA for lighter weights)
• fill rate min. 20% or more
• And I recommend to use supports for the files Pulley01 and Pulley02

Folding:

Folding the pulley is very simple

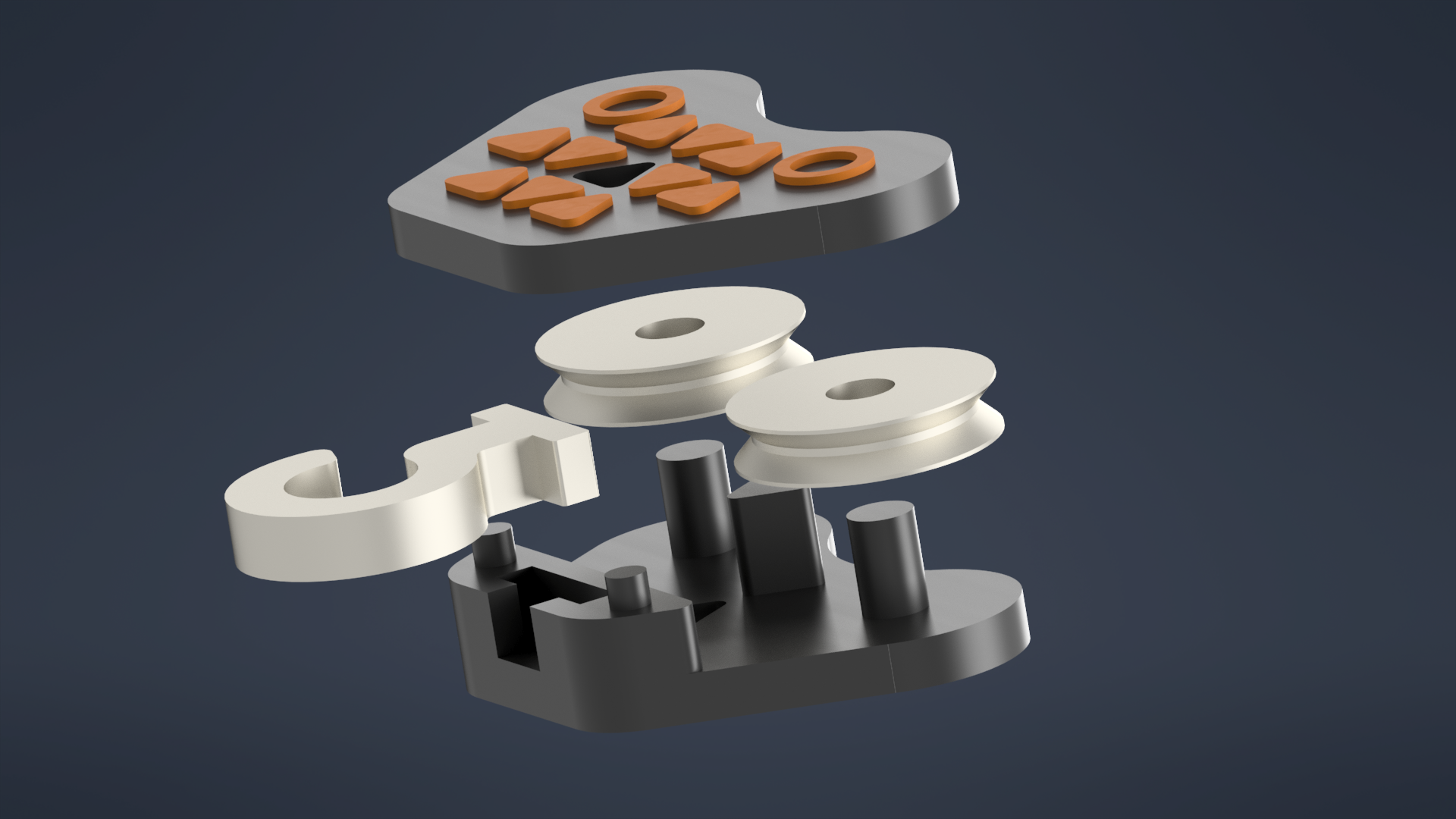

According to the picture, you just need to put the wheels and hook (the hook is a little harder to put on, for better stability and tightness. It has to be pushed in a bit) in place and then rub the ends that stick into the other side of the pulley with instant glue (see picture with locations marked in red).

It's really easy anyone can do it without reading this :D

I haven't tested the max load yet but I believe it can definitely take a bit more weight.

Have a fun :)
