Modelo 3D Micrometer stand monoblock por patta no Printables

Descrição

Micrometer stand monoblock, 0.3

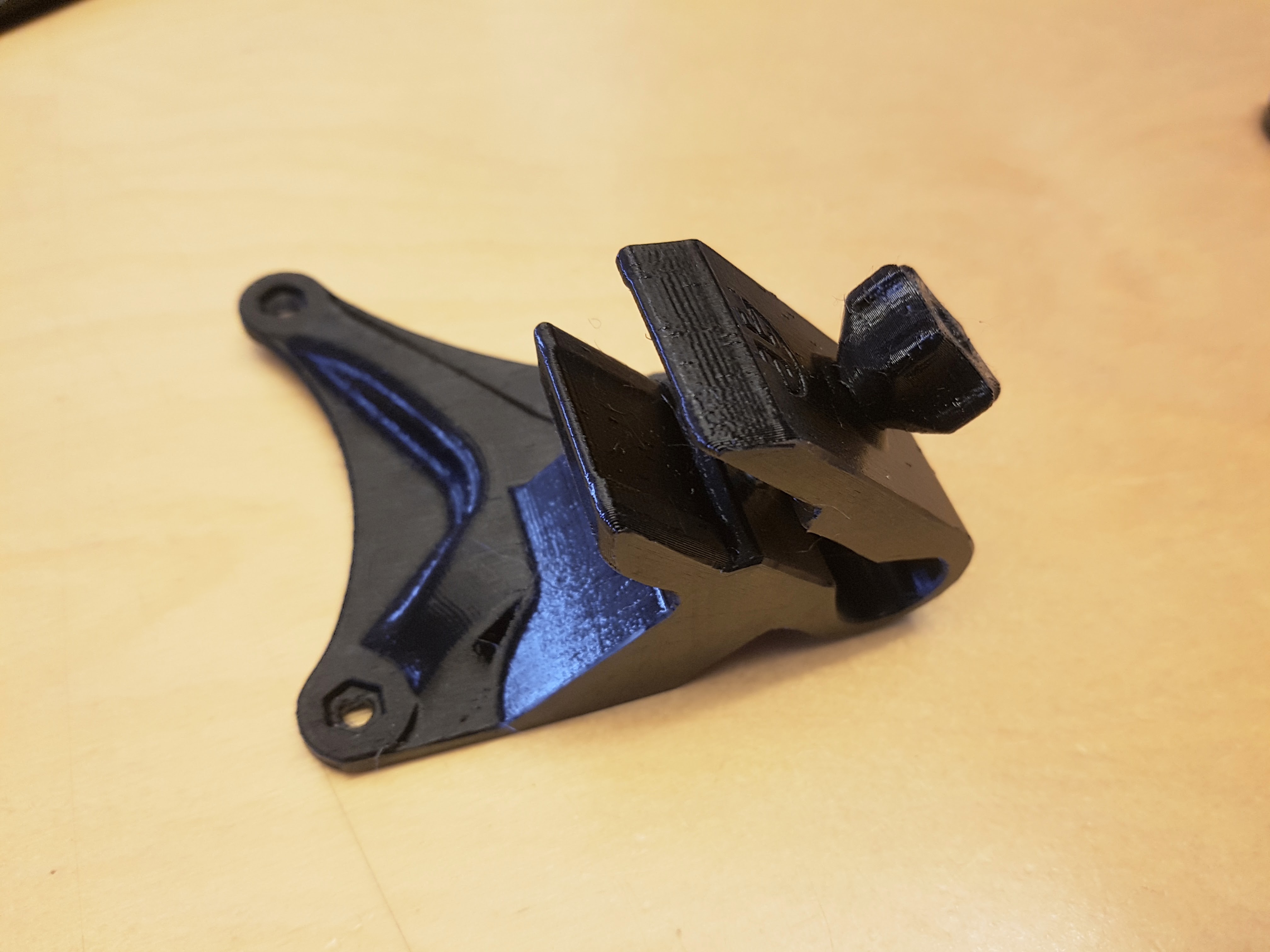

Print it from the side!  It has a flat side for that purpose.

Sturdy, stable, minimal material. Loose derivative of the nice design of Wehrenseb

It is a single piece + the knob
Prints without supports from the side.

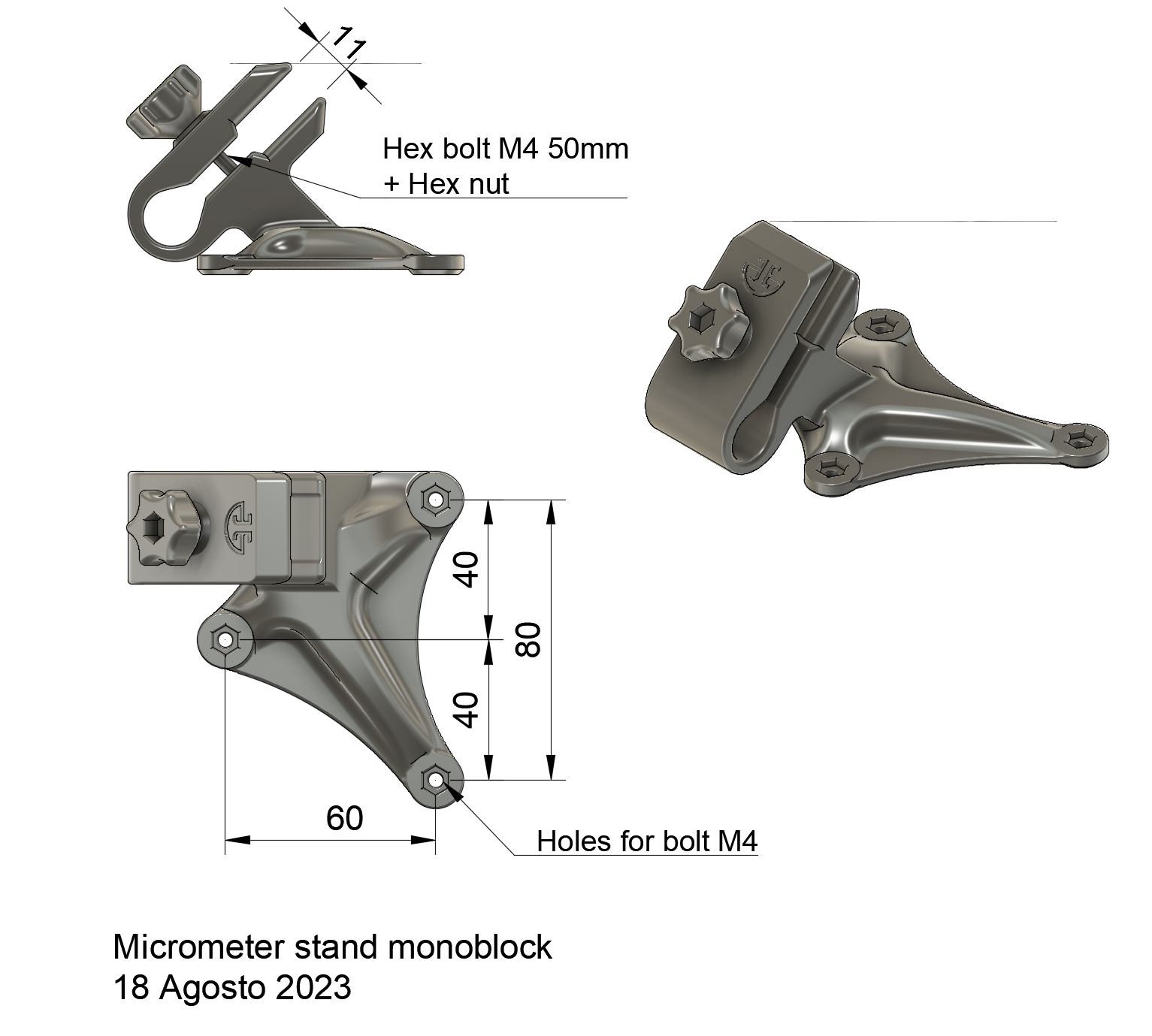

You will need one screw with hex head, about 50mm long, and one hex nut, M4.
It can be fastened to a heavier base again with M4 screws, or you can put rubber foots. It is stable with small and medium size micrometers.

Uploaded 3 models for the jaw, for different thickness of the micrometer arc: 7mm (for bare metal manual micrometers), 11 and 15mm for those with plastic sides.  Dimensions in the middle, like 9mm, choose, should fit.
also two sizes of the base. See the name of the file for the size. There is also the file of a knob for M4 hex ("Nipplo").

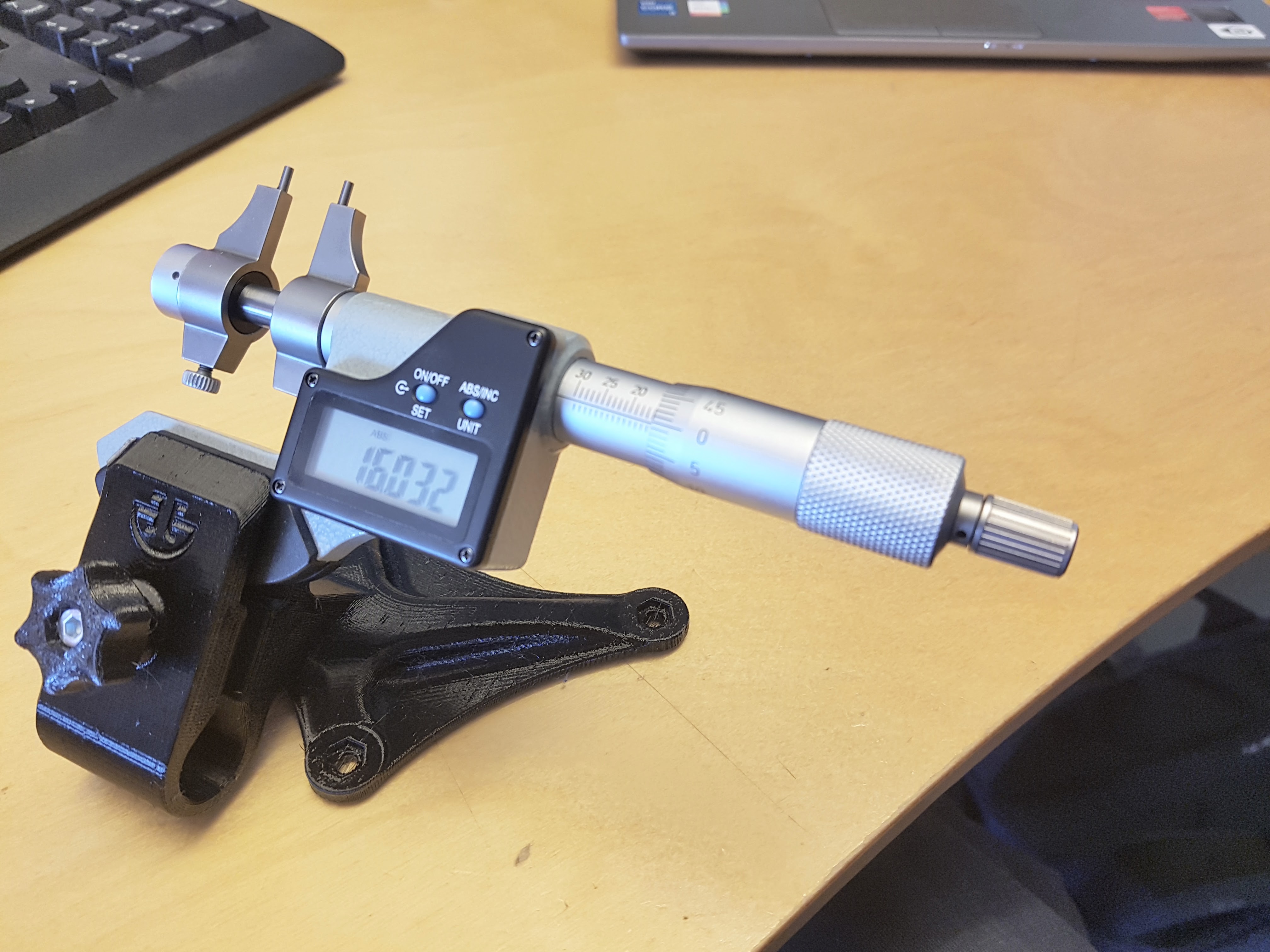

Was designed for Xibei /QLR micrometers and has their logo on it. The one in photo is Internal micrometer. works also for normal micrometer.


May improve the design in case of positive/negative feedbacks

Printables

Micrometer stand monoblock

Publicado em 21 de mai de 2026

11
Curtidas
79
Downloads
1
Impressões
Categoria Tools
Tags
holder stand measure micrometer m4 micrometro creatormakerspace
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (7)
Micrometer_stand_monoblock_7_60_80.stl 2.4 MB
Micrometer_stand_monoblock_11_60_80.stl 2.4 MB
Micrometer_stand_monoblock_11_80_100.stl 2.3 MB
Micrometer_stand_monoblock_7_80_100.stl 2.3 MB
Micrometer_stand_monoblock_15_80_100.stl 2.3 MB
Nipplo_m4 v3.stl 585.7 KB
Micrometer_stand_monoblock_15_60_80.stl 2.4 MB
