Just an other Prusa MK3 PSU-Bracket / Brace.

My Frame has a Skew-Value of 0.01 ! (Support Menue)

Please have a look on my other Prusa MK3 Prints [https://www.prusaprinters.org/social/1247/prints](https://www.prusaprinters.org/social/1247/prints)

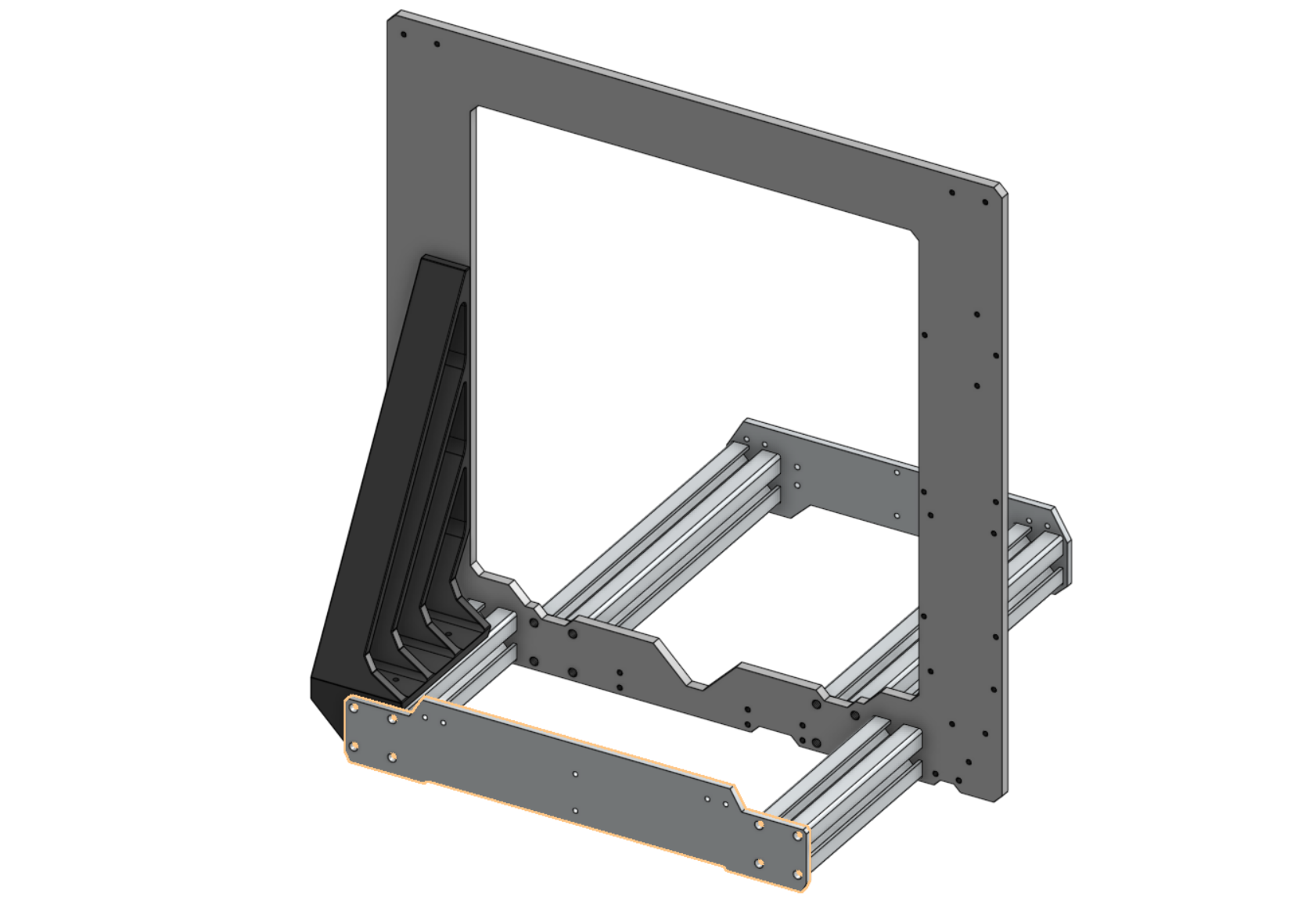

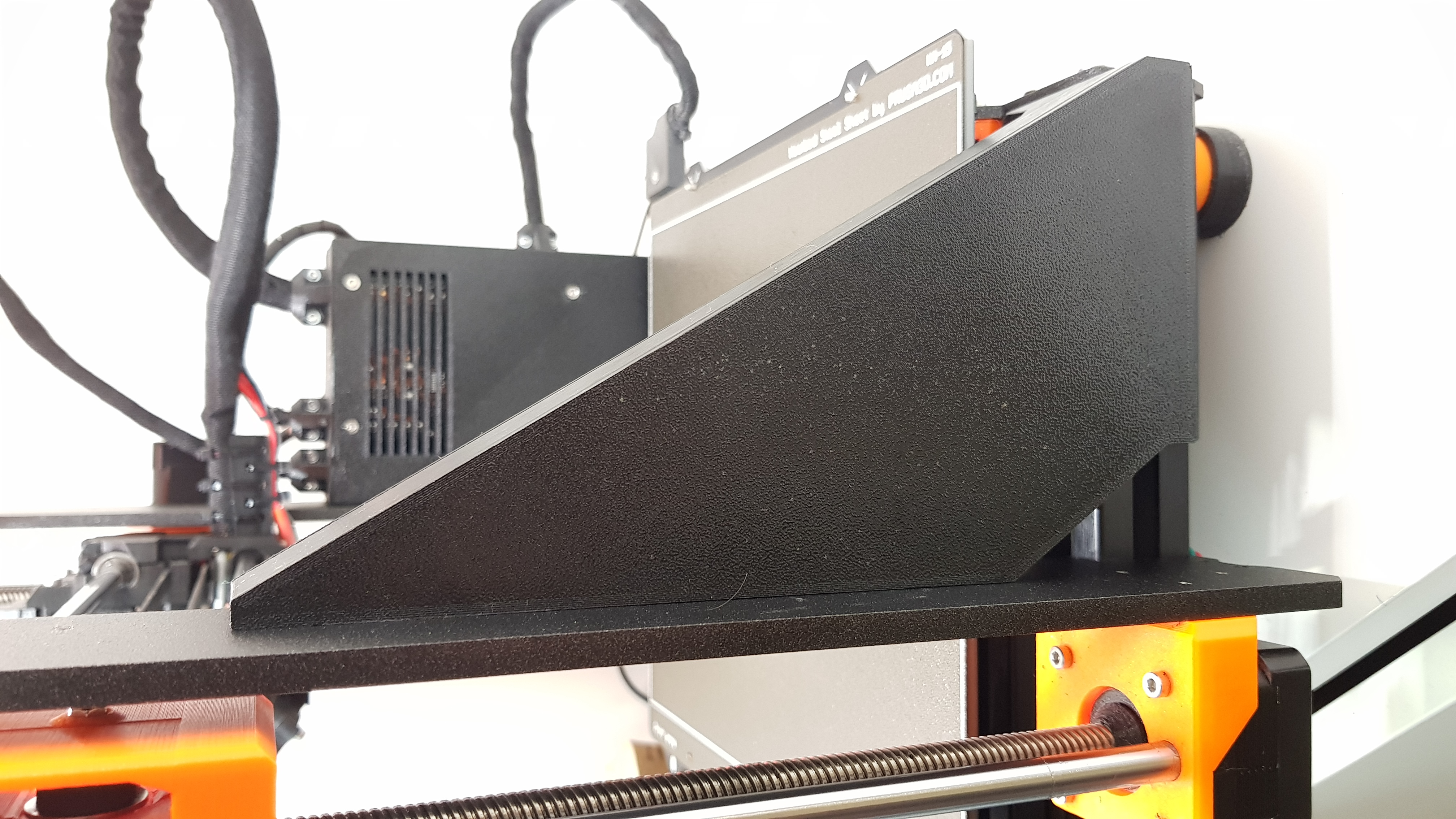

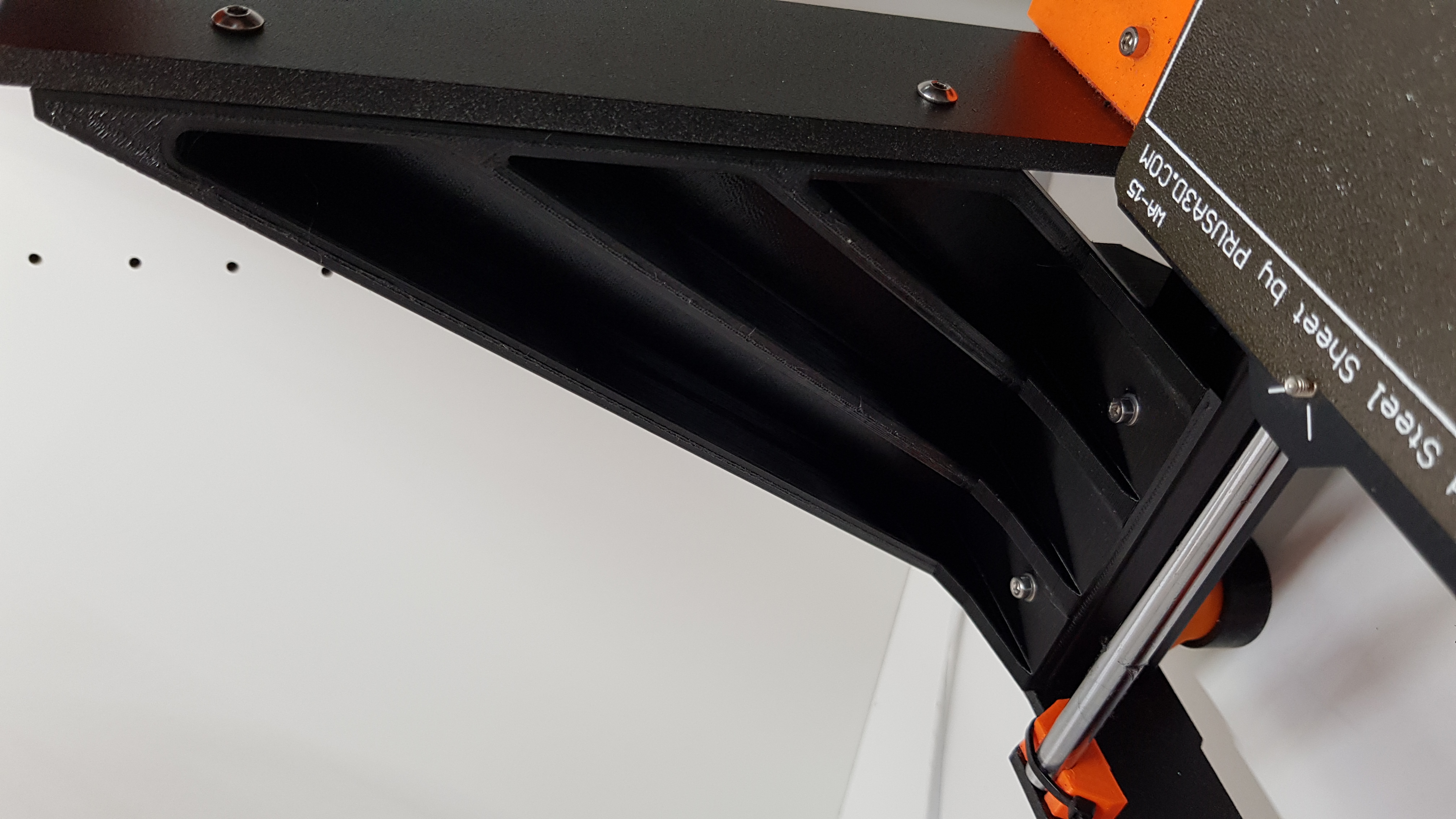

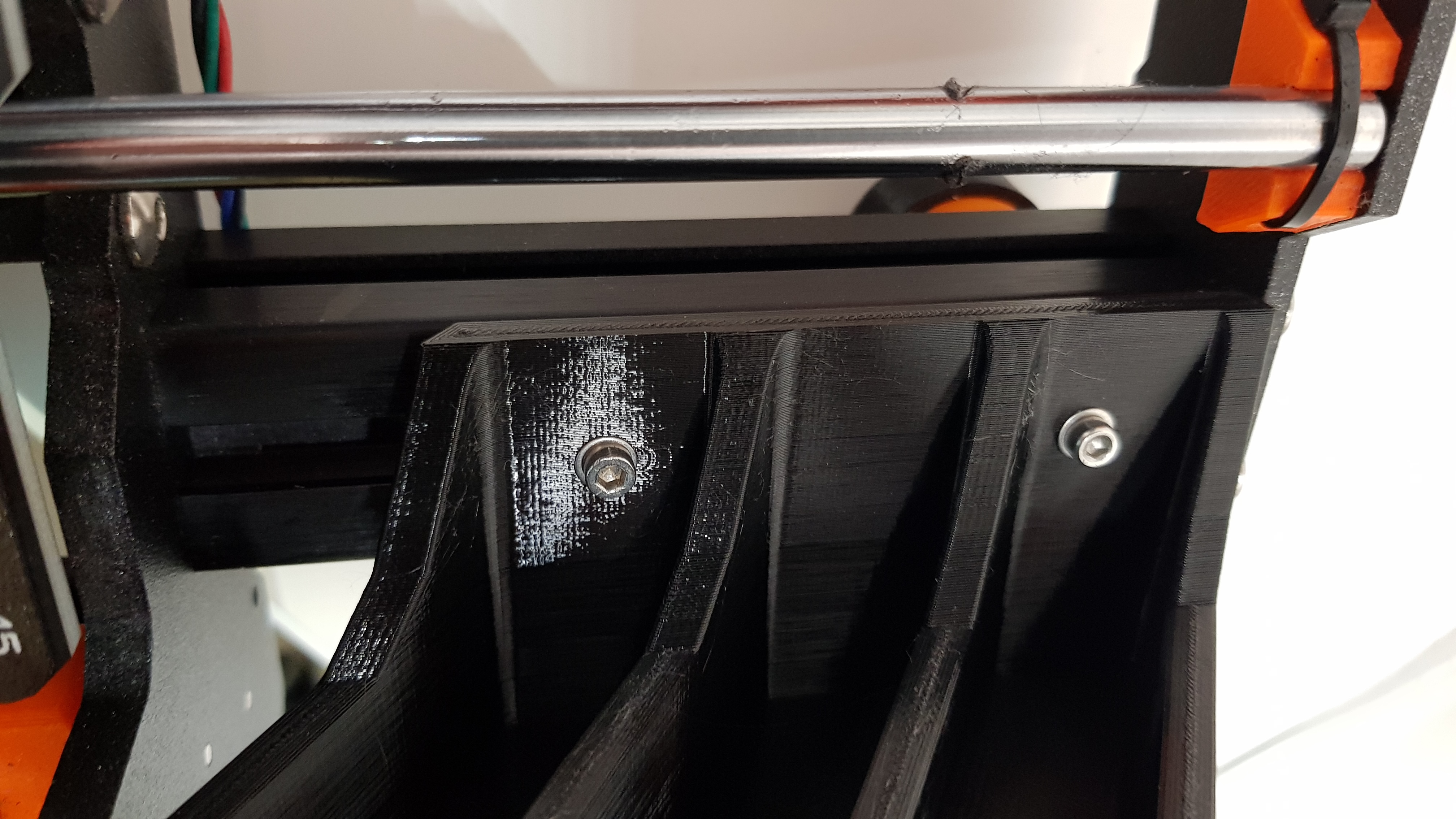

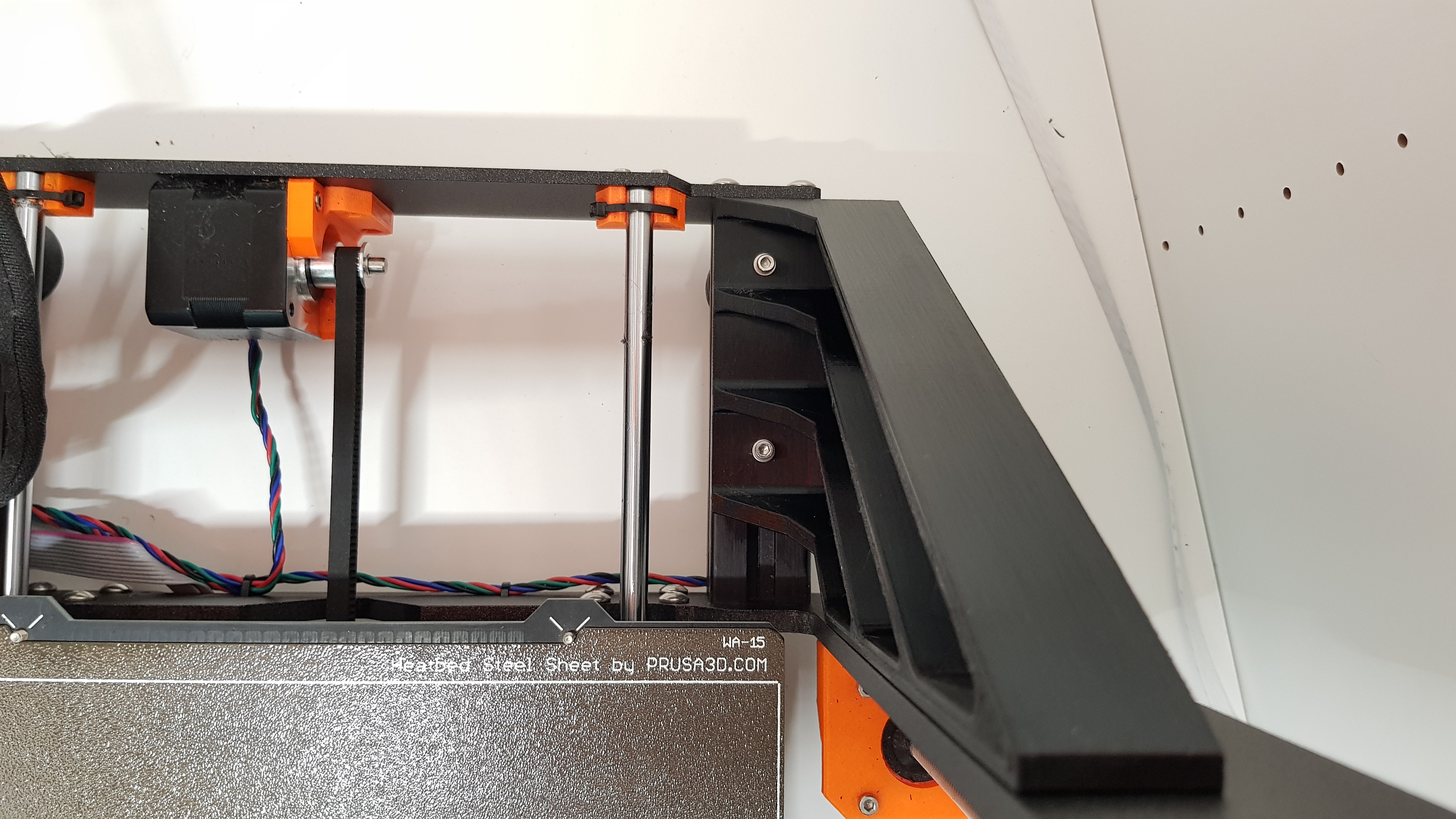

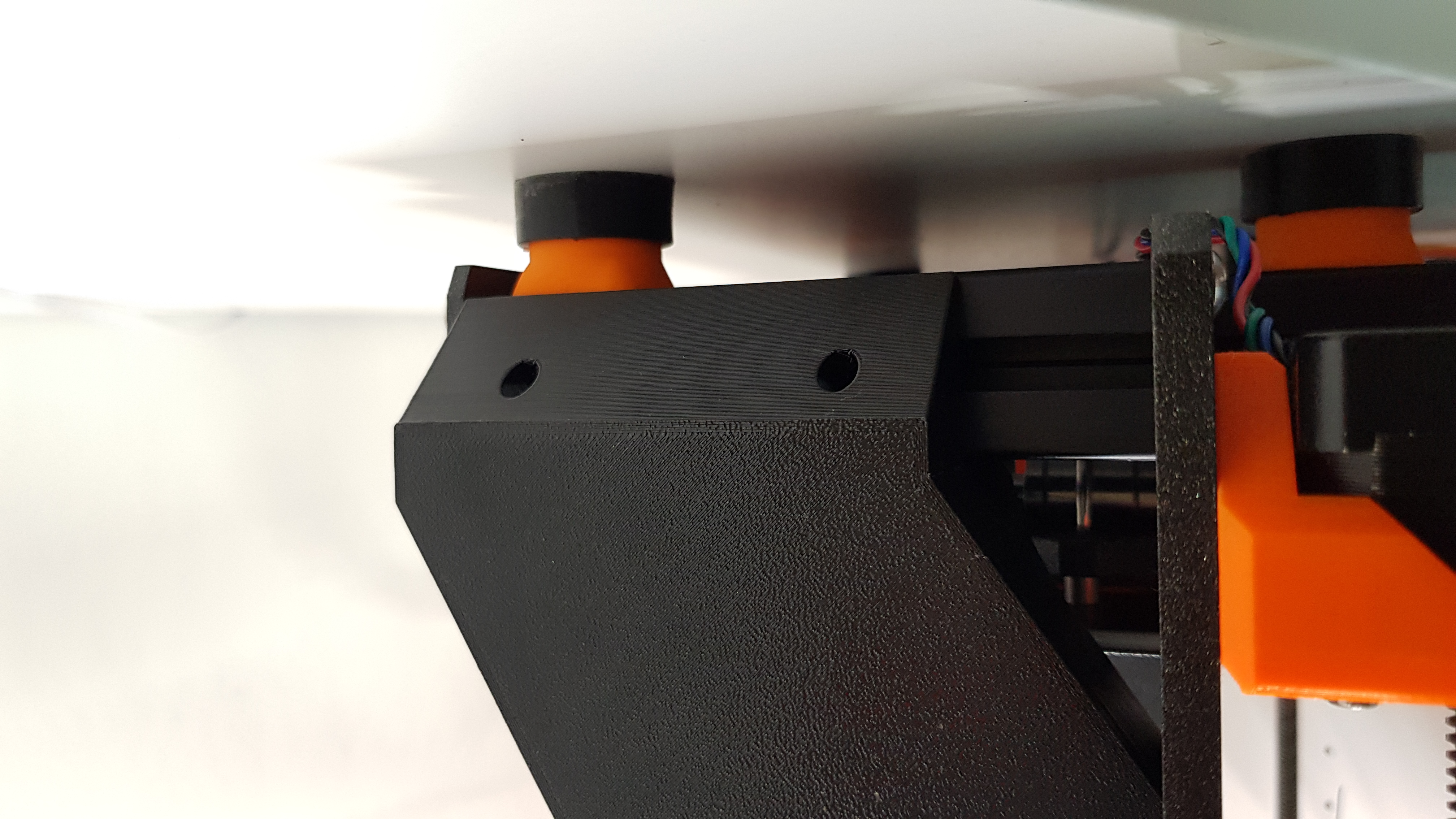

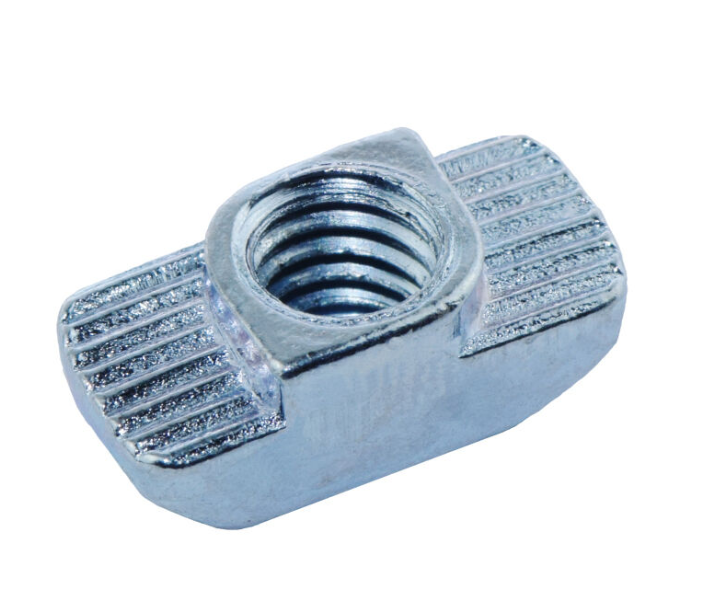

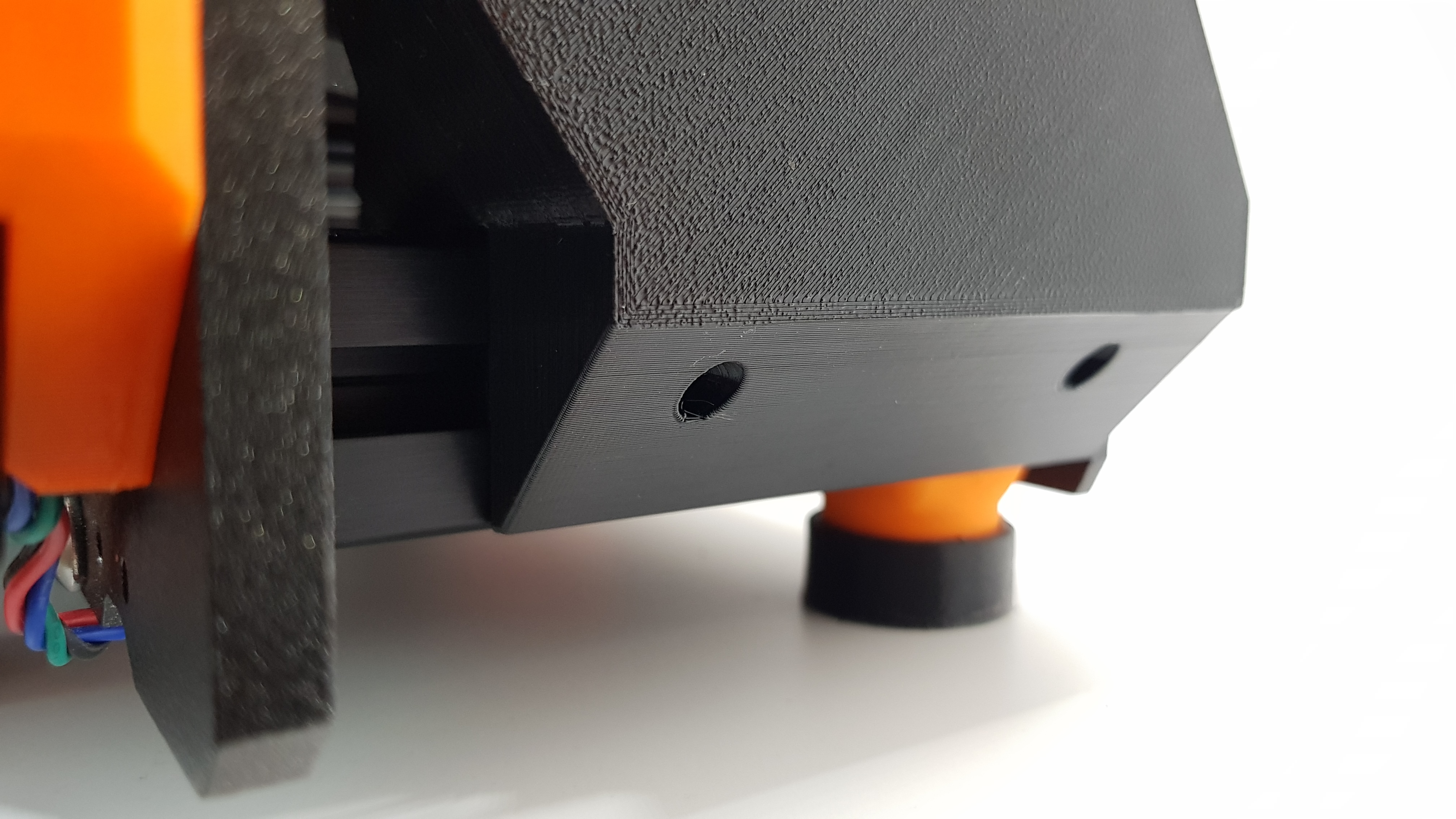

It fit's between Mainframe and Rearplate, clicks in top an sidewise in the 3030 Extrusion to make it more stiff. You can Screw it with four Screws (two more T-Nut's needed see picture Nut 8mm M3 ) to the 3030 Exstrusion.

MK3 or MK3S ? I habe only a MK3 Upgraded so MK3S with the silver PSU. But it seems that the Hole Pattern in the Frame is the same.

I think it's one of the stronges designs.

Update: Added a Version with more space for the T-Nuts (STL only)

Print instructions

Prusament PETG Jet Black
7-8 Top/Bottomlayer
4-5 Perimeter
15-20% Infill
