Modelo 3D Alien Cat Speakers por LucidWolf no Printables

Descrição

Just a silly speaker enclosure for the kids.  Had two cheap computer speaker sets where the USB driver was not up to the task of driving the speakers.  So I put them each into a speaker box with a bit of flare for the kids.  I power them with a 12v audio receiver and it works much better.   Still cheap speakers so not like I did any optimization, I didn't even balance the impedance right.

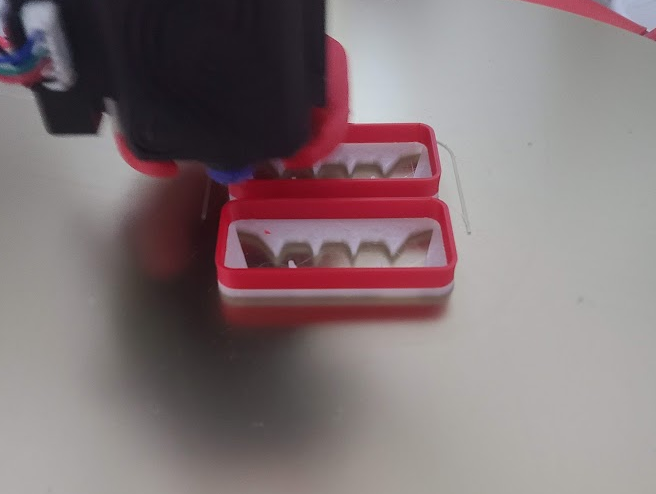

For the teeth i changes filaments so that you could get white teeth and red insides.

The speakers i had were 4 Ohm.  So I put the tweeters in series and then those in parallel with the “woofer”.  So total impedance was 2.6 Ohms calc but 3 Ohm measured which is under the standard 4 Ohm, but the 12V amp does not seem to have an issue and is cheap under powered so I skipped the 4 ohm resistor in series with the “woofer” since I would have to order parts and the point was using up parts.  ^^

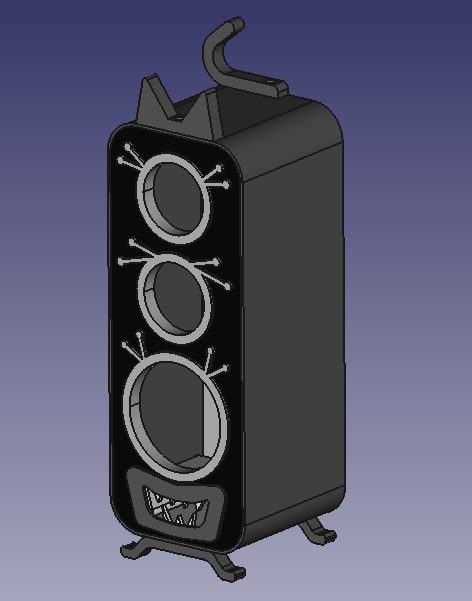

FreeCAD attached.



Printables

Alien Cat Speakers

Publicado em 29 de ago de 2023

6
Curtidas
33
Downloads
Categoria Audio
Tags
speaker speakerenclosure
Licença Creative Commons — Attribution
Arquivos (12)
AlienSpeakerBox.stl 750 KB
SpeakerBox-Ears.stl 18.6 KB
SpeakerBox-Legs.stl 104 KB
SpeakerBox-Lips.stl 19.6 KB
SpeakerBox-LowerLashes.stl 141.3 KB
SpeakerBox-MidLashes.stl 48.1 KB
SpeakerBox-RearPlug.stl 49.9 KB
SpeakerBox-Skin.stl 51.6 KB
SpeakerBox-Tail.stl 62.9 KB
SpeakerBox-Teeth.stl 20.6 KB
SpeakerBox-UpperLashes.stl 48.7 KB
SpeakerBox.FCStd 371.6 KB
