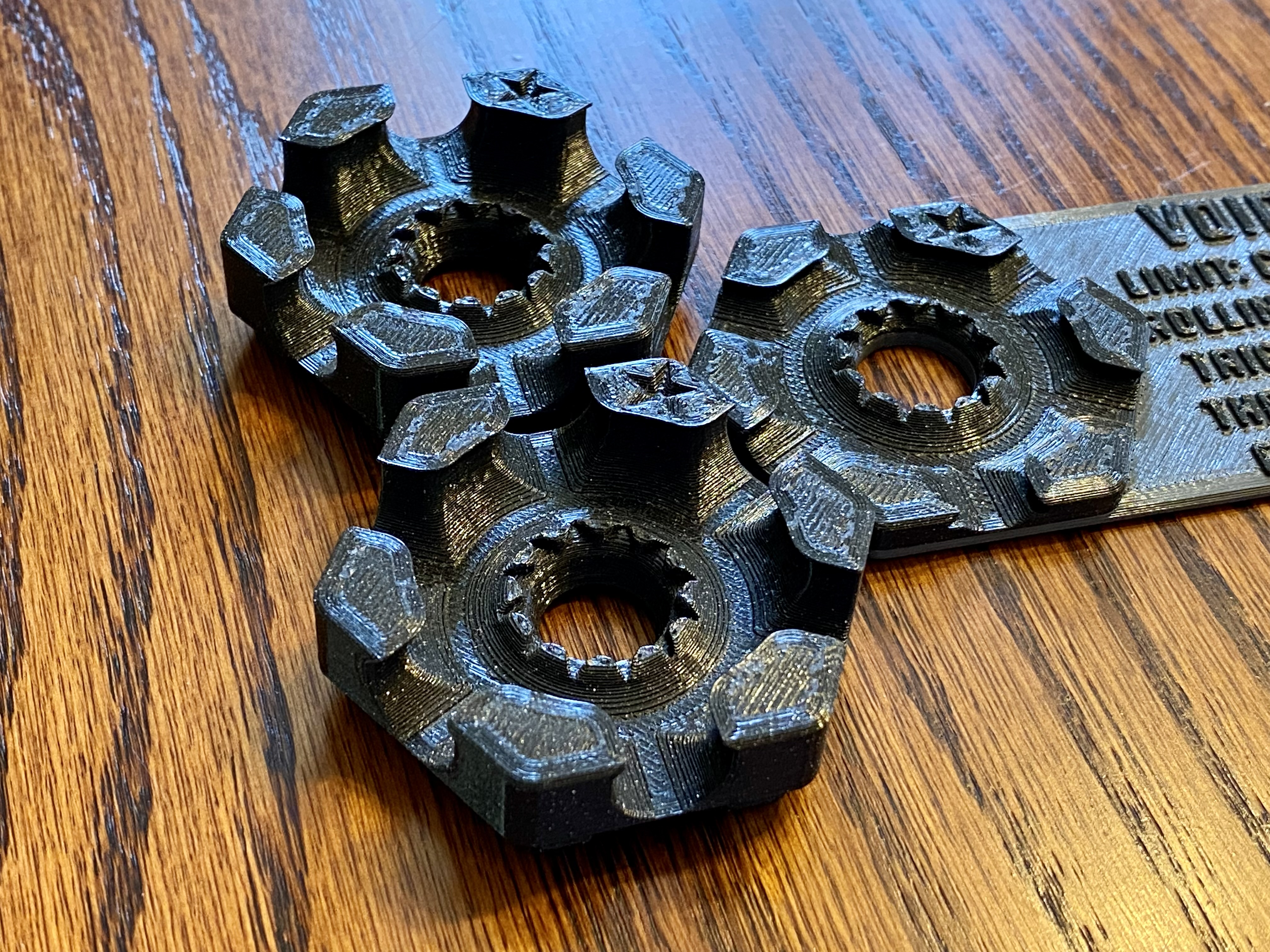

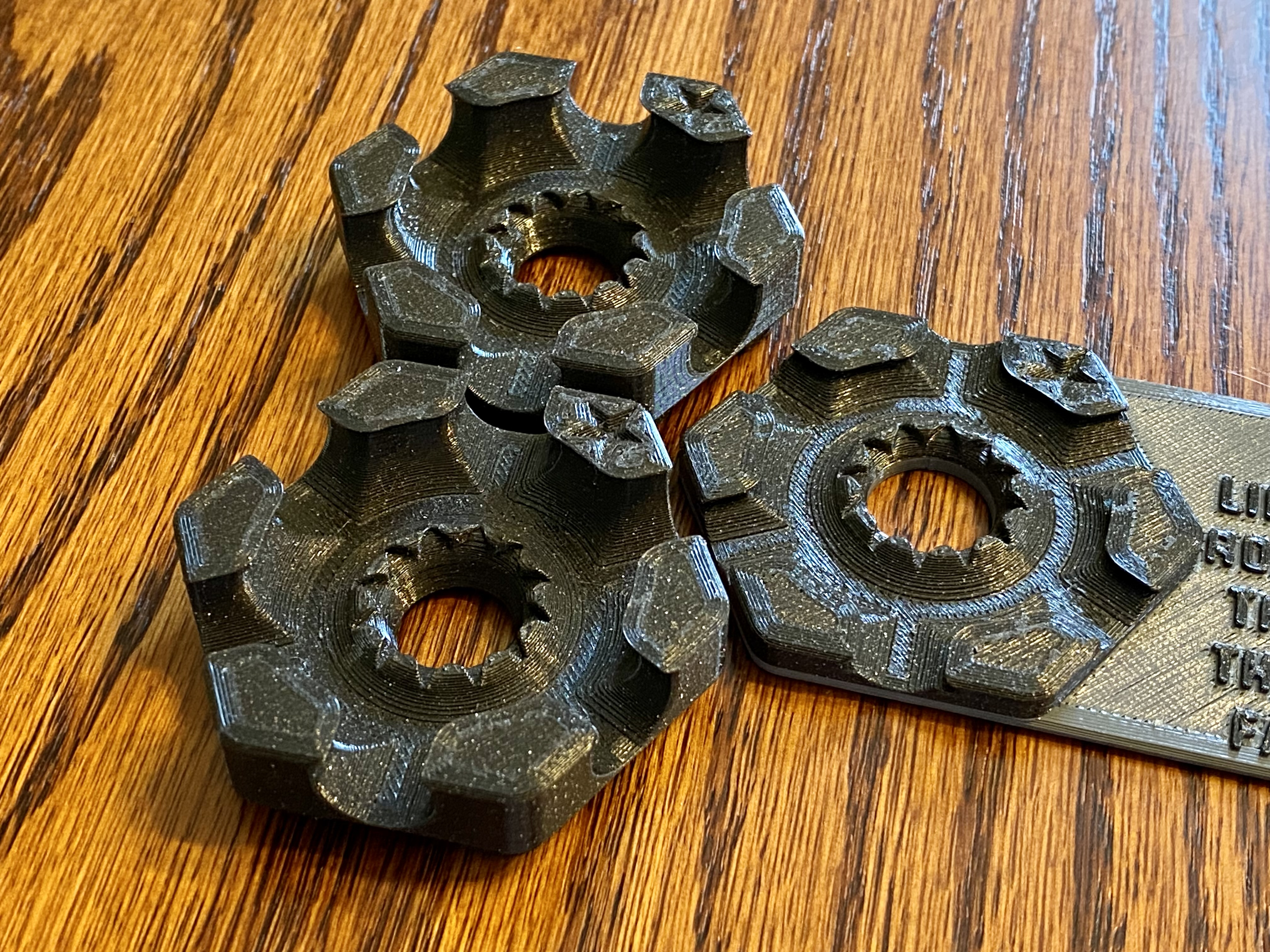

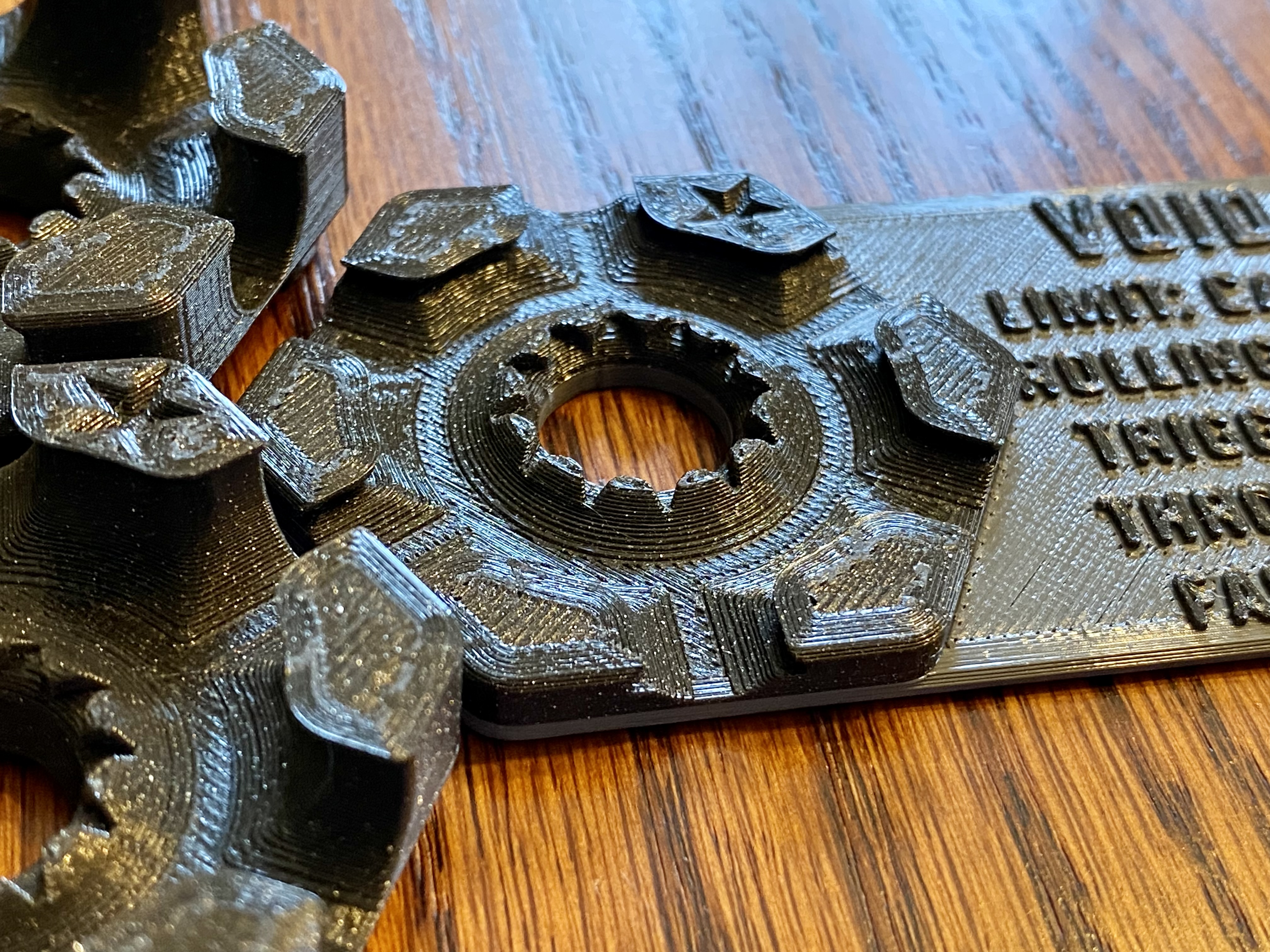

This remix of Zack Freedman’s Void Tile & Card was made primarily for aesthetic reasons. The major changes were to remove the built-in sacrificial supports as most printers should be able to bridge this distance without the need for supports & to remodel the card to better resemble the tile. See the changelog below for more information.

Learn more about the free 3D-printed board game Hextraction here.

Print Settings

This tile & card should be properly oriented & are designed to be printed without supports. For best results, print using a 0.2mm layer height. I used 40% infill, but you can experiment with other infill densities if you’d like.

To print the card with 2 filament colors as I have, using a 0.2mm layer height, these are the filament swaps needed:

Void Tile Card
Layer 1-10: gray
Layer 11-25: black

Value4Value

This remix is being released under the Value4Value model. If you received any value from my work, please determine what it was worth to you & return that value to me in the form of a donation. Thank you for supporting my work!

Print Info

Printer: VORON 2.4 350
Rafts: No
Supports: No
Resolution: 0.2 mm
Infill: 40%
Filament: Keene Village Plastics - Stellar Black & Dark Gray PLA

Changelog

Changes made from the original design:
• Void Tile — removed built-in sacrificial supports, aligned star along radius & more closely centered within sector
• Void Tile Card — remodeled to better resemble tile, added periods at end of rules text for continuity

Aug 7, 2023:
• Void Tile Card — remodeled to better match “standard” 5mm card height, chamfered “key ring hole"

“If I have seen further, it is by standing on the shoulders of Giants.” — Isaac Newton

This tile & card were remixed from the original Hextraction Void Tile by Zack Freedman using Fusion 360.
