Button box for deep dish. I added the step if you want to add a logo or change the connector type.

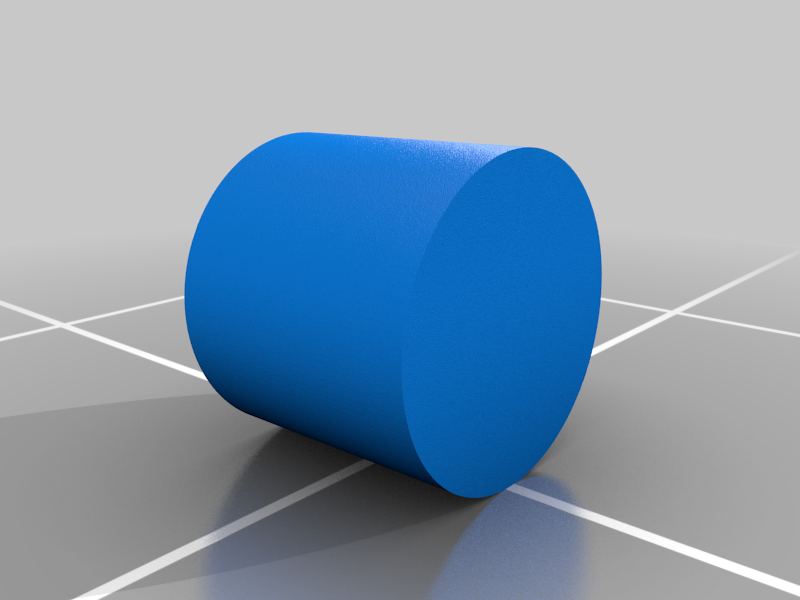

The light pipes are printed on an SLA printer with Siraya Tech - BLU. I sanded the top and glued a paper sheet under.

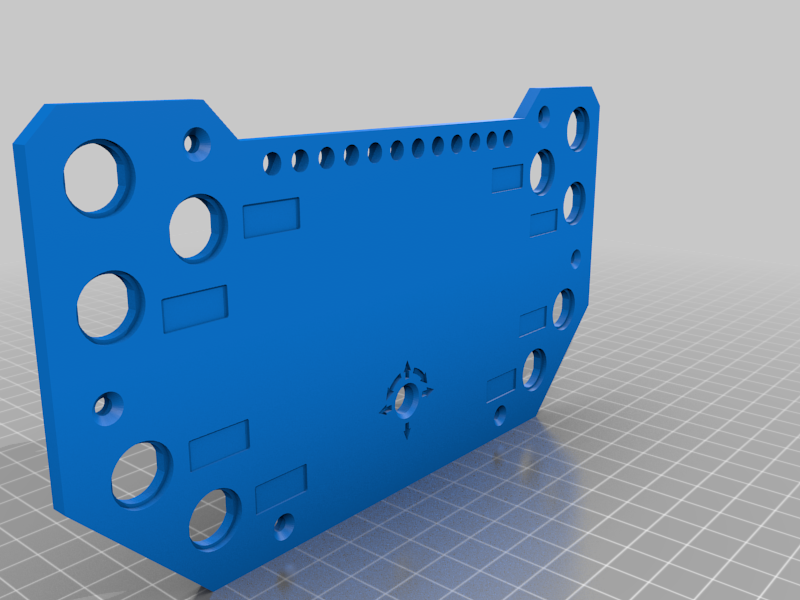

Glue the LED holder to the front plate.

The spacer is made for a 70mm hole pattern.

• 10x M3 12mm
• Sparkfun Pro Micro
• LED Strip WS2812B: [https://www.amazon.ca/gp/product/B01CDTED80/ref=ppx_yo_dt_b_asin_title_o07_s00?ie=UTF8&psc=1](https://www.amazon.ca/gp/product/B01CDTED80/ref=ppx_yo_dt_b_asin_title_o07_s00?ie=UTF8&psc=1)
• Nav Switch: [https://www.mouser.ca/ProductDetail/Alps-Alpine/RKJXT1F42001?qs=6EGMNY9ZYDTsBzSTrhiL0w%3D%3D](https://www.mouser.ca/ProductDetail/Alps-Alpine/RKJXT1F42001?qs=6EGMNY9ZYDTsBzSTrhiL0w%3D%3D)
• Push Buttons: [https://www.amazon.ca/dp/B07FKB6648?psc=1&ref=ppx_yo2ov_dt_b_product_details](https://www.amazon.ca/dp/B07FKB6648?psc=1&ref=ppx_yo2ov_dt_b_product_details)
• HR10A-7R-4S(73): [https://www.mouser.ca/ProductDetail/798-HR10A-7R-4S73](https://www.mouser.ca/ProductDetail/798-HR10A-7R-4S73)

Print Settings

Printer Brand:

Prusa

Printer:

Rafts:

No

Supports:

Resolution:

0.2mm

Infill:

Filament: Polymaker PLA Matte Charcoal Black

Category: Hobby
