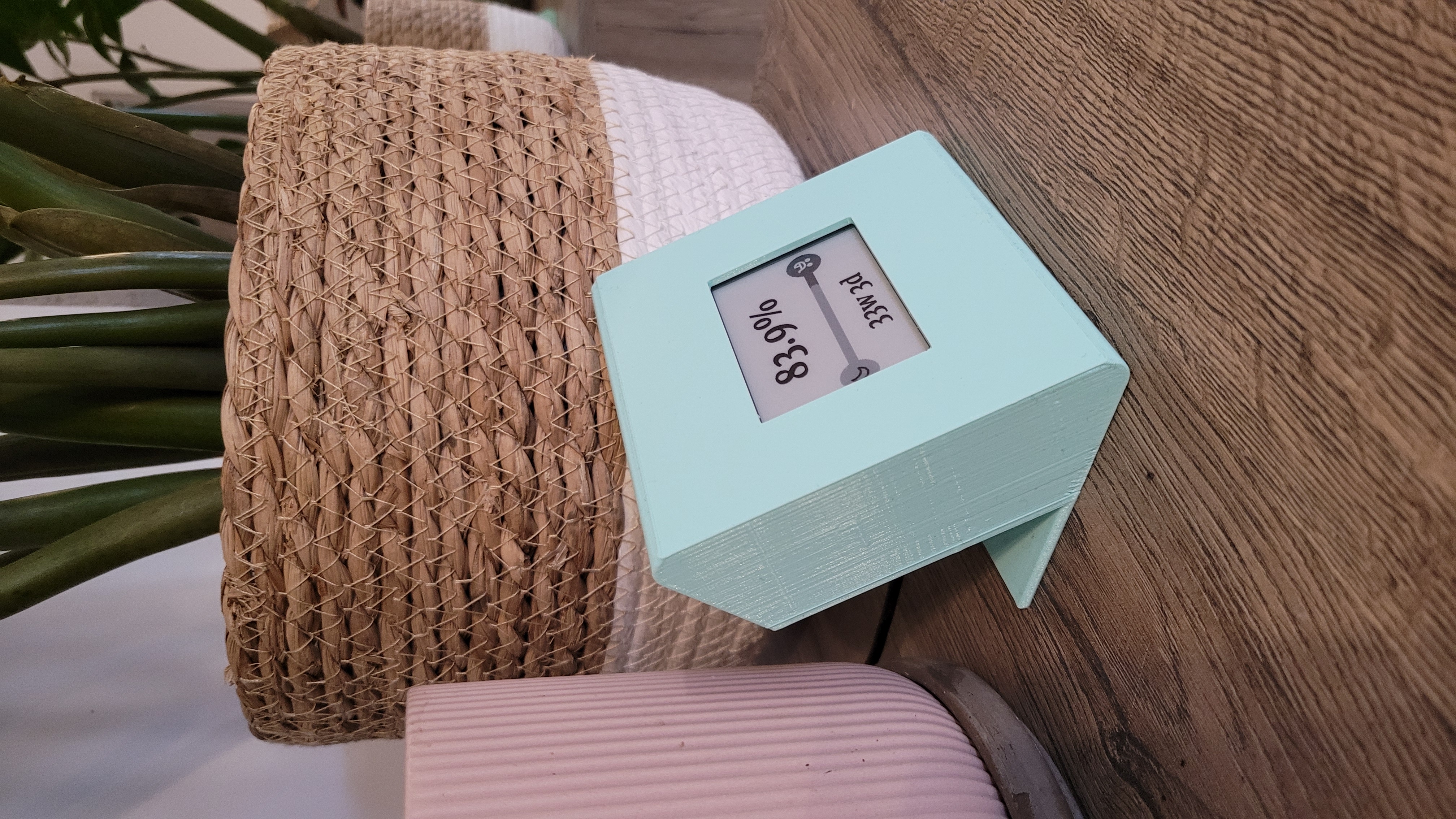

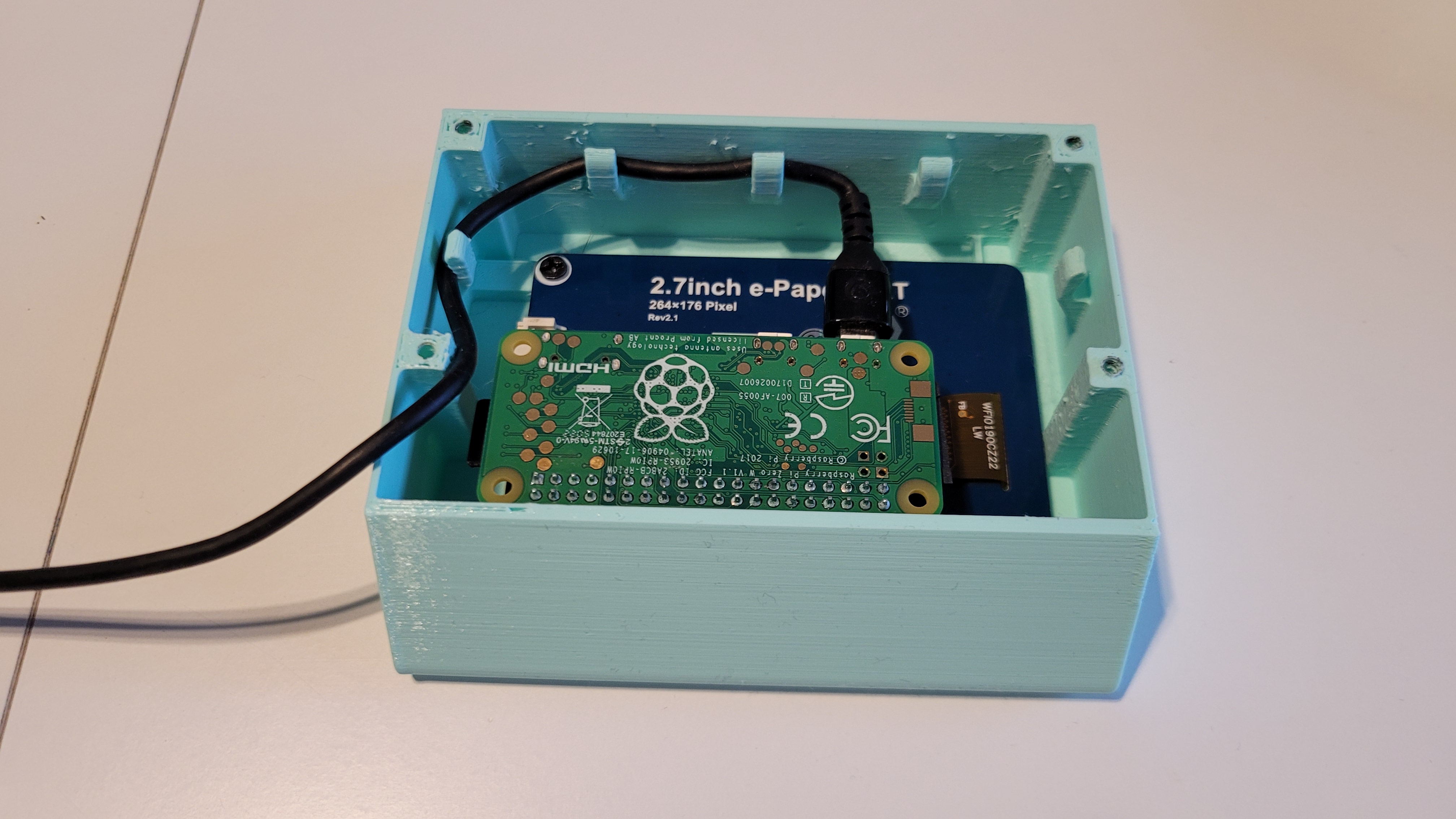

A case for 2.7inch E-Ink display HAT and Raspberry Pi Zero.  Has a hole at the back to guide the power cable through and some clips on the inside to ensure you don't damage the Pi when pulling by the cord too hard.

I designed the case to host my Pregnancy Tracker project.

The case doesn't fit a full Raspberry Pi - just the Zero version. Small modifications would be required to ensure the larger one fits but I haven't had the need to make them. Fusion 360 files are included so everyone is welcome to remix the model.

Assembly

The display is mounted to the case using 3 M3x5 screws. Another 4 screws are used to assemble both parts of the model together.

Printing recommendations

• Nozzle sizes: 0.6, 0.4, 0.2 (many of the walls are 1.2mm thick)
• Supports: yes (organic works quite well)
