Modelo 3D Portal Button por cTallakson no Printables

Descrição

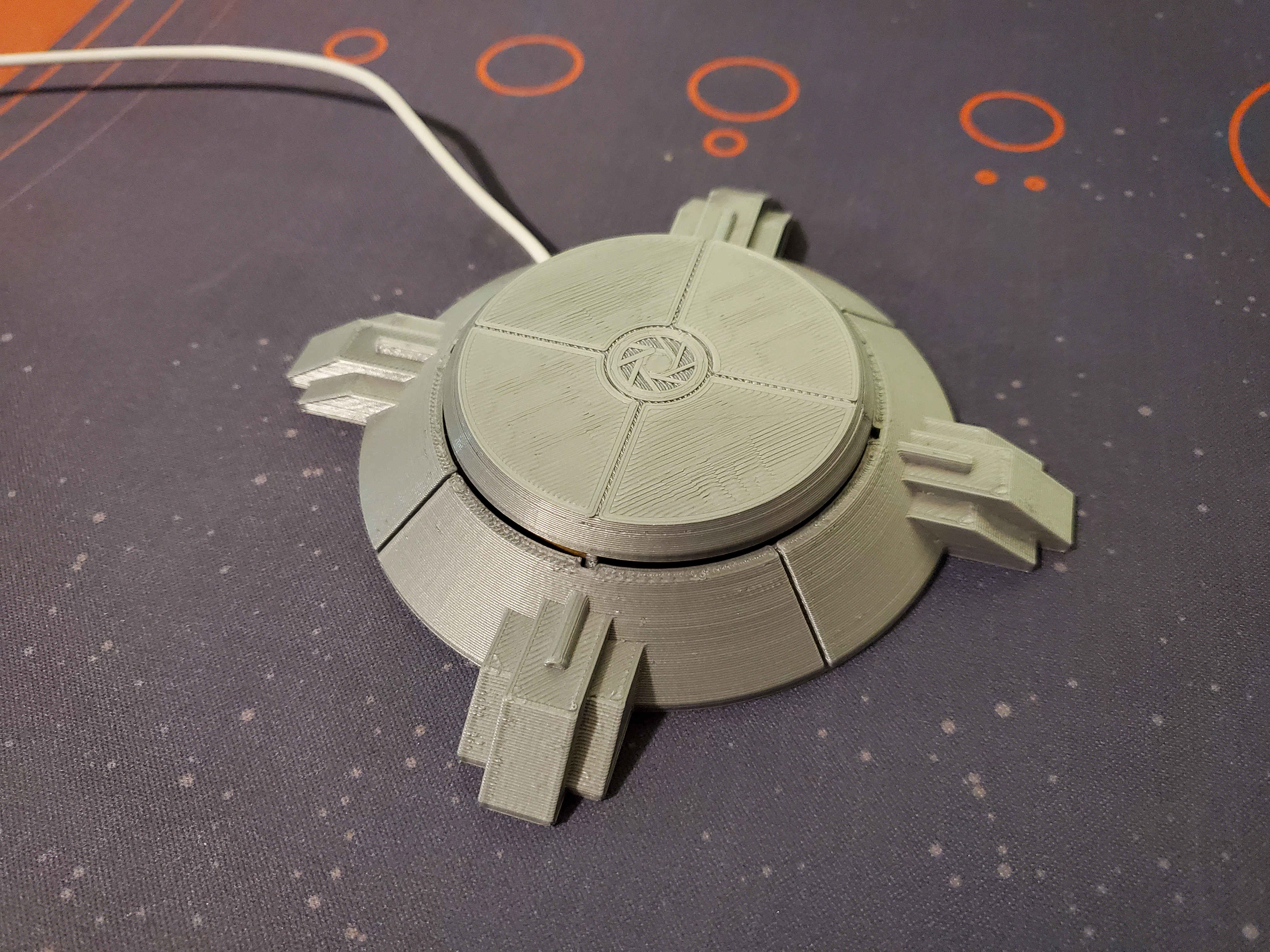

This is a portal button I made some time ago. The button portion moves freely on rails inside the base.

I designed it to use as a toggle switch to control a relay that would power the monitors I use on my desk so I wouldn't have to reach behind them and find the power switches every time I sat down to use the computer. It also makes a cute desktop ornament!

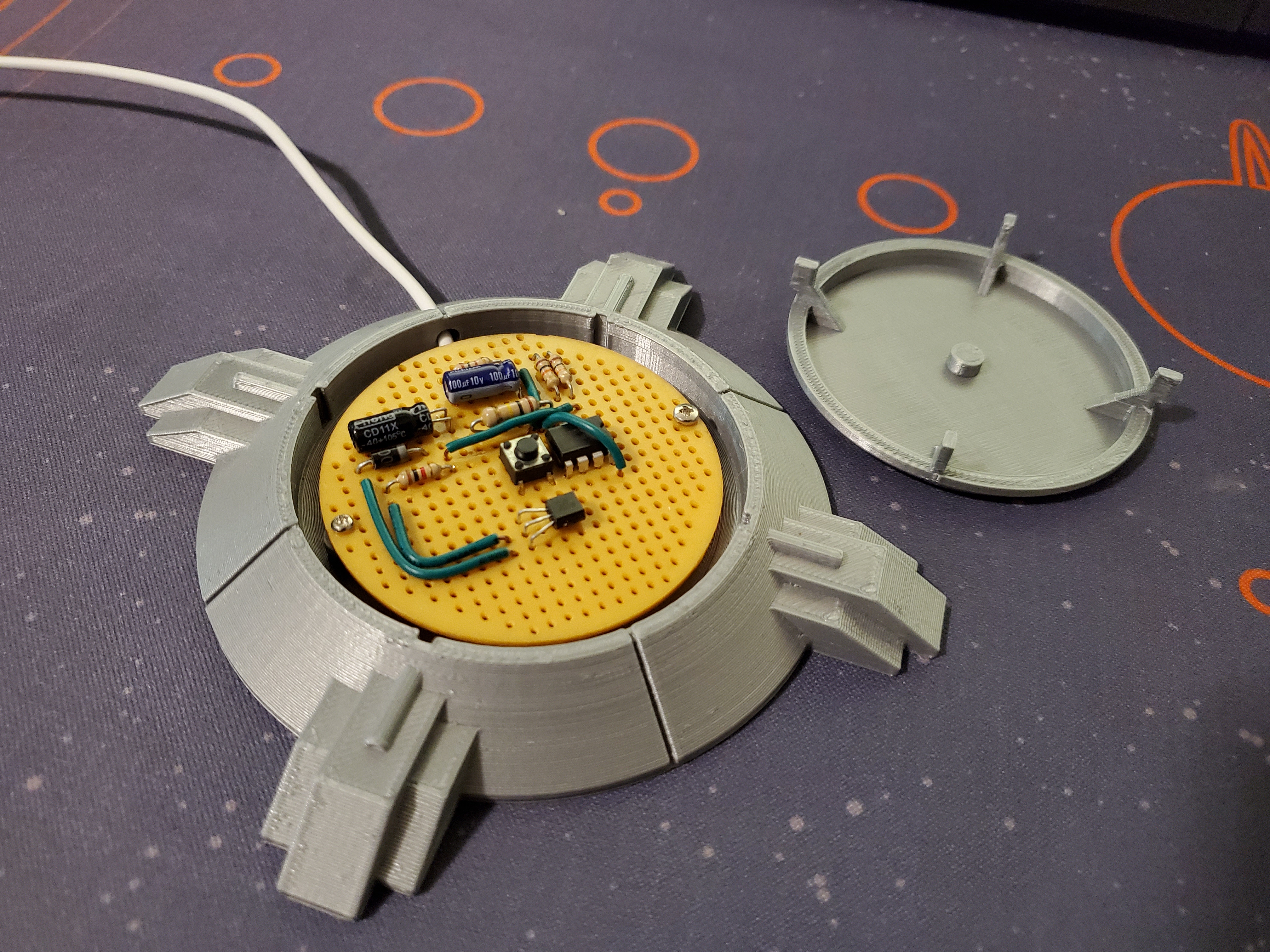

I don't have the circuit diagram handy but I will attach it to this post once I am able to find it! It made use of the ~30mm diameter round PCB from the old RadioShack round PCB kit which you will have to find a new vendor for if you want to use it as is...

Printables

Portal Button

Publicado em 21 de jan de 2021

131
Curtidas
418
Downloads
10
Impressões
Categoria Computers
Tags
portal game switch valve cake button glados lie wheatly
Licença Creative Commons — Attribution — Noncommercial
Arquivos (4)
button-base-high-resolution.stl 197.8 KB
button-base.stl 116.9 KB
button-base.stl 102.1 KB
button-top.stl 97.5 KB
