Modelo 3D Interchangeable emboss/deboss stamp por Codacmoment no Printables

Descrição

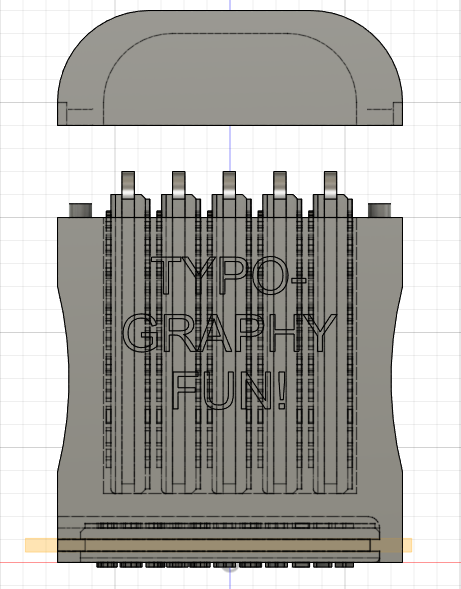

Interchangeable quick-swap stamp punch for embossed/debossed characters. There are three parts to this stamp punch assembly: stamp base, stand top cover, and the exchangeable stamp punch.

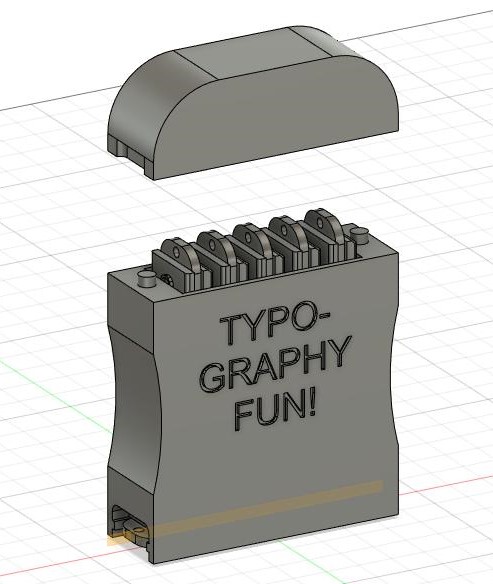

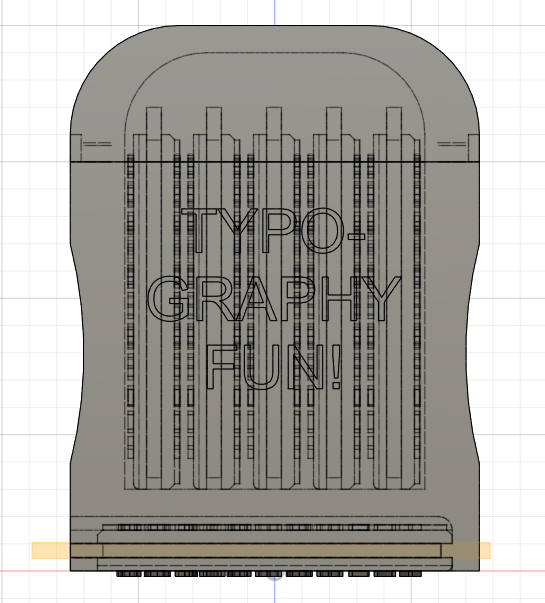

The stamp base holds the exchangeable stamp punch for stamping by using a slot mechanism. It can also store up to five stamps within the top storage.

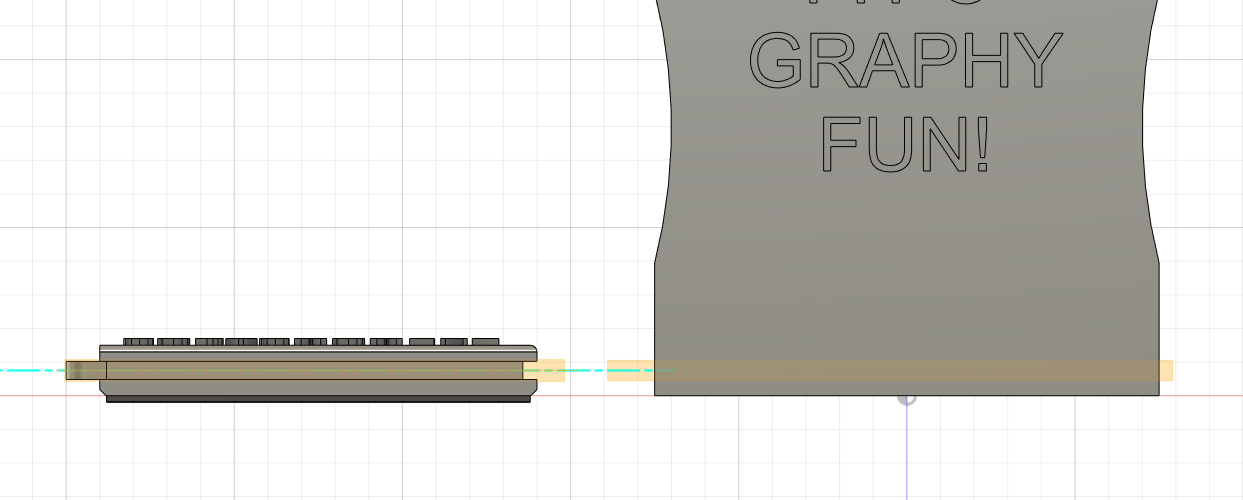

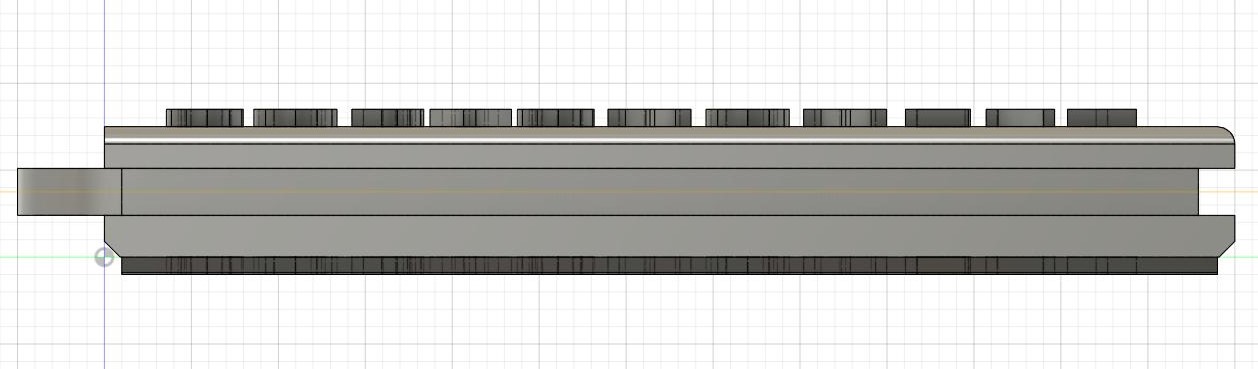

The exchangeable stamp punch has a deboss and emboss side. Either side can be used for stamping. Just orientate the punch with the emboss/deboss side of choice facing down and slide into the slot. Quick and easy. A hole is added on the outer round for both easier grabbing and also as an option to add onto a keychain.

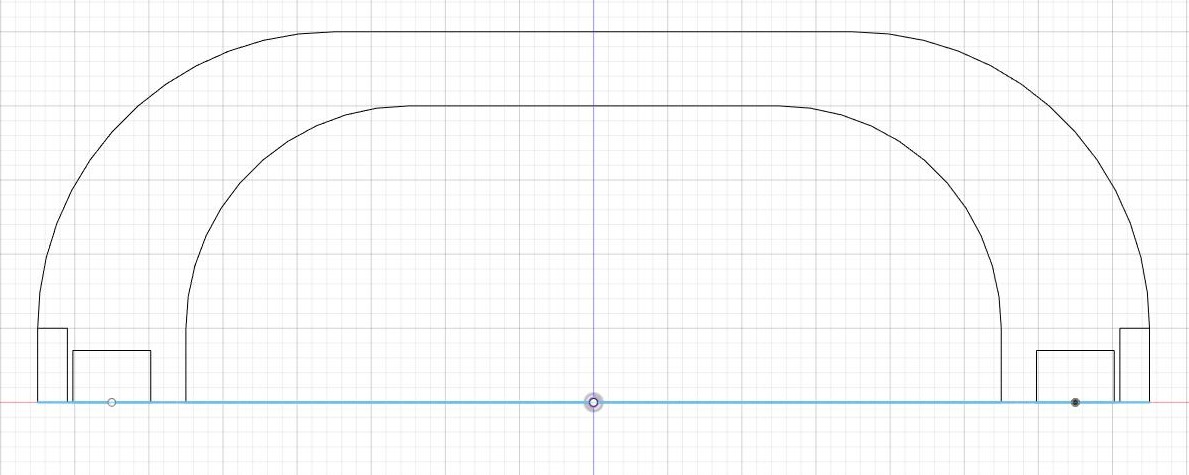

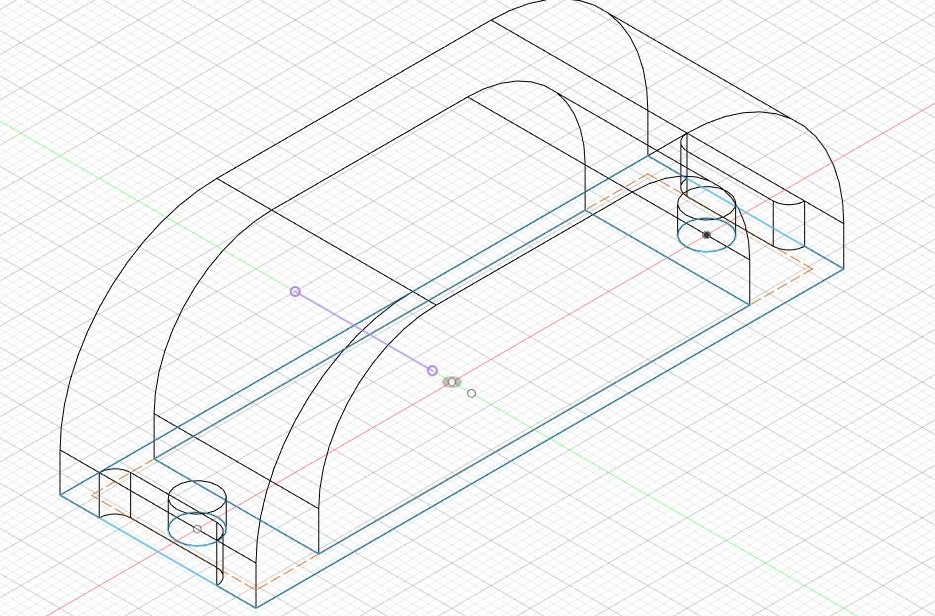

The stand top cover is used to keep the stored punches together while moving around. Notches on the side help remove the cap.

Customizable text will be added in a future model.

Printables

Interchangeable emboss/deboss stamp

Publicado em 9 de jul de 2023

40
Curtidas
84
Downloads
Categoria 2D Plates & Logos
Tags
storage stamp slots quickswap typographyfun
Licença Creative Commons — Attribution — Share Alike
Arquivos (3)
Stamp base v2.stl 131.1 KB
Exchangable stamp punch rev2.stl 223.4 KB
stand top cover v2.stl 36.2 KB
