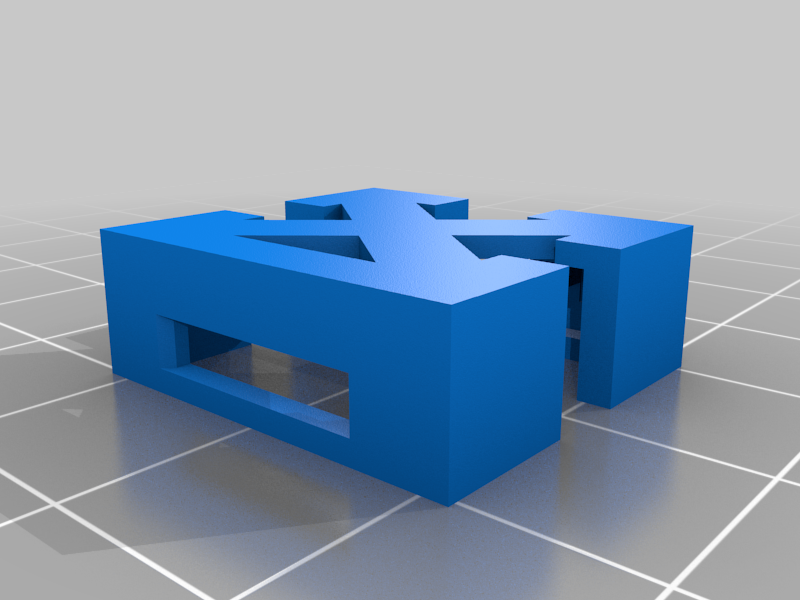

This is a simple box for the Digispark AtTiny 85 device. Simple and easy.

I have used the Attiny85 to create a small device that would prevent my computer from going into sleep mode when connected and running macros on remote computers.

Just move the mouse a little every 20 seconds. In order to load the code, you need the arduino IDE and configure it as I show in the image.

There is a remix from this design because this one doesn't work on some of my laptops ([https://www.prusaprinters.org/es/prints/53317-case-for-attiny85-version-2](https://www.prusaprinters.org/es/prints/53317-case-for-attiny85-version-2)).

The code is:

include <DigiMouse.h>

define led 1

define move_interval 3

define loop_interval 20 // en segundos

void setup() {
DigiMouse.begin();
randomSeed(analogRead(1));
pinMode(led, OUTPUT);
}

void loop() {
digitalWrite(led,HIGH);
int distance = random(100, 800);
int x = random(3) - 1;
int y = random(3) - 1;
for (int i = 0; i < distance; i++) {
DigiMouse.move(x, y, 0);
DigiMouse.delay(move_interval);
}

for (int t = 0; t < loop_interval; t++) {
DigiMouse.delay(500);
digitalWrite(led,LOW);
DigiMouse.delay(500);
}
}

I recommend the PETg filament because it is a bit flexible and will help to get the device into the box.

See images for help

Print Recommendation:

PETG filament
layer height 0.2 mm
nozzle 0.6 or 0.4 mm
15% - 20% filling
without supports
Orient the X on the bed

Print instructions

Category: Computer Summary

This is a simple box for the Digispark AtTiny 85 device. Simple and easy.
I recommend the PETg filament because it is a bit flexible and will help to get the device into the box.

See PDF for help

Recommendation:

PETG filament
layer height 0.2 mm
nozzle 0.6 or 0.4 mm
15% - 20% filling
without supports
Orient the X on the bed

Print Settings

Printer Brand:

Prusa

Printer:

No

Supports:

0.2

Infill:
