Modelo 3D P-40 Warhawk Model Plane por AlanH007 no Printables

Descrição

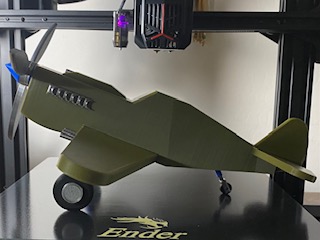

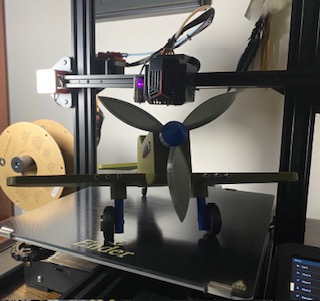

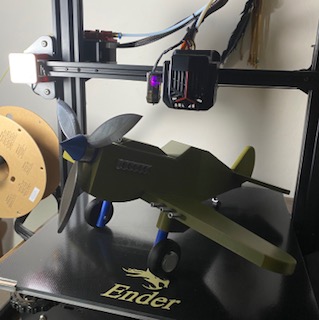

  I created a Model of a P-40 Warhawk in Fusion360 and printed on the PRUSA i3 mk3, Ender 3 Neo Max, Ender3 Pro, & Ender 3.  I printed the gun barrels, main landing gear wheel axle, propeller shaft, tail wheel axle, and tail wheel yoke at 100% Infill.  Selecting the brim setting helped with bed adhesion for the smaller size parts.  The Infill setting percentage for the Fuselage can be dialed down to reduce printing time. I printed four models of the Fuselage at 12 and 14 % infill and different infill designs. The Fuselage was positioned on the build plate and printed vertically with front side down with supports settings on. There was far less model cleanup in this orientation. I used a Dremel with a drill bit to carefully clean up holes. Tolerances for parts are tight so sanding was required. I also lightly sanded areas that were surfaces glued together. For ease of work glue the main landing gear wheel fairings to the wings before securing the wings to the fuselage. Center the main landing gear wheel fairing with the inboard wing gun barrel when securing to the wing. I only glued the main landing gear wheel axles to the main landing gear wheel struts to let the wheels free spin in the axles.

Printables

P-40 Warhawk Model Plane

Publicado em 3 de jul de 2023

11
Curtidas
52
Downloads
Categoria Vehicles
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (21)
Gun Cowling.stl 35.6 KB
Gun Barrel.stl 75.5 KB
Tail, Wheel.stl 292.2 KB
Exhaust Stack.stl 336.9 KB
Tail, Wheel Axle.stl 27 KB
Wing.stl 217 KB
Propeller Shaft.stl 27.4 KB
Vertical Stabilzer.stl 67.3 KB
Wing Dowel.stl 137.4 KB
Main Landing Gear Fairing.stl 97.2 KB
Hortizontal Stabilizer.stl 108.9 KB
Tail, Wheel Yoke.stl 48.7 KB
Tail, Wheel Yoke Sleeve.stl 93.9 KB
Horizontal Stab Dowel.stl 57.5 KB
Propeller Spacer.stl 30.9 KB
Fuselage.stl 119.7 KB
Main Landing Gear Strut.stl 104.4 KB
Propeller Hub.stl 43.4 KB
Main Landing Gear Wheel Axle.stl 130 KB
Propeller.stl 131.8 KB
Main Langing Gear Wheel.stl 311.9 KB
