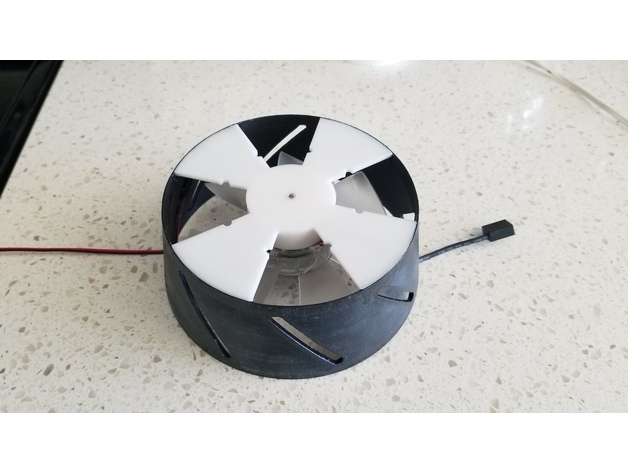

Modelo 3D Wind Maker / Fan Amplifier por Nothing Spectacular no Printables

Descrição

If you like this or it benefits you, consider leaving a tip.

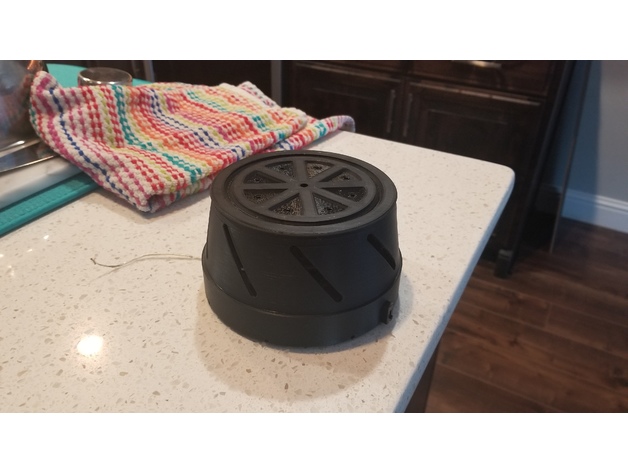

Sleeping in the fall after it's cooled off outside can be difficult at time for me. I get used to the sound of a fan all night in the summer and then when that is taken away in the fall I don't sleep well until I readjust. This amplifies the internal fan and it's natural wind noise to allow you to more comfortably adjust, or just to fill the silence with a bit of sound. based on the position you set the holes in the housing, the volume and pitch change allowing you to customize the experience to whatever suits your needs.

For this project you'll need a 120mm variable speed (optional) computer fan, some kind of 12 volt power source for it, 5 M3x10 screws, and a 15x21mm on off switch (also optional). See the pictures for each stage of the design.These are the switches it was designed for: [https://www.amazon.com/gp/product/B01N2U8PK0/ref=oh_aui_search_detailpage?ie=UTF8&psc=1](https://www.amazon.com/gp/product/B01N2U8PK0/ref=oh_aui_search_detailpage?ie=UTF8&psc=1)

(If using WM Inside Top V2 you may need a screw shorter than 10mm. Test the length before assembly.)
1.Remove the fan frame from the fan

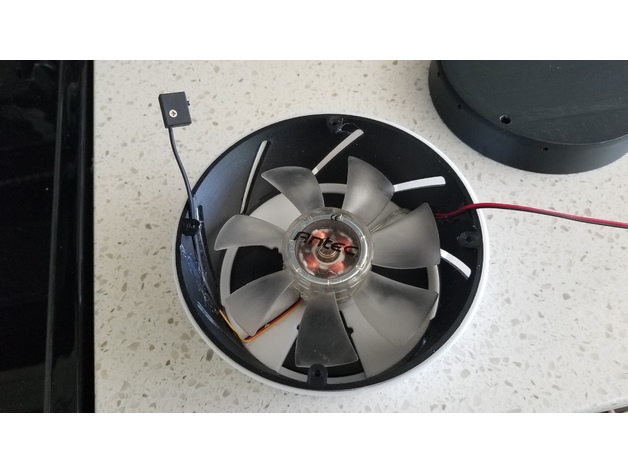

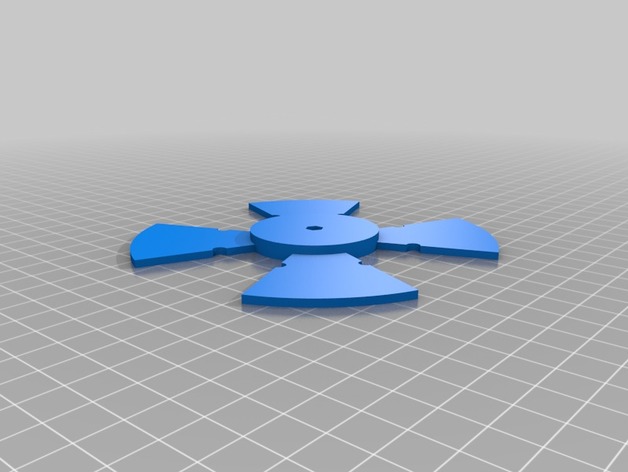

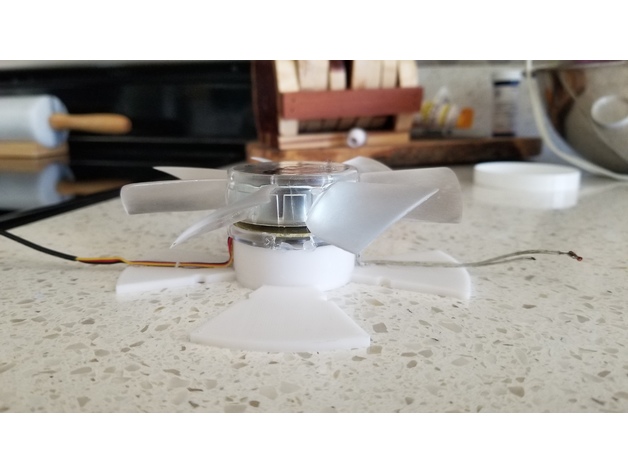

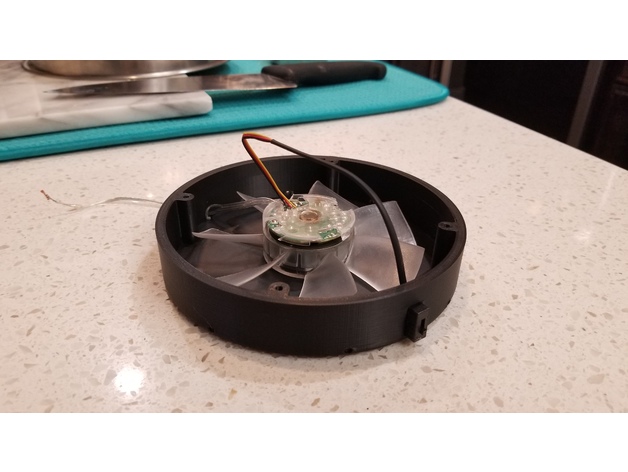

2.Glue or adhere the fan to WM Inside Top (or WM Inside top V2 Note:V2 will likely require you to lengthen the variable fan cable length but will increase the amount you can customize the wind noise)

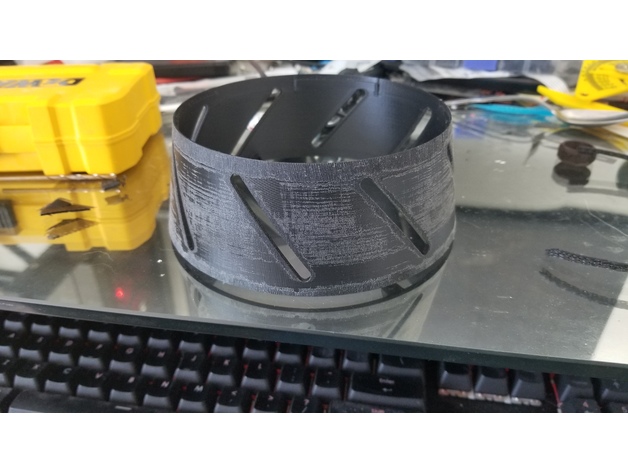

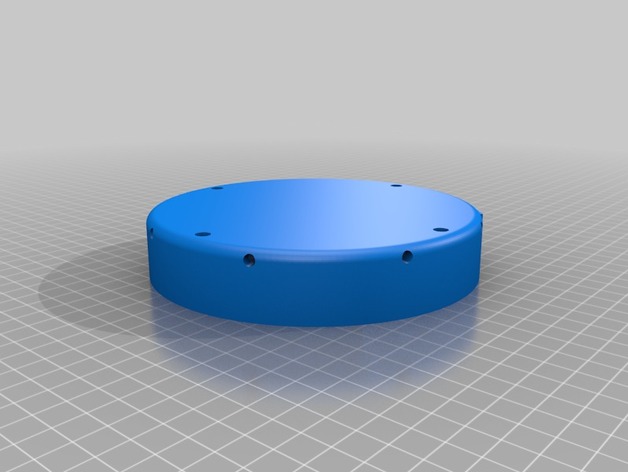

3.Sand the WM Inside Bottom so that WM Outside Sides can slide smoothly on it.
4.Add nuts to WM Inside Bottom THEN glue WM Inside Top to the WM Inside Bottom
5.Glue power and speed control wires out of the way of the fan

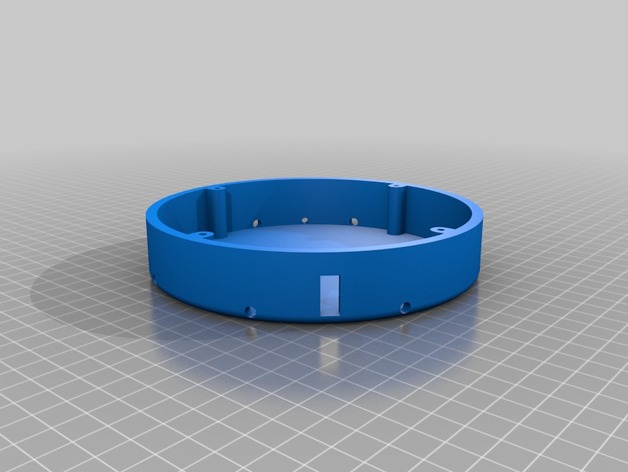

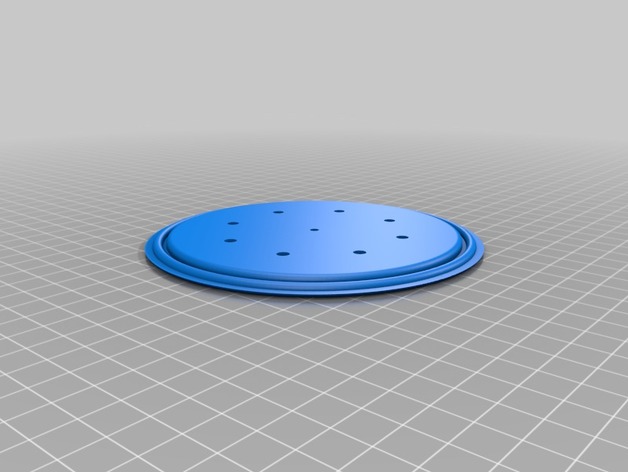

6.Run Wires through WM Bottom and screw WM Bottom to WM Inside Bottom

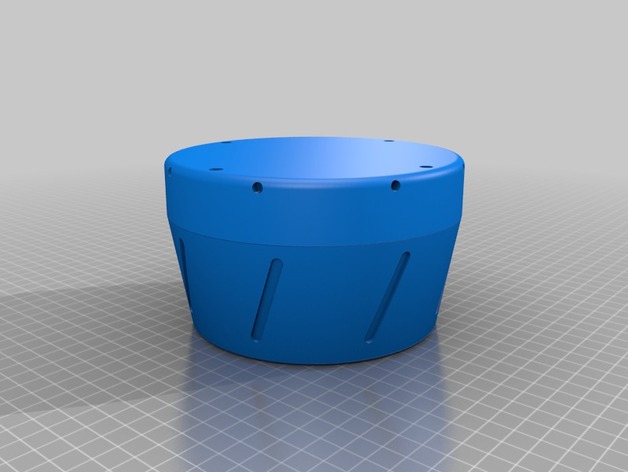

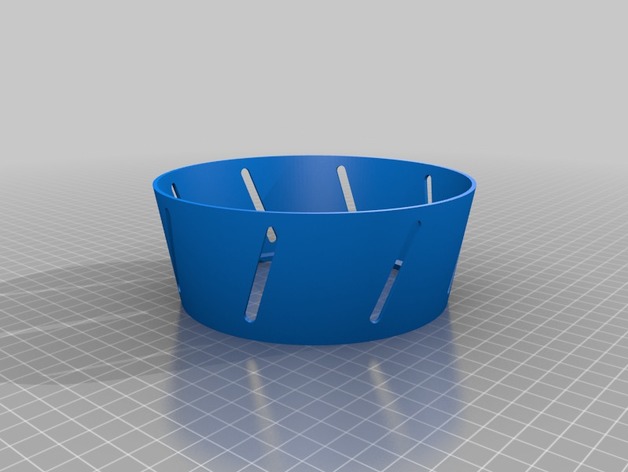

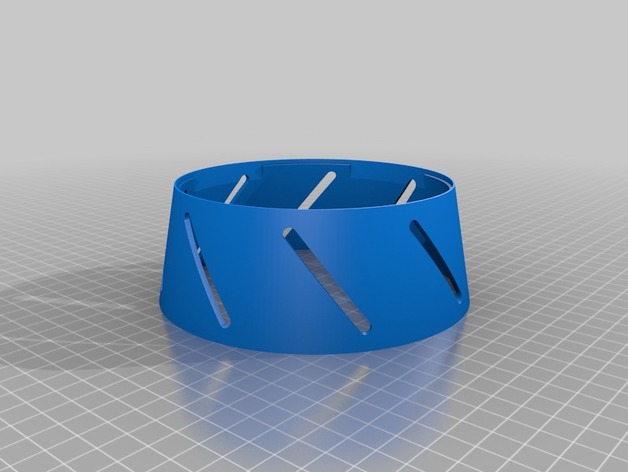

7.Apply a bit of grease to WM Inside Bottom (optional for increased ease of movement) and then put WM Outside sides over the top. Lastly add WM Outside Top and screw it on with the single middle screw.

Printables

Wind Maker / Fan Amplifier

Publicado em 19 de ago de 2019

13
Curtidas
45
Downloads
Categoria Bedroom
Tags
maker amplifier fan noise machine wind fanamplifier
Licença Creative Commons — Attribution — Noncommercial — NoDerivatives
Arquivos (8)
wm_inside_top_v2_higher_fan.stl 91.2 KB
wm_inside_top.stl 91.1 KB
wm_inside_bottom.stl 326.9 KB
wm_bottom.stl 458.9 KB
wm_bottom_v2_cutout_for_onoff_switch.stl 460.8 KB
wm_outside_sides.stl 574.1 KB
wm_outside_top.stl 1.2 MB
wind_maker_complete.stl 2.7 MB
