Keep track of your own or your enemies' health using the life counter, ranging from 00 to 99.

Printer parameters

0.4 nozzle
0.2 layer height
2mm brim on ratchets

Changelog

v2: Improved model printability and assembly

Assembly

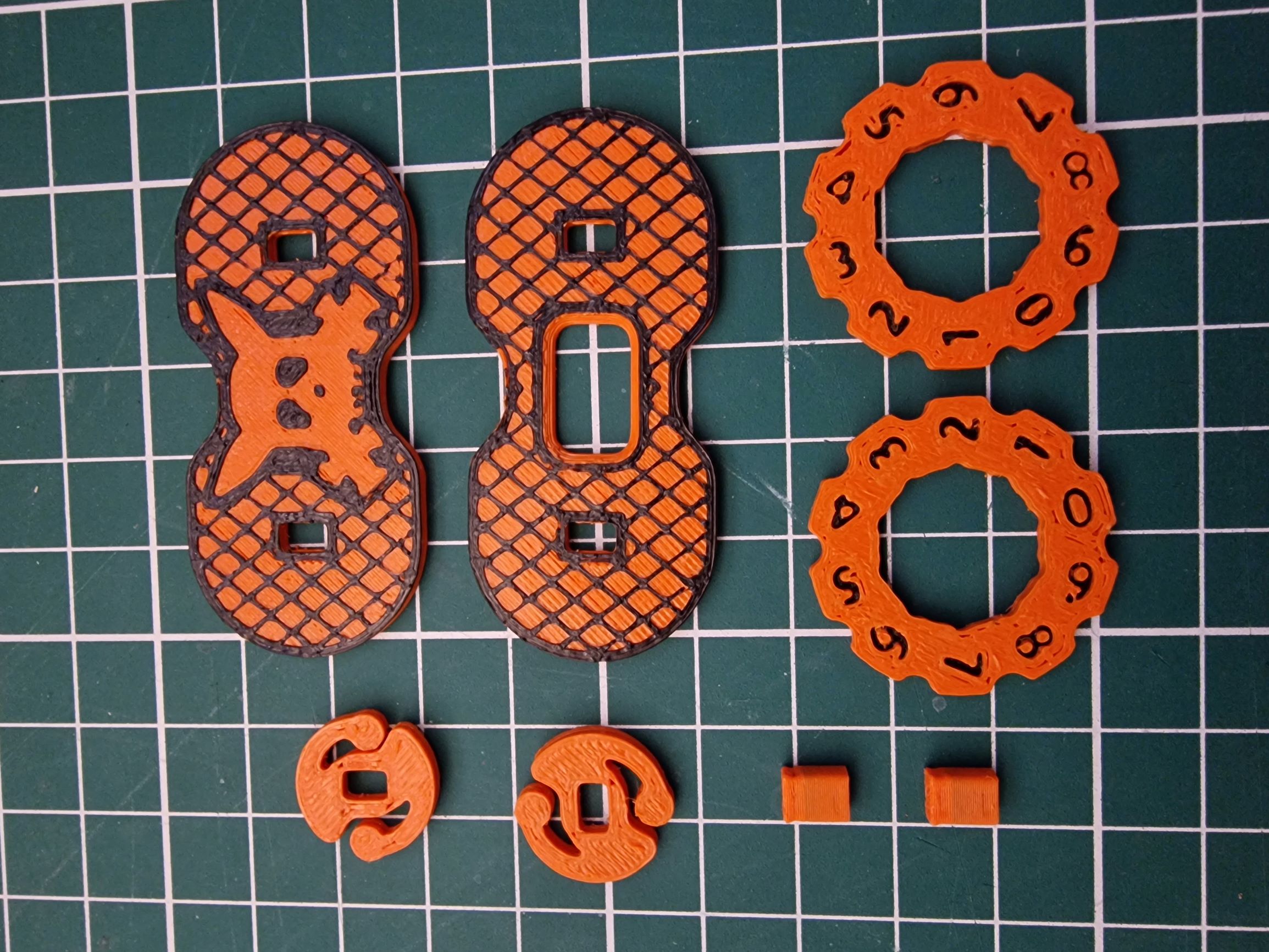

1. Insert the inner cores into the holes of the backplate.

2. Install the ratchets onto the inner cores until they touch the backplate. The orientation doesn't matter.

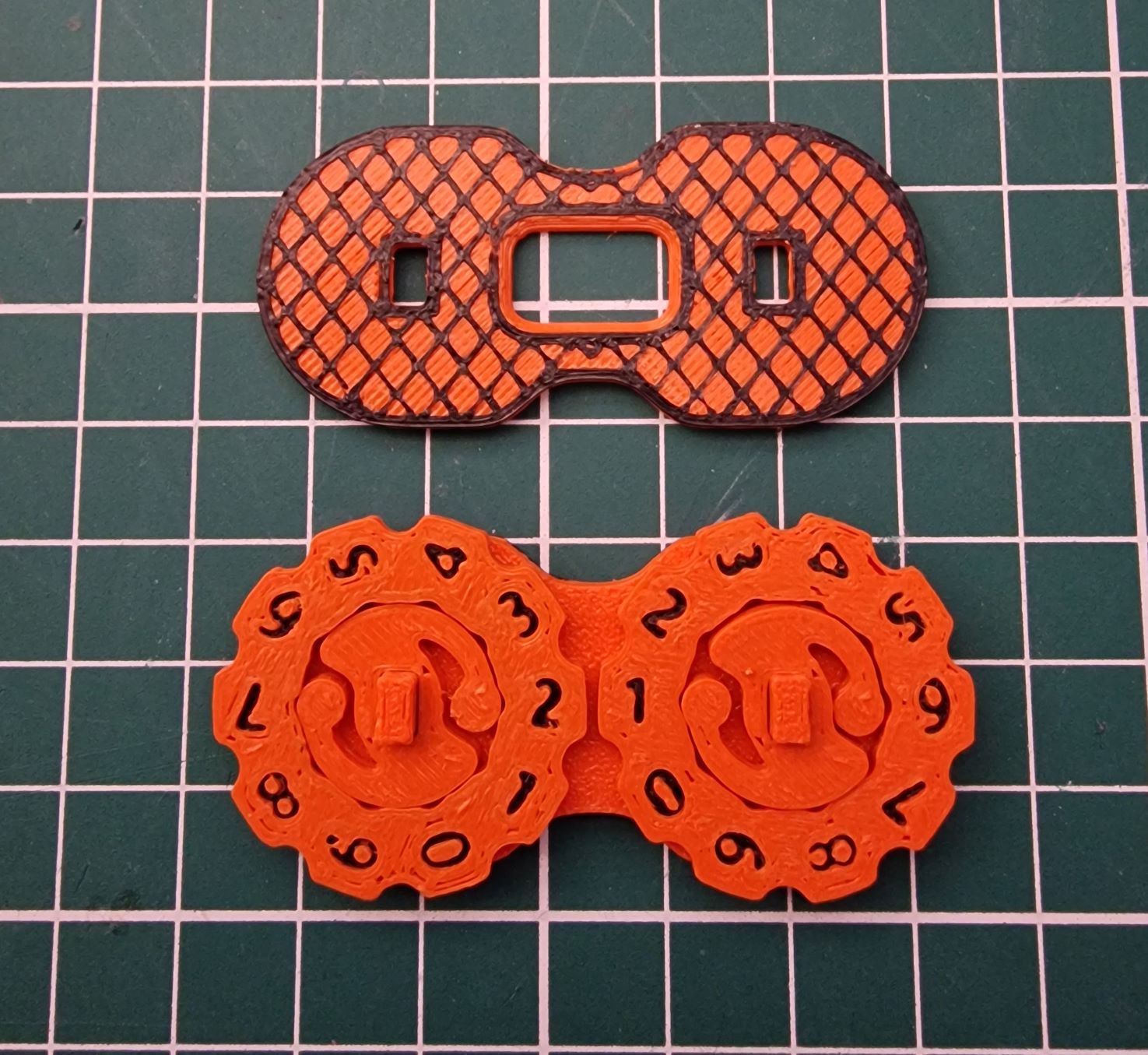

3. Install the numbered rings onto the ratchets. Check that the number orientation is correct (see pictures). If not, flip one of the wheels.

4. Place the frontplate on top of the inner cores and press down. You may need to push the inner cores slightly inwards on the back of the backplate to make it snap.

(Note: Files with "_x2" in their name indicate the required quantity.)

In case the plates sit too lose you can try and add a small drop of glue on the inner cores or when printed with ABS use a bit of acetone to weld it together. You could also print the inner cores on their side which results in a more tight fit.

You can use the PrusaSlicer MultiColor tools to color the numbers and top surface or the 3mf file.
