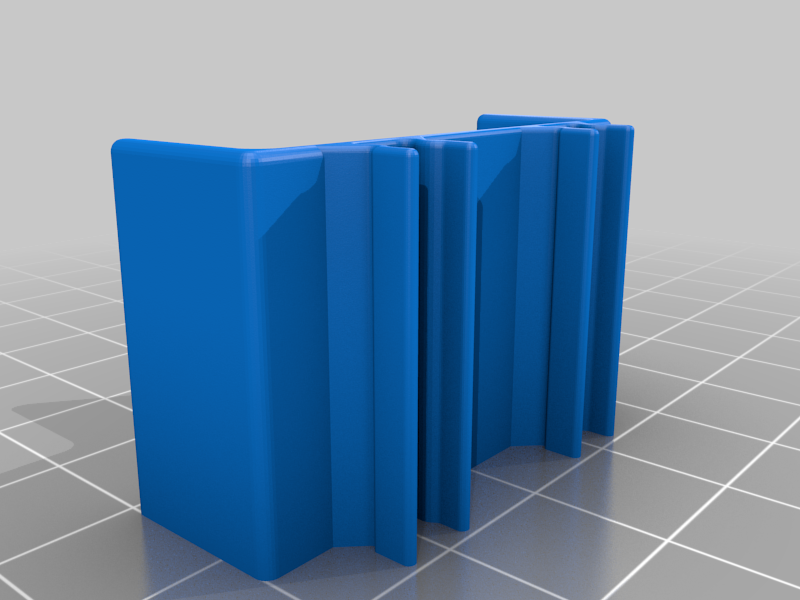

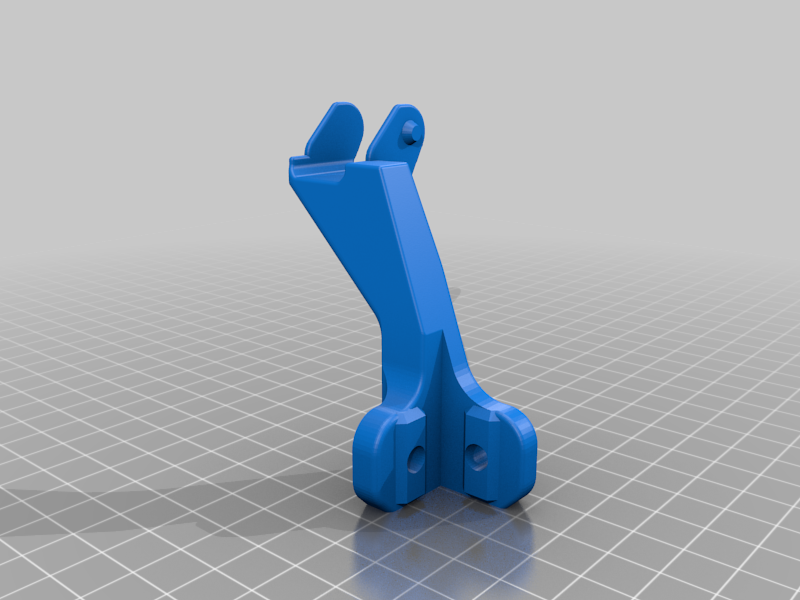

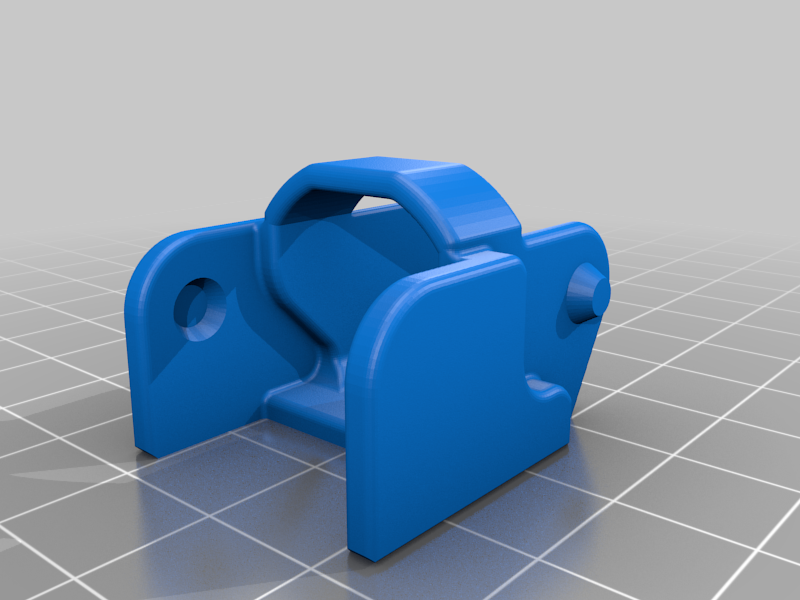

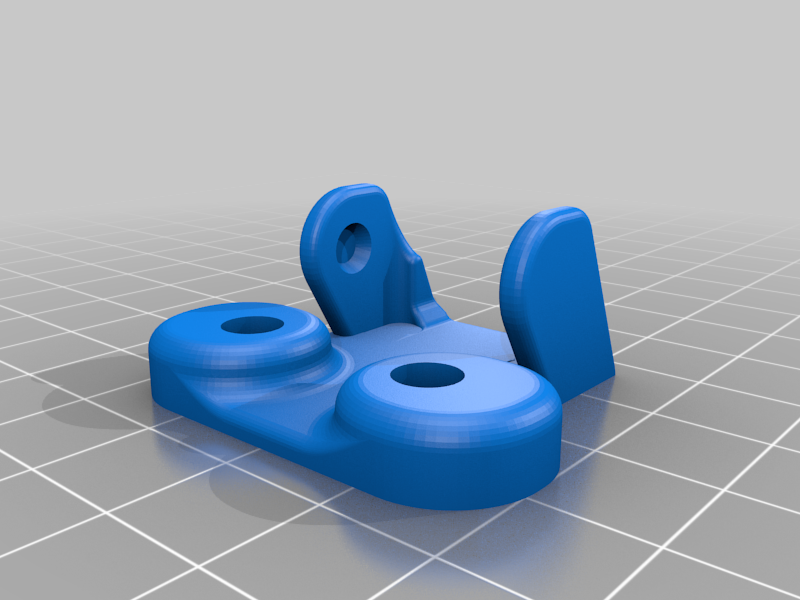

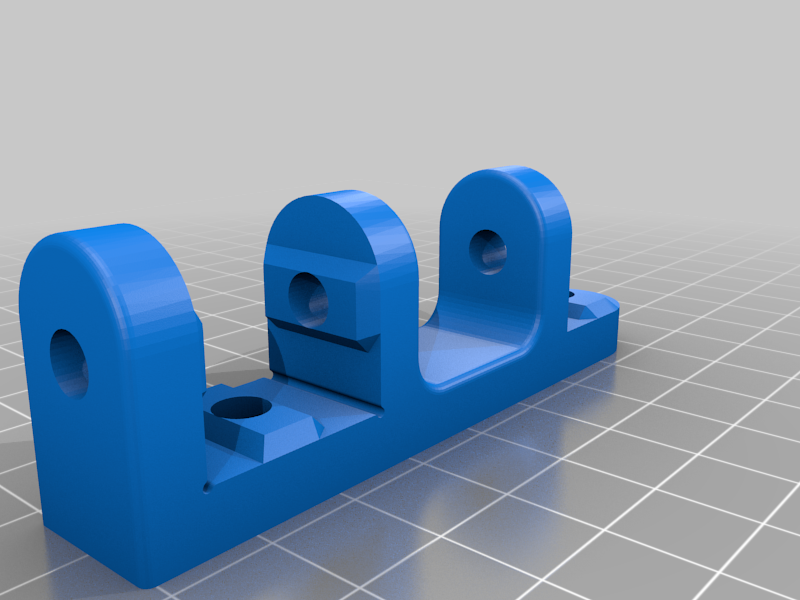

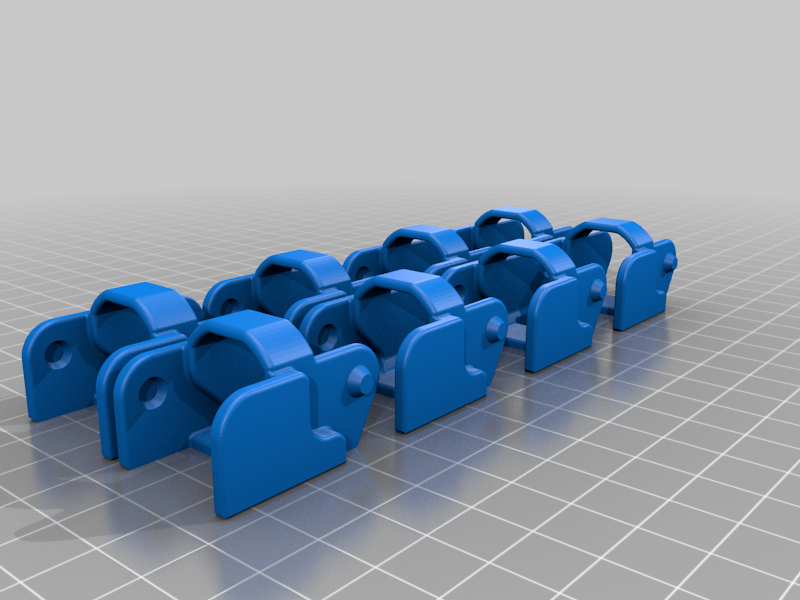

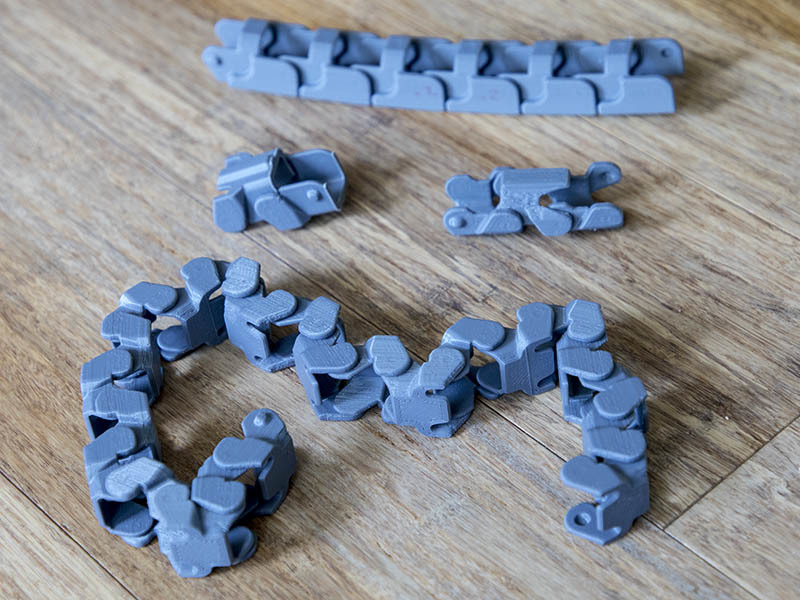

I played around with design quite a bit to work with my rolling plotter [https://www.printables.com/model/443410-rolling-plotter-using-wider-wheels-and-one-wheel-m](https://www.printables.com/model/443410-rolling-plotter-using-wider-wheels-and-one-wheel-m) or ([https://www.thingiverse.com/thing:5856621](https://www.thingiverse.com/thing:5856621)). I made the channel big enough to use wire loom thru the channel to give extra protection to the wires. I only have a 4 wire motor wire & 3 wire end stop wire to route thru there. These print as one piece with a little overhang, but prints without supports. I included the fusion 360 files to make it easier to adjust design if someone else needs to do that. For my 1 meter wide rolling plotter, I printed 48 of the chain links in sets of 8. On my printer, they took about 2 hours for each set of 8 links. I also included the end connectors as well as a couple of channel guides to keep the chain in line better.

Category: 3D Printer Parts
