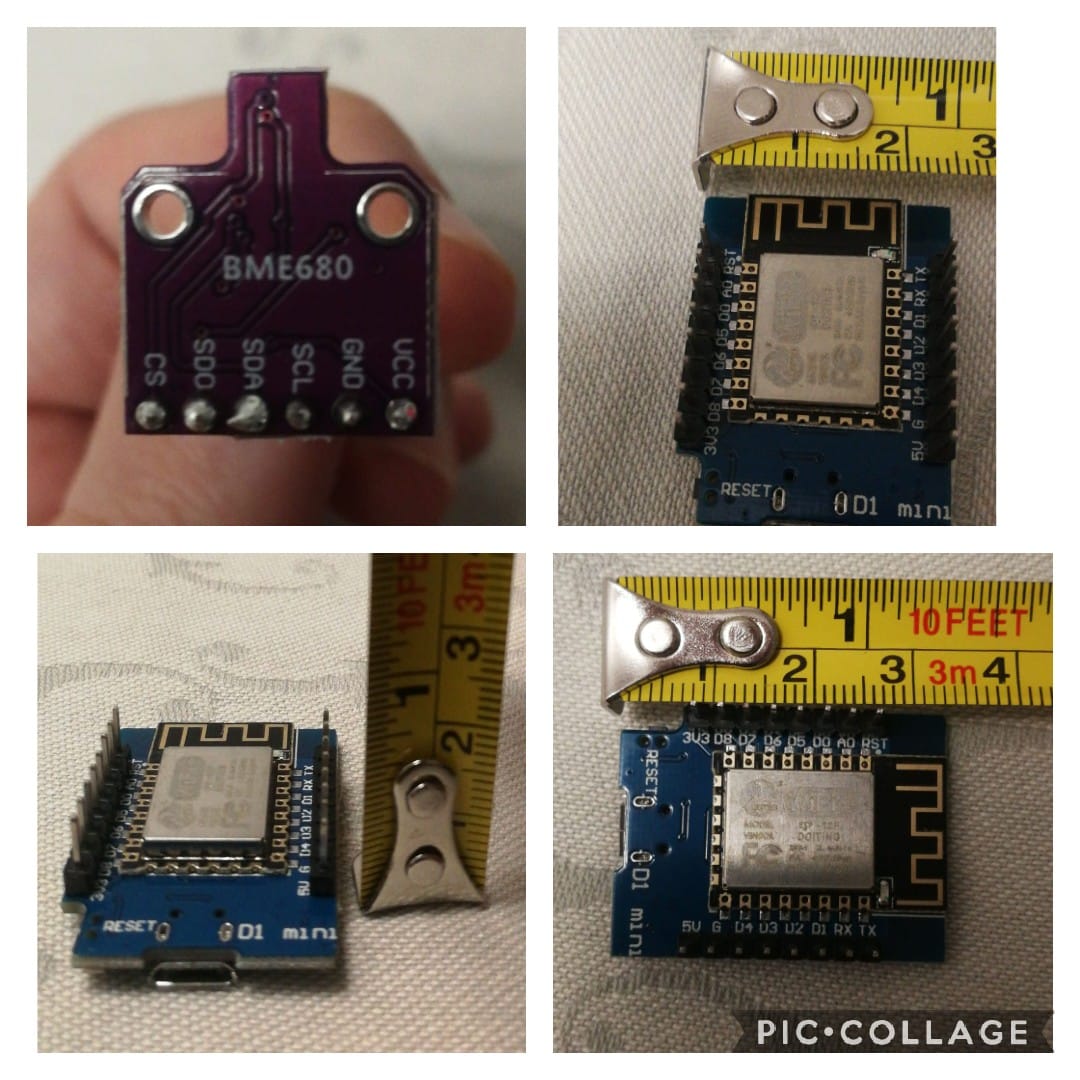

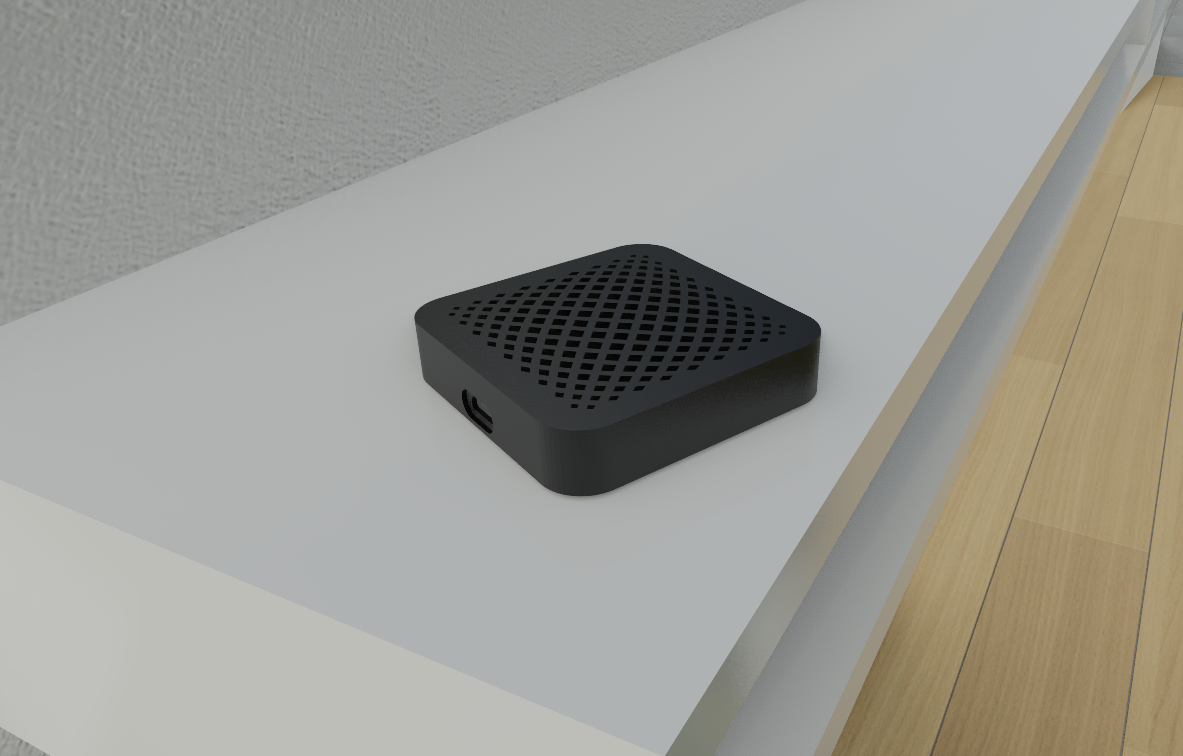

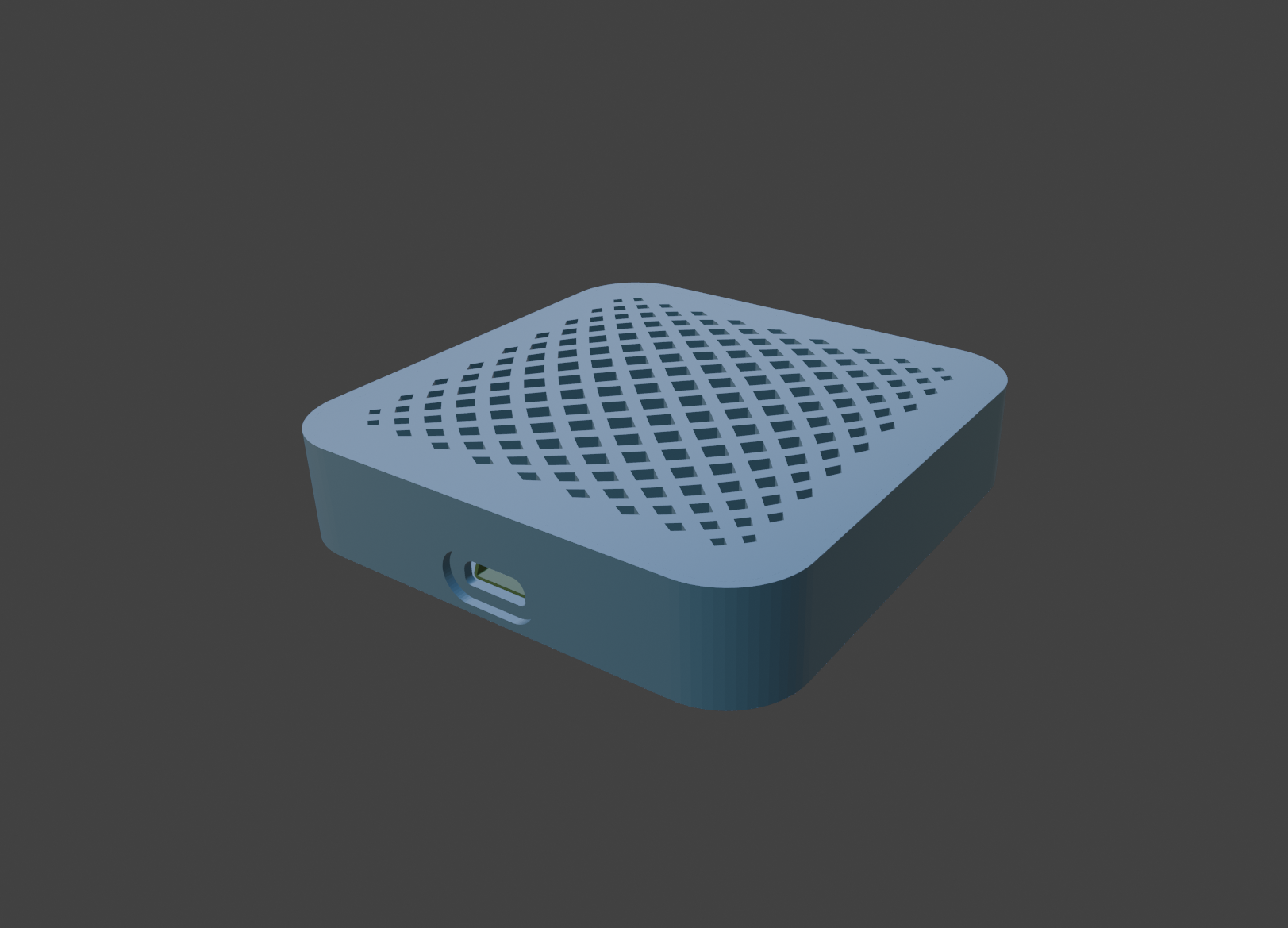

A remix of my air quality sensor case for the WeMos D1 mini with BME680. This case is a little bit smaller than the original one. I also used screws instead of the slide mechanism. I adjusted this sensor for Jordan, who kindly ask me for help. Unfortunately, I don't have a D1 mini and not the same BME680 model. So I could not test it.

Update 02.01.2021

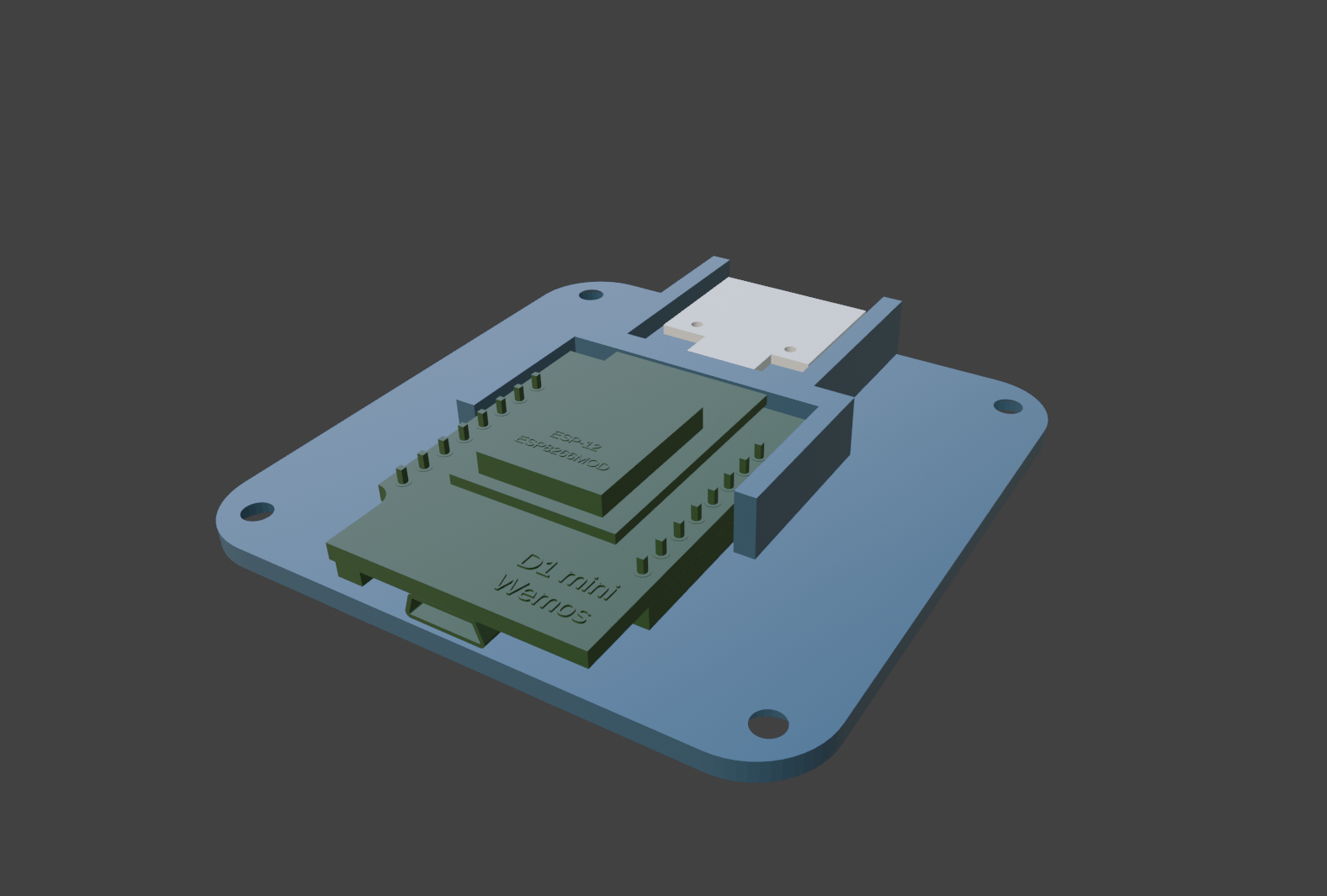

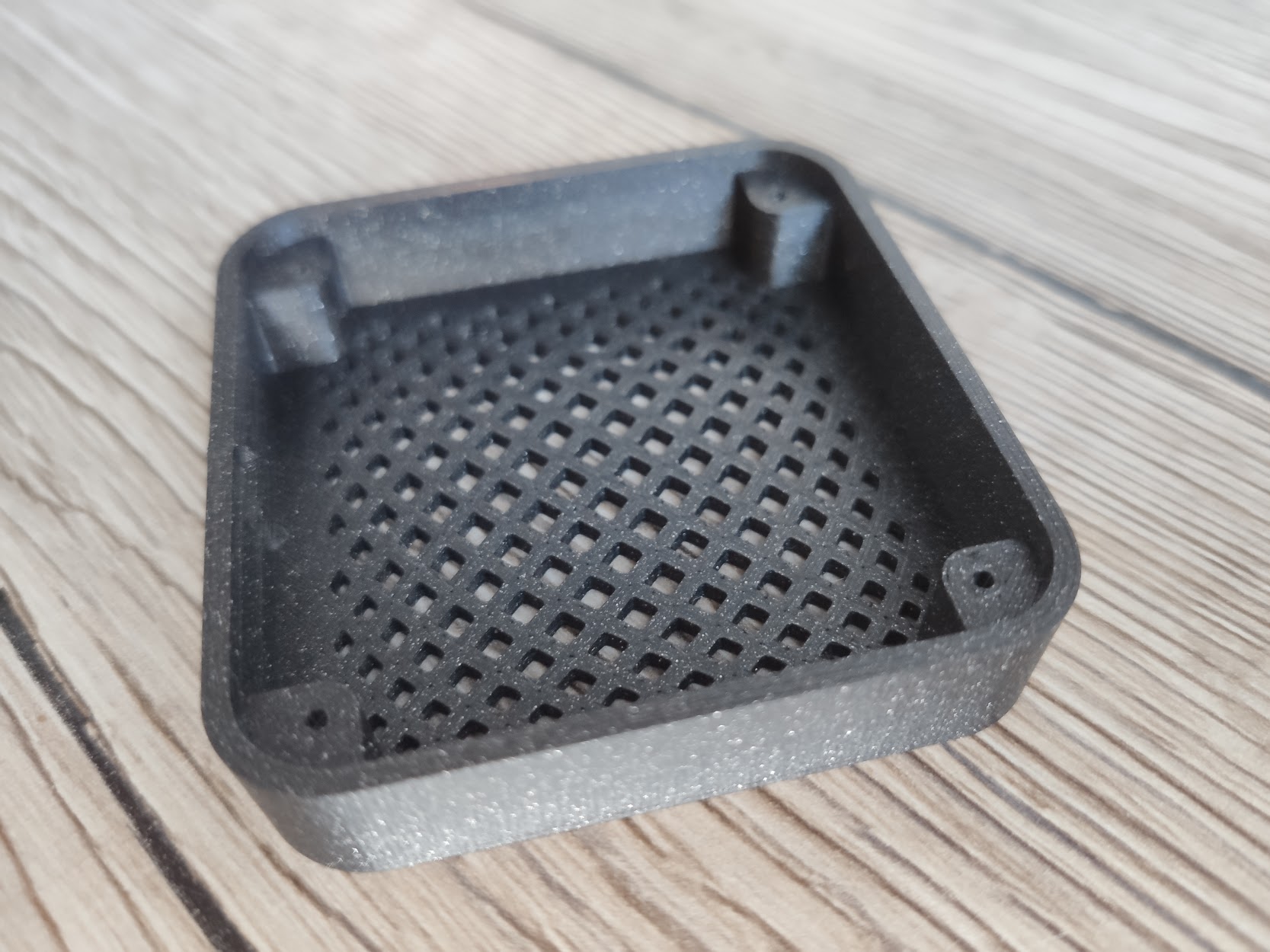

• M2 screws instead of M3.
• 2.5 mm bottom height to cover the screw heads.
• Small overlap to keep the D1 in place.

Update 05.01.2022

Version 2 with with rotated BME680. The cable should fit under the components.

Update 24.01.2022

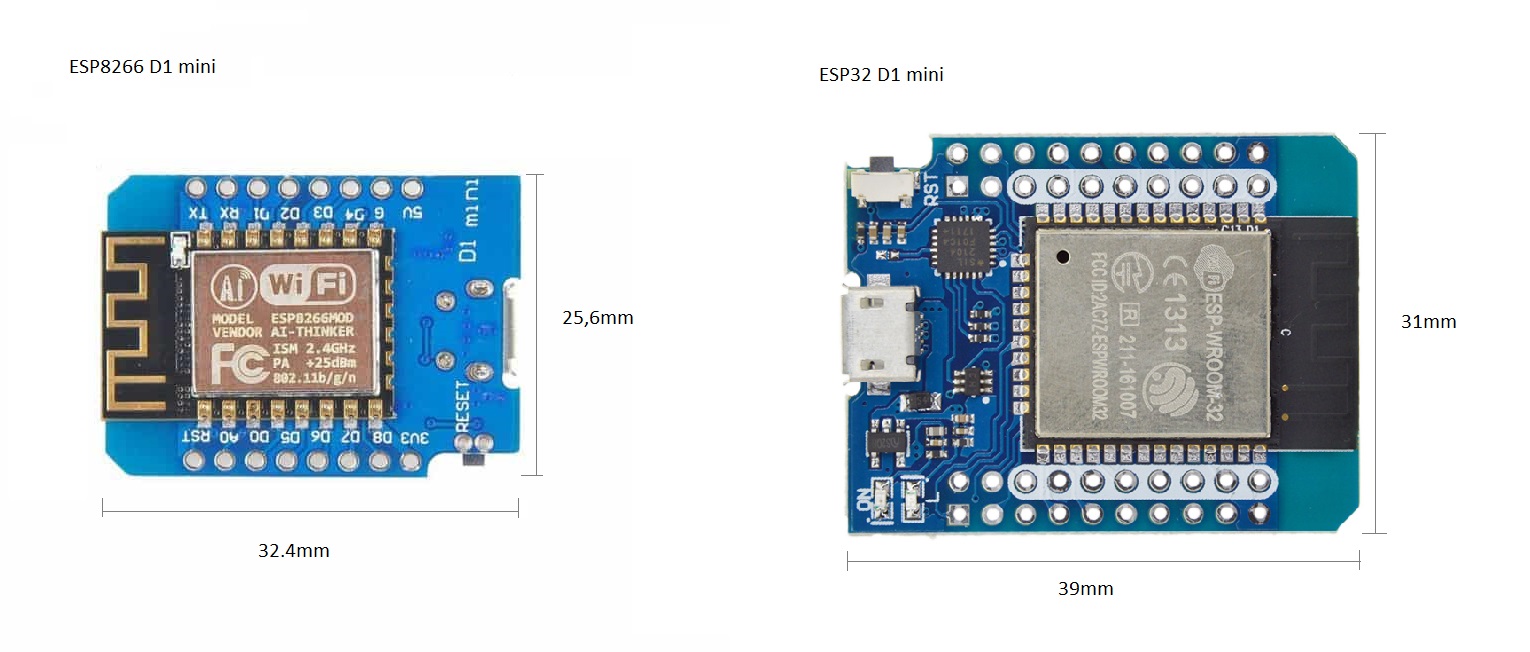

It seems not all ESP32 does have the same size due to manufactoring.
Additional version for 30mm ESP32-mini.


I also added the blender file, so feel free to adjust it to your needs.

Jordan created a pretty neat GitHub project which publishes the sensor data through MQTT to your server:
[https://github.com/jordan1982/temperaturino](https://github.com/jordan1982/temperaturino)

Feel free to check my collection of ESP projects on GitHub as well:
[https://github.com/Lillifee/espbs](https://github.com/Lillifee/espbs)
