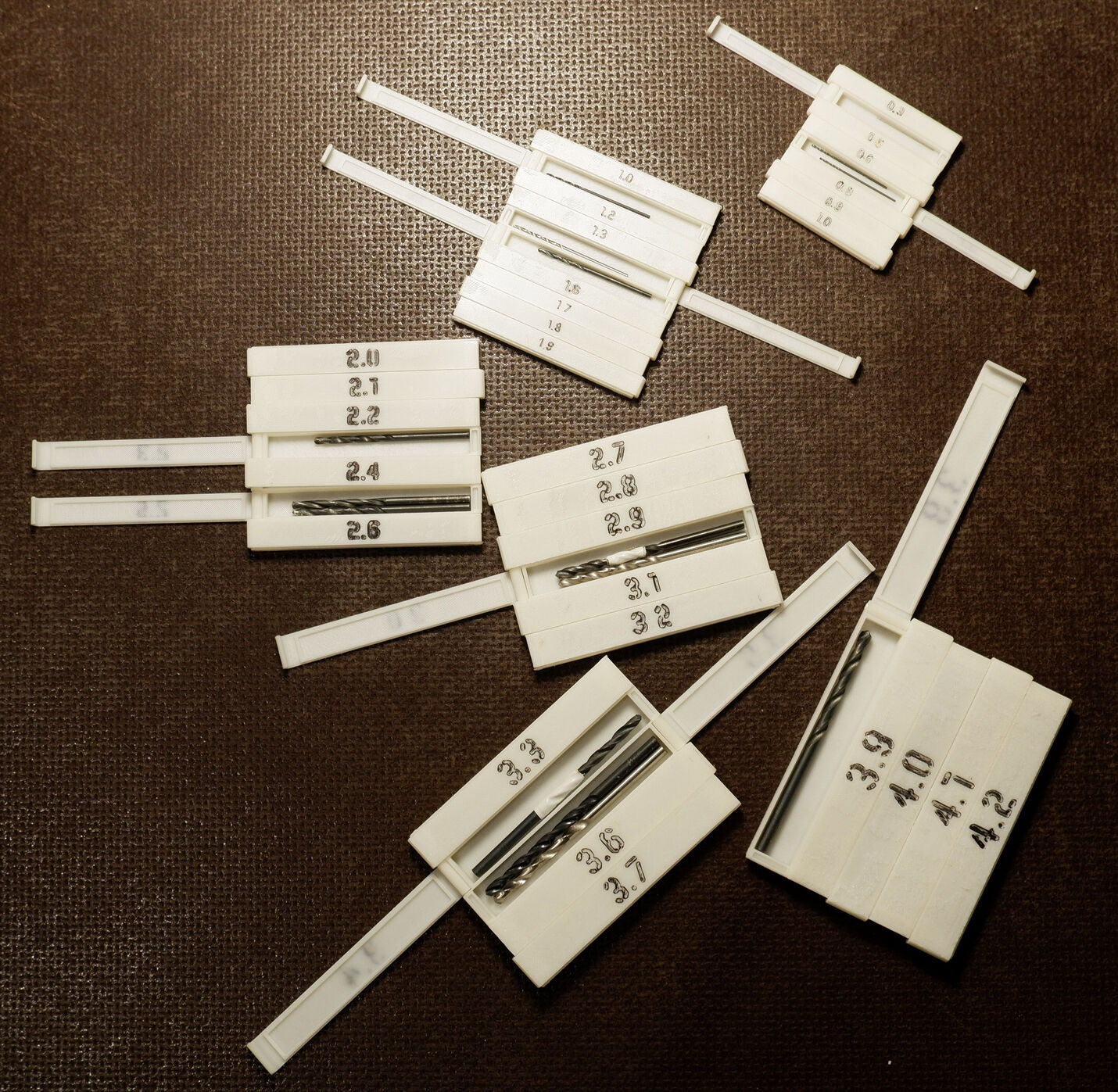

A set of 6 boxes for drill bits ranging 0.3 ÷ 4.2mm. Fits standard length drill bits. Compartments every 0.1 mm.
Lids have embossed labels (sizes).

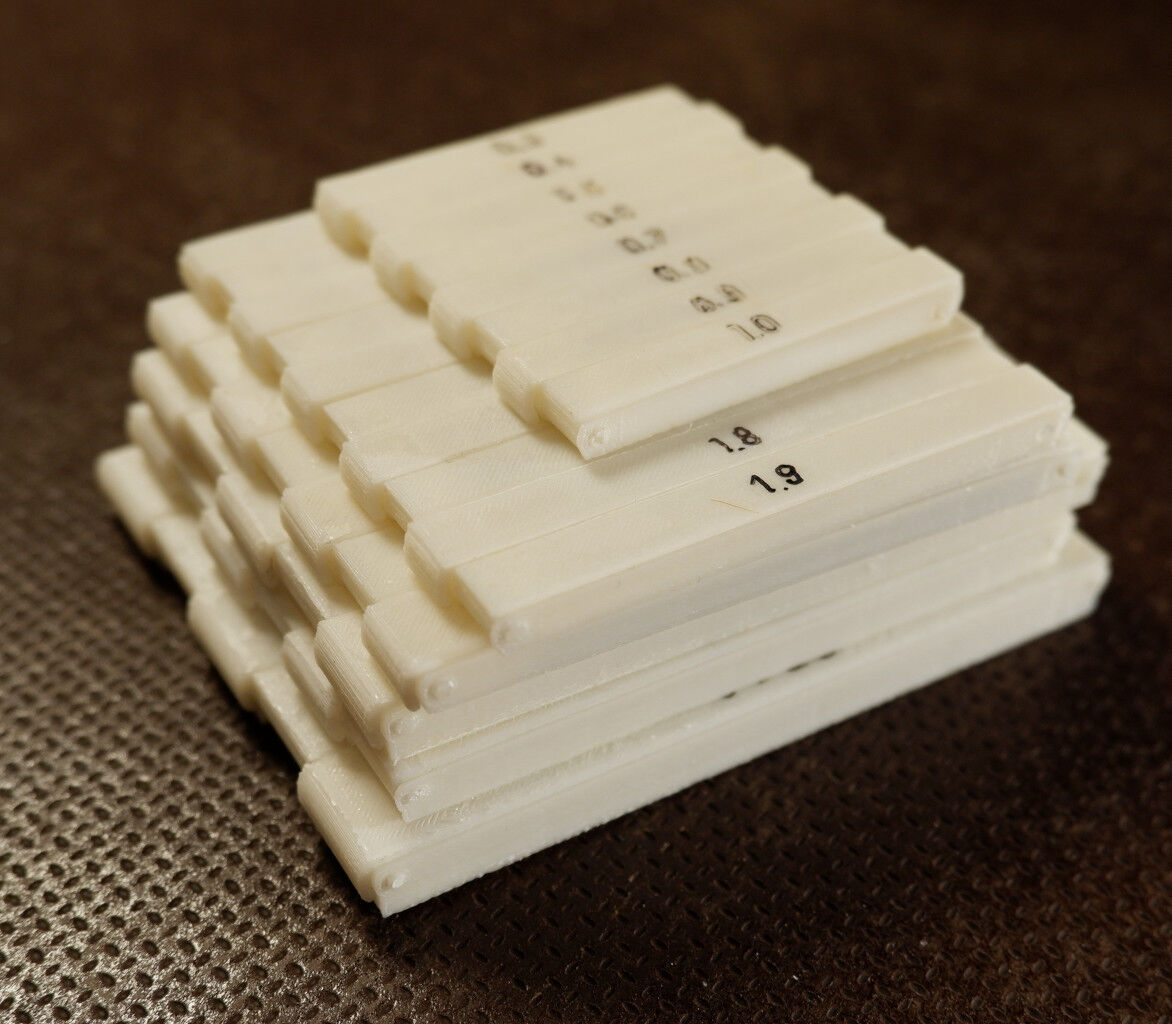

Boxes are of similar size, largest is 7×9cm
This design uses a length of 1.75mm filament as the rod for hinges.

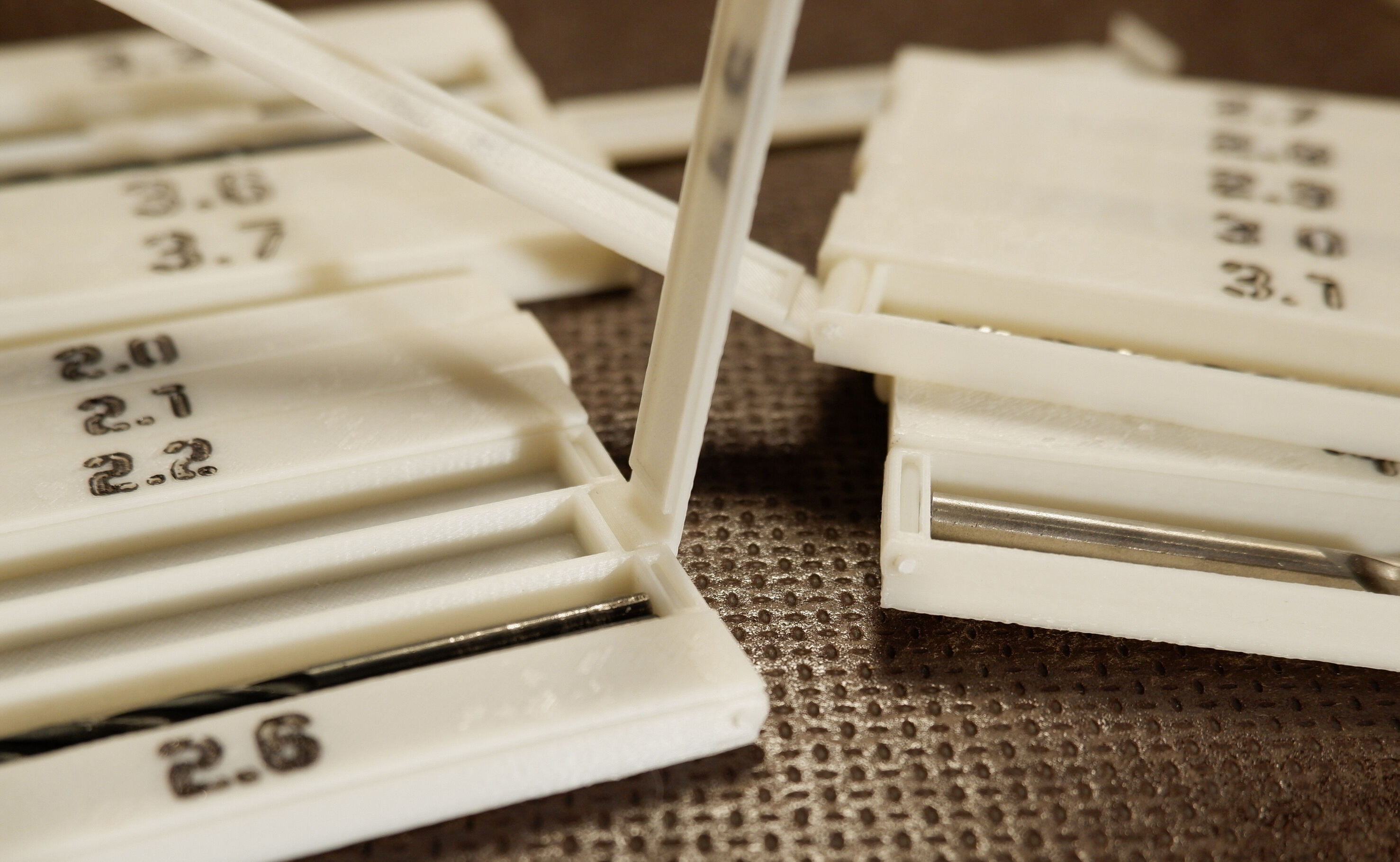

Lids are kept in place by latch-like mechanism.

(These are the sizes that mini drill can fit in it's 0.3-4mm chuck.)

Print instructions

Post-processing

1. Use 1.8mm drill to finish the holes in box
2. Use 2mm drill to finish the holes in lid.
3. Place lids on the box.
4. Put 1.75mm filament through the holes.

Customizing

This design is fully customizable - take a look at any wrtblox_*.scad (that contain customizable parameters and include base.scad that does the dirty job).

Notes

Obviously a transparent filament for the lids would be a better choice.

I printed mine out of ABS, other plastics would probably be better (sturdier).

For a better visibility I used a black marker on the embossed text.

Credits

The font used in designs is "Scriber Bold Stencil" by Jonathan Hill.
