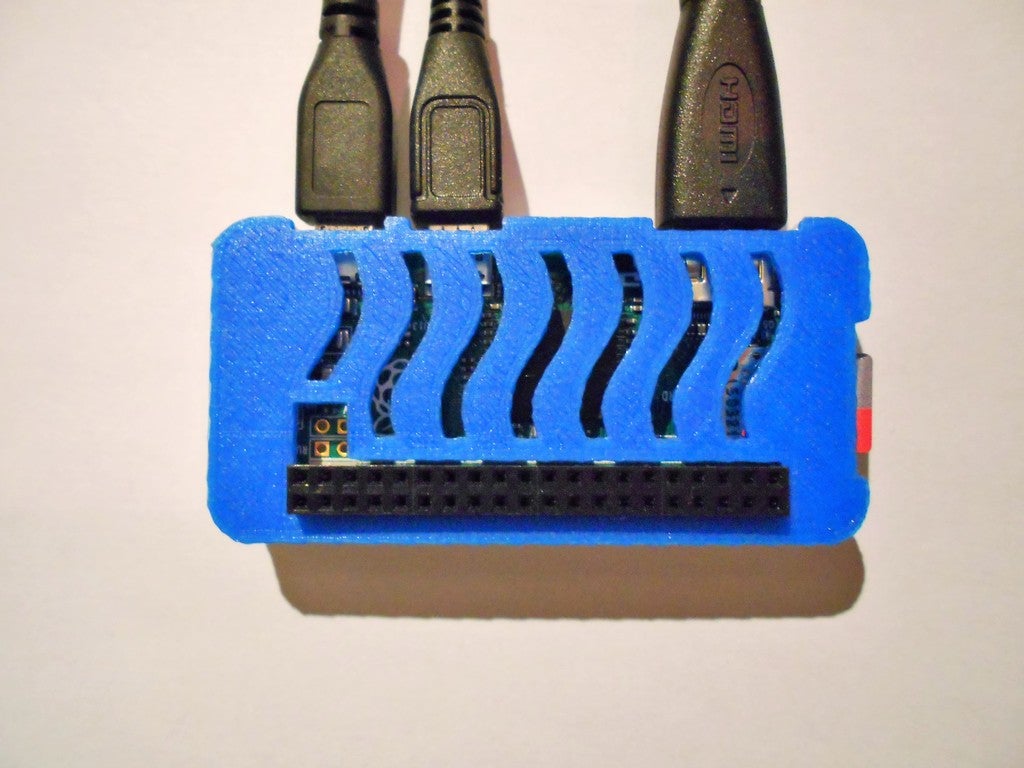

This is a simple case for the Raspberry Pi Zero. This two piece design has access to all GPIOs and cutouts for all ports of the pi (micro USB, mini HDMI and micro SD).

Print instructions

Category: Computer Summary

This is a simple case for the Raspberry Pi Zero. This two piece design features standoffs so you can solder on whatever you want, access to all GPIOs and cutouts for all ports of the pi (micro USB, mini HDMI and micro SD).

There are two versions :

• The v1.2, for the raspberry pi zero without the camera port.

• The v1.3, for the raspberry pi zero with the camera port.
  The 0.4 versions have a 0.4mm tolerance, others have a 0.8mm tolerance to accommodate printers that have a harder time printing the 0.4mm parts.

  If you have ideas for improvements feel free to leave a comment.

  Print Settings

Rafts:

No

Supports:

0.2

Infill:

20%

</div> How I Designed This

This case for the Raspberry Pi Zero was designed using Fusion 360.

The measurements are from [https://www.raspberrypi.org/documentation/hardware/raspberrypi/mechanical/rpi-zero-v1\_2\_dimensions.pdf](https://www.raspberrypi.org/documentation/hardware/raspberrypi/mechanical/rpi-zero-v1\_2\_dimensions.pdf)
